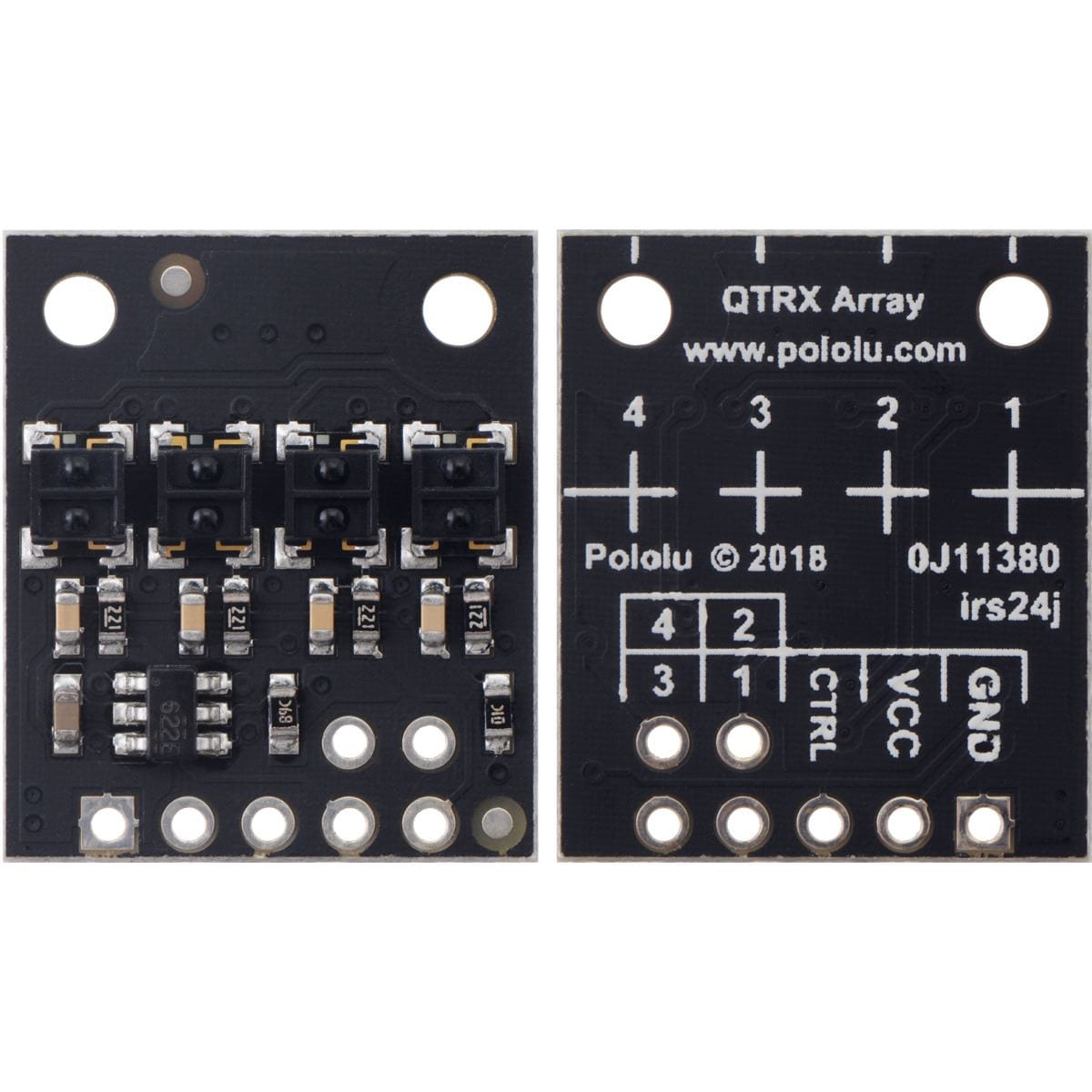

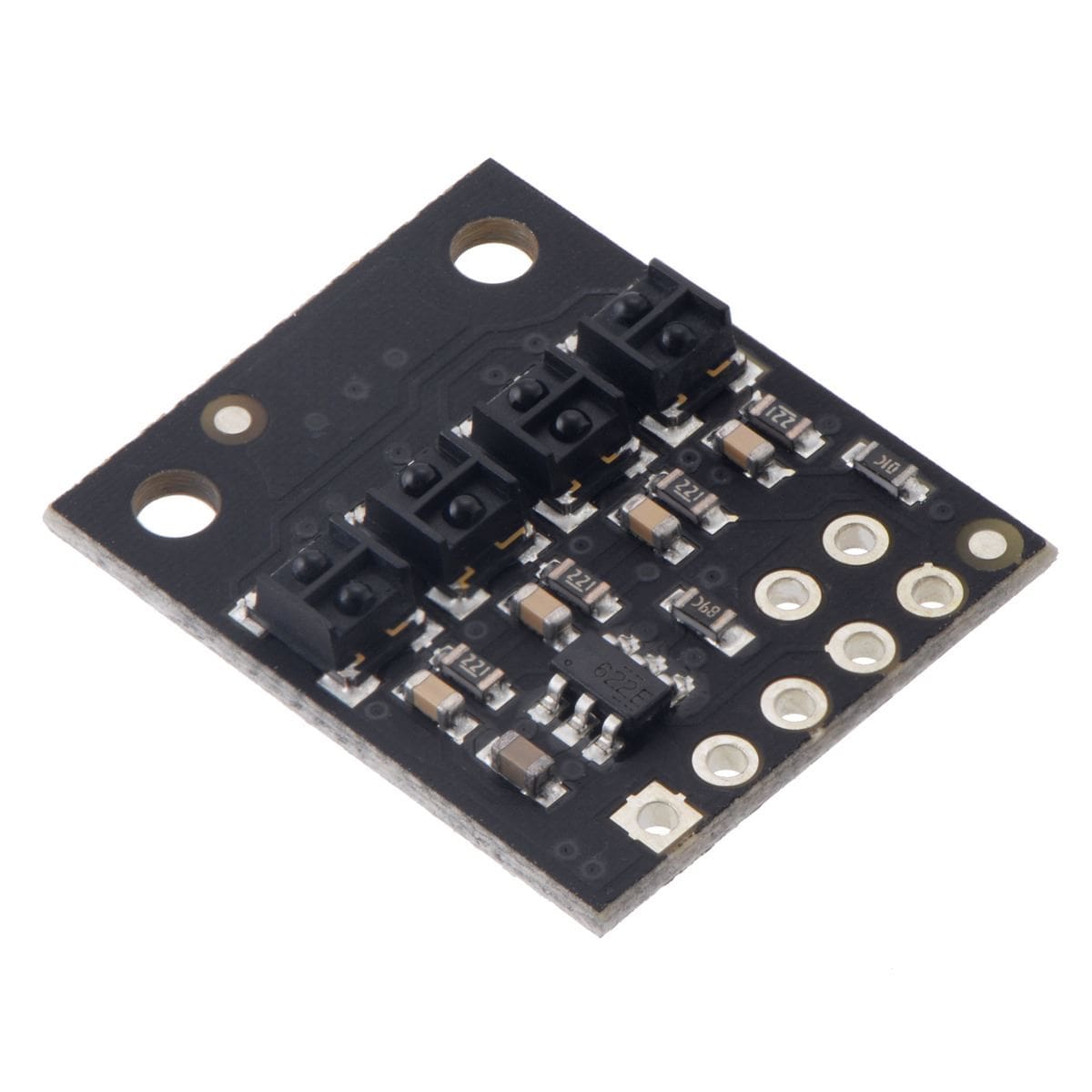

Pololu QTRX-HD-04RC Reflectance Sensor Array: 4-Channel, 4mm Pitch, RC

PololuSKU: POL-4304
Price:
Sale price £5.28 Regular price £6.60
incl. VAT
excl. VAT
Save 20%
Stock:
Only 6 units left
Quantity:

Awesome Extras

Break-away 0.1" 36-pin male headers (Black 10-pack) - The Pi HutBreak-away 0.1" 36-pin male headers (Black 10-pack) - The Pi Hut
Antex Lead Free Solder - 4m Tube
AntexAntex Lead Free Solder - 4m Tube
Sale price £4.40 incl. VAT excl. VAT
Prototyping Wire Spool Set - 10 Spool - The Pi HutPrototyping Wire Spool Set - 10 Spool - The Pi Hut

This Pololu IR LED/phototransistor pair is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and offers dimmable brightness control independent of the supply voltage.

In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 40 mm. This version features a high-performance, low-current QTRX sensor with lenses.

This is the 4-channel, 4mm pitch RC (digital output) version. We also offer an analog output version.

Our Arduino library makes it easy to use these sensor modules with an Arduino or compatible controller by providing methods for controlling the emitters, calibrating the module, and reading the individual sensor values. It also has a method specifically for line-following applications to compute the location of the line under the array.

Note: Unlike most Pololu products, these sensor arrays do not ship with any headers or connectors included, so you will need to supply your own or solder wires directly to the board to use it.

QTR family overview

These Pololu reflectance sensors feature a linear array of infrared emitter/phototransistor pair modules which makes them well suited for applications that require detection of changes in reflectivity. This change in reflectivity can be due to a colour change at a fixed distance, such as when sensing a black line on a white background, as well as due to a change in the distance to or presence of an object in front of the sensor. A variety of sensor counts and densities is available in the store so you can pick the ideal arrangement for your application.

Unlike our original QTR sensor modules, these units have integrated LED drivers that provide brightness control independent of the supply voltage, which can be anywhere from 2.9 V to 5.5 V, while enabling optional dimming to any of 32 possible brightness settings

For high-density (HD) modules with five or more sensors and medium-density (MD) modules with eleven or more sensors, there are separate controls for the odd-numbered and even-numbered LEDs, which gives you extra options for detecting light reflected at various angles. See the “Emitter control” section below for more information on using this feature.

Two different sensor options are available, denoted by “QTR” or “QTRX” in the product name. The “QTR” versions feature lower-cost sensor modules without lenses while the “QTRX” versions feature higher-performance sensor modules with lenses, which allow similar performance at a much lower IR LED current.

Each sensor option is available in two output types: an “A” version with analog voltage outputs between 0 V and VCC, and an “RC” version with outputs that can be read with a digital I/O line on a microcontroller by first setting the lines high and then releasing them and timing how long it takes them to read as low (typically anywhere from a few microseconds to a few milliseconds). The lower the output voltage or shorter the voltage decay time, the higher the reflectance.

Interfacing with the outputs of the RC versions

Each sensor on the RC versions requires a digital I/O line capable of driving the output line high and then measuring the time for the output voltage to decay. The typical sequence for reading a sensor is:

  • Turn on IR LEDs (optional)
  • Set the I/O line to an output and drive it high
  • Allow at least 10 μs for the sensor output to rise
  • Make the I/O line an input (high impedance)
  • Measure the time for the voltage to decay by waiting for the I/O line to go low
  • Turn off IR LEDs (optional)

These steps can typically be executed in parallel on multiple I/O lines.

With a strong reflectance, the decay time can be as low as a few microseconds; with no reflectance, the decay time can be up to a few milliseconds. The exact time of the decay depends on your microcontroller’s I/O line characteristics. Meaningful results can be available within 1 ms in typical cases (i.e. when not trying to measure subtle differences in low-reflectance scenarios), allowing up to 1 kHz sampling of all sensors. If lower-frequency sampling is sufficient, you can achieve substantial power savings by turning off the LEDs. For example, if a 100 Hz sampling rate is acceptable, the LEDs can be off 90% of the time, lowering average current consumption from 125 mA to 13 mA.

Emitter control

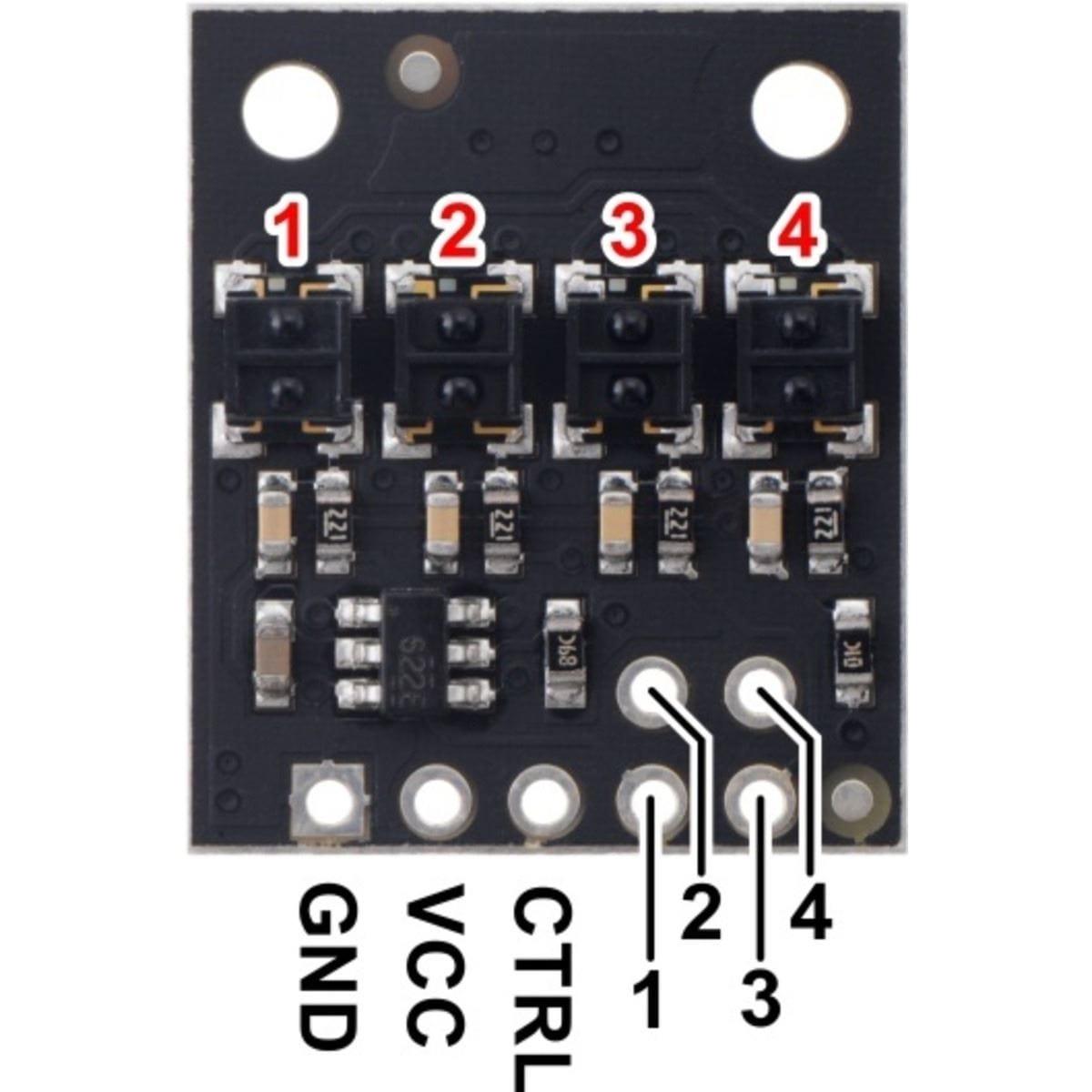

These reflectance sensor arrays maintain a constant current through their IR emitters, keeping the emitters’ brightness constant, independent of the supply voltage (2.9 V to 5.5 V). The emitters can be controlled with the board’s CTRL pins, and the details of the control depends on the array size and density:

  • HD units with 5 or more sensors and MD units with 11 or more sensors have two emitter control pins: CTRL ODD and CTRL EVEN. By default, these are connected together with a 1 kΩ resistor and pulled up, turning on all the emitters by default and allowing them to be controlled with a signal on either pin, but the CTRL ODD and CTRL EVEN pins can be driven separately for independent control of the odd-numbered and even-numbered emitters.
  • MD units with 3-10 sensors also have two emitter control pins since these are made by only populating every other sensor on an HD board, but only the CTRL ODD pin will have an effect on these versions (it is not possible to independently control alternate emitters).
  • HD units with 4 or fewer sensors and MD units with 2 or fewer sensors have a single CTRL pin that controls all of the emitters.

Driving a CTRL pin low for at least 1 ms turns off the associated emitter LEDs, while driving it high (or allowing the board to pull it high) turns on the emitters with the board’s default (full) current, which is 30 mA for “QTR” versions and 3.5 mA for “QTRX” versions. For more advanced use, the CTRL pin can be pulsed low to cycle the associated emitters through 32 dimming levels.

To send a pulse, drive the CTRL pin low for at least 0.5 μs (but no more than 300 μs), then high for at least 0.5 μs; (it should remain high after the last pulse). Each pulse causes the driver to advance to the next dimming level, wrapping around to 100% after the lowest-current level. Each dimming level corresponds to a 3.33% reduction in current, except for the last three levels, which represent a 1.67% reduction, as shown in the table below. Note that turning the LEDs off with a >1 ms pulse and then back on resets them to full current.

For example, to reduce the emitter current to 50%, apply 15 low pulses to the CTRL pin and then keep it high after the last pulse.

Dimming
Level
(Pulses)
Emitter
Current
(%)
Dimming
Level
(Pulses)
Emitter
Current
(%)
0 100.00% 16 46.67%
1 96.67% 17 43.33%
2 93.33% 18 40.00%
3 90.00% 19 36.67%
4 86.67% 20 33.33%
5 83.33% 21 30.00%
6 80.00% 22 26.67%
7 76.67% 23 23.33%
8 73.33% 24 20.00%
9 70.00% 25 16.67%
10 66.67% 26 13.33%
11 63.33% 27 10.00%
12 60.00% 28 6.67%
13 56.67% 29 5.00%
14 53.33% 30 3.33%
15 50.00% 31 1.67%

Specifications

  • Operating voltage: 2.9V to 5.5V
  • Sensor type: QTRX
  • Sensor count: 4
  • Sensor pitch: 4mm
  • Full-brightness LED current: 3.5 mA (independent of supply voltage)
  • Max board current: 9 mA
  • LED Current: 3.5mA
  • Output format: (RC) (measurable by digital I/O)
  • Optimal sensing distance: 10 mm
  • Peak wavelength: 940nm
  • Maximum recommended sensing distance: 40 mm

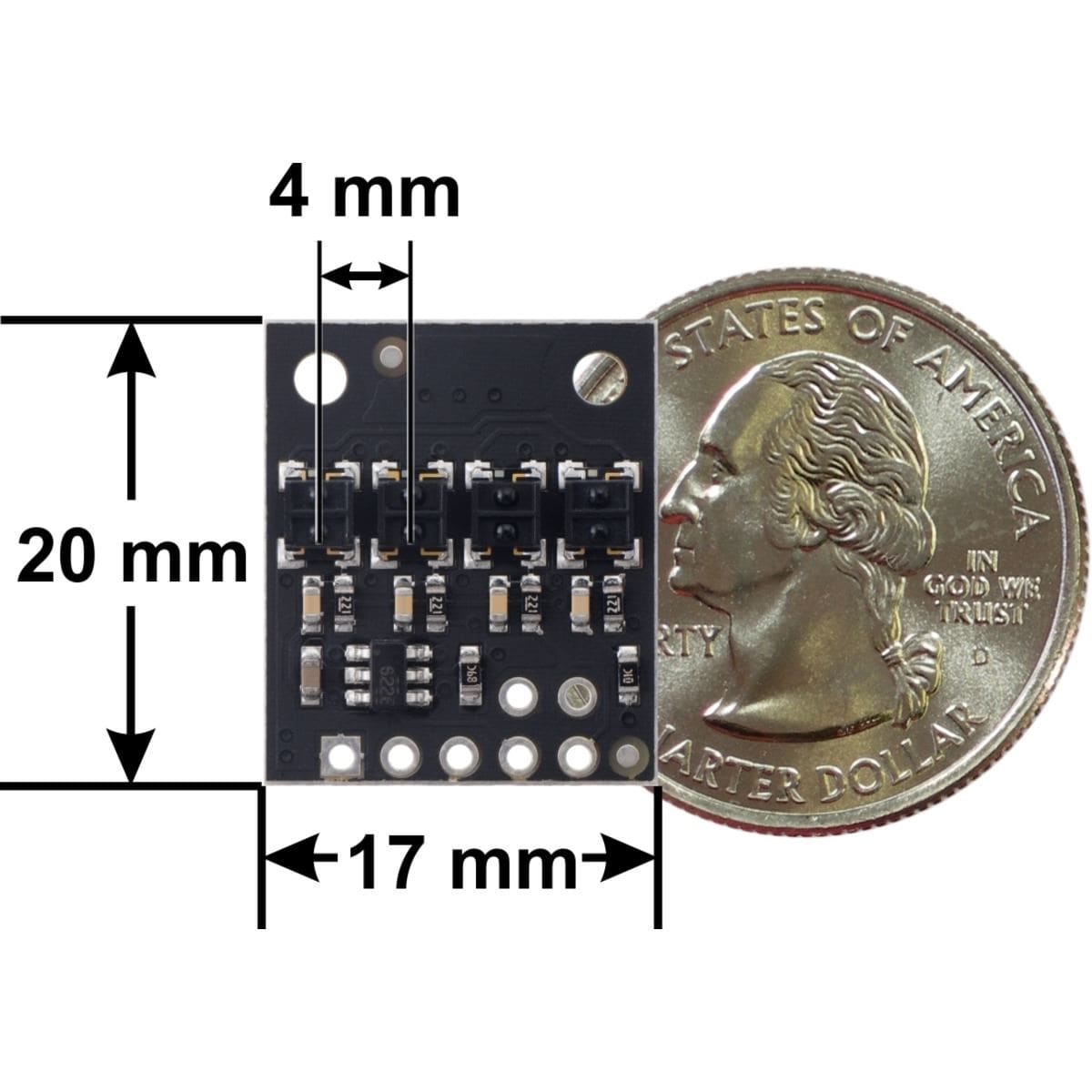

  • Dimensions: 17.0 × 20.0 × 3.0mm (see the dimension diagram for more details)
  • Weight: 1.0 g
