Pololu Ideal Diode Reverse Voltage Protector - 4-60V 12A
Price:
Sale price
£2.10
Stock:
Quantity:
Awesome Extras

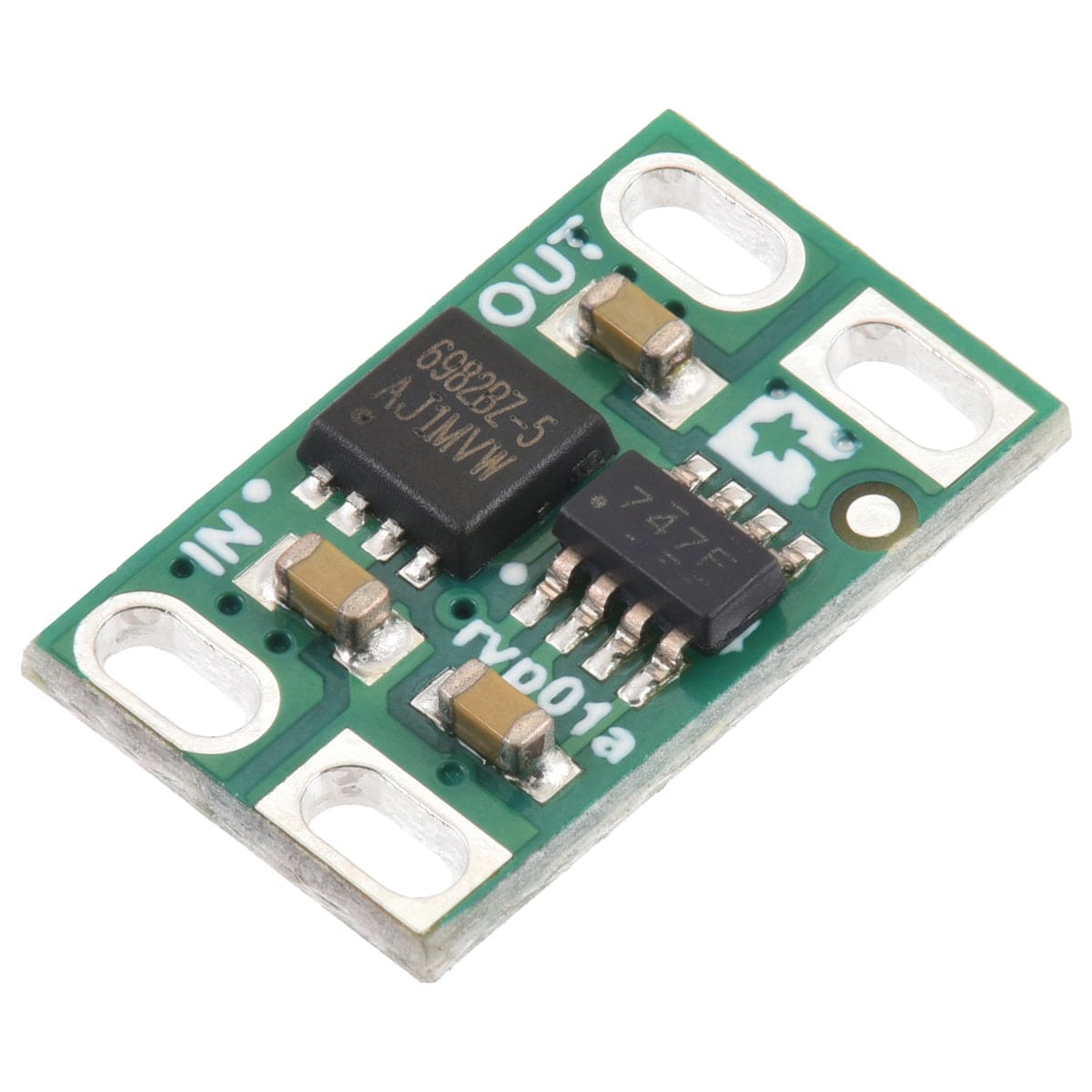

This module from Pololu protects a connected load from reverse voltages down to -60 V. This version acts as an ideal diode, blocking reverse current from output to input.
Pololu Reverse Voltage Protectors are compact modules that can be inserted between a power supply and its load to protect that load from damage in the case of accidental reversal of power polarity. They operate from 4V (3.2V after startup) to 60V, provide protection from negative voltages down to -60V, and have a VIN path impedance of approximately 5 mΩ when the MOSFET is on (i.e. when power is connected with the proper polarity), enabling currents up to around 12A continuous (and up to around 40A for a few seconds).

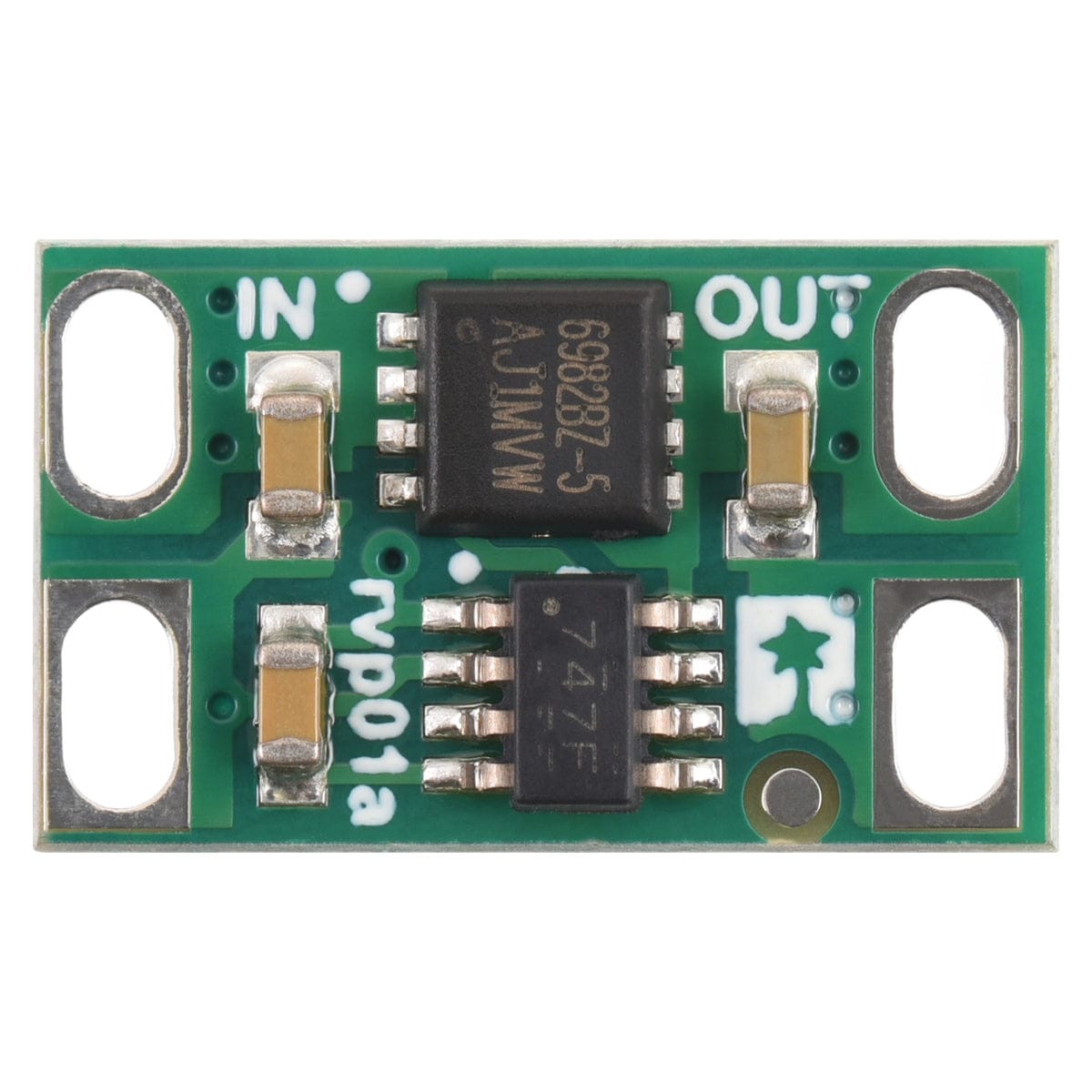

This version comes with reverse current blocking, acting as an ideal diode, preventing any current from flowing from the load back into the supply. This module uses an LM74700-Q1 reverse voltage protection ideal diode controller and N-channel MOSFET to protect from negative voltages down to -60V.
We also stock a version without reverse current blocking. for applications such as battery-powered motor control where the ability to deliver energy back into the supply is desirable.
Note: Any voltage on the output will reduce the 60V maximum rating. For example, if there is a large capacitor charged to 24V on the ouput, the minimum negative voltage would be -36V.
Connections
Supply power and ground connect to the VIN and GND side of the board, and the VOUT and GND pins connect to the load.
If the supply is connected correctly, with its positive voltage on VIN, the power will pass through the board to VOUT. If the supply is connected incorrectly, with the positive voltage on GND, supply power will not pass through to the output, and any connected load will be protected from the reversed supply voltage.

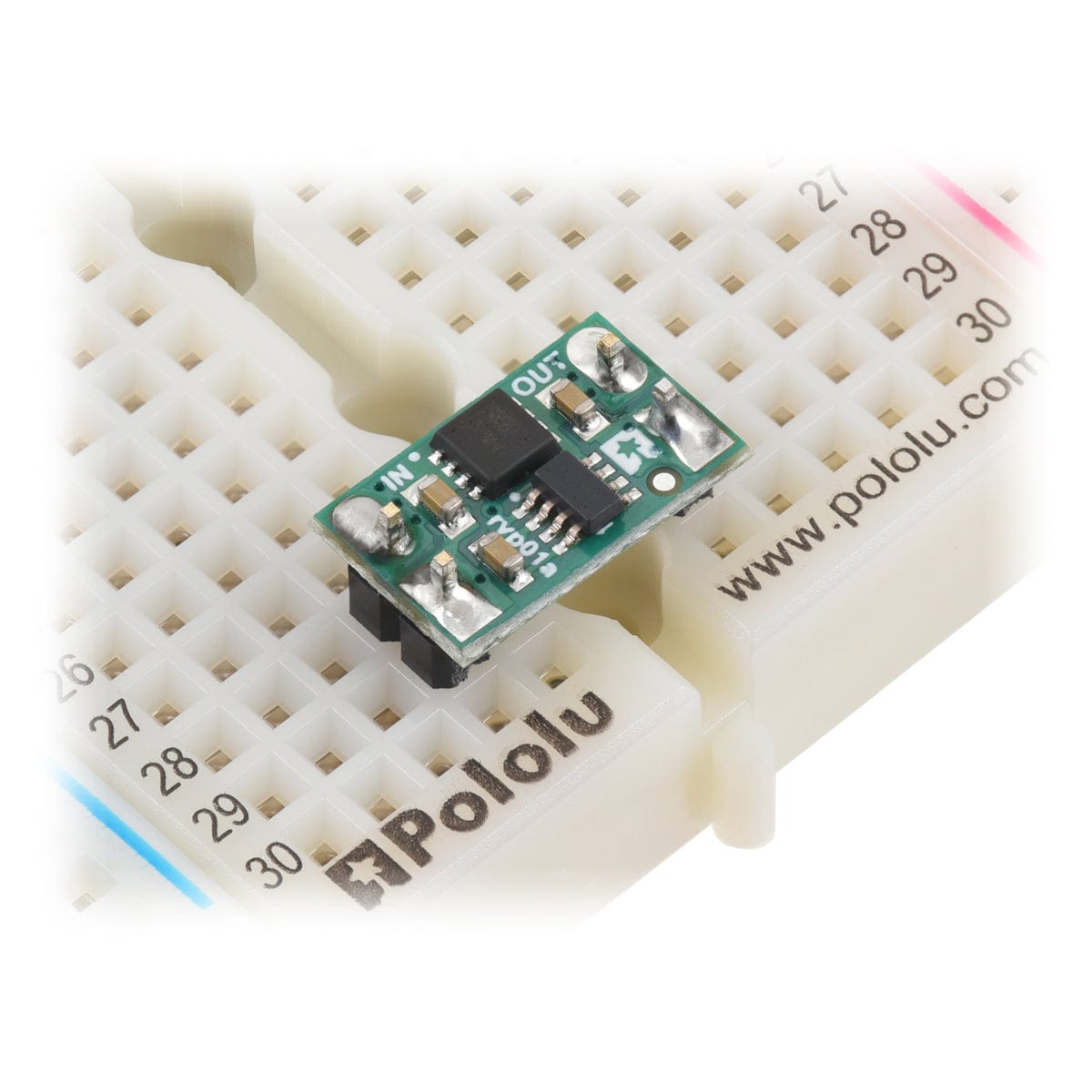

The input and output slots can accommodate a variety of connectors, including 5mm-pitch terminal blocks, 3.5mm-pitch terminal blocks, 0.2″-pitch headers, and 0.1″-pitch headers.
Optional TVS diode mounting location

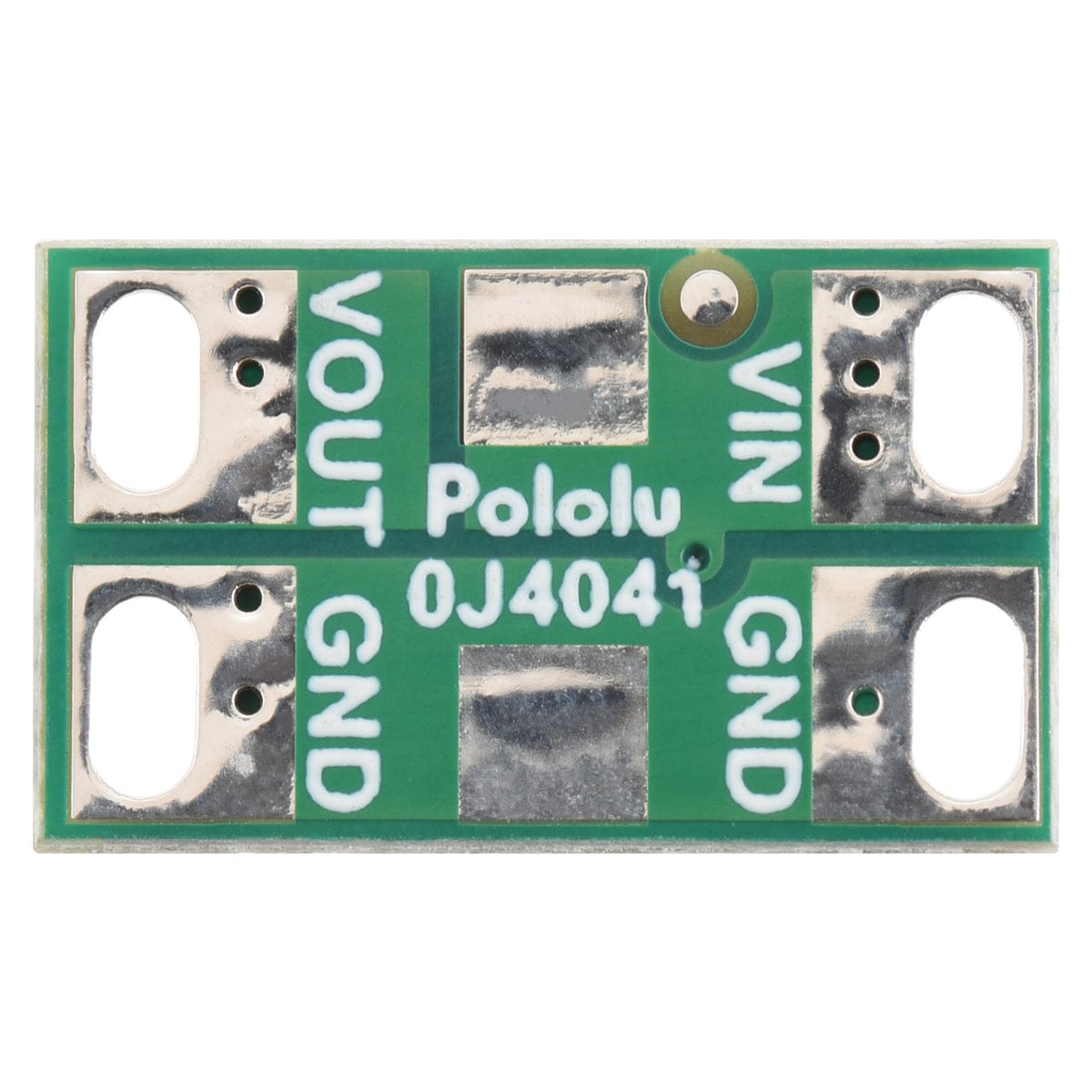

There are pads for adding an optional SMB-size transient voltage suppressor (TVS) across VIN and GND on the bottom side of the board:
Specifications
| Minimum operating voltage | 4V Can operate down to 3.2V after startup |
| Maximum operating voltage | 60V |
| Maximum current | 12A |
| Reverse current blocking | Y |

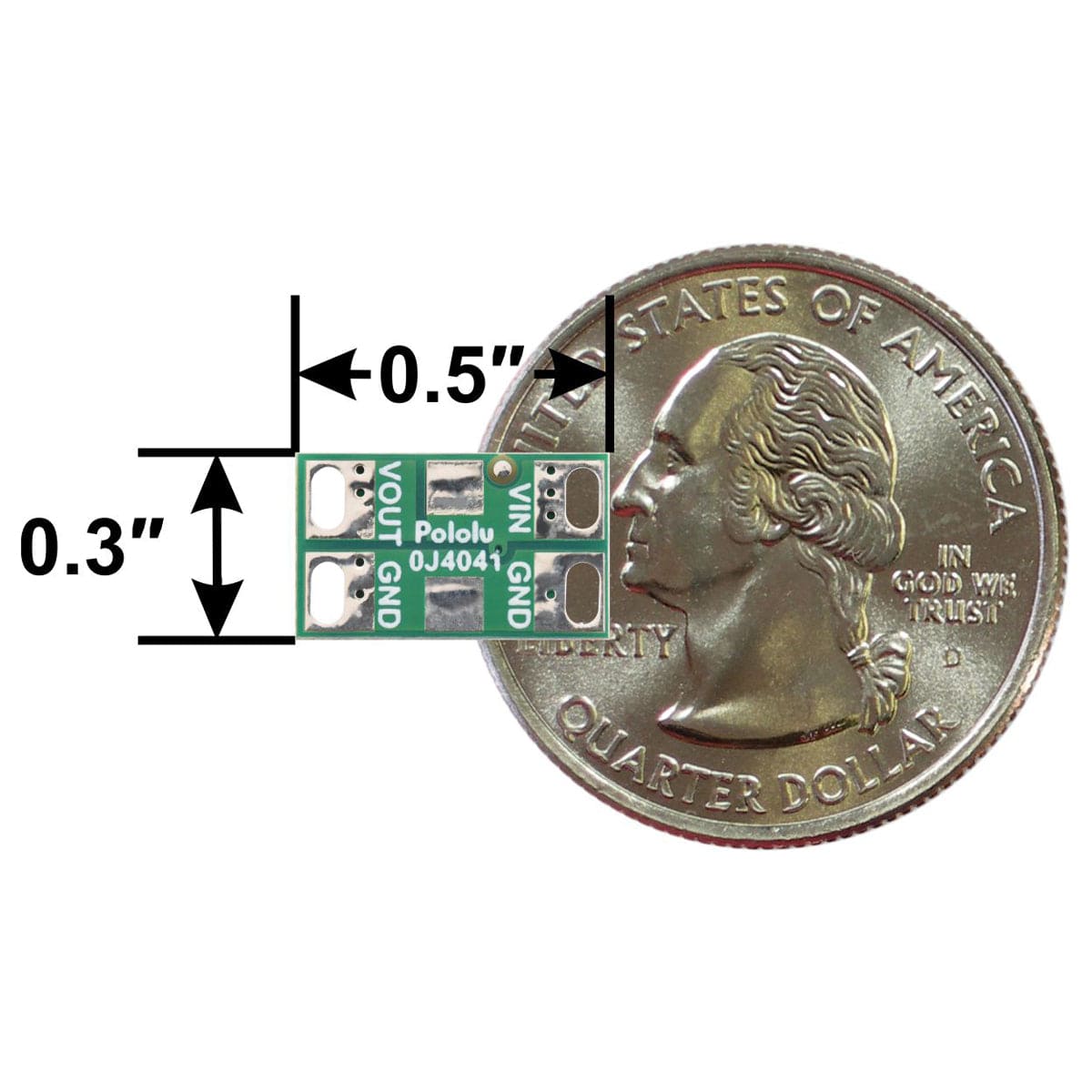

| Size | 0.3″ × 0.5″ × 0.08″ |
| Weight | 0.2 g |
Resources
Package Contents
- 1x Pololu Ideal Diode Reverse Voltage Protector 4-60V 12A
