Pololu 3.3V Step-Up Voltage Regulator U3V16F3

PololuSKU: POL-4940
Sale price £4.80
incl. VAT
excl. VAT
Only 9 units left

Awesome Extras

The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
Sale price £12 incl. VAT excl. VAT
AntexAntex Lead Free Solder - 4m Tube
Sale price £4.40 incl. VAT excl. VAT
The Pi HutFull-Size Breadboard - White
Sale price £5 incl. VAT excl. VAT

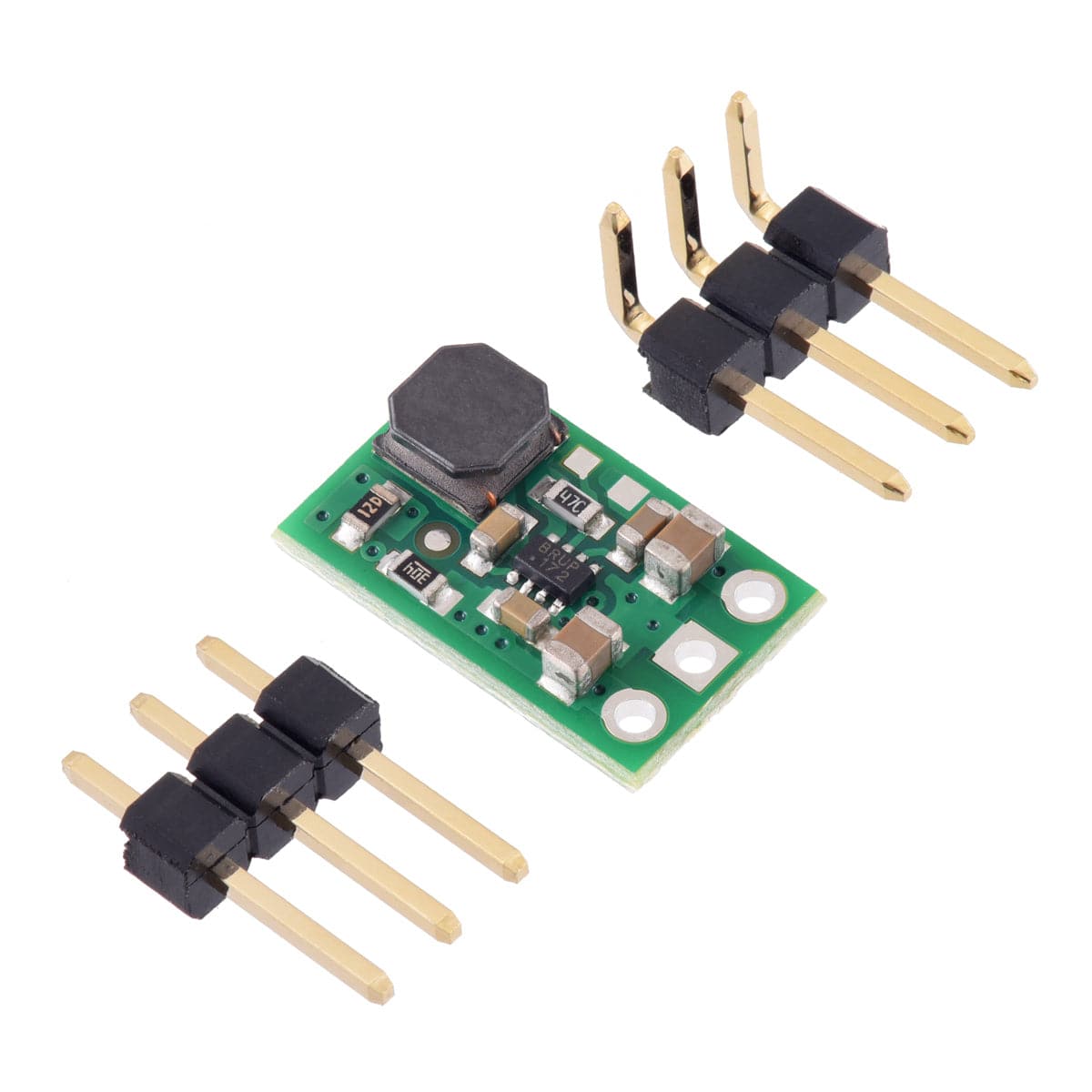

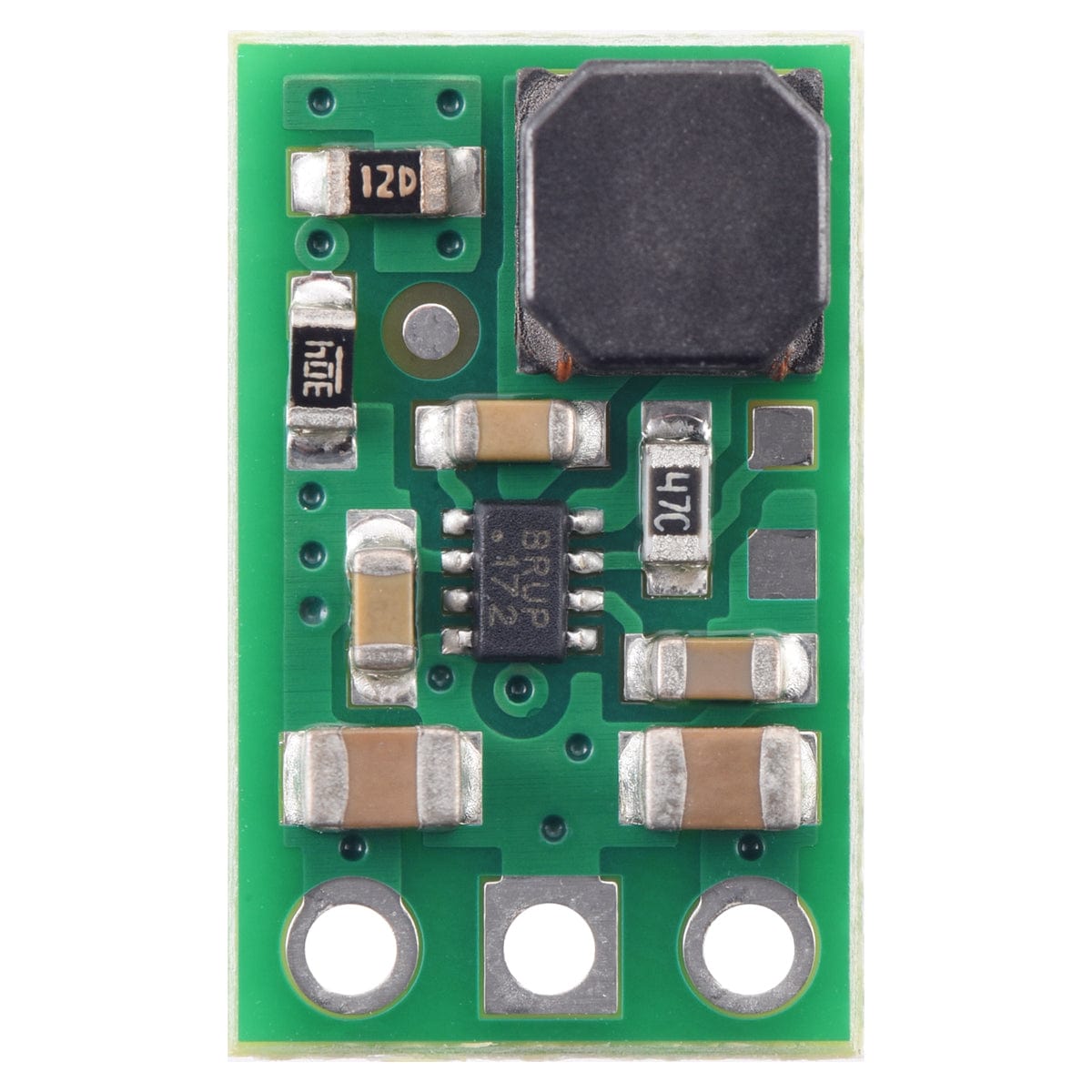

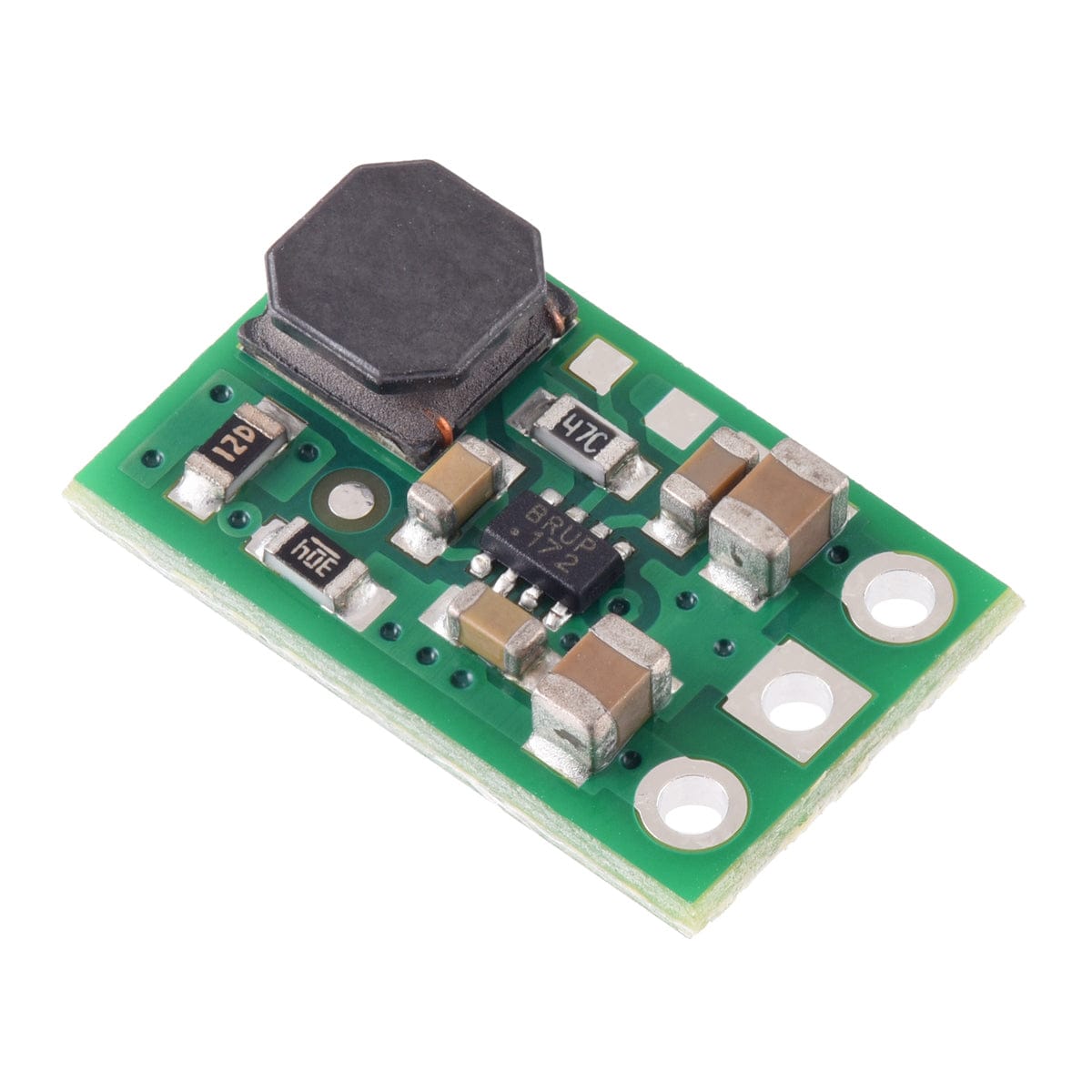

This compact switching step-up (or boost) voltage regulator efficiently generates 3.3V from input voltages as low as 1.3V and handles continuous input currents up to around 1.6A. (Note: minimum start-up voltage is 2.7V, but it operates down to 1.3V after that.)

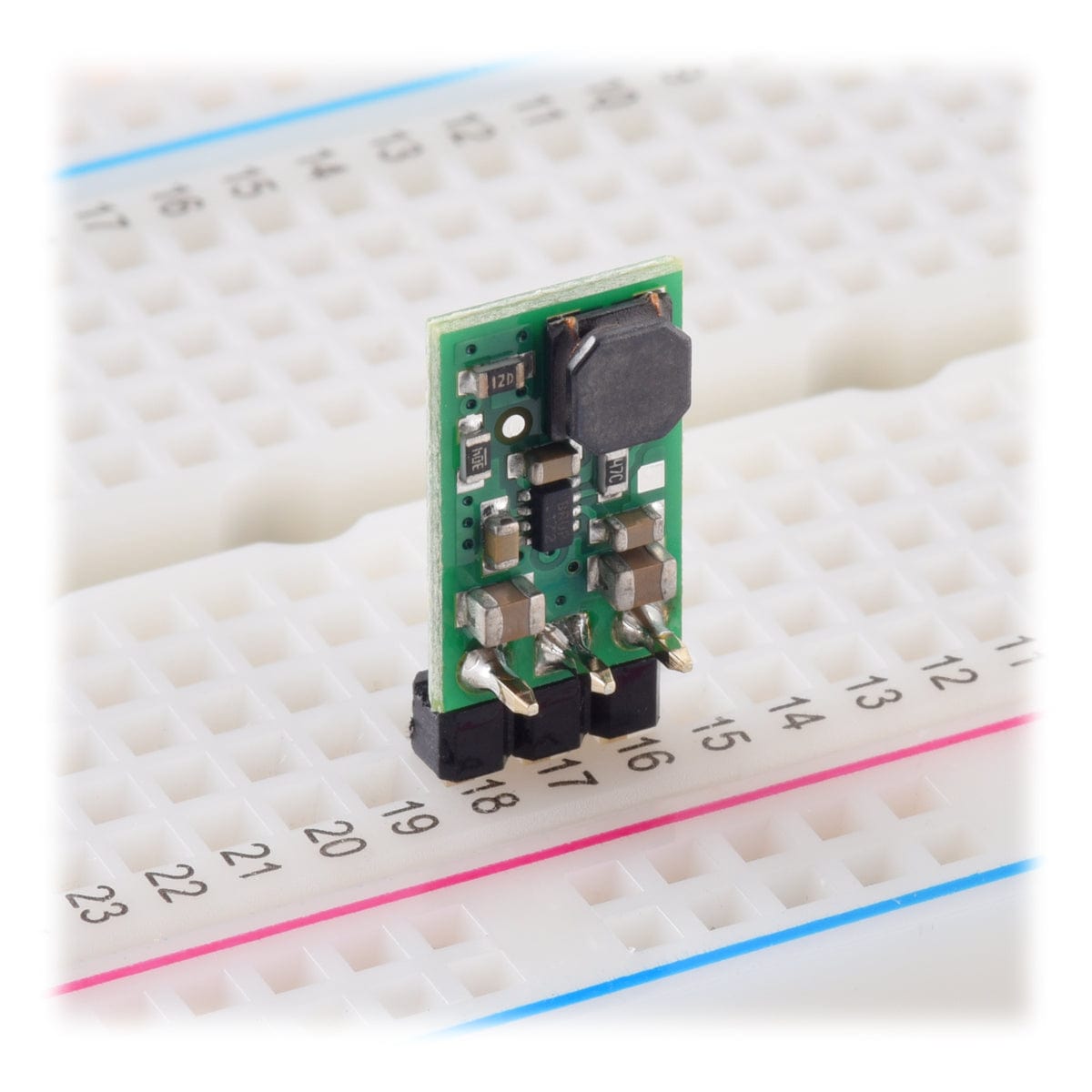

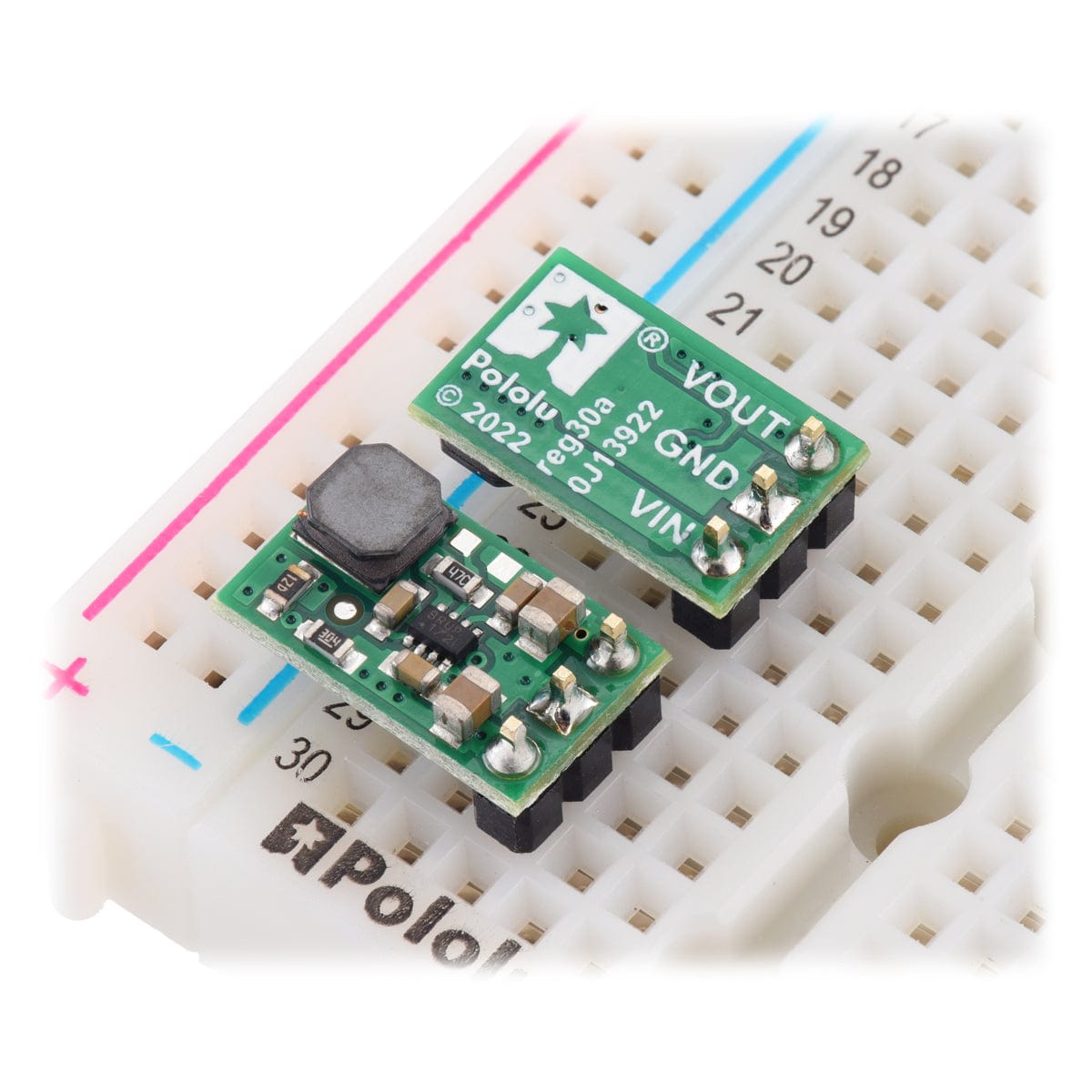

The pins have a 0.1″ spacing, making this board compatible with standard solderless breadboards and perfboards.

The U3V16Fx family of boost (step-up) voltage regulators are switching regulators (also called switched-mode power supplies (SMPS) or DC-to-DC converters) and have a typical efficiency between 85% to 95%.

The regulators actively limit the instantaneous input currents to 2A when boosting, and input currents up to around 1.6A can typically be maintained for many minutes without triggering thermal shutdown, though the actual performance depends on the input and output voltages as well as external factors such as ambient temperature and airflow. For boost regulators, the output current equals the input current times the efficiency divided by the boost ratio of VOUT to VIN, so the more you are boosting, the lower the maximum output current will be (see the maximum continuous output current section below for performance graphs).

These regulators feature a variety of built-in protections, including cycle-by-cycle input current limiting, under-voltage lockout, and over-temperature shutdown.

Warning: This boost regulator uses the typical topology that connects the input to the output through an inductor and diode, with nothing to completely break that current path. Therefore, the input voltage will go through to the output even when the regulator is disabled, and exposure to short circuits or other excessive loads will damage the regulator. This regulator also does not have protection against reverse voltage.

During normal operation, this product can get hot enough to burn you. Take care when handling this product or other components connected to it.


  • Output voltage: 3.3V with 4% accuracy
  • Input voltage: 1.3V to 16V (Note: minimum start-up voltage is 2.7V)
  • Typical efficiency of 85% to 95%, depending on input voltage, output voltage, and load (see the efficiency graph below)
  • Switching frequency: ~1.2 MHz under heavy loads
  • Power-save mode that increases light load efficiency by reducing switching frequency
  • Typical no-load quiescent currents under 1 mA (see the quiescent current graph below)
  • 2A switch current limit
  • Typical continuous input currents up to around 1.6A (see the maximum continuous output current graph below)
  • Tolerates input voltage above output set voltage (output will track input, see the connections section for details)
  • Integrated protections:
    • Over-temperature shutdown
    • Soft-start feature limits inrush current and gradually ramps output voltage
    • Under-voltage lockout
  • Compact size: 13.1 × 8.1 × 3mm
  • Weight: 0.4g


Minimum operating voltage 1.3V
Maximum operating voltage 16V
Maximum input current 2A
Output voltage 3.3V
Reverse voltage protection? N

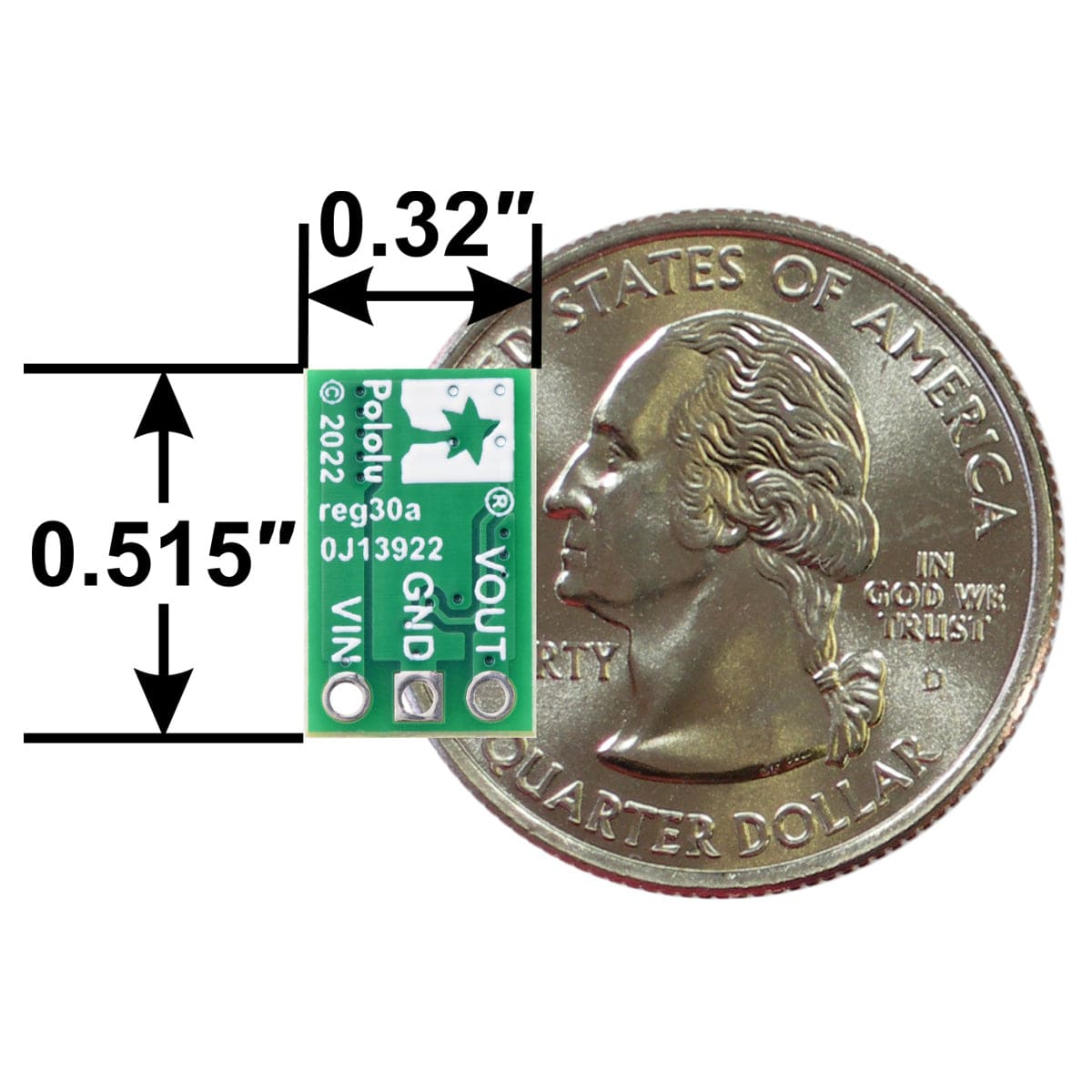

Size 0.32″ × 0.515″ × 0.1″
Weight 0.4g


The input voltage, VIN, must initially be at least 2.7 V and should not exceed 16 V. Once the regulator is on, VIN can fall as low as 1.3 V and the regulator will continue to operate. Please note that if VIN is higher than VOUT, the higher input voltage will show up on the output, which could be dangerous for your connected load if it cannot tolerate that higher voltage. The regulator itself should generally be able to tolerate such pass-through voltages as long as they do not exceed 16 V and the load is not trying to draw currents through the regulator that are beyond what the regulator can withstand.

VOUT is the regulated output voltage. The regulator’s soft-start feature gradually ramps up the VOUT voltage on start-up to limit in-rush current draw. The U3V16Fx regulators do not have short-circuit protection, so they could be damaged if exposed to output shorts or excessive loads.

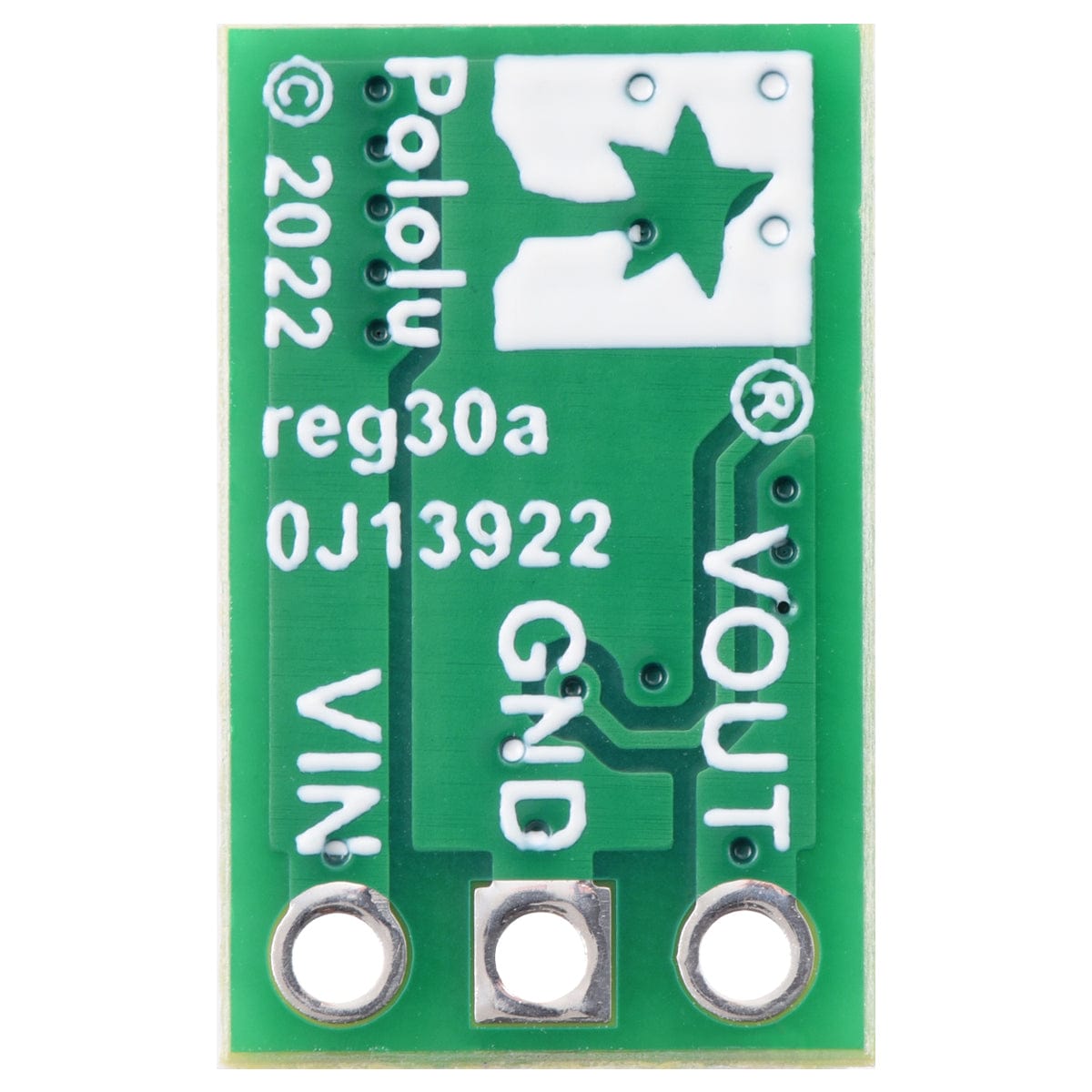

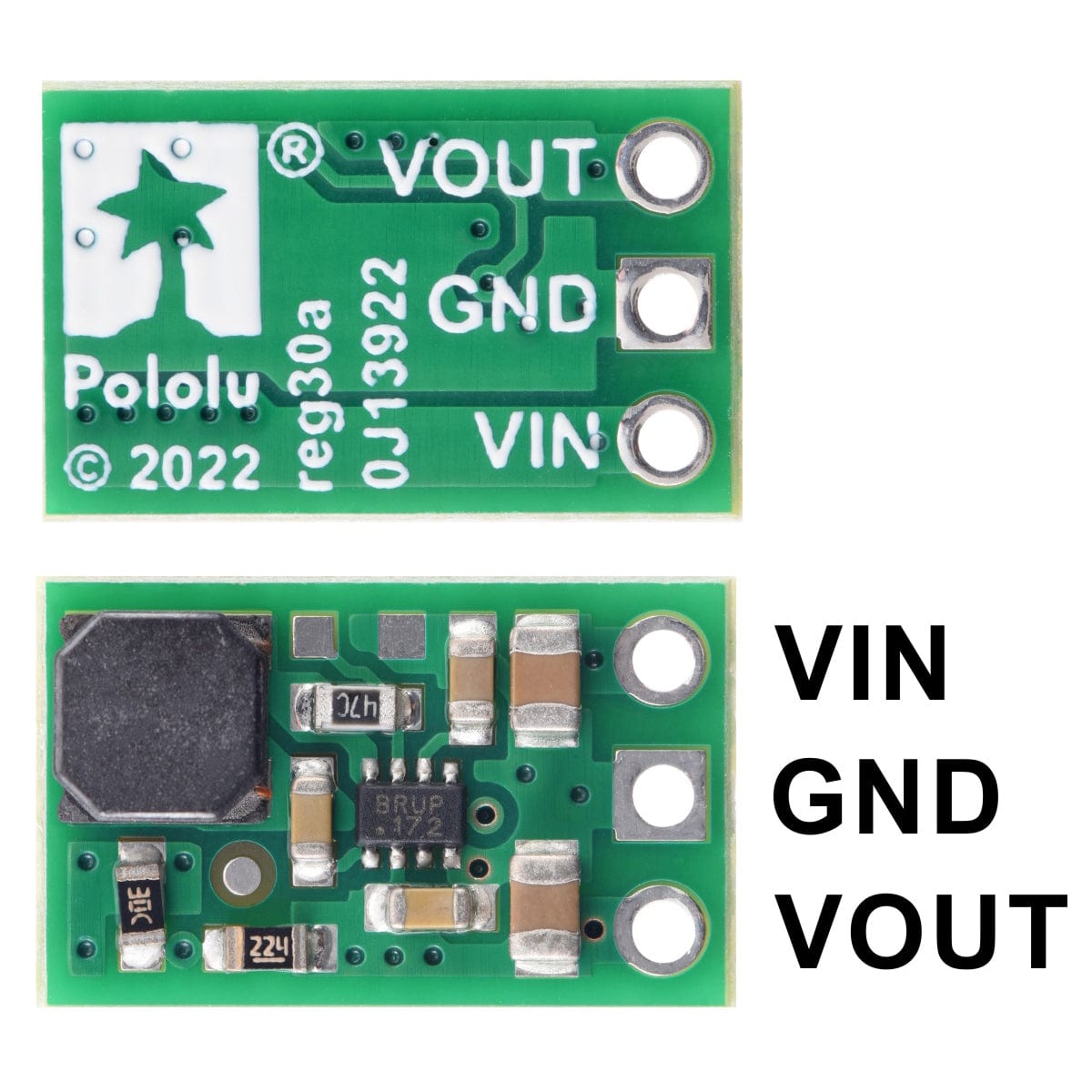

The connections are labelled on the back side of the PCB and are arranged with a 0.1″ spacing along the edge of the board for compatibility with solderless breadboards, connectors, and other prototyping arrangements that use a 0.1″ grid. You can solder wires directly to the board or solder in either the 1×3 straight male header strip or the 1×3 right-angle male header strip that are included.

Typical efficiency

The efficiency of a voltage regulator, defined as (Power out)/(Power in), is an important measure of its performance, especially when battery life or heat are concerns.

Maximum continuous output current

The maximum achievable output current is approximately proportional to the ratio of the input voltage to the output voltage. Additionally, the maximum output current can depend on other factors, including the ambient temperature and air flow. The graph below shows the typical maximum continuous output currents these regulators can deliver at room temperature with no forced airflow or heat sinking.

Warning: During normal operation, this product can get hot enough to burn you. Take care when handling this product or other components connected to it.

Quiescent current

The quiescent current is the current the regulator uses just to power itself, and the graph below shows this for the different regulator versions as a function of the input voltage.

LC Voltage Spikes

When connecting voltage to electronic circuits, the initial rush of current can cause damaging voltage spikes that are much higher than the input voltage. In our tests with this family of regulator connected with typical power leads (~30″ test clips), we found that input voltages up to 9 V did not generally cause spikes high enough to damage the regulator itself, but even lower input voltages did cause spikes that could still be problematic for boost regulators operating with the input voltage close to the set output voltage, since input voltages above the set output voltage will propagate to the output and could damage circuits being powered by the regulator. An electrolytic capacitor (33 μF is a good starting point) can be added close to the regulator between VIN and GND to help suppress these spikes.

More information about LC spikes can be found in our application note, Understanding Destructive LC Voltage Spikes.
