PLC Proto Industrial Board Module V11

M5StackSKU: K011-B-V11
Sale price £9.67
incl. VAT
excl. VAT
Only 9 units left

Awesome Extras

M5StackM5Stack LoRa Module (433MHz)
Sale price £8.75 incl. VAT excl. VAT
M5StackM5Stack LoRaWAN UNIT 868MHz (ASR6501) with Antenna
Sale price £11.25 incl. VAT excl. VAT

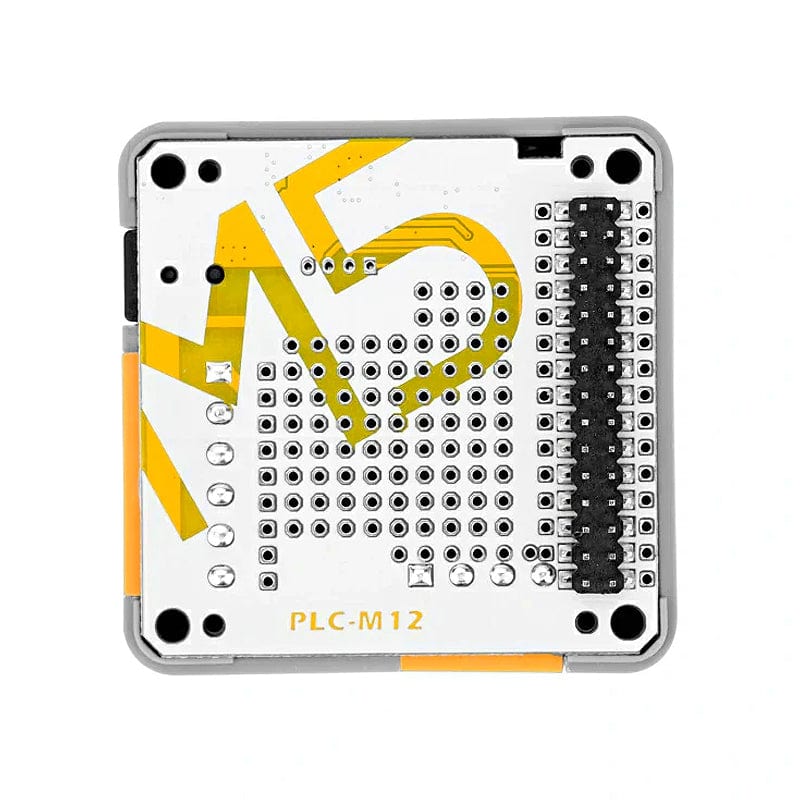

The PLC M12 V1.1 is a base designed for industrial application with a DC Power in 9-24V. Does this PLC remind you of the 'PLC' in industrial control short for 'Programmable Logic Controller'? This PLC base is not the typical 'PLC' used in programmable controllers, but it does enable you to implement the most common controller in the industrial field. Based on the current M5 development system, you can add as many relays as you want, you can enable the TTL-RS485 communication and can lay out your customized circuit on the protoboard. You also can make it a LoRa node by stacking a LoRa module etc. This base gives you an unlimited number of combinations. It is powerful, flexible, and has an industrial-grade case. If you work in an industrial field, we especially recommend this PLC base, which will help with any kind of project you have in mind.

If you need to add the RS485 interface, solder the RS485 board onto the mean board pin correspondingly. The serial port pins on the RS485 board will be connected to the GPIO16 and GPIO17 of the PLC backplane.

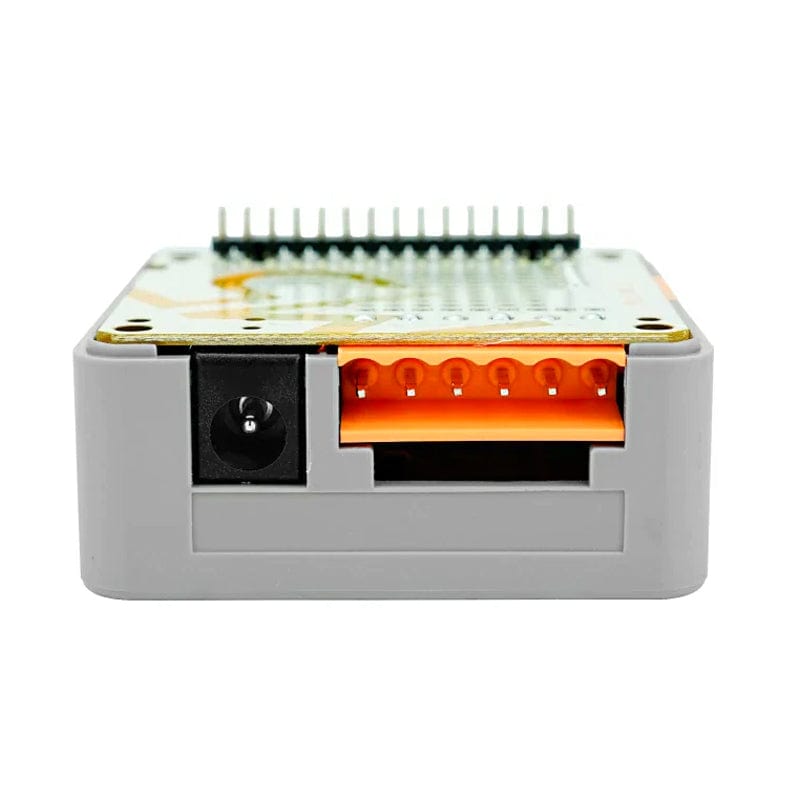

  • Support 9-24V voltage input


Resources Parameters
Product Size 54x54x28mm
Package Size 105x65x40mm
Product Weight 25g
Package Weight 133g

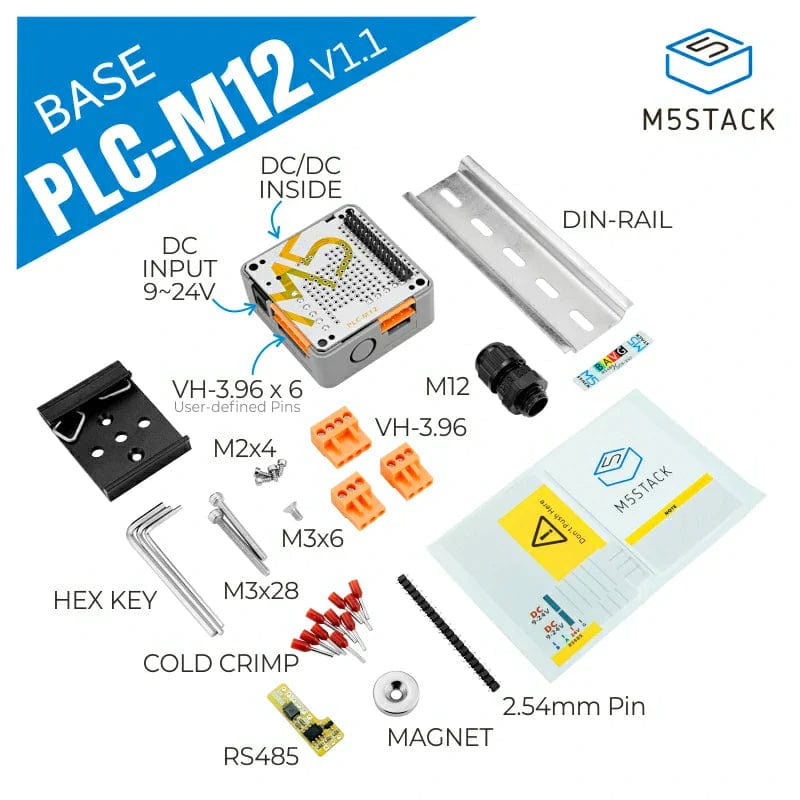

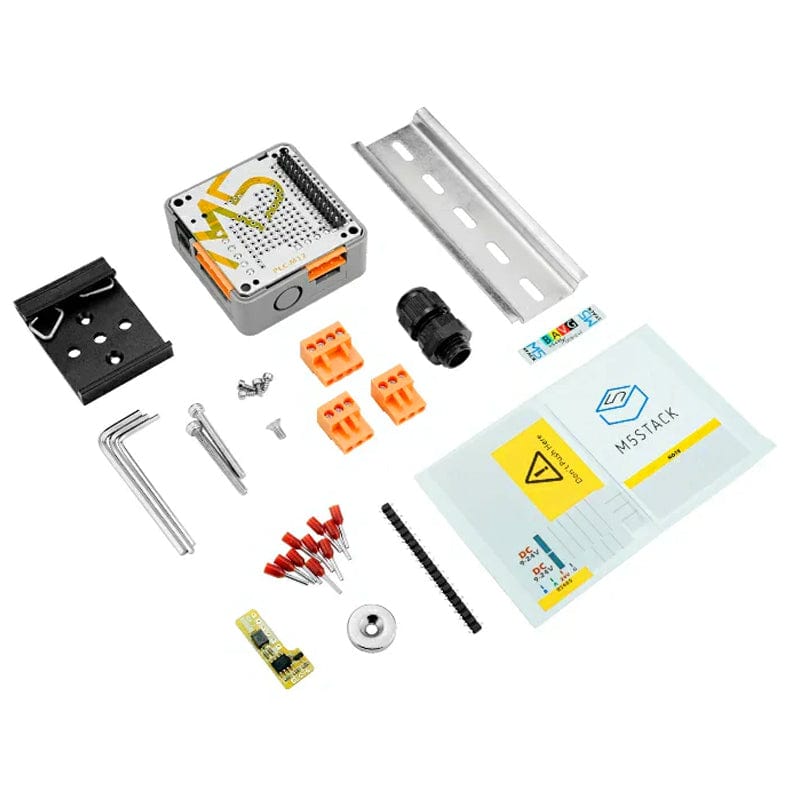

Package Contents

  • 1x PLC Proto Board
  • 1x PLC base housing
  • 1x RS485-To-TTL adapter board
  • 1x HT3.96-4P terminal
  • 2x HT3.96-3P terminals
  • 1x 1.5mm hex key
  • 1x 2.0mm hex key
  • 1x 2.5mm hex key
  • 10x 2mm Crimp Terminals
  • 1x Magnet (with a hole in the middle, diameter 15mm, thickness 3mm)
  • 1x 35mm silver metal rail
  • 1x 35mm black rail clip
  • 2x M3*28mm screws (cup head, mechanical teeth)
  • 4x M2*5mm screws (cup head, self-tapping)
  • 1x Cable gland (M12)
  • 1x 2.54mm-20P straight pin header (total height 5.32mm)
  • 1x Product sticker
