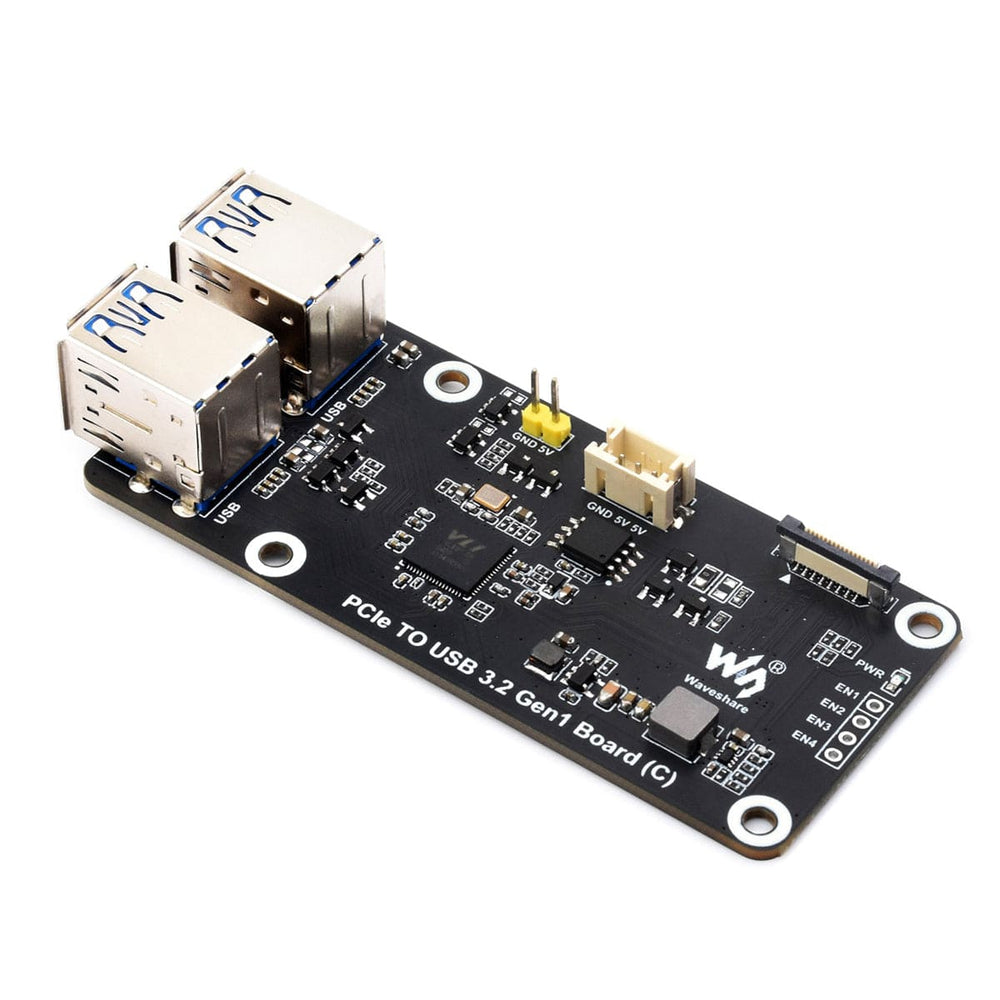

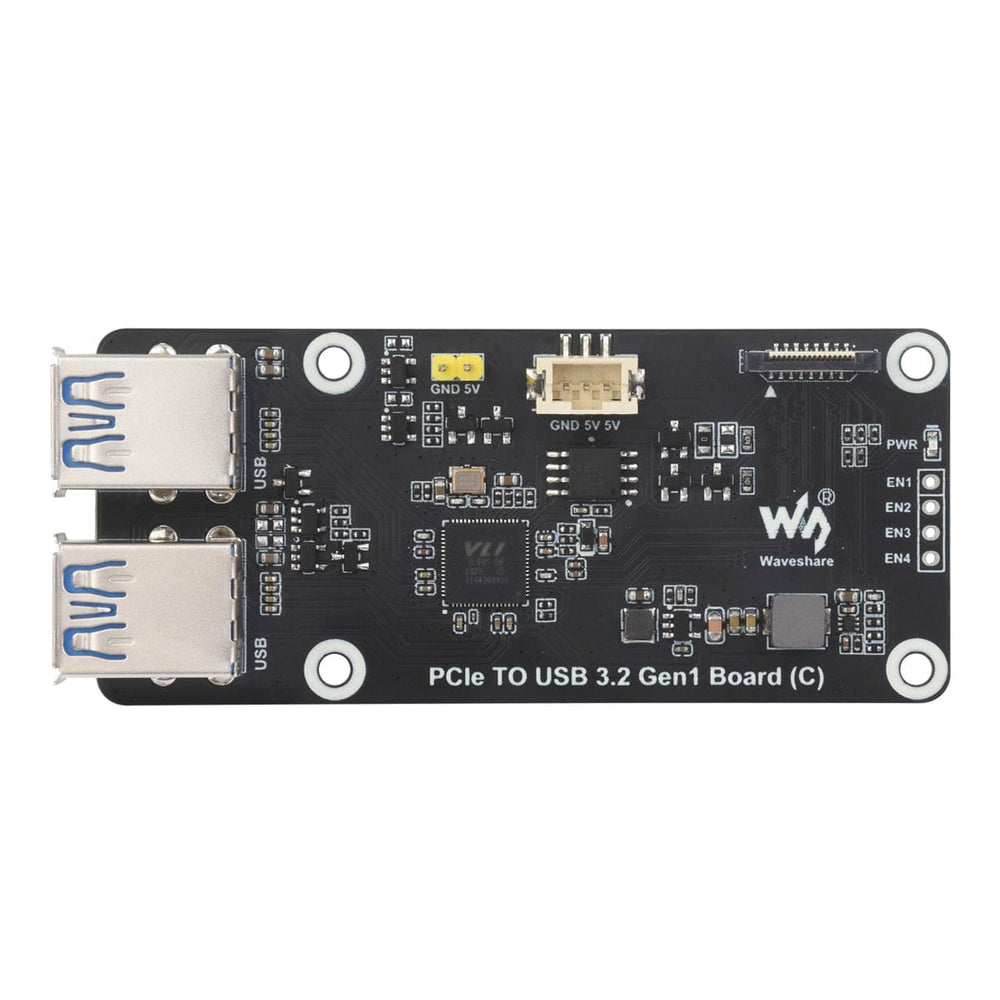

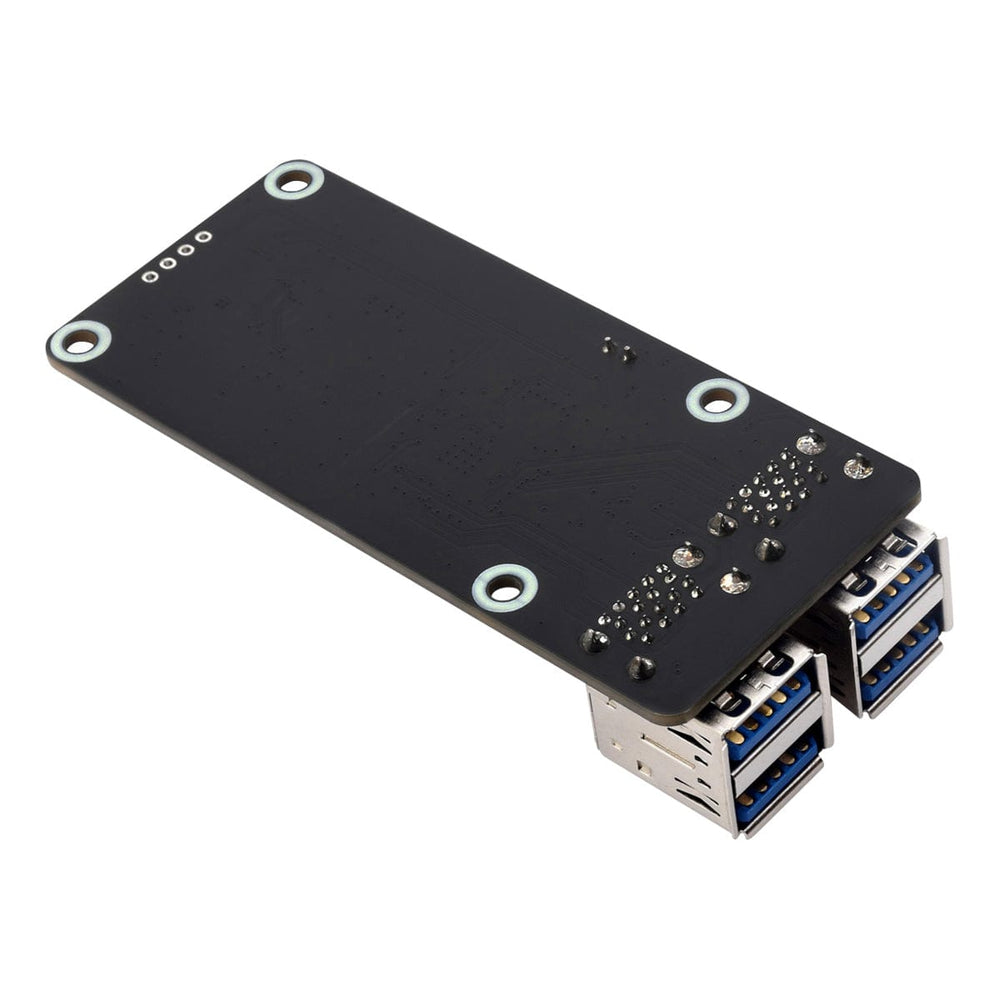

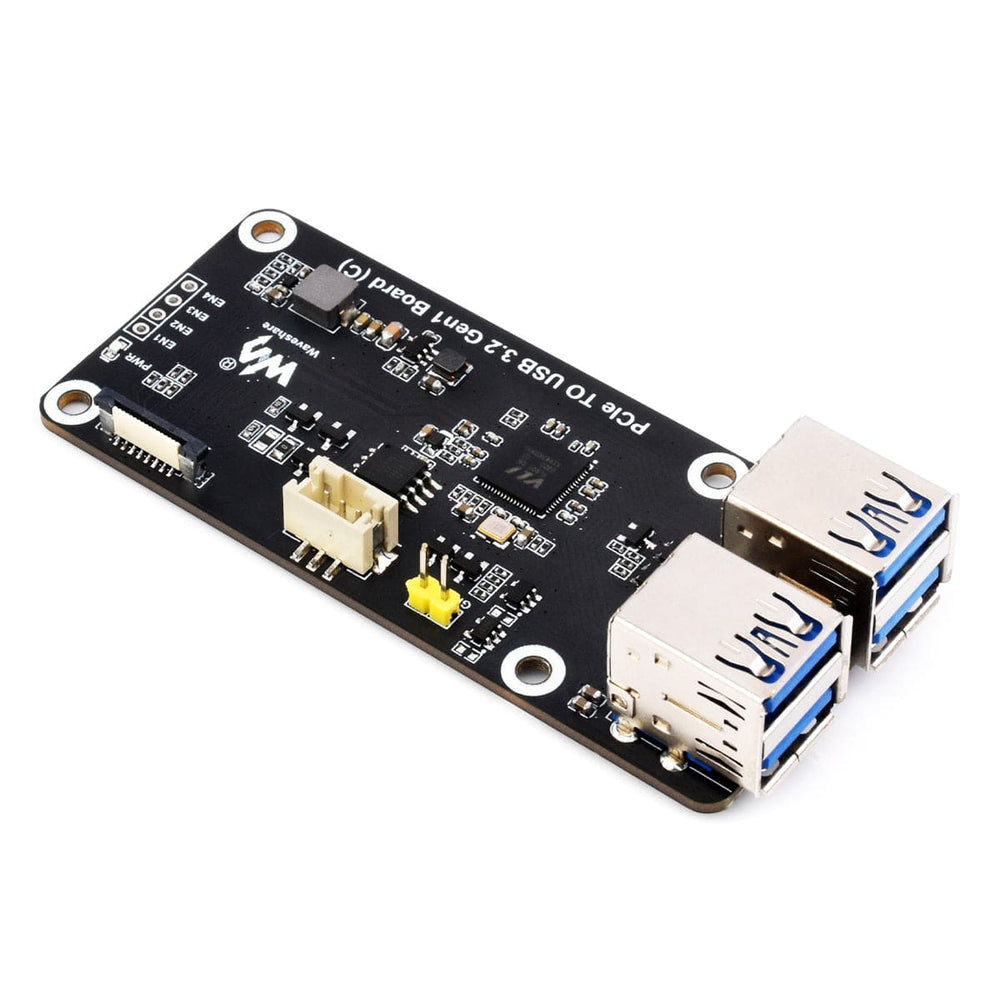

PCIe to 4-Channel USB 3.2 Gen1 Board (C) for Raspberry Pi 5
Price:
Sale price
£13.90
Stock:
Quantity:
Awesome Extras
This PCIe to USB board is a great choice for expanding the connectivity of your Raspberry Pi 5. With four high-speed USB 3.2 Gen1 ports, it delivers up to 5Gbps transmission speed, providing quick and reliable data transfer.
It's a driver-free, plug-and-play solution compatible with Raspberry Pi OS, making installation simple. With independent power control for each USB port and support for two power supply methods, this board is versatile and user-friendly. The included transparent acrylic mounting plate helps save space and keeps your setup neat and organised.
Note: Raspberry Pi 5 is NOT included
Specifications
| Interface Standard | High-speed USB 3.2 Gen1 |
| Communication Rate | 5Gbps for a single USB port |
| Total 5Gbps for 4 Channel USB ports | |
| USB Output | 5V@Imax: 2A; USB-A connector |
| Power Supply | 5V DC power supply header/connector |
| Operating Temperature | 0℃ - 75℃ |

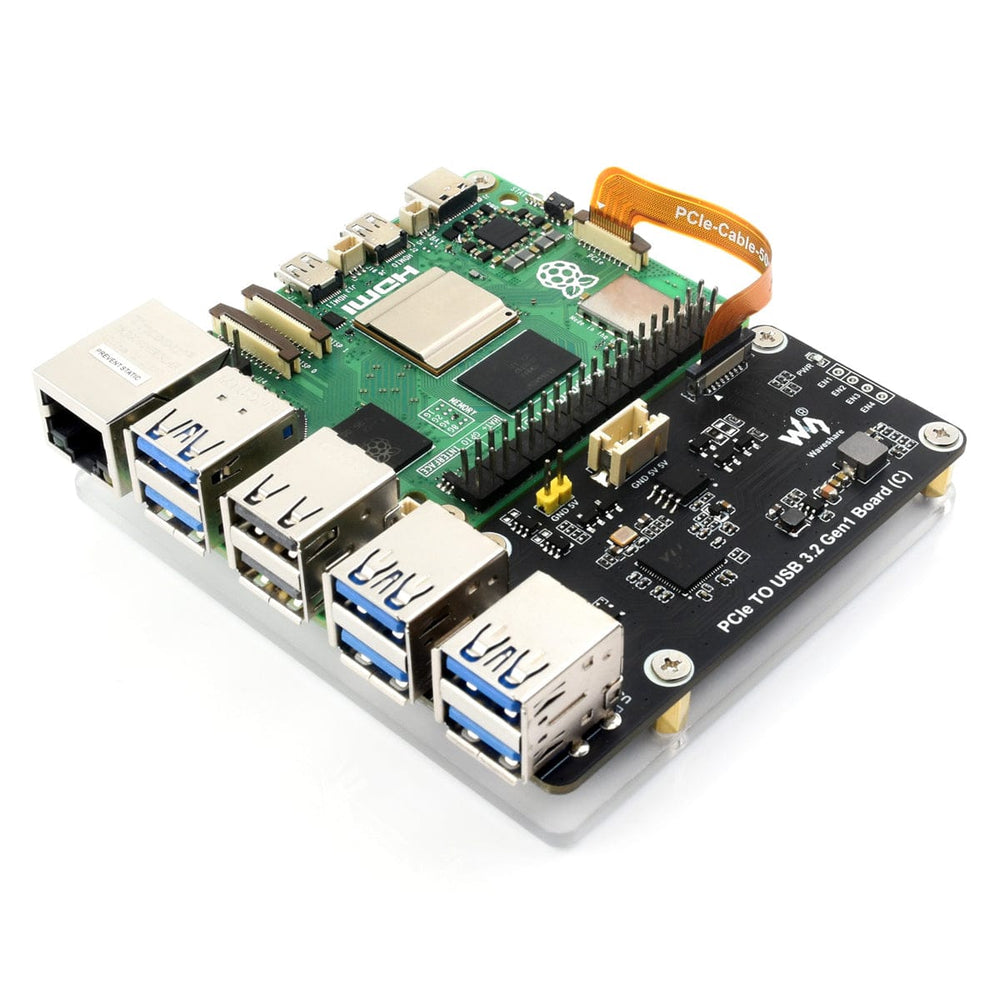

Connection Example - 16-Pin Cable
Package Contents
- 1x PCIe TO USB 3.2 Gen 1 Board (C)
- 1x Transparent acrylic mounting plate
- 1x 16-pin PCIe cable
- 1x PH2.0 3-Pin cable
- 1x Standoff Pack
