PC6-01 Pneumatic Connectors (5-pack)

The Pi HutSKU: 105176
£3
incl. VAT
excl. VAT
In stock

Awesome Extras

3D Print Deburring Tool + 10x Blades - The Pi Hut3D Print Deburring Tool + 10x Blades - The Pi Hut
The Pi Hut3D Print Deburring Tool + 10x Blades
£7.90 incl. VAT excl. VAT
Jet Black PLA Filament (1.75mm, 1kg) - The Pi HutJet Black PLA Filament (1.75mm, 1kg) - The Pi Hut
3DQFJet Black PLA Filament (1.75mm, 1kg)
£18 incl. VAT excl. VAT
Titanium White PLA Filament (1.75mm, 1kg) - The Pi HutTitanium White PLA Filament (1.75mm, 1kg) - The Pi Hut
3DQFTitanium White PLA Filament (1.75mm, 1kg)
£18 incl. VAT excl. VAT
Treasure Gold PLA Filament (1.75mm, 1kg) - The Pi HutTreasure Gold PLA Filament (1.75mm, 1kg) - The Pi Hut
3DQFTreasure Gold PLA Filament (1.75mm, 1kg)
£18 incl. VAT excl. VAT
Midnight Silver PLA Filament (1.75mm, 1kg) - The Pi HutMidnight Silver PLA Filament (1.75mm, 1kg) - The Pi Hut
3DQFMidnight Silver PLA Filament (1.75mm, 1kg)
£18 incl. VAT excl. VAT
Sky Blue PLA Filament (1.75mm, 1kg) - The Pi HutSky Blue PLA Filament (1.75mm, 1kg) - The Pi Hut
3DQFSky Blue PLA Filament (1.75mm, 1kg)
£18 incl. VAT excl. VAT

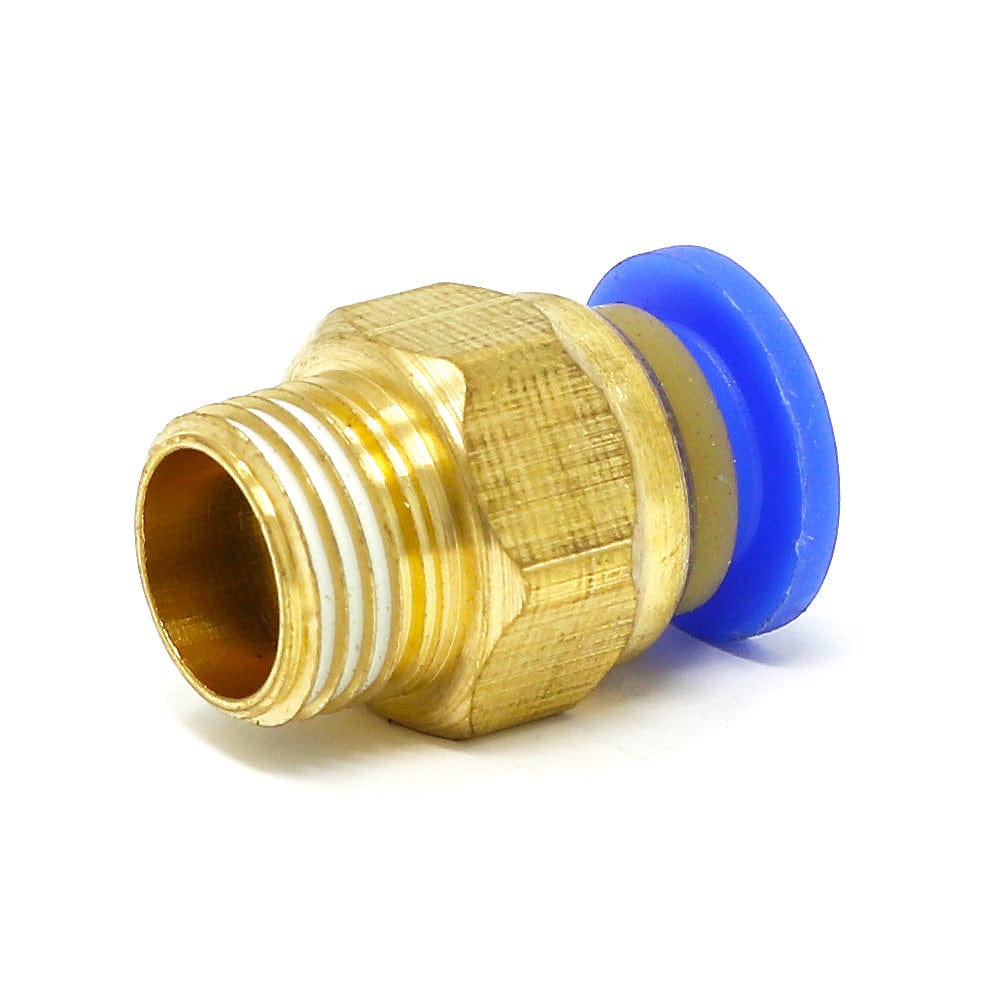

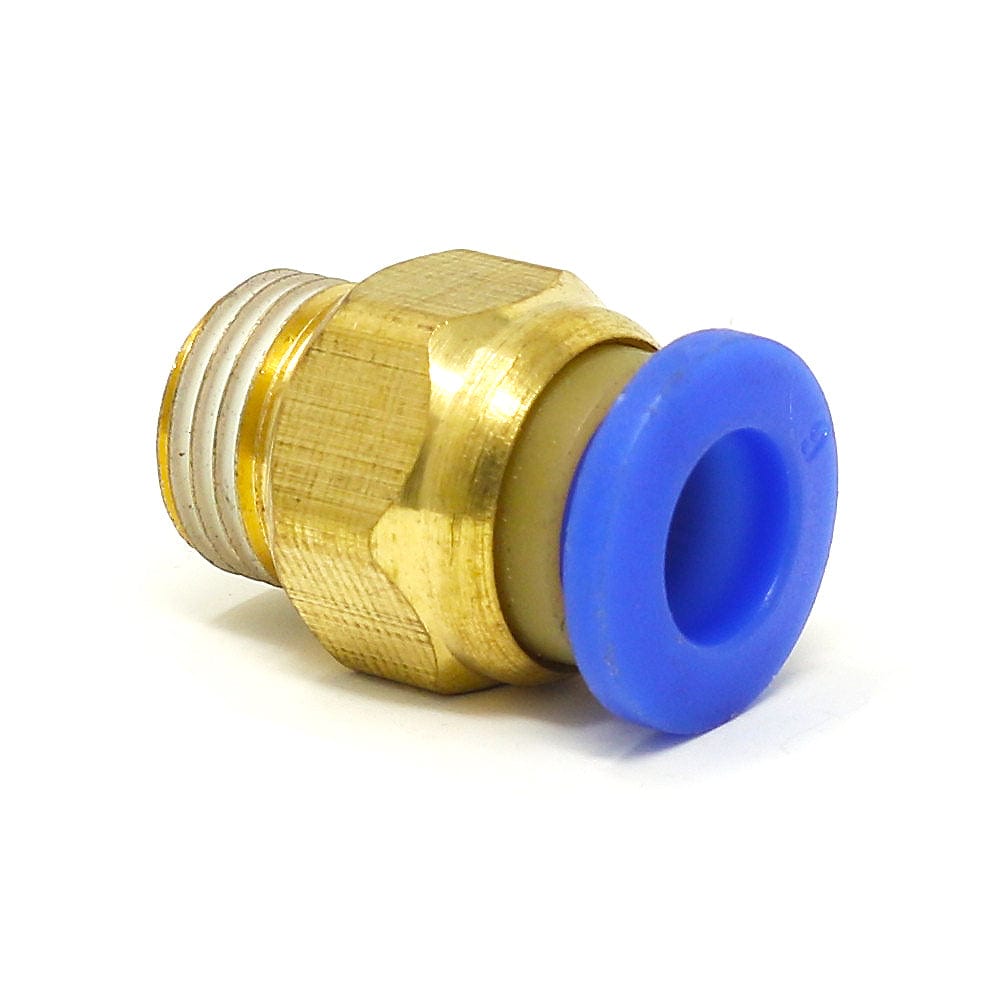

Pneumatic connectors are commonly used with 3D printers to connect Bowden tubes to extruders and hot ends, providing a reliable, strong fitting with little to no movement of the tube once fitted.

This is a pack of five PC6-01 pneumatic connectors which accept non-traditional larger Bowden tubes with a 6mm outer dimension (6mm OD) and 4mm inner dimension (4mm ID).

We sell a number of other styles of pneumatic connectors - take a look in our 3D printing section for more!

Specifications

  • Type: PC6-01
  • Thread OD: 9.6mm
  • Height: 18.5mm
  • Nut OD: 12mm
  • Thread length: ~5.6mm
  • Input diameter (thread end): 7.3mm
  • Compatible PTFE: 6mm OD / 4mm ID
  • Weight (per connector): 5.7g

Package Contents

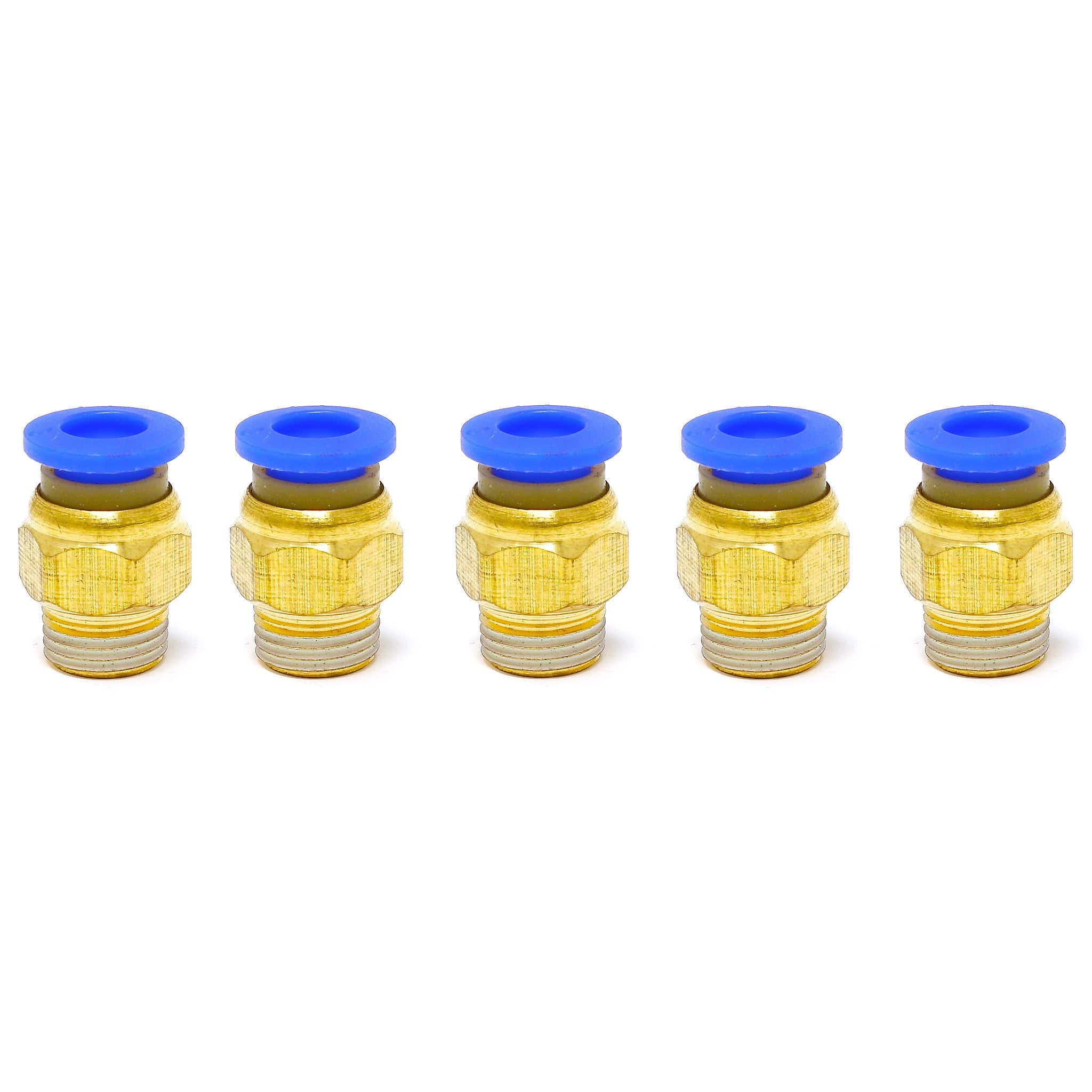

  • 5x PC6-01 pneumatic connectors
