Particulate Matter Sensor Breakout (for PMS5003)

PimoroniSKU: PIM477
(1 Reviews)
£3.30
incl. VAT
excl. VAT
Only 2 units left

Compatible with:

Awesome Extras

PMS5003 Particulate Matter Sensor with Cable - The Pi HutPMS5003 Particulate Matter Sensor with Cable - The Pi Hut
(4 Reviews)
PlantowerPMS5003 Particulate Matter Sensor with Cable
£24.90 incl. VAT excl. VAT
The Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi HutThe Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi Hut
(108 Reviews)
The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)
£6 incl. VAT excl. VAT
Enviro + Air Quality for Raspberry Pi - The Pi HutEnviro + Air Quality for Raspberry Pi - The Pi Hut
(4 Reviews)
PimoroniEnviro + Air Quality for Raspberry Pi
£54 incl. VAT excl. VAT

A handy-dandy breakout that converts between the picoblade connector cable on the PMS5003 particulate matter sensor and a standard male 2.54mm pitch header.

Use this breakout to connect a PMS5003 particulate matter sensor straight to your Raspberry Pi (or other microcontroller) with some female-to-female jumper wires using our PMS5003 Python library to read data from the sensor.

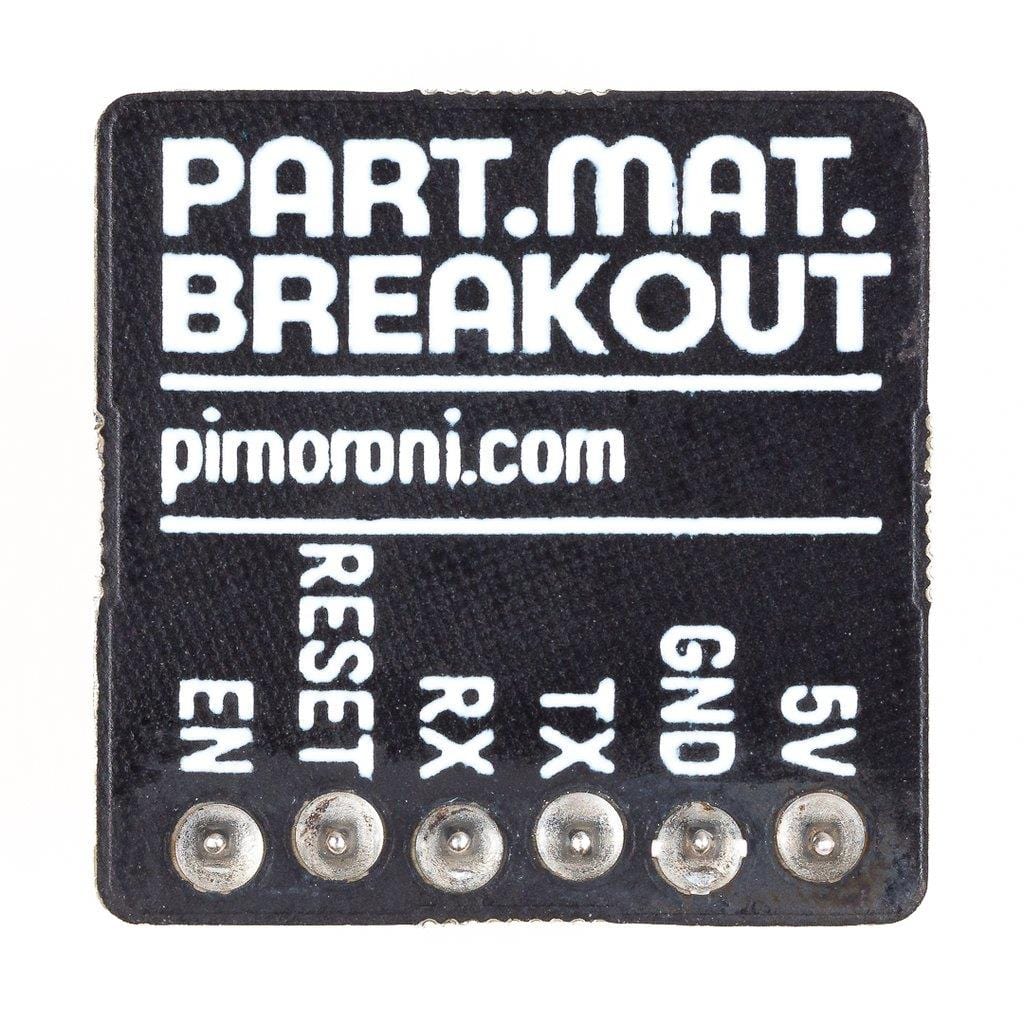

Connect the pins on the breakout to the following pins on your Raspberry Pi:

  • 5V to 5V
  • GND to ground
  • TX to BCM 14
  • RX to BCM 15
  • RESET to BCM 27
  • EN to BCM 22

Dimensions: 17.7x17.75mm
