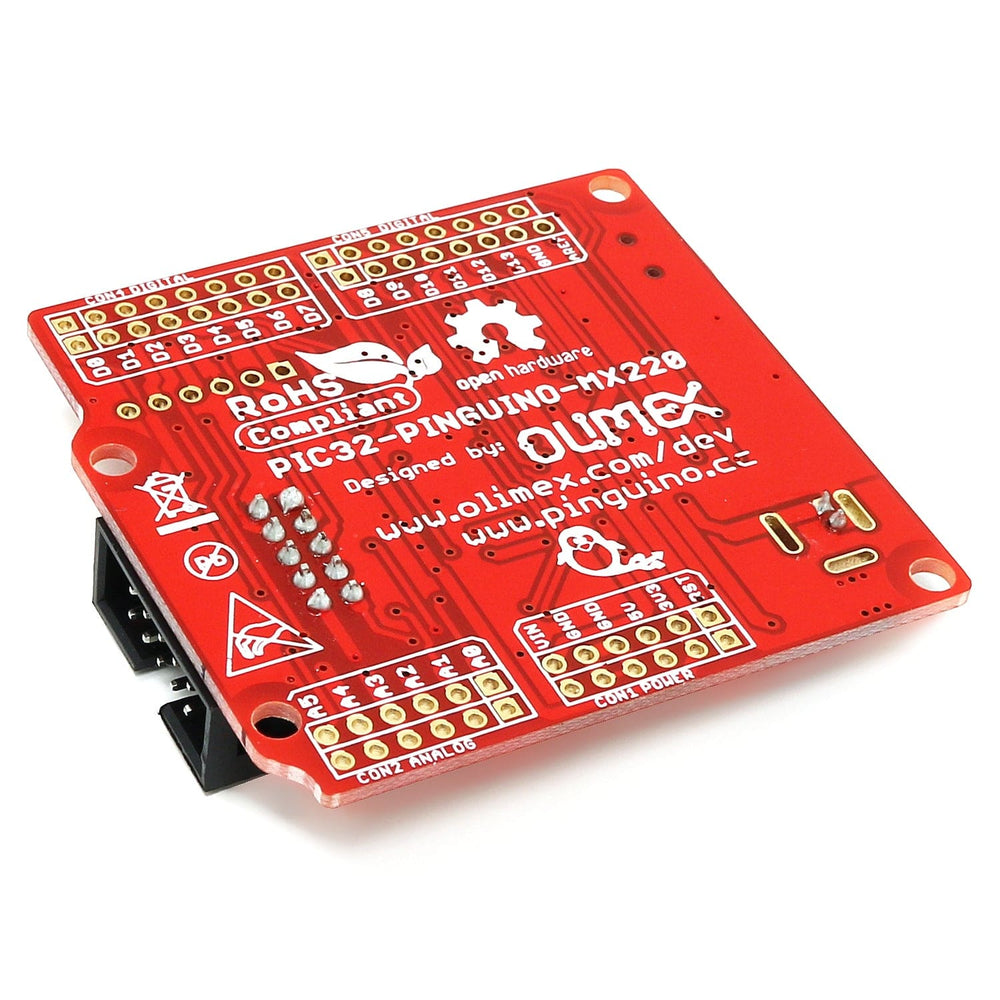

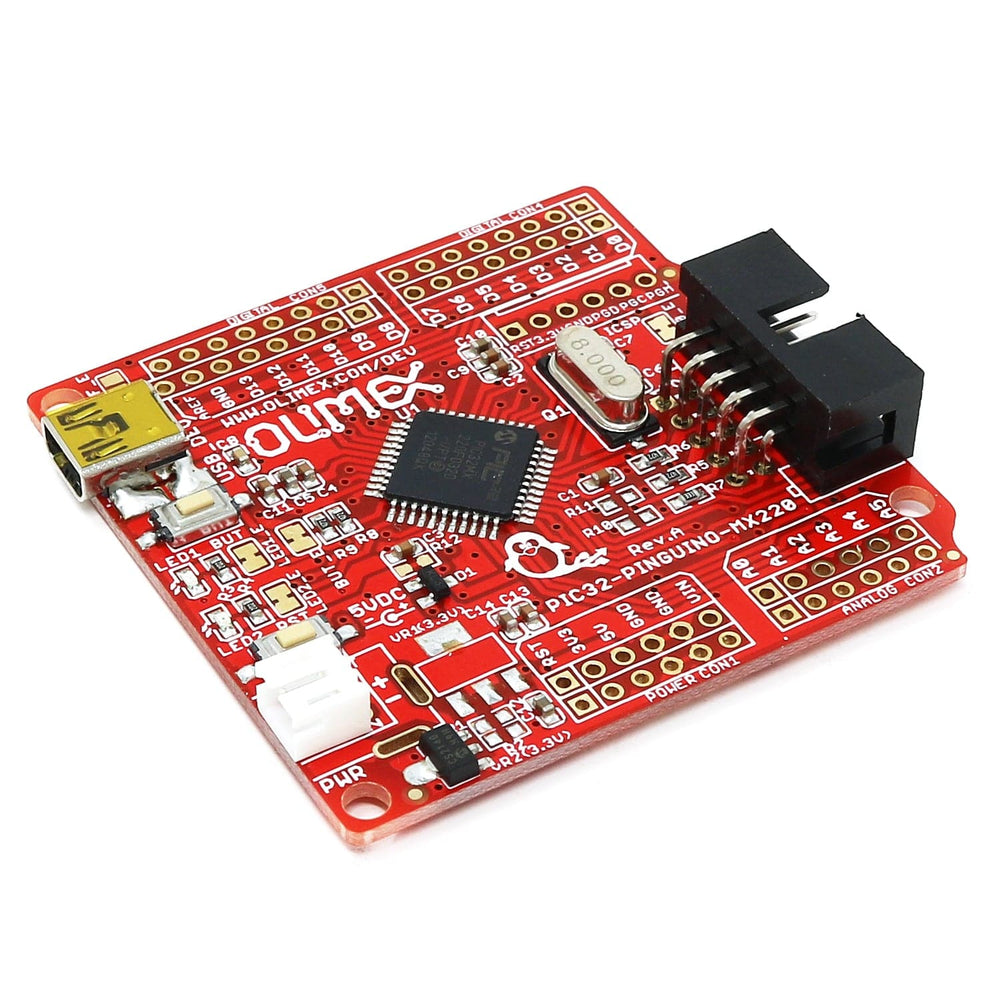

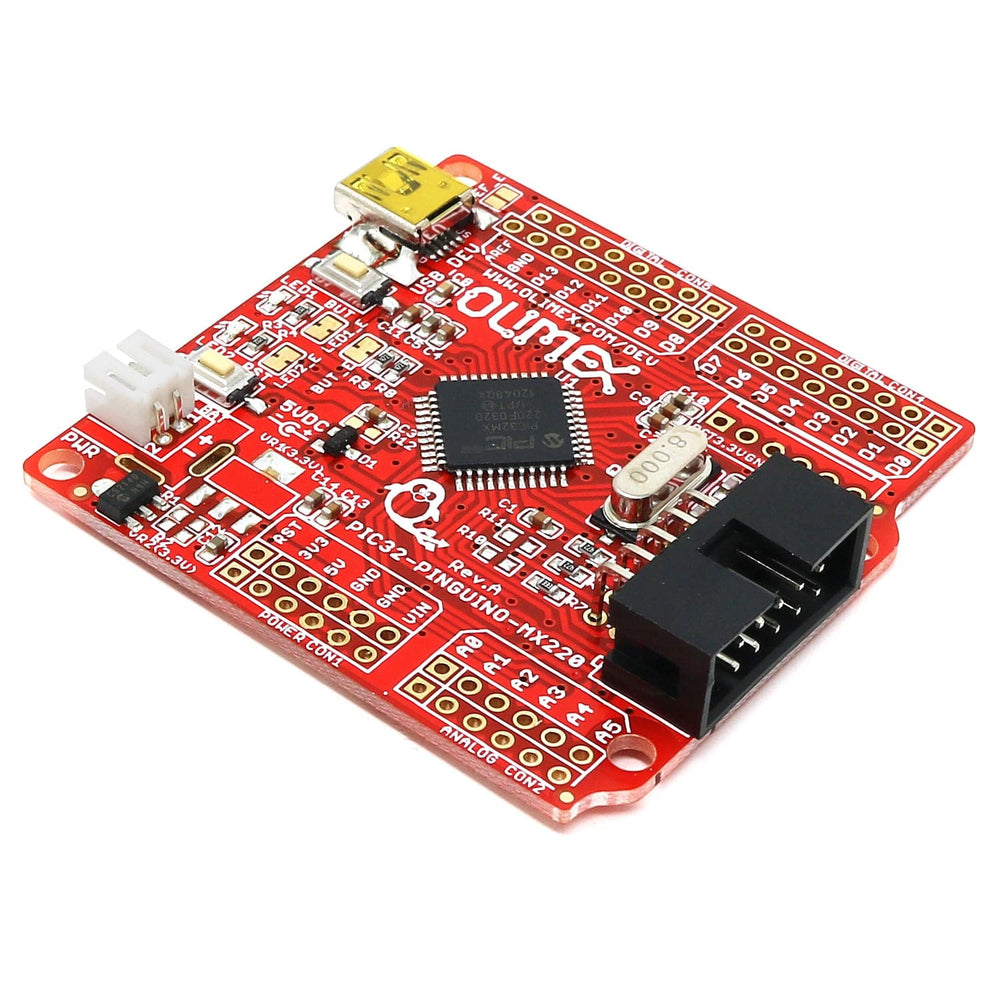

This development board from Olimex uses the familiar Arduino UNO form factor but offers vast hardware improvements over the original R3, notably the 32-bit PIC32 chip!

This board enables code development of applications running on the PIC32MX220F032D microcontroller, manufactured by Microchip technology, using the Pinguino IDE.

This board uses a Mini-USB connector, so be sure to pick up a matching Mini-USB USB cable!

Hardware Differences

Here is a table highlighting the hardware differences between this board and the classic Arduino UNO R3 (the software approach is also different as the Piguino IDE is used with this PIC32 board):

PIC32-PINGUINO-MX220 Arduino UNO R3
CPU 32 bit 8 bit
CLOCK 40 MHz 20 MHz
FLASH 32 KB 32 KB
RAM 8 KB 1 KB
USB YES NO*
LOW PWR YES** NO
GPIO MAX 40 MHz 5 MHz
ADC 1.1 MSPS 15 KSPS
DMA YES 4 CH NO
UEXT YES NO

Features

  • PIC32MX220F032D 32-bit, 40 Mhz microcontroller
  • 32KB Flash
  • 8KB RAM
  • Pinguino IDE ready
  • Ultra Low Power design
  • Li-Po battery connector for hand-held applications
  • Two LEDs
  • User button
  • RESET button
  • Mini USB connector
  • Olimex UEXT connector
  • All PIC ports available on a 0.1" connector match the Arduino platform and the second row with the correct 0.1"step
  • The ICSP signals are provided on a 0.1" step connector if you do not want to use Pinguino IDE and you want to program this board with PIC-KIT3

Resources

Documents

Hardware

Software

Package Contents

  • 1x PIC32-PINGUINO-MX220 Development Board
