Olimex BB-PWR-3608 Breadboard Regulator (12V/24V)

OlimexSKU: 105367
£3.30
incl. VAT
excl. VAT
Only 6 units left

Awesome Extras

Full-Size Breadboard - White - The Pi HutFull-Size Breadboard - White - The Pi Hut
The Pi HutFull-Size Breadboard - White
£5 incl. VAT excl. VAT
The Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi HutThe Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi Hut
The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)
£6 incl. VAT excl. VAT
Prototyping Wire Spool Set - The Pi HutPrototyping Wire Spool Set - The Pi Hut
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
£12 incl. VAT excl. VAT
Antex Lead Free Solder - 4m Tube - The Pi Hut
AntexAntex Lead Free Solder - 4m Tube
£4.50 incl. VAT excl. VAT
Pololu USB 2.0 Type-C Connector Breakout Board (usb07b) - The Pi HutPololu USB 2.0 Type-C Connector Breakout Board (usb07b) - The Pi Hut
PololuPololu USB 2.0 Type-C Connector Breakout Board (usb07b)
£3.40 incl. VAT excl. VAT

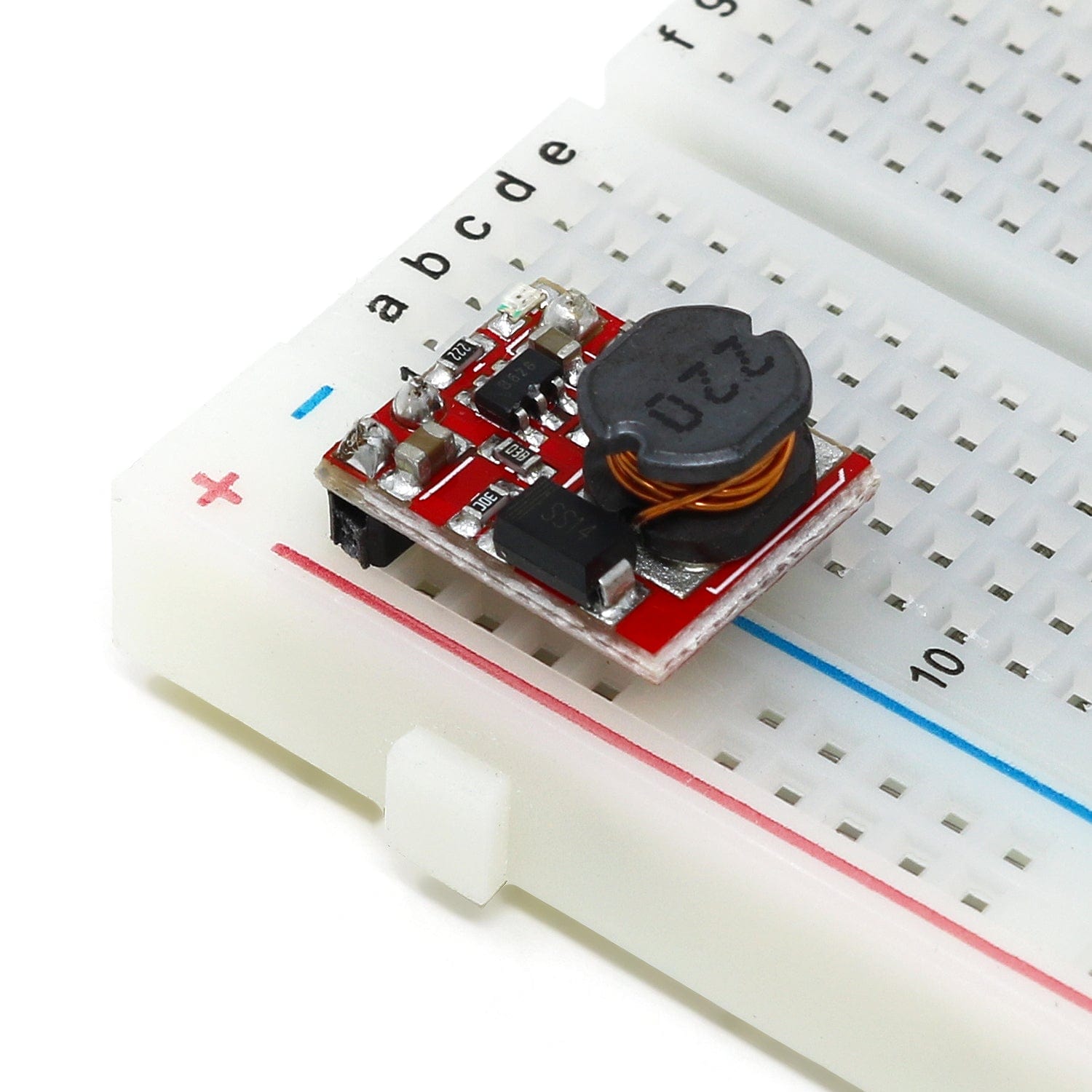

Serious power for your breadboard! This breadboard rail-compatible regulator/boost module can input 5V (up to 4A) and output either 12V/1A or 24V/0.5A.

The Olimex BB-PWR-3608 is a high-efficiency, high-frequency synchronous step-up DC-DC regulator with up to 4A switching input current. It operates with a 5V input and has an efficiency of more than 90%.

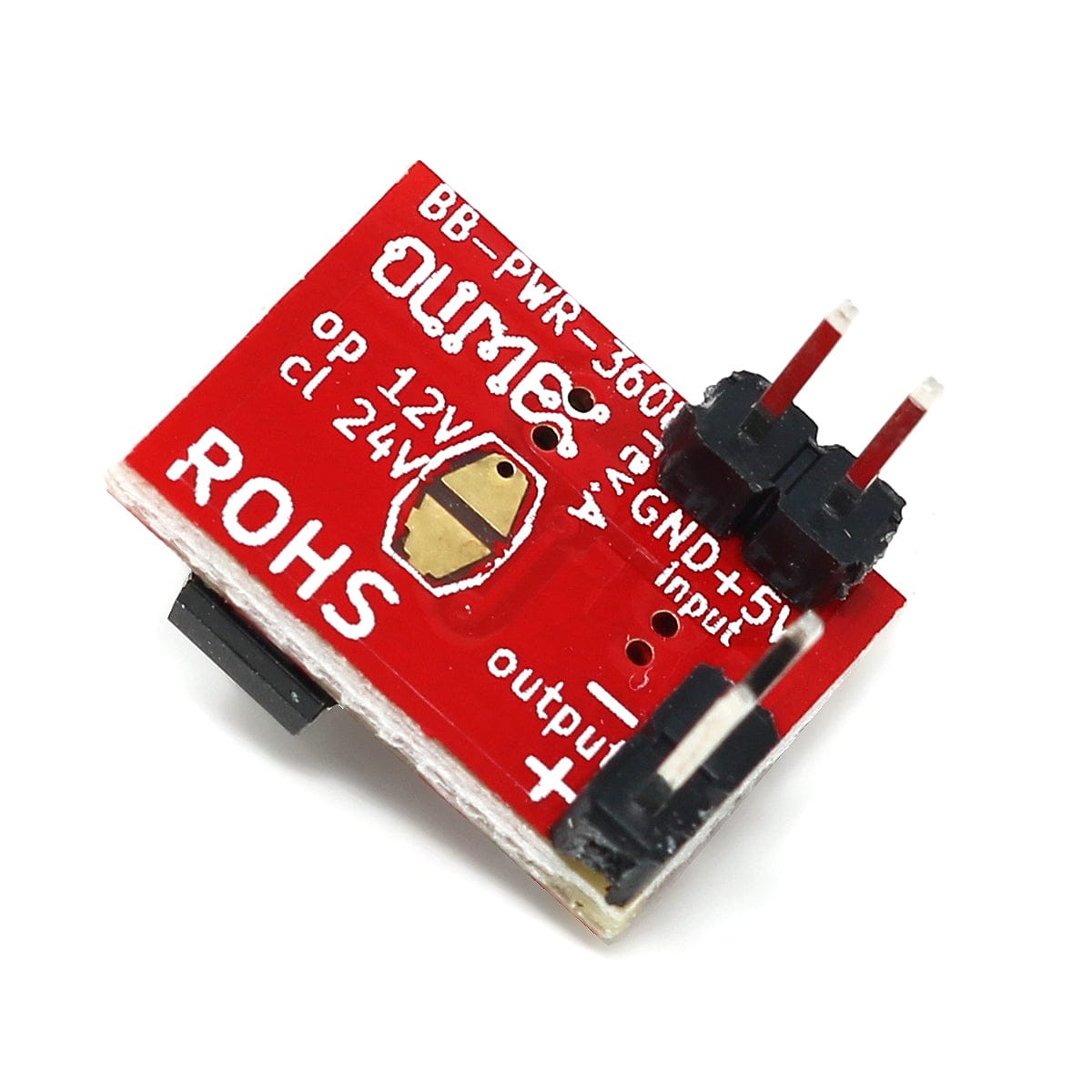

The output voltage is selectable via solder pads on the read - close (solder together) the pads for 24V, or leave them open (default) for 12V.

Notes

  • Depending on the style and brand of breadboard, the regulator can sit a little wonky (it still works just fine)
  • Breadboard not included

Features

  • Breadboard rail compatible
  • Input 5V up to 4A
  • Output 12V / 1A or 24V / 0.5A
    • Selectable via solder pads
  • Quiescent current 200uA (if STATUS LED is off)
  • Power efficiency >90%
  • Operating temperature -40+85C

Resources

Documents

Hardware

Package Contents

  • 1x BB-PWR-3608 Power Board

Breadboard not included
