Off-Road Tracked UGV Kit (ESP32 Driver)

WaveshareSKU: WAV-24019
Price:
Sale price £161.50
incl. VAT
excl. VAT
Stock:
Only 7 units left
Quantity:

Awesome Extras

Raspberry PiRaspberry Pi Zero 2 W
Sale priceFrom £14.40 incl. VAT excl. VAT
iFixitiFixit Mako Precision Bit Set
Sale price £35 incl. VAT excl. VAT

The Waveshare UGV01 is the ultimate off-road tracked UGV (Unmanned Ground Vehicle) kit (assembled without batteries), with an ESP32 motor driver board at its heart for you to code your own awesome off-road robot!

Let's take a look at its very long list of features!

On the outside...

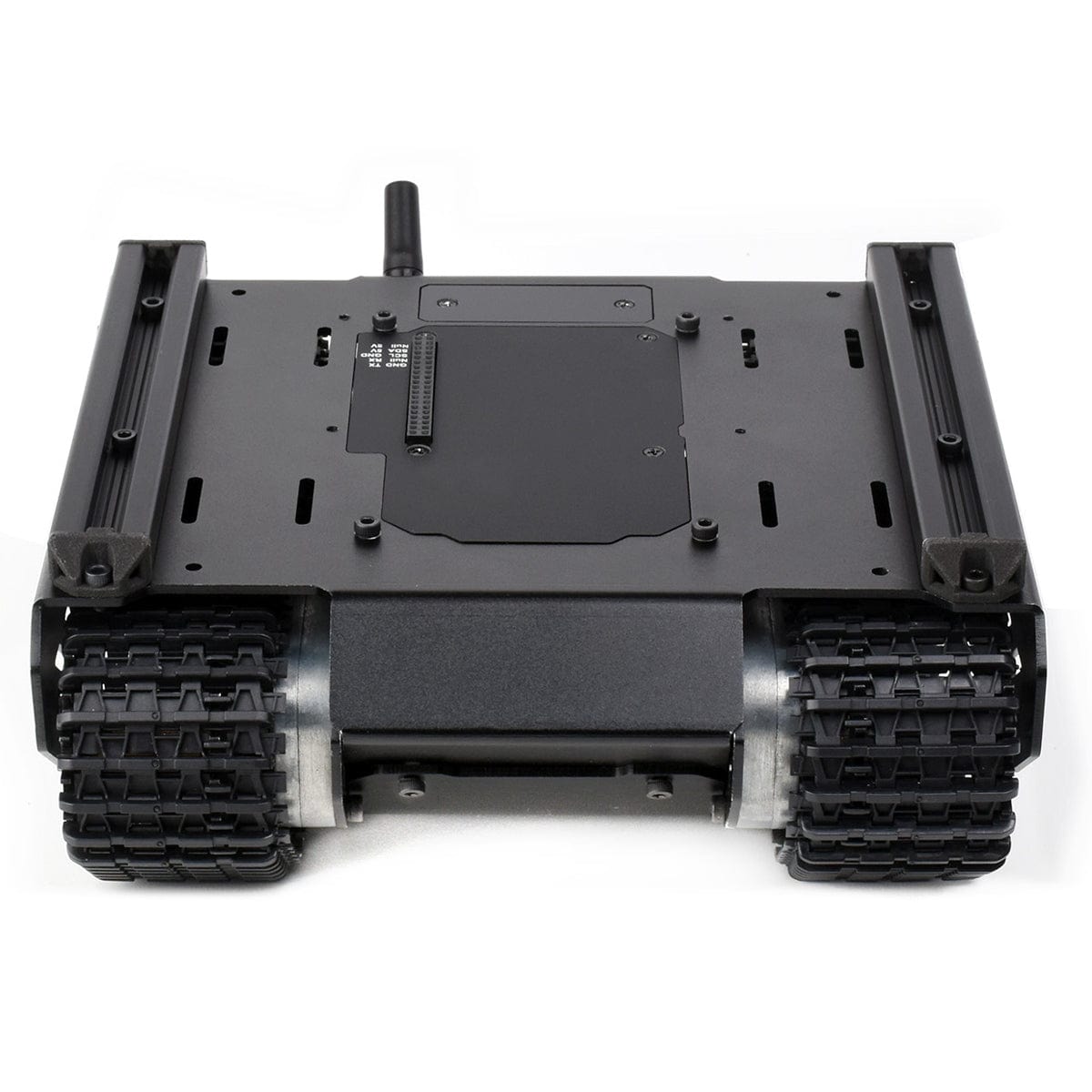

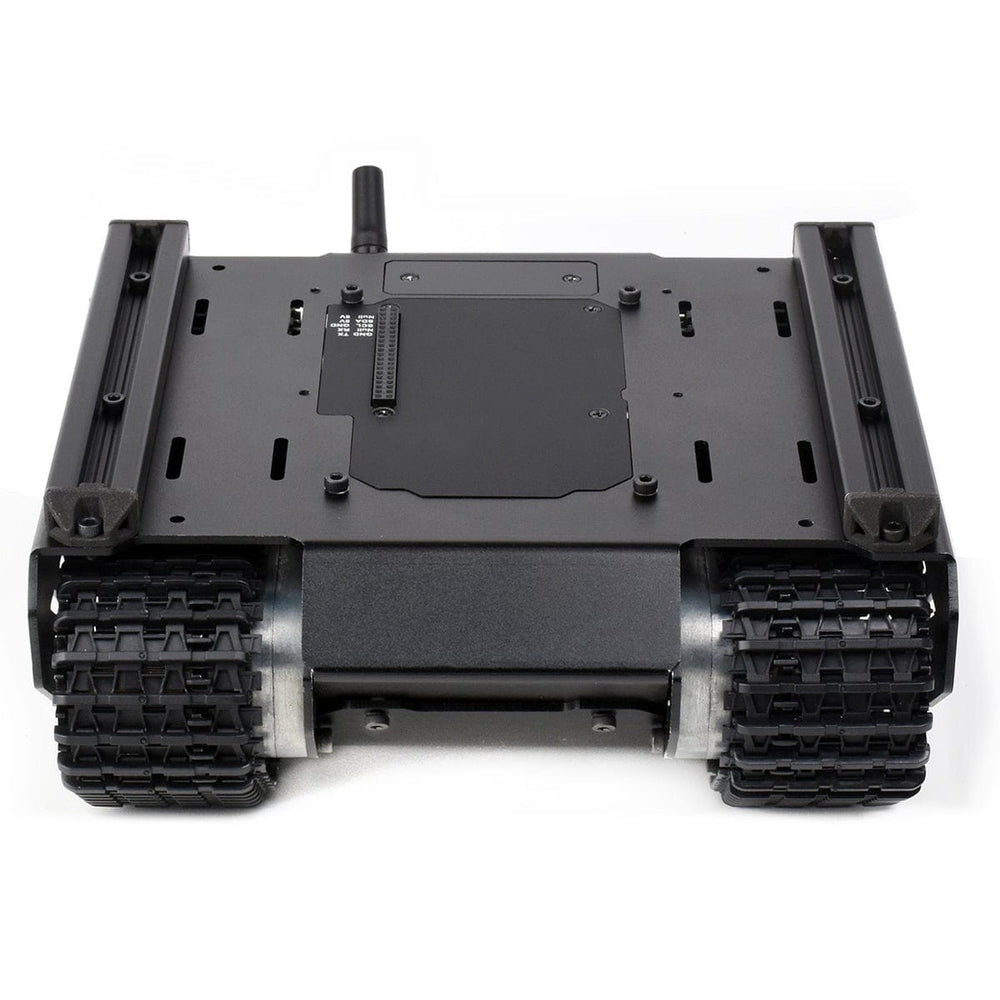

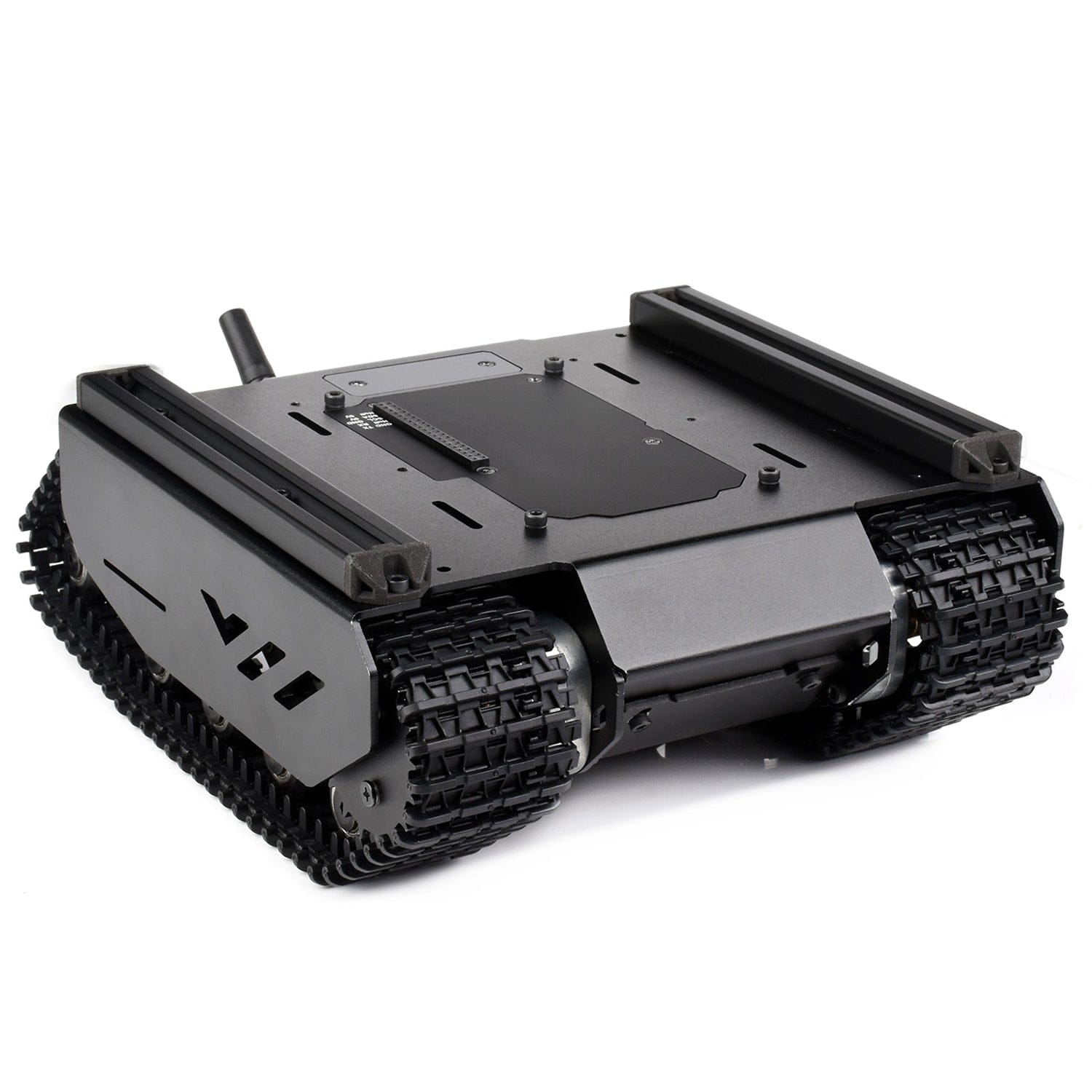

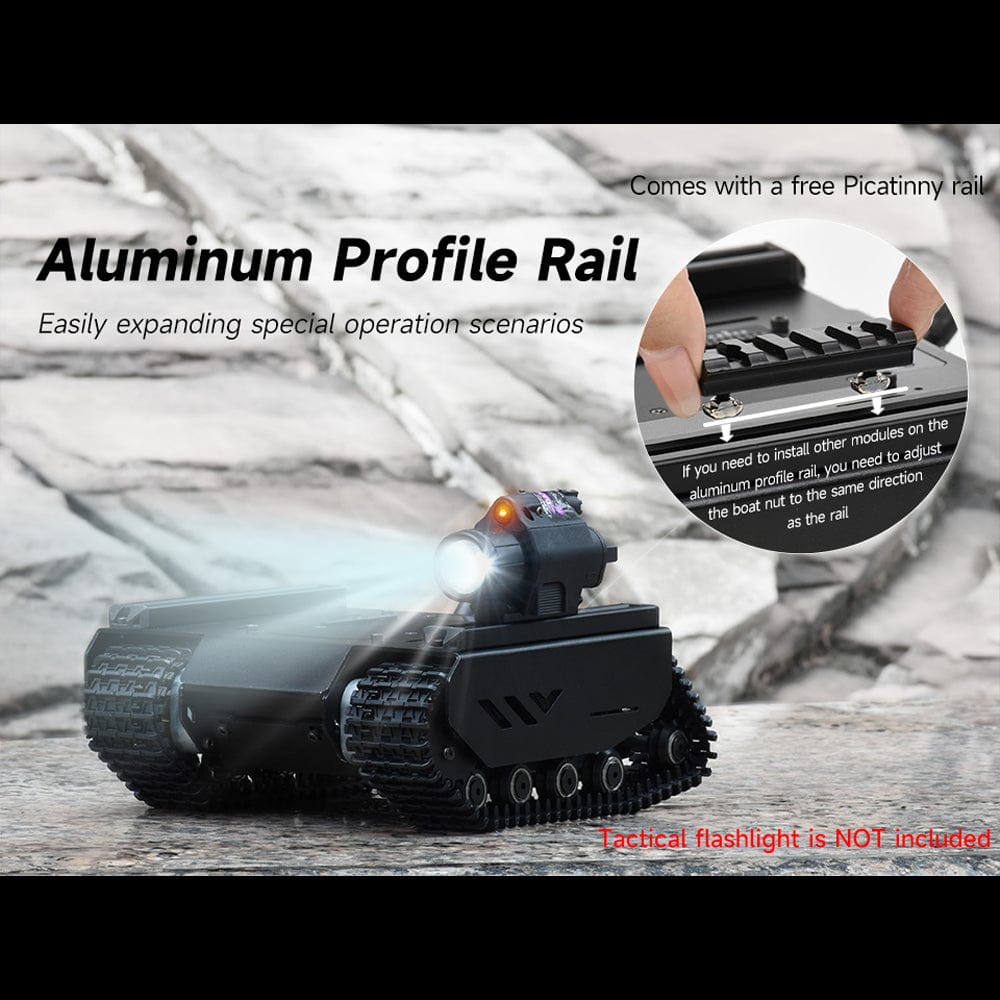

The robot kit has a black full-metal body which includes two 1020 European standard profile rails for adding your own accessories. The wide tracks rest on 4x2 independent suspension ensuring optimised climbing and off-road capabilities.

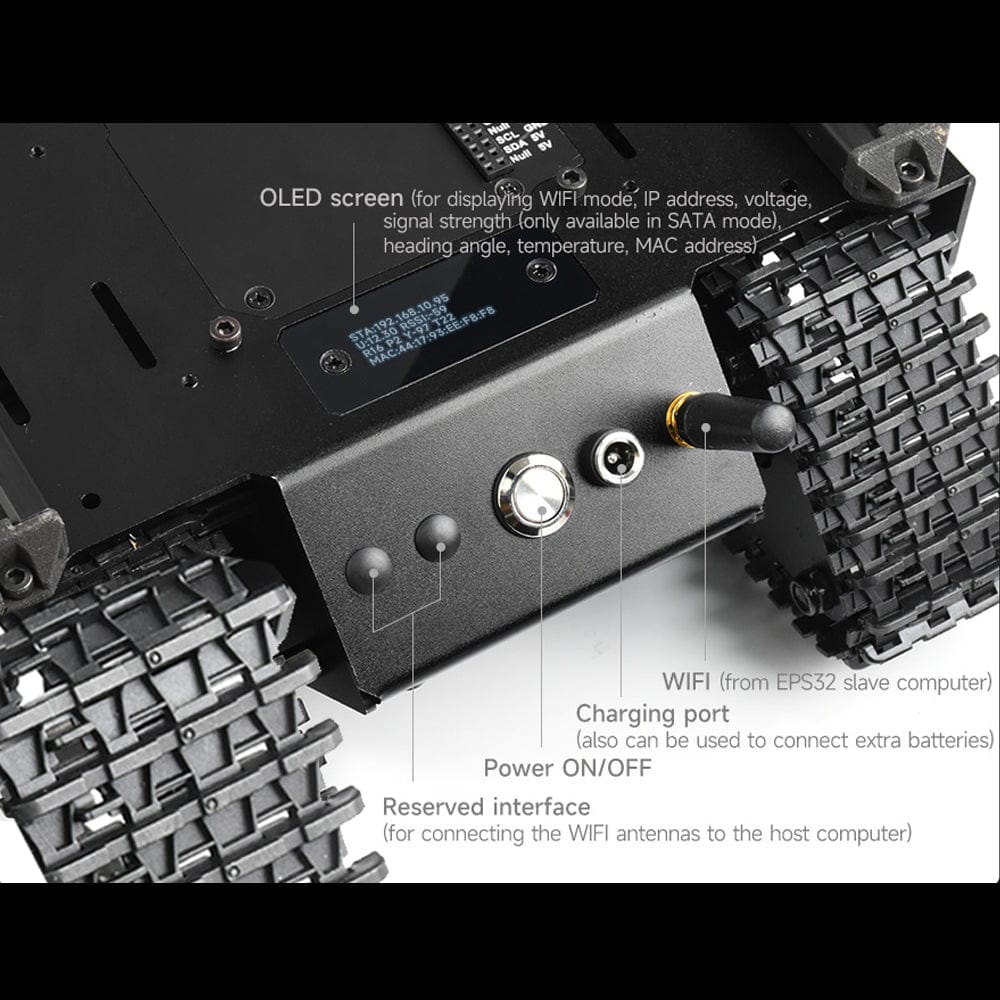

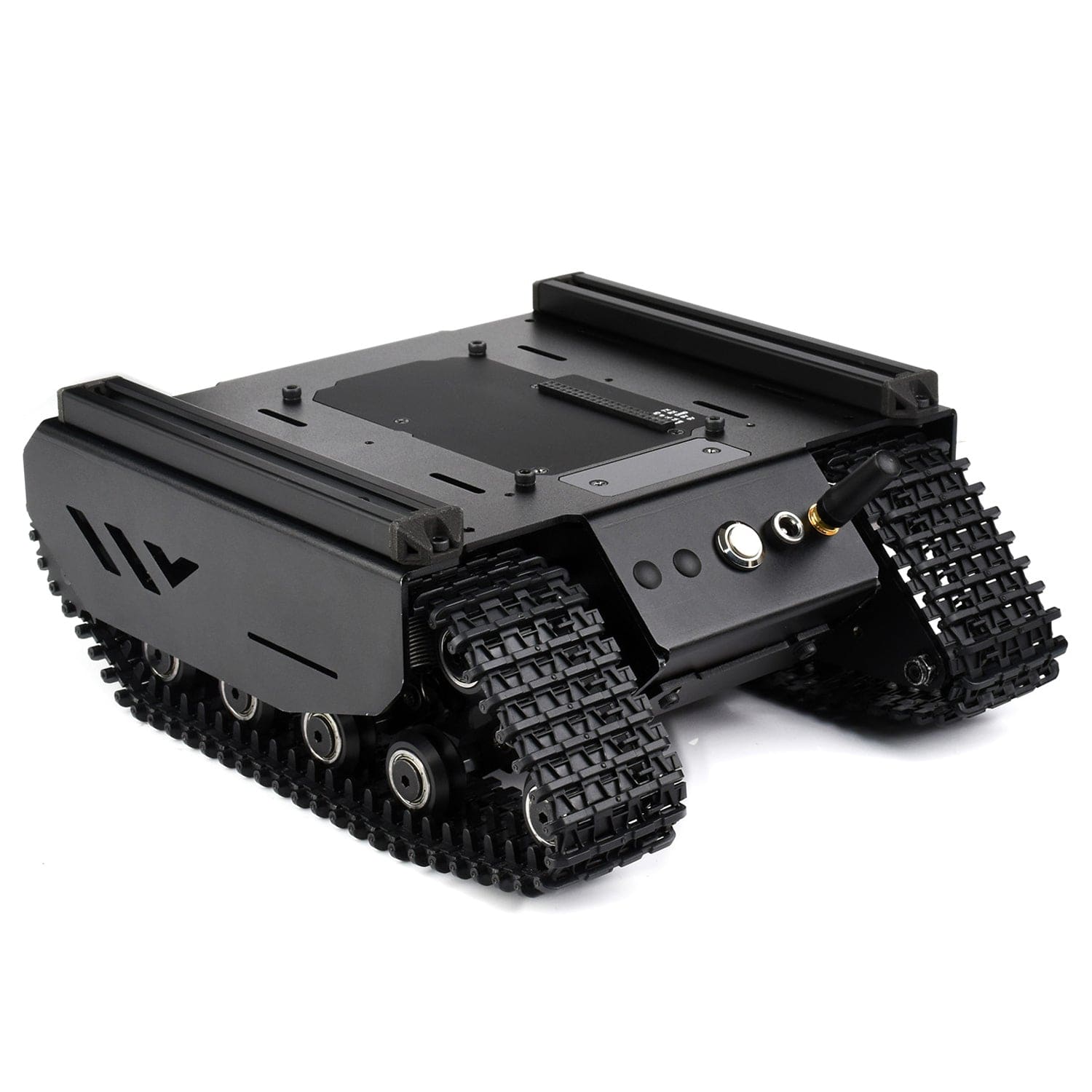

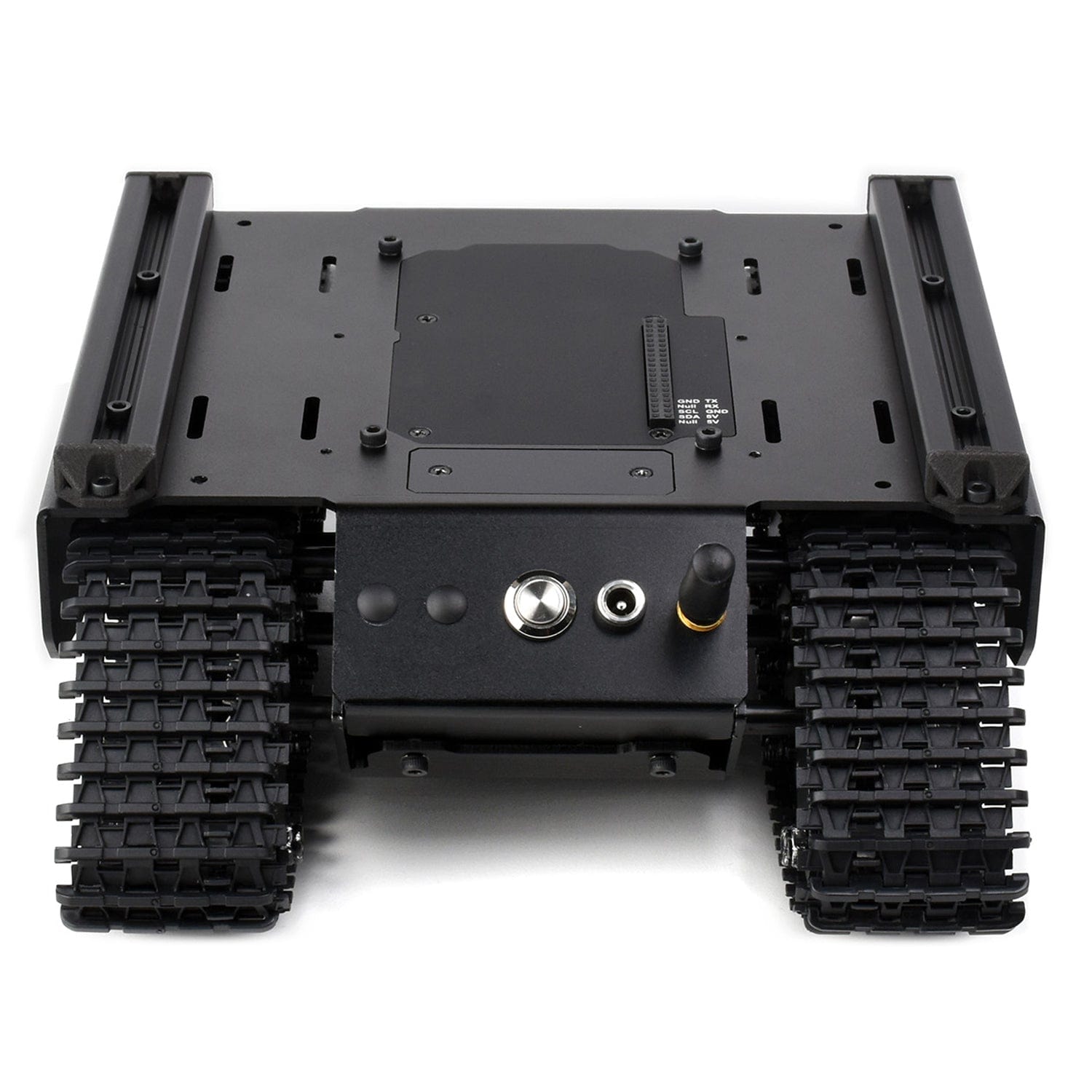

At the back of this monster, you'll find the 0.96" OLED information display, power button, charging port, and WiFi antenna.

On the inside...

This is where it gets really interesting!

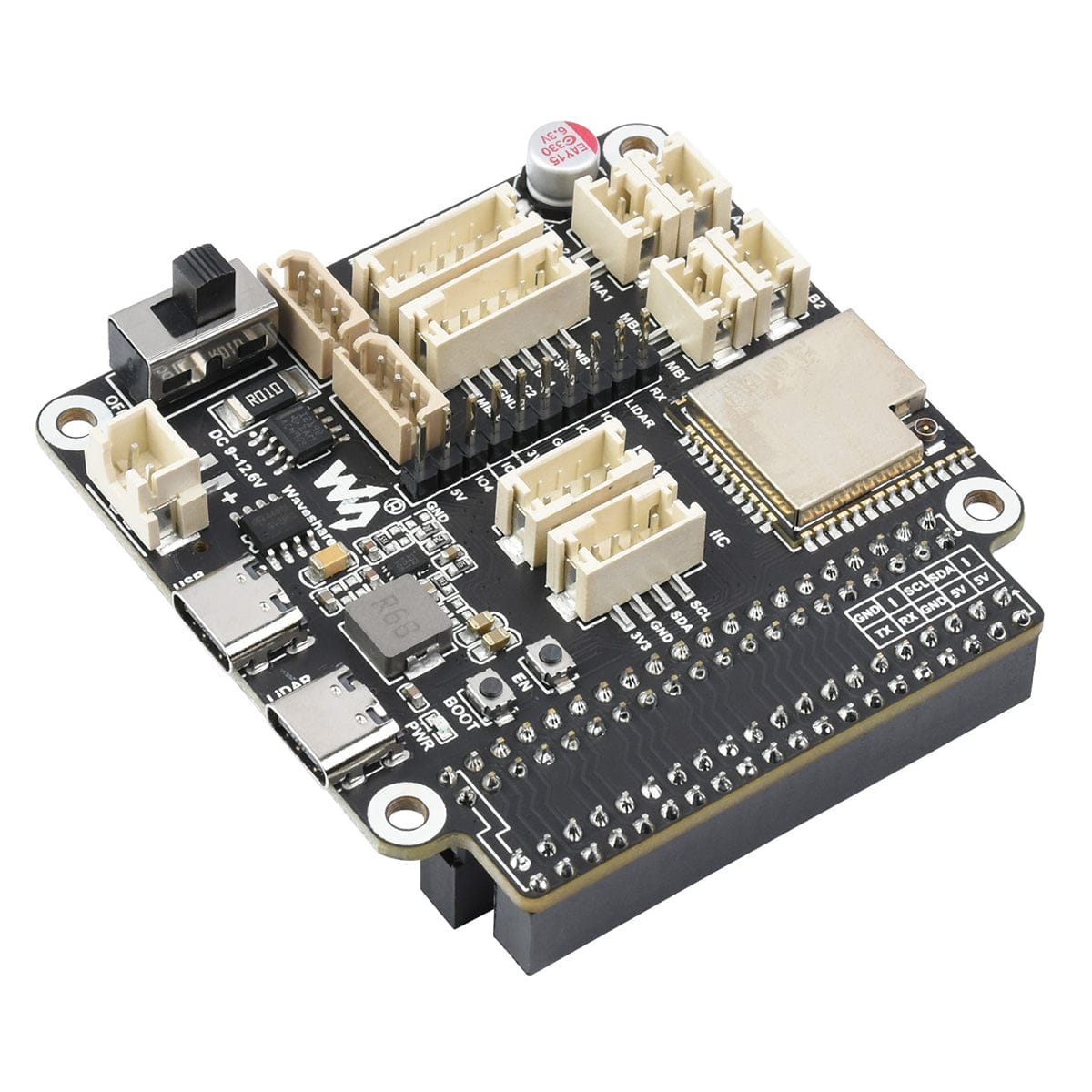

Inside the robot, you'll find one of Waveshare's ESP32 Robotics Driver Boards, which can be used with your smartphone for general control. However, you can also add your own microcomputer, such as a Raspberry Pi, via the 40-pin header communicating via serial port or IIC, to build on the robot's functionality.

The ESP32 driver board controls the motors, and gives the robot WiFi and Bluetooth capabilities and offers interfaces and ports for a range of additional optional hardware including LIDAR, I2C, serial bus servos, MicroSD cards and more. The board also includes a 3-axis electronic compass and a 6-axis motion sensor.

There's also a built-in UPS power supply module which accepts 3x 18650 batteries (not included) to power your robot (uninterruptable) and manage charging via the front charge port.

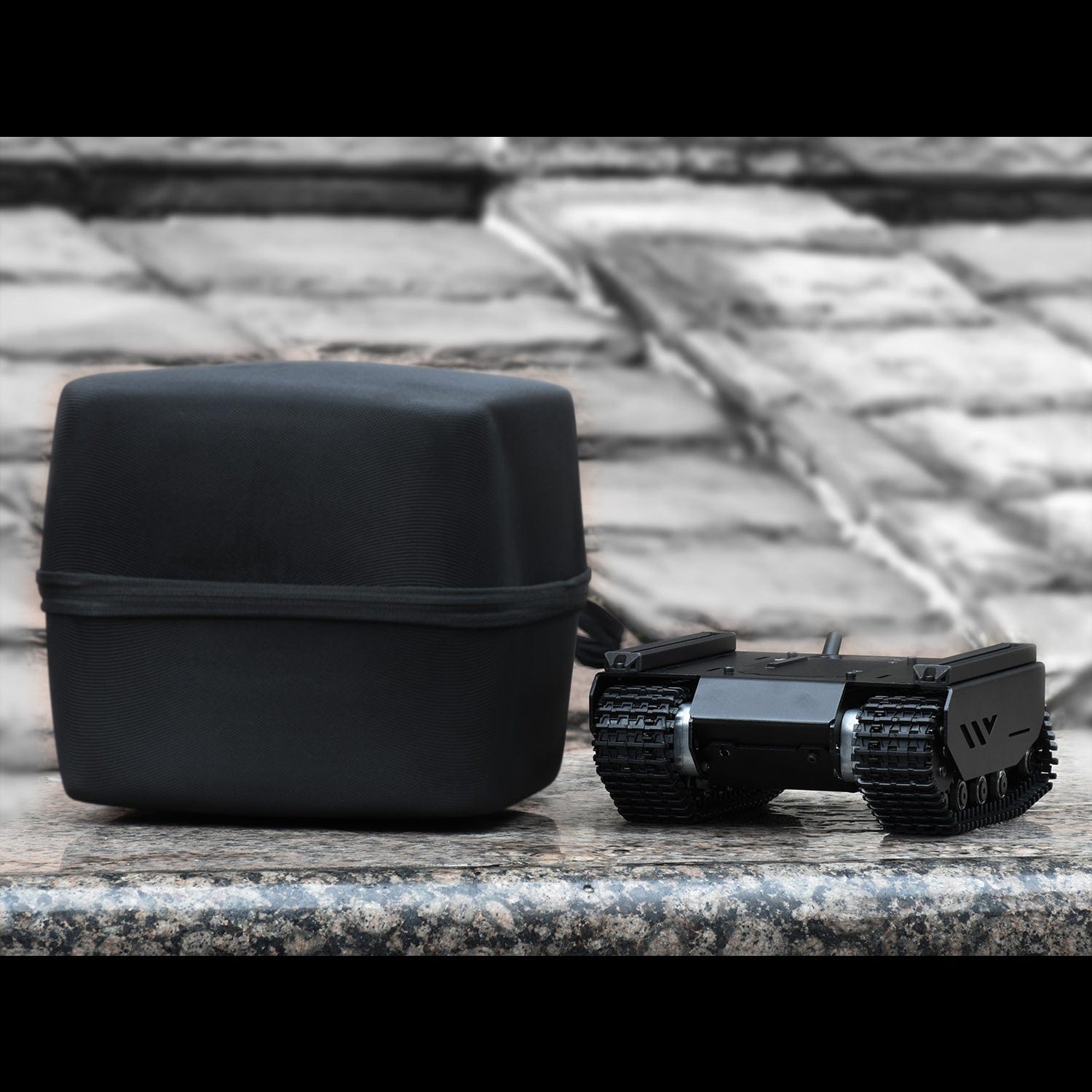

The kit includes almost everything you need (18650 batteries not included) and comes in a quality zip-shell case.

Important Notes

Features

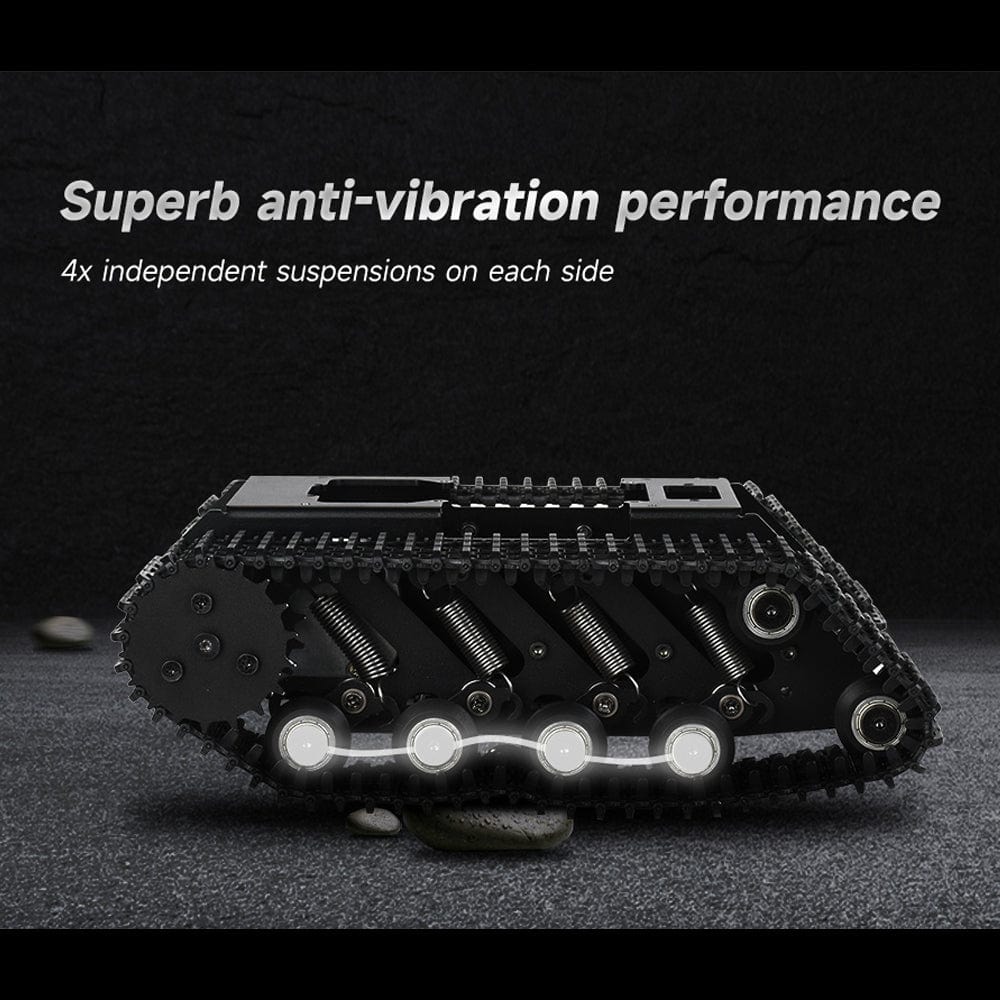

  • Multi-independent suspension systems, four independent suspensions on each side

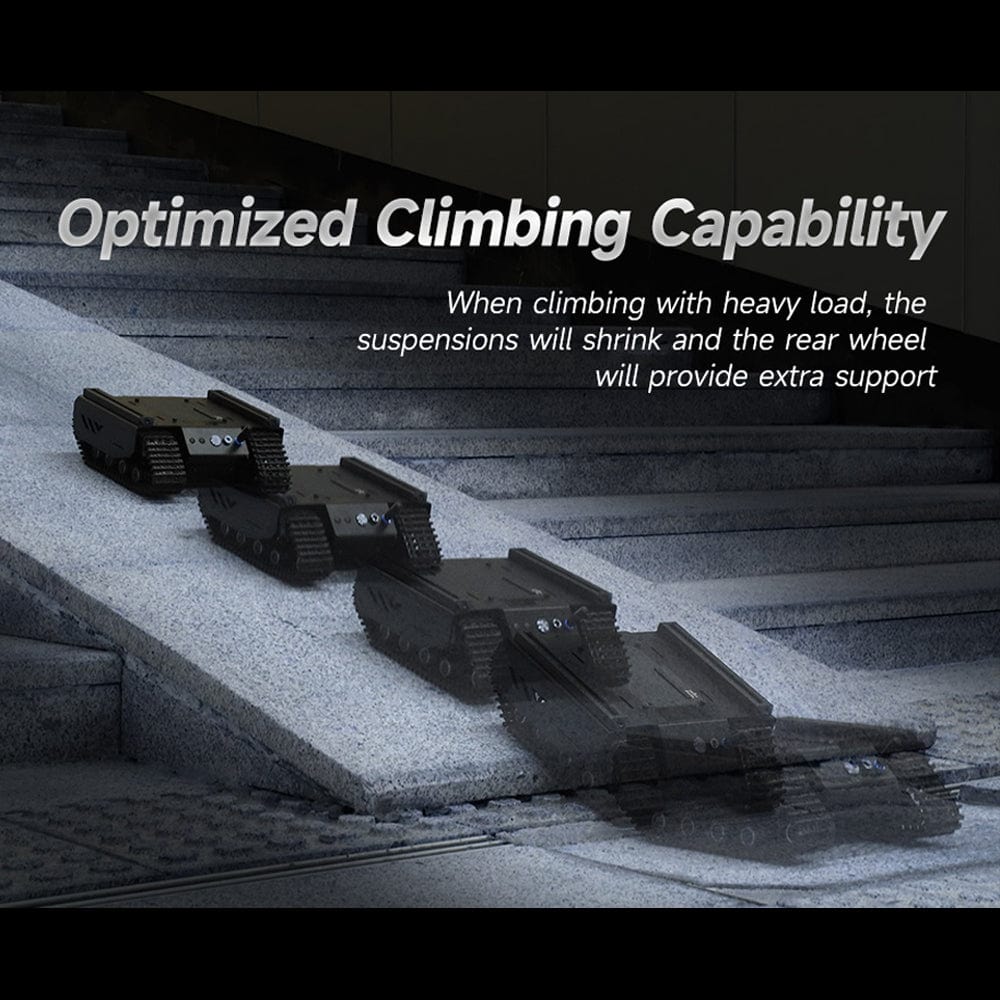

    • Excellent climbing performance. When climbing with a heavy load, the suspension shrinks and the rear wheels provide extra support
  • Motor with an encoder can obtain speed feedback for speed closed-loop control
  • 0.96" OLED display for robot information display
  • UPS power module supporting 3x 18650 batteries in series (batteries not included)
    • Provides outputs of 5V and 3.3V for external other devices
    • UK 3-pin plug charger included
  • Onboard lithium battery protection circuit within the UPS power supply module - anti-overcharge, anti-over-discharge, anti-overcurrent and short circuit protection
  • Demo developed in the Arduino IDE
    • No need to manually configure the compilation environment
    • ESP32 automatically sets a WiFi hotspot when it is turned on

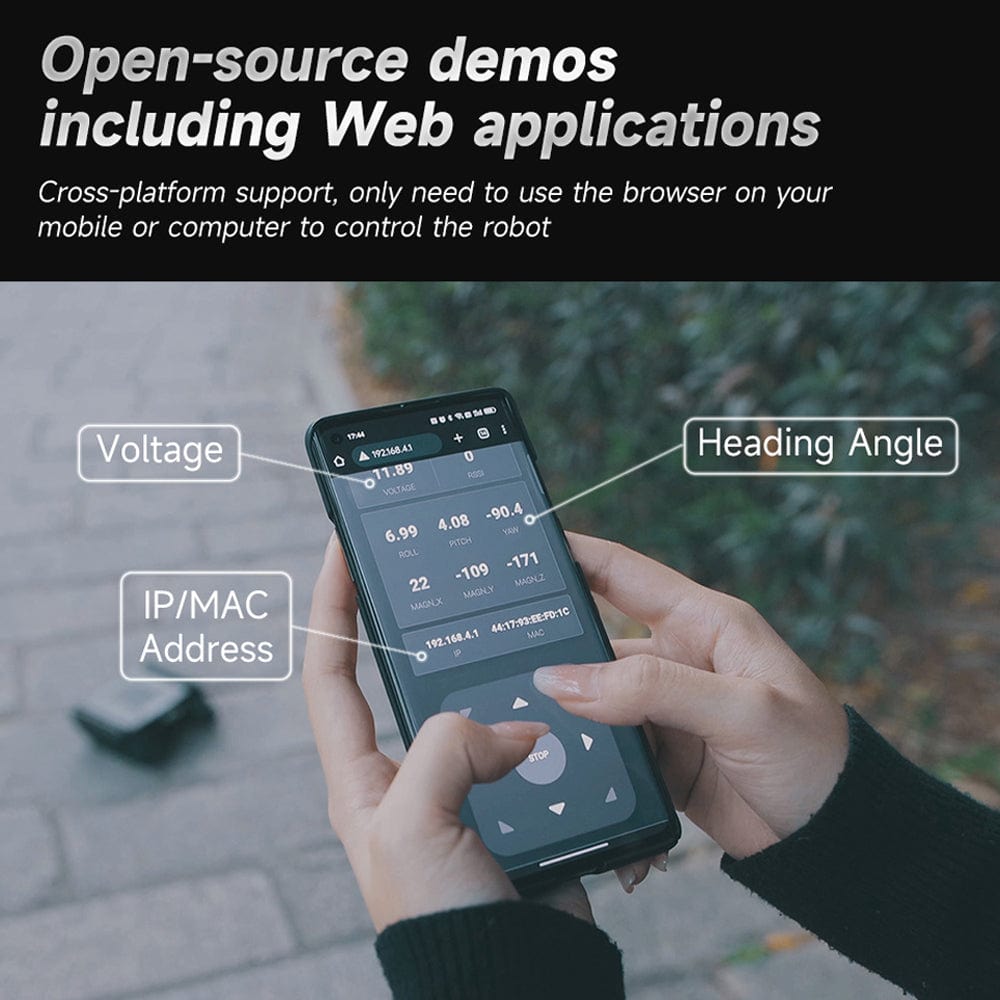

    • Use a mobile phone (Android/iOS) or a computer (Linux/Windows/Mac) to connect and log in to the control page
  • ESP32 slave computer
    • Can be used to drive DC motors, serial bus servos, onboard OLED screen interfaces, TF card slots, nine-axis IMU modules, WiFi and Bluetooth
    • Can be used alone without installing a host computer

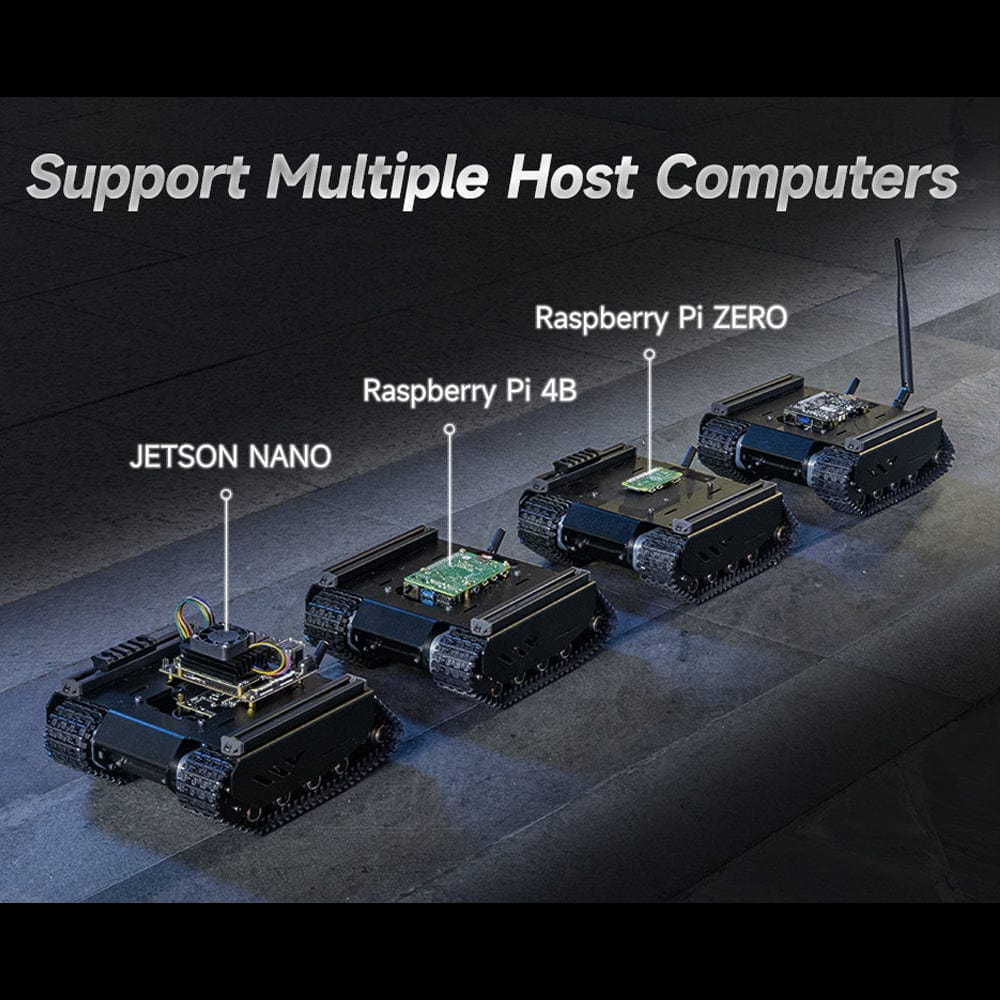

  • Supports a variety of external host computers
  • All code is open-source
  • JSON commands can be sent via serial port, USB, HTTP, ESP-NOW etc
  • Most of the configuration settings can be controlled by JSON commands, for example, you can configure a WiFi connection for the product without connecting a USB cable.

Specifications

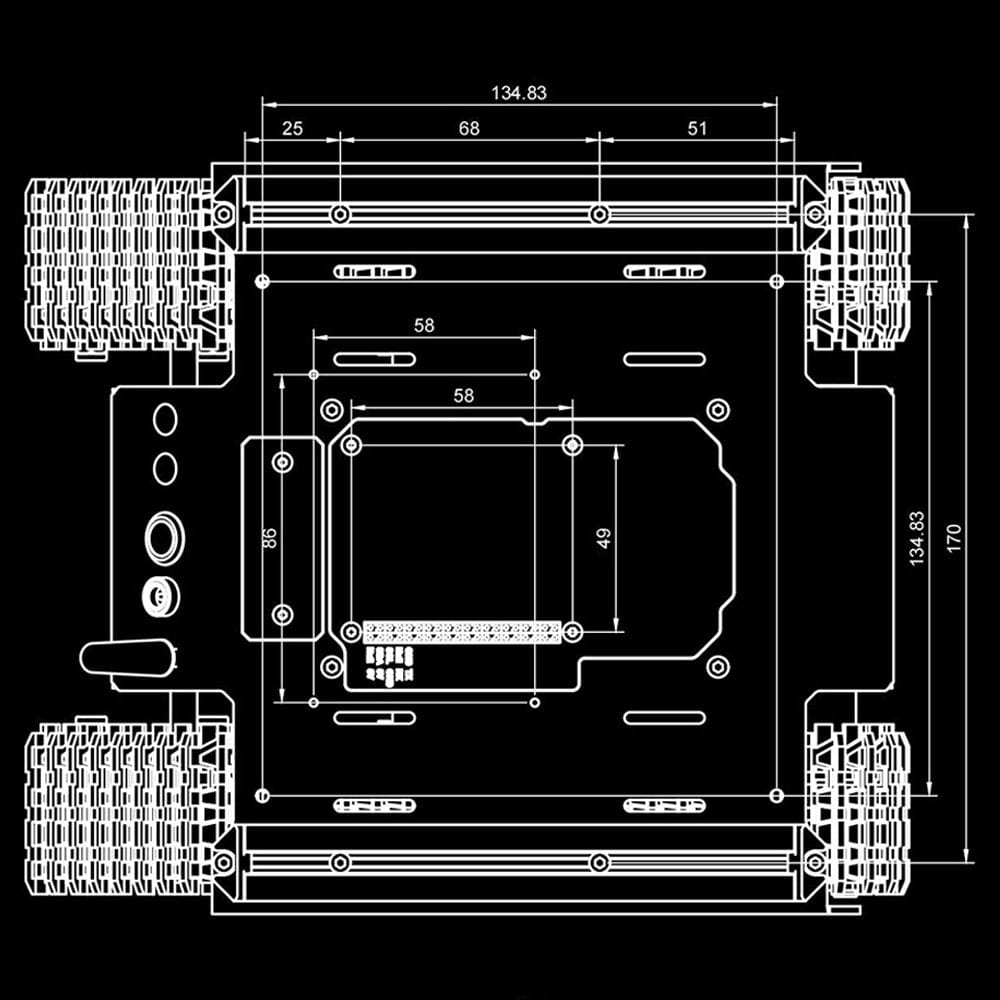

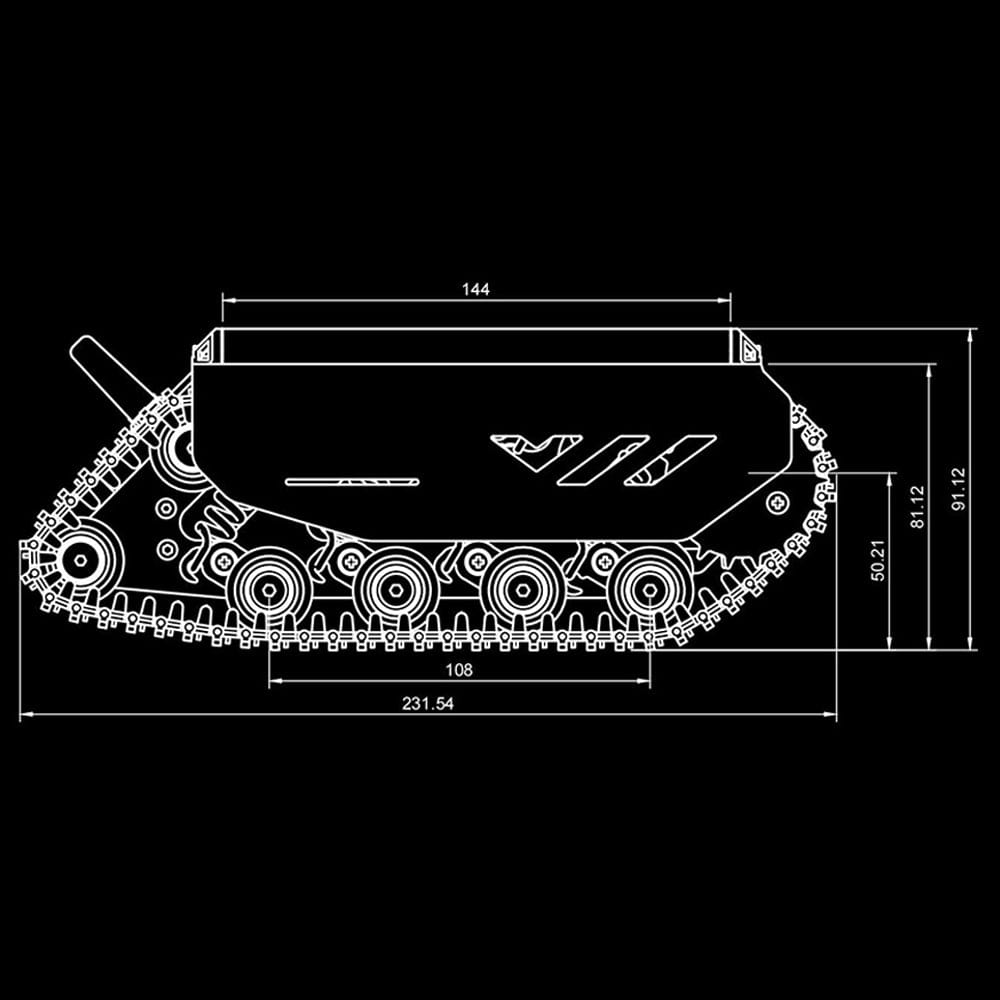

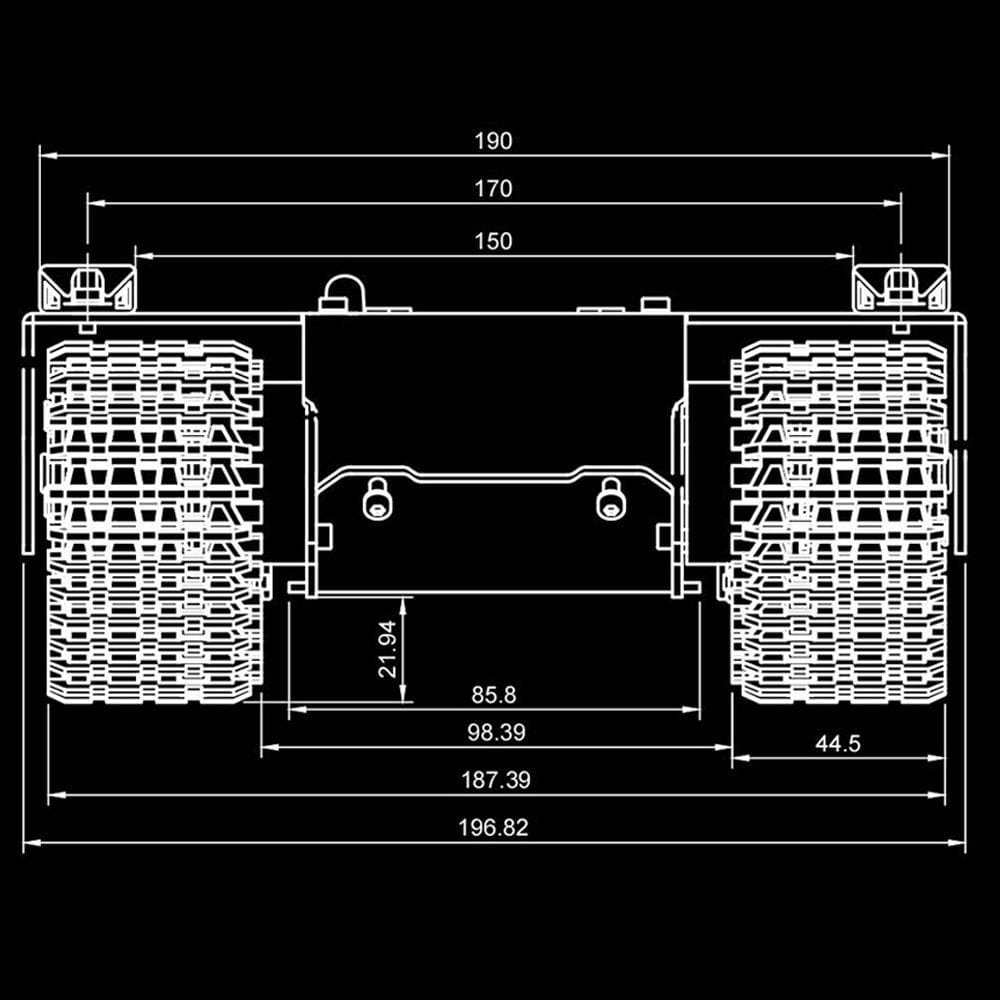

Outline dimensions 231×197×151mm
Chassis height 26mm
Track width 44mm
Track level grounding length (non-load) 115mm
Track climbing grounding length (large load) 170mm
Weight 1.9kg
Driving payload 6.2kg
Battery support 18650 Lithium battery × 3 (not included)
Charging time 1.5h
Motor power 5.2W × 2
Motor encoder Basic pulse 11PPR
Suspension systems 4×2 (independent)
Rail Center distance 170mm
Running speed 0.25~1m/s
Suspension material 1.5mm (thickness) stainless steel
Body material 2mm (thickness) 5052 Aluminum Alloy
Vertical obstacle ability 40mm
Climbing ability 36°
Minimum turning radius 0m (In-situ Rotation)
Battery life 1h (full power continuous output)
Remote control function WIFI AP/STA
Communication interface UART /serial bus servo interface / IIC

Resources

Package Contents

  • 1x UGV01 Kit (assembled)
  • 1x 12.6V 2A Battery Charger (UK 3-pin Plug)
  • 1x Zip-shell case
