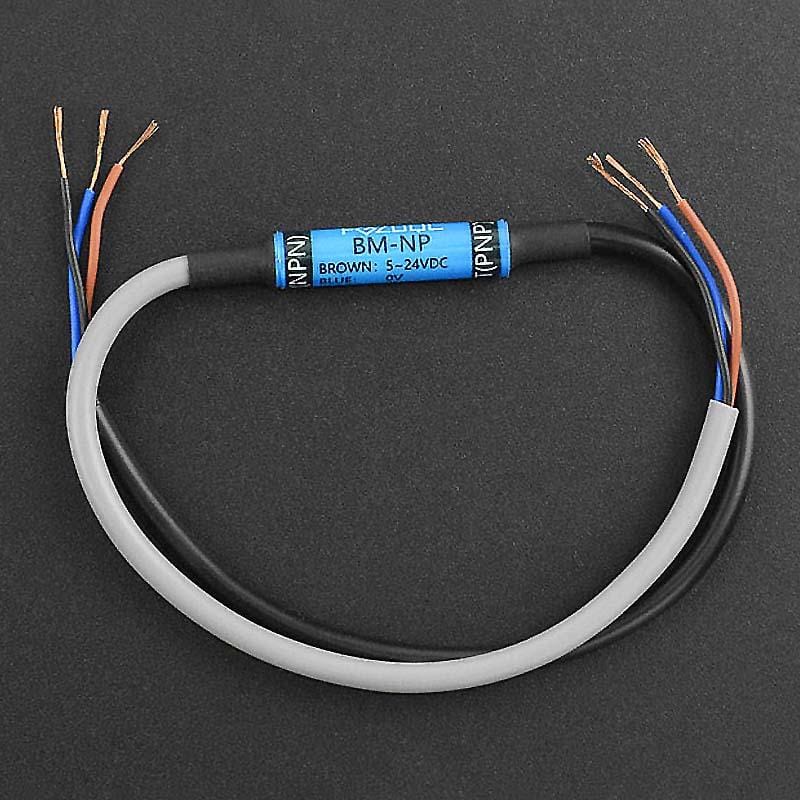

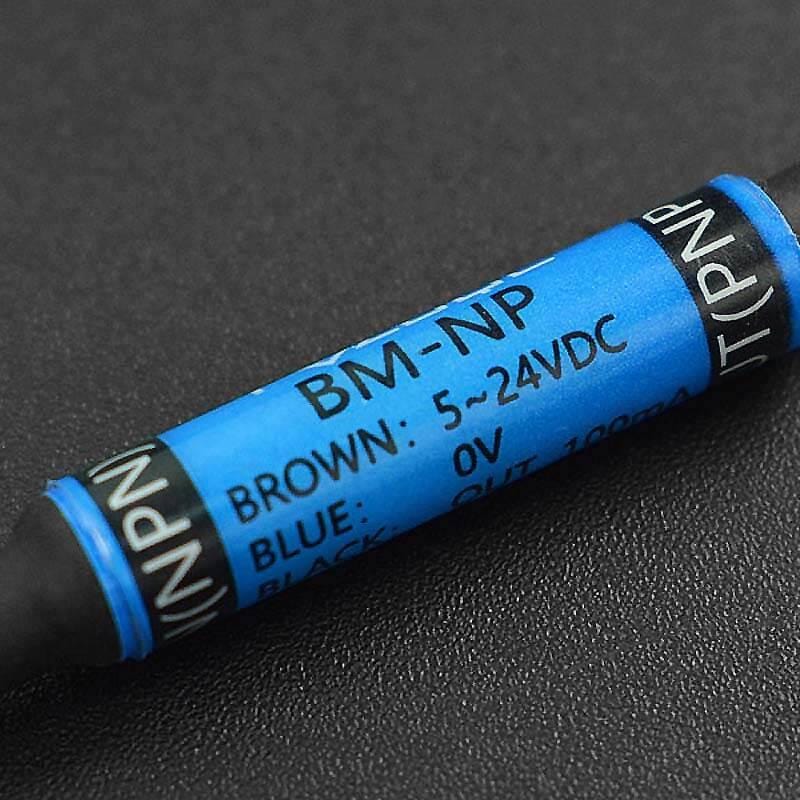

NPN to PNP Signal Converter Module

DFRobotSKU: FIT0850
Price:
Sale price £9.60
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

Awesome Extras

WagoWago 3-Way Block Connector (12-24 AWG) - Pack of 3
Sale price £2.50 incl. VAT excl. VAT
DFRobotDFRduino Uno R3
Sale price £16.70 incl. VAT excl. VAT

If sensors are used in your equipment or control systems, having signal converter modules like this NPN to PNP converter readily available could eliminate the last-minute problems that you encounter when your controller and the type of sensor you are using have a mismatched signal.

This signal converter is designed to convert NPN signal to PNP and is equipped with surge absorption and over-current protection to further protect your device.

Includes module and a 3-way connector.

NPN to PNP Signal Converter Module Diagram

Connection Example (Arduino)

NPN to PNP Signal Converter Module Arduino Example

Specification

  • Working Voltage: 5~24V DC
  • Current Protection: Overcurrent protection, surge absorption
  • Load Current: 100mA max
  • Operating Temperature: -20℃~70℃
  • Operating Humidity: 35~85%RH
  • Response Time: 1us
  • Model: BM-NP
  • Conversion: NPN.NO-PNP.NO

Resources

Package Contents

  • 1x NPN to PNP Converter
  • 1x 3-way Wire Connector
