Monk Makes Amplified Speaker 2

Monk MakesSKU: 105877
£8.10
incl. VAT
excl. VAT
Only 20 units left

Awesome Extras

Raspberry Pi 4 Model B - The Pi HutRaspberry Pi 4 Model B - The Pi Hut
Raspberry PiRaspberry Pi 4 Model B
From £33.30 incl. VAT excl. VAT
Raspberry Pi Pico W - The Pi HutRaspberry Pi Pico W - The Pi Hut
Raspberry PiRaspberry Pi Pico W
From £5.80 incl. VAT excl. VAT
Arduino Uno Rev3 - The Pi HutArduino Uno Rev3 - The Pi Hut
ArduinoArduino Uno Rev3
£24.50 incl. VAT excl. VAT

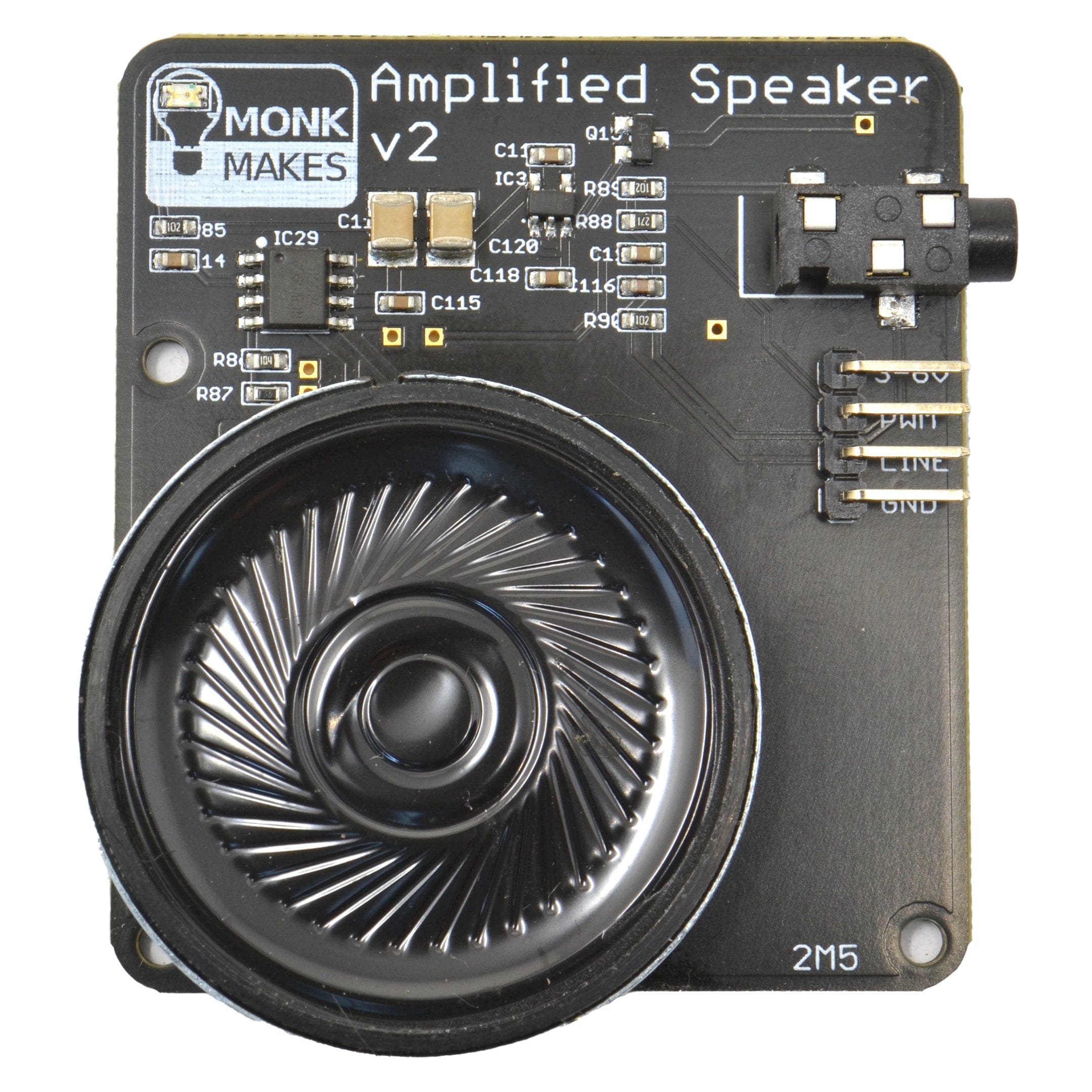

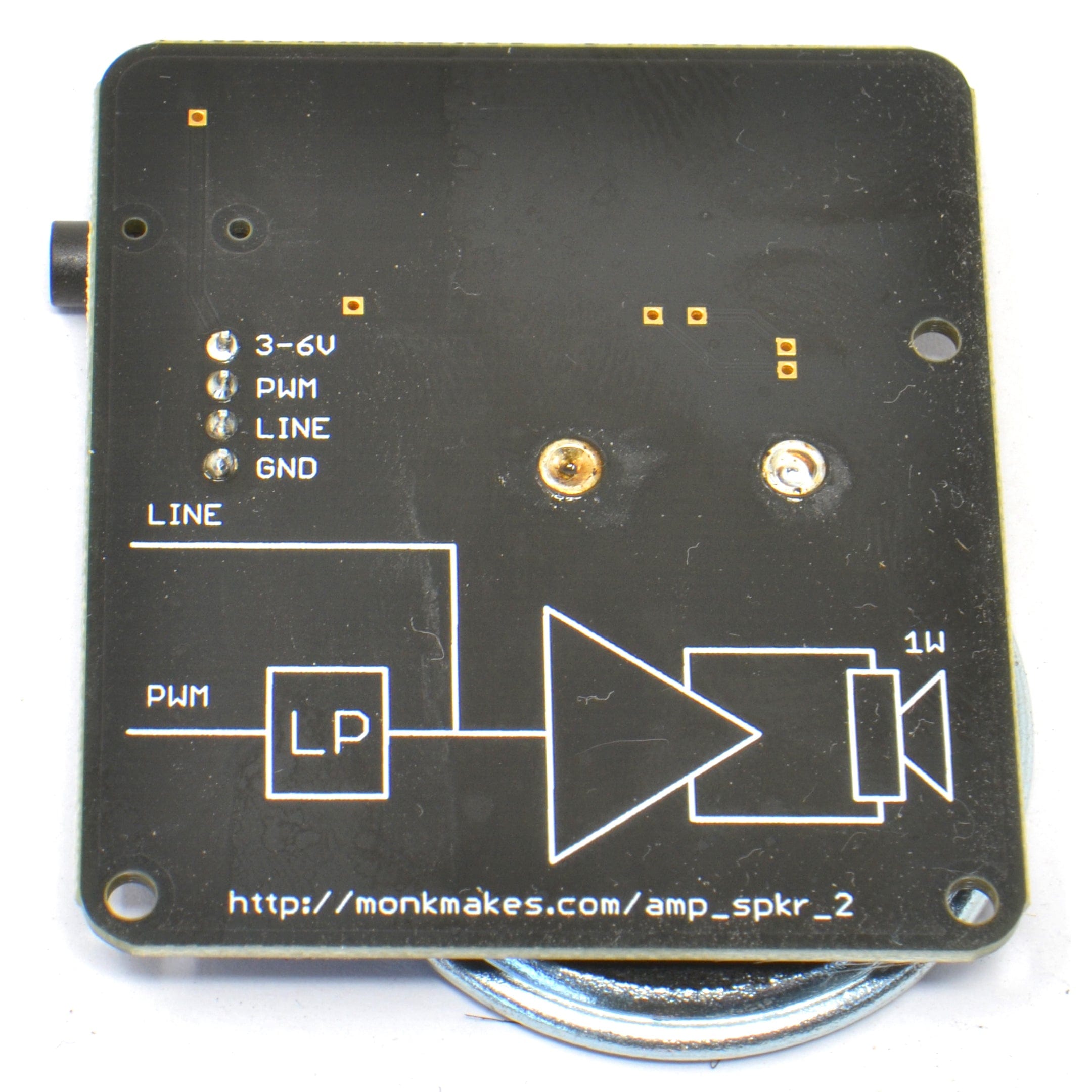

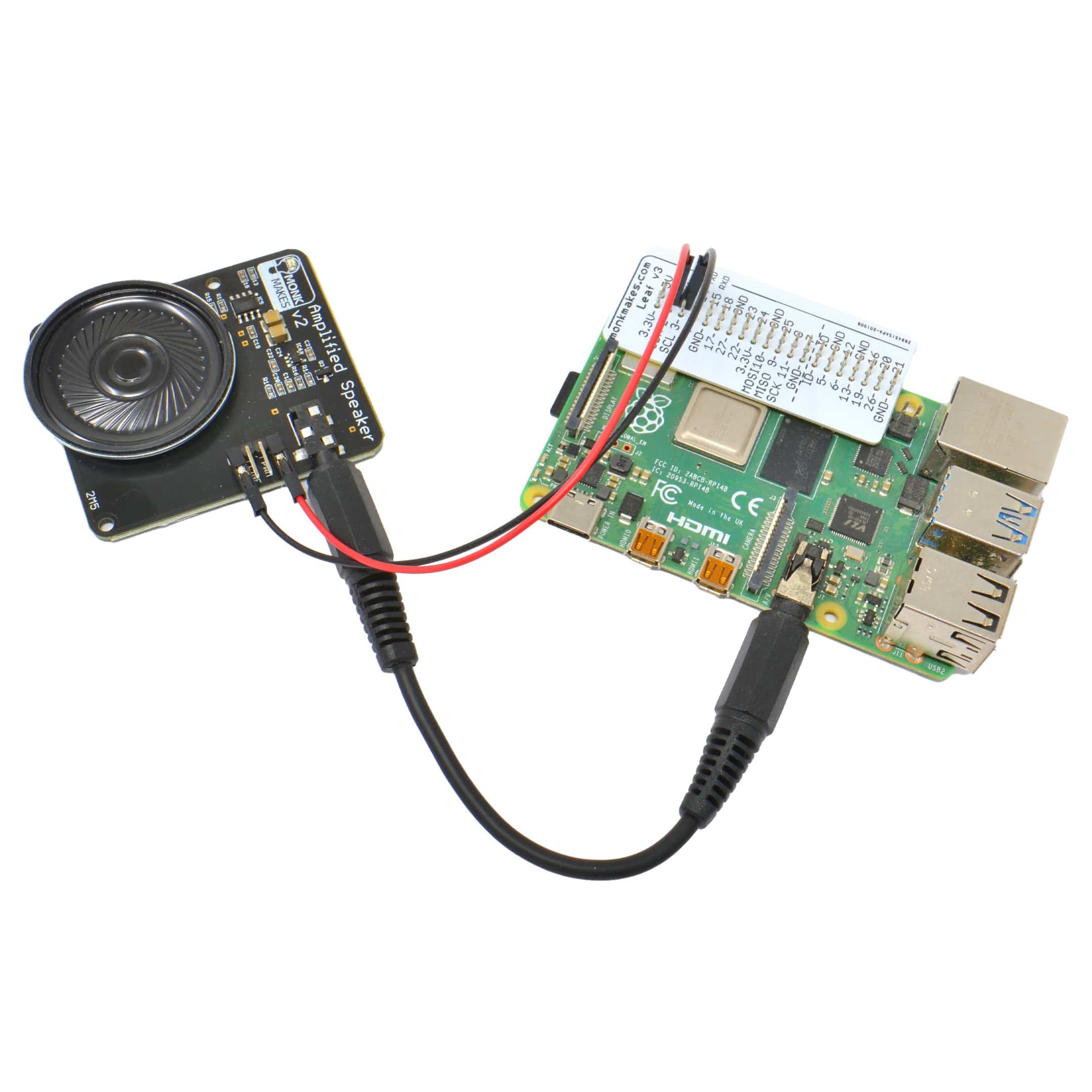

Crank up the volume with the Monk Makes Amplified Speaker! This compact, easy-to-use speaker is mounted on a circuit board and requires a 3.3 to 6V power supply, which can be provided by a Raspberry Pi or Arduino Board. It features a 3.5mm stereo audio jack socket for audio input, which is converted to a mono signal. Additionally, it includes a separate input with a low-pass filter for use with PWM/PCM audio.

Note: Raspberry Pi and Arduino boards are NOT included

Specifications

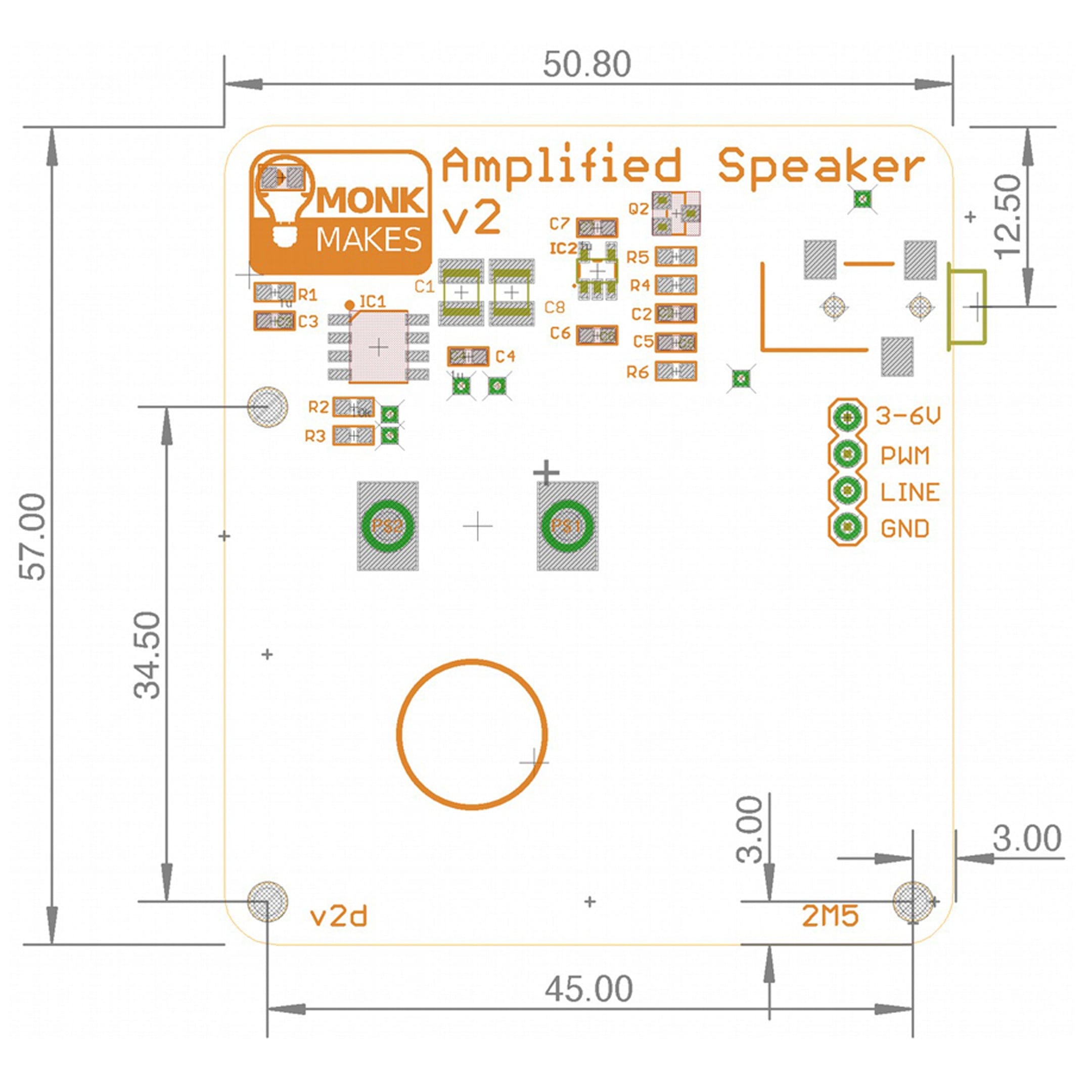

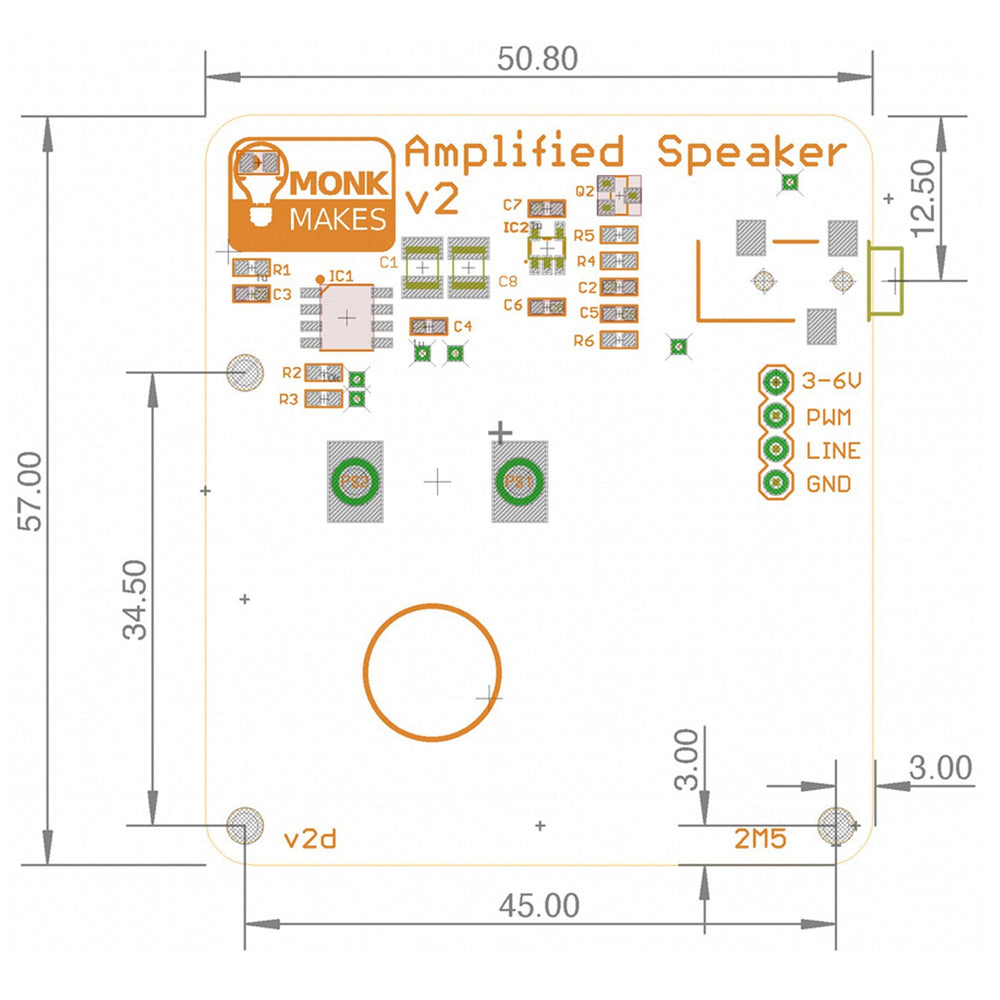

  • Dimensions: (L x W x H) 50.80 x 57 x 60 mm
  • Supply Voltage Range: 3.3 to 6 V
  • Speaker Impedance: 8 Ω
  • Speaker Nominal Max Power: 500 mW
  • LP Filter F0: 23.6 kHz
  • Maximum Current Consumption: 300 mA

Resources

Package Contents

  • 1x MonkMakes Amplified Speaker 2
