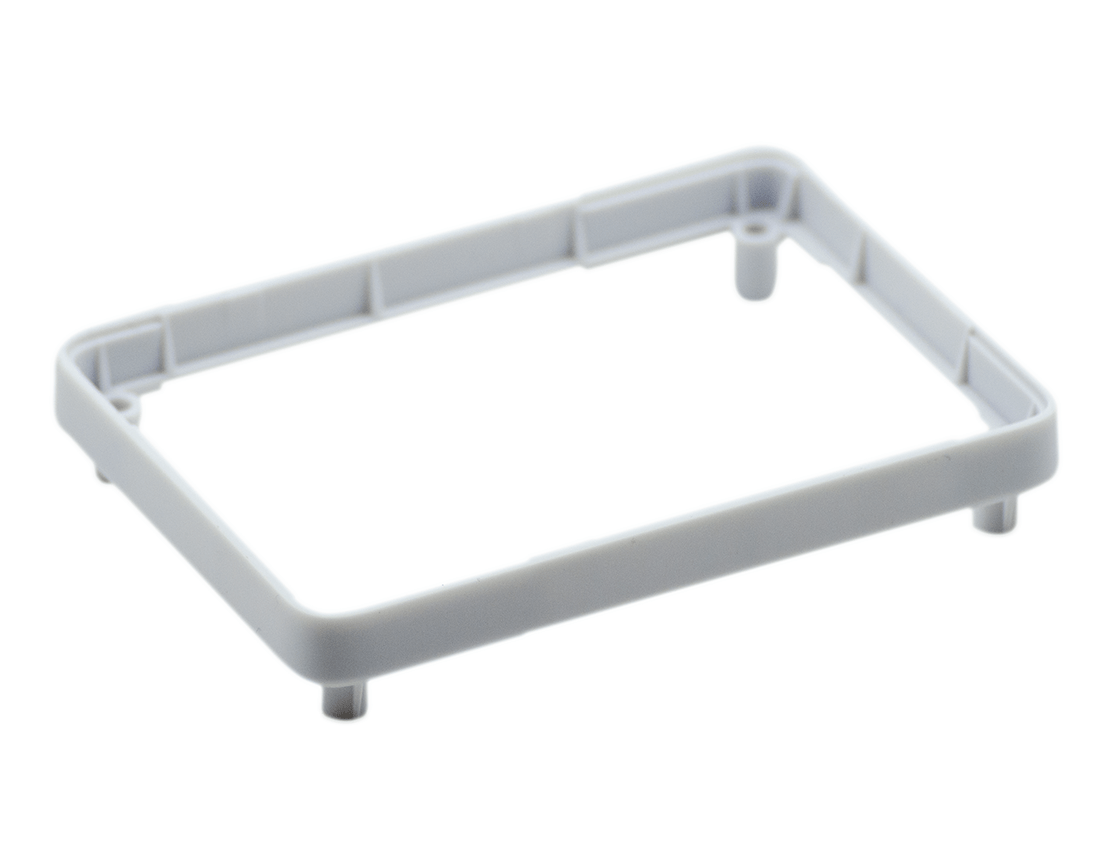

These spacers increase the internal height of our Modular Raspberry Pi Case by 10mm per spacer and can be stacked to increase the headroom further. Additional (longer) screws required - please read below notes.
For example, 2 spacers would be 20mm extra. Up to 5 spacers can be used, using longer screws if the case needs to be secured.
The spacers are compatible with both our Raspberry Pi 2/3 Modular case and the new Raspberry Pi 4 version.
10mm Stackable Spacers Features
Screw Size Guide
Depending on the number of spacers required, the length of the screw required will change.
Below is a table showing the use of up to 5 spacers with corresponding screw lengths. We currently stock 3 screw lengths which are linked below.
Screws types compatible with spacers plates are both No.4 (US) and M3 (UK/EU).
No. of Spacers | Screw Length Required (mm) |
0 | 28 (Included with Case) |
1 | 38 |
2 | 48 |
3 | 58 |
4 | 68 |
5 | 78 |
