This 2x4 Mini Solderless Breadboard adds a tiny prototyping area to Perma-Proto and perf-board projects, with 0.1" spaced connections for testing a few components or jumper wires without soldering.
Add a micro-slice standard solderless breadboard to your Perma-Proto or other perf-board.

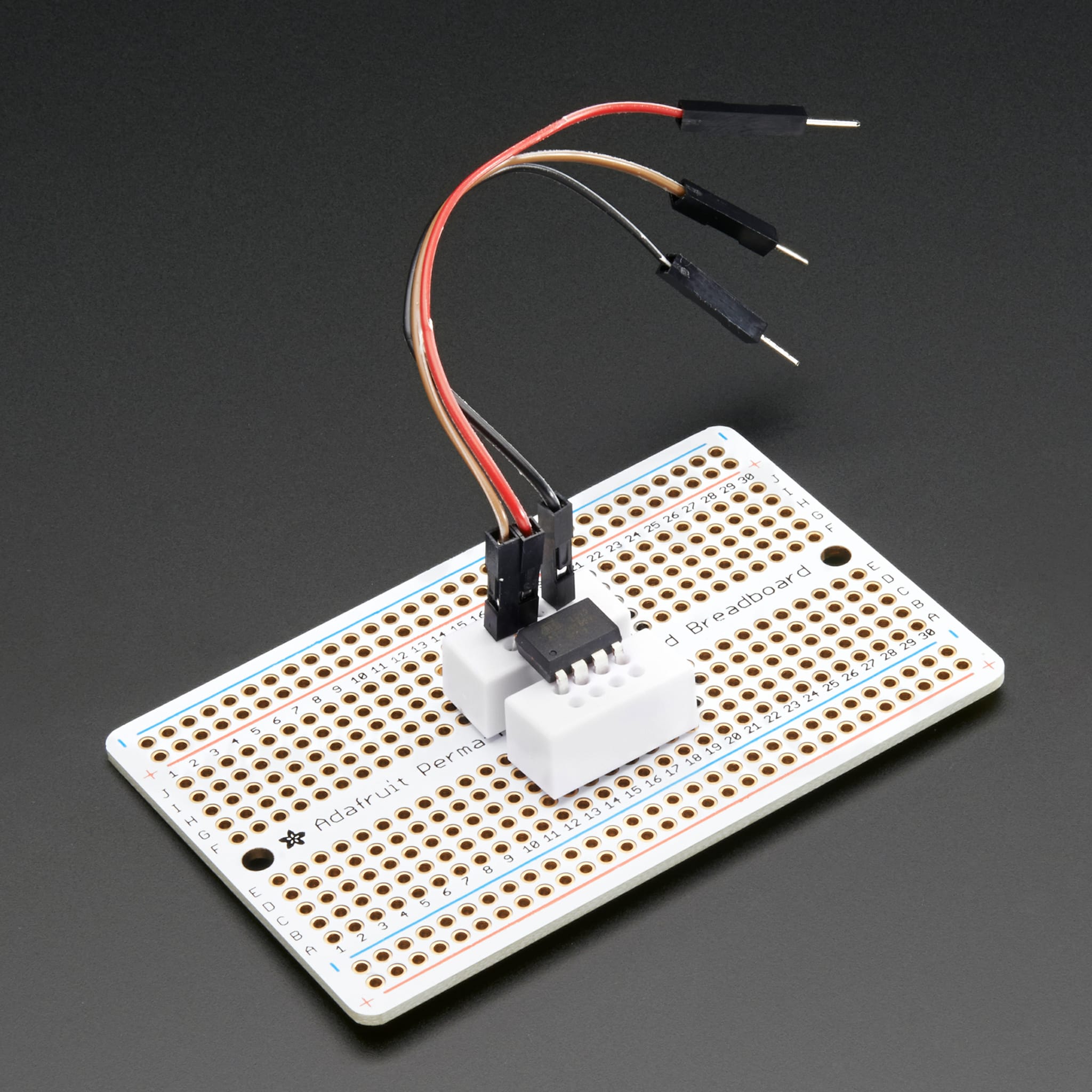

This 2x4 point solderless breadboard is a good way to add some solderless prototyping space if you just need to have a couple of points. In our example photo, we put a chip and some jumper wires in the breadboard, but you can use anything with 0.1" spaced header.

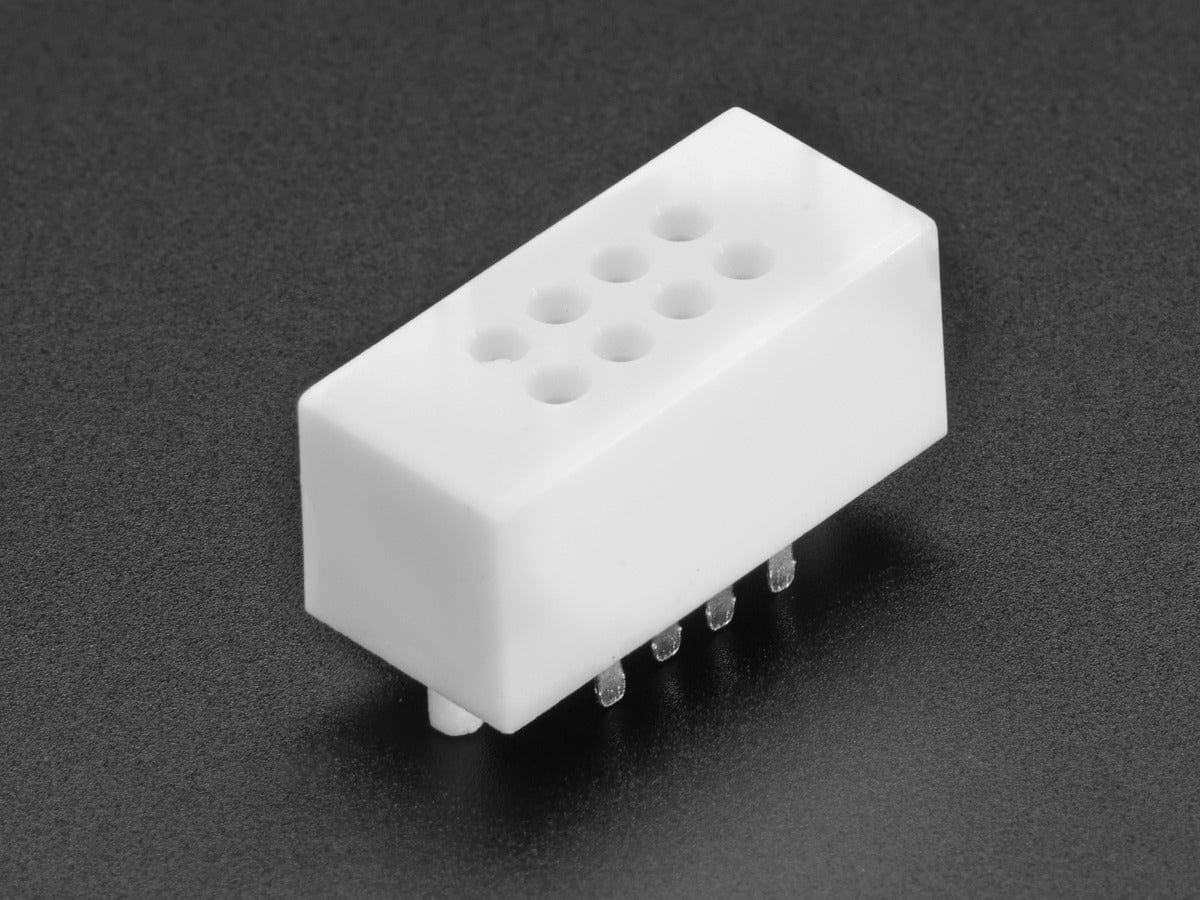

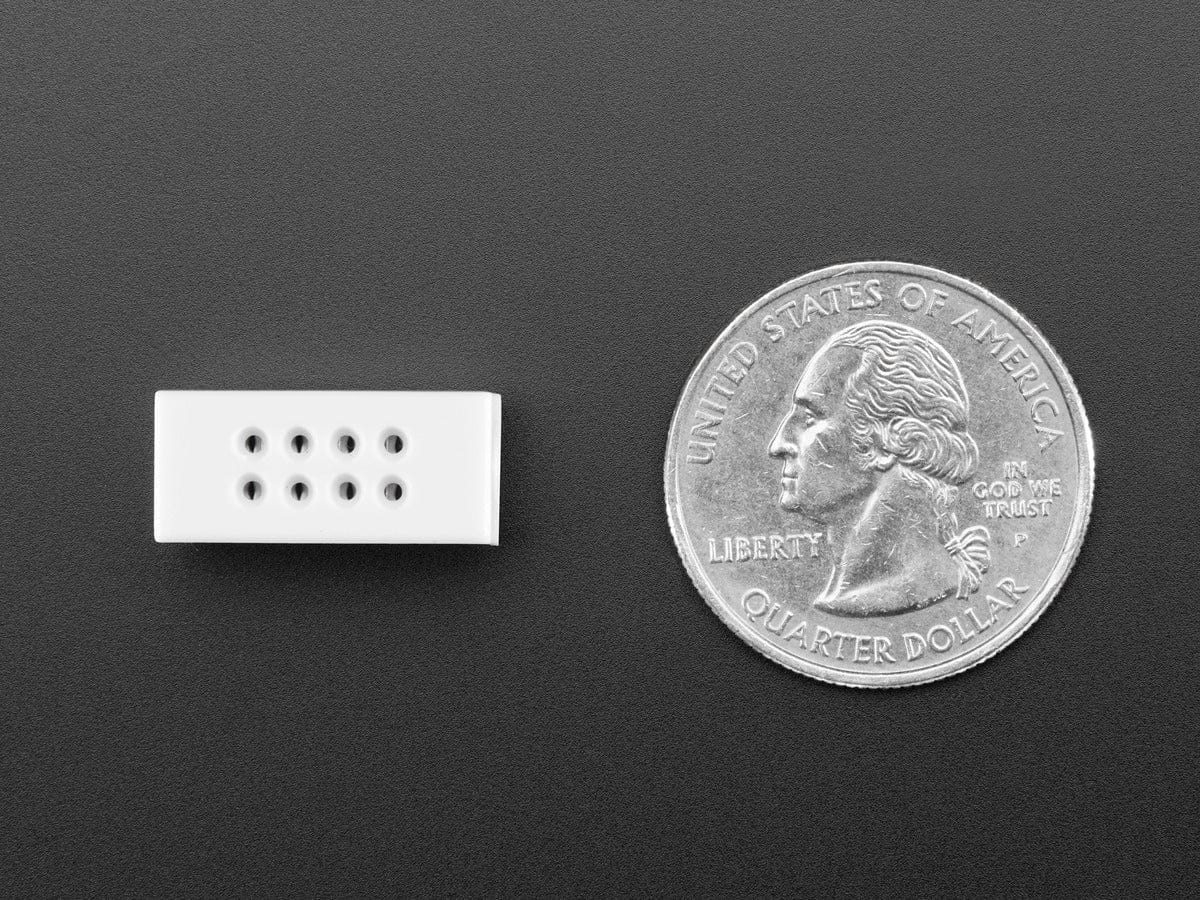

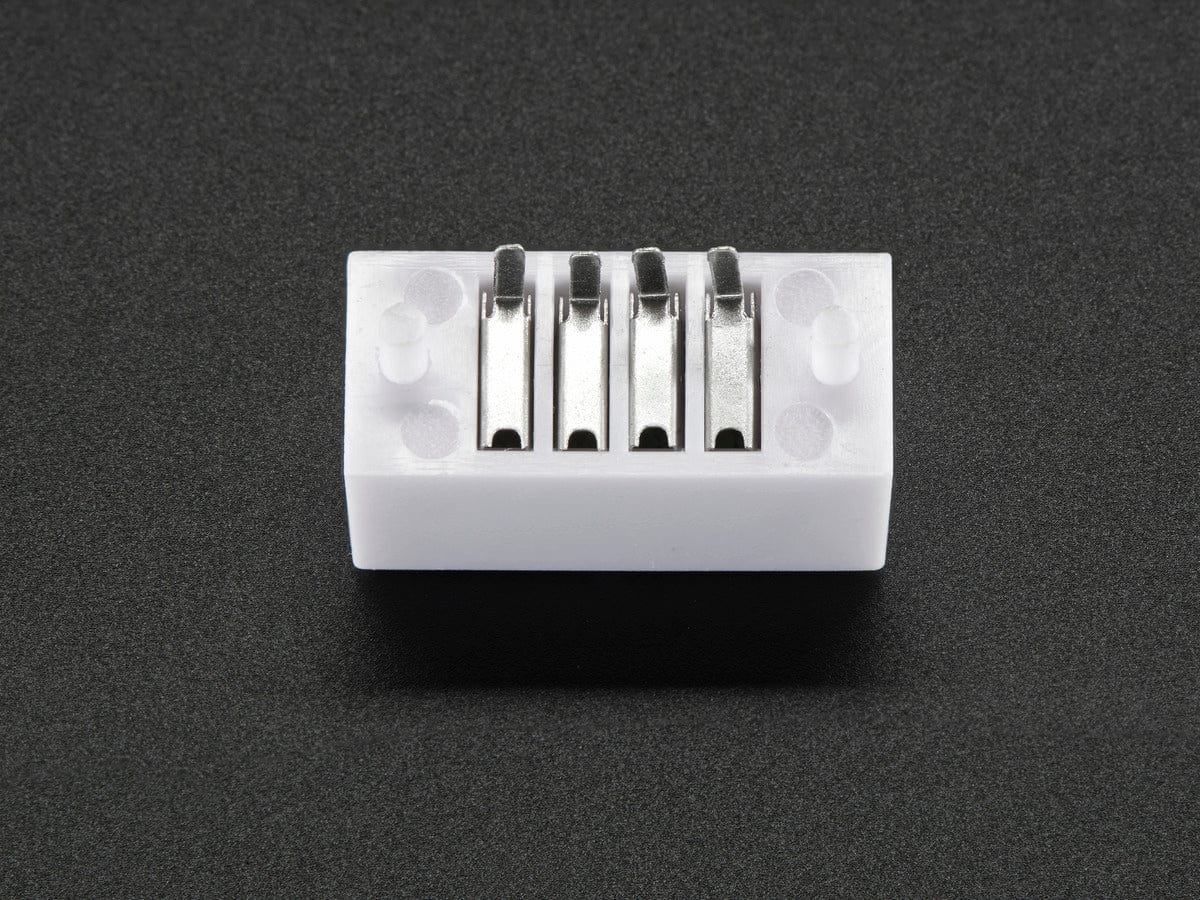

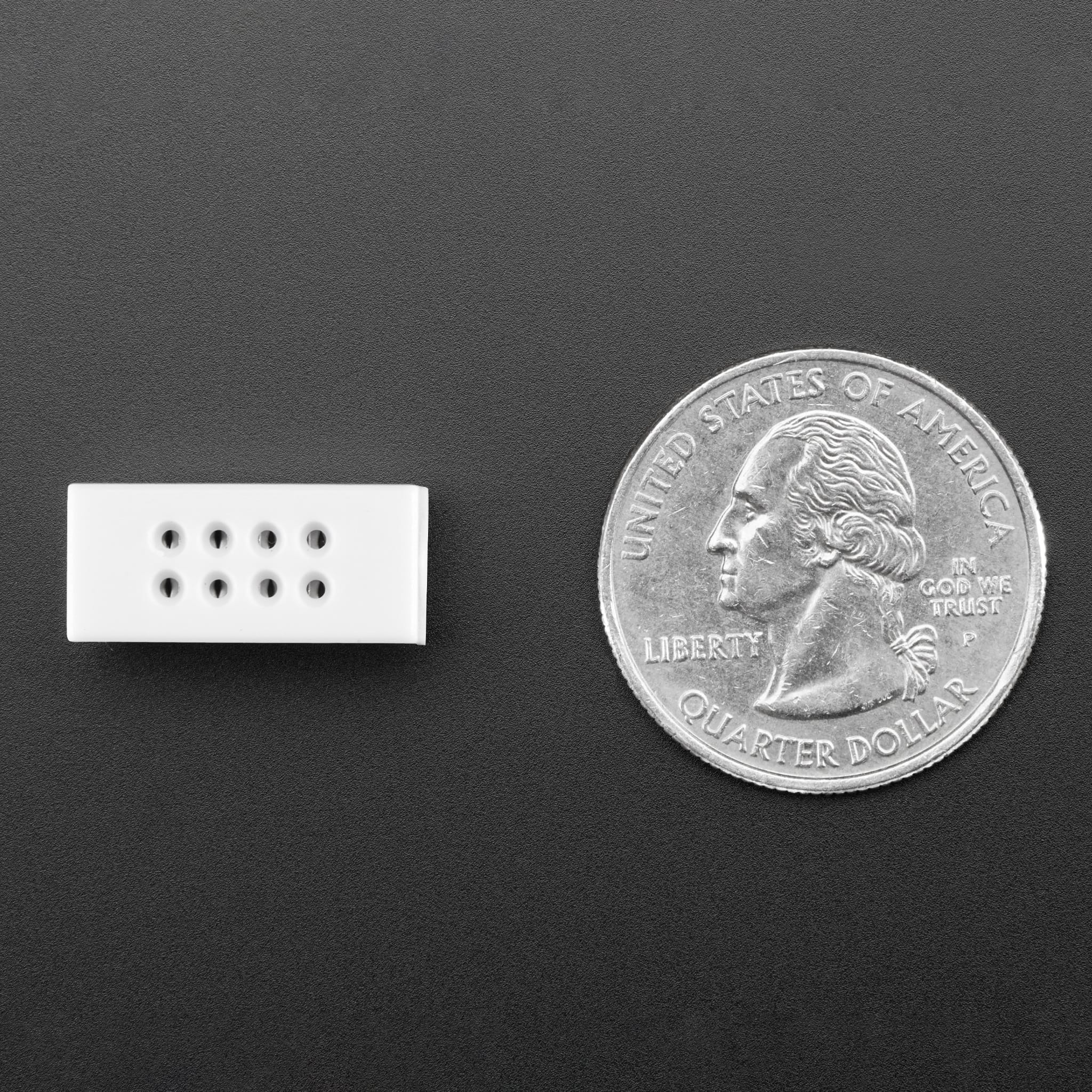

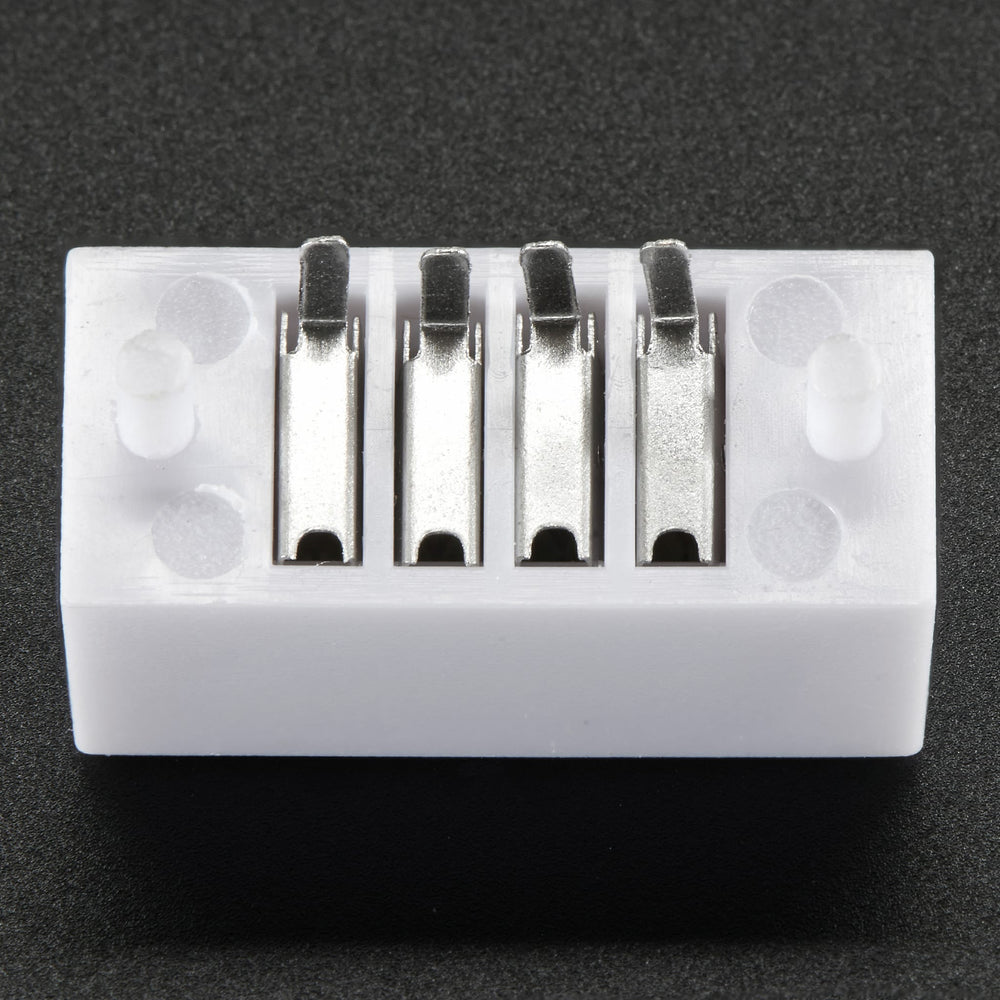

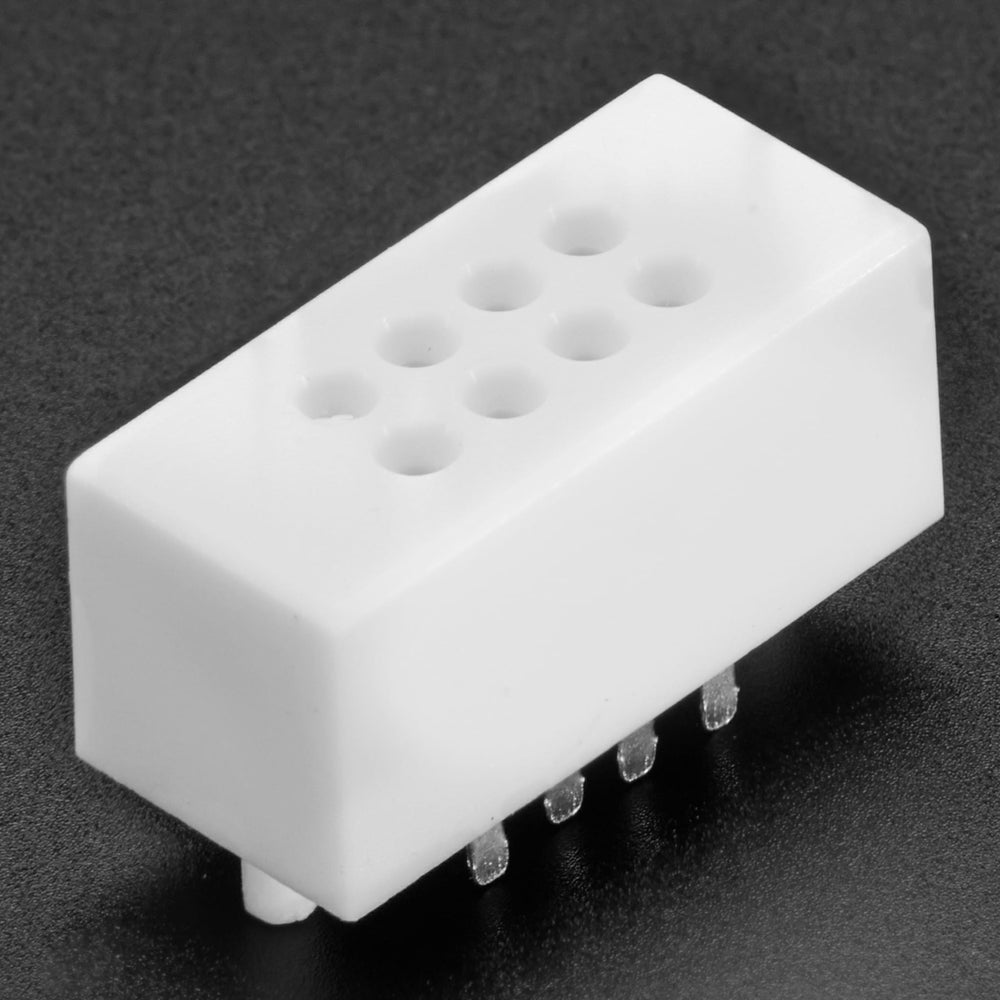

Comes with one 18mm x 8mm x 8mm piece of solder-less breadboard. There are two white posts on the bottom for PCB positioning. In our example, we snapped those off and soldered two of them into our Perma-Proto.
Compatible with 0.1" spaced headers and components
Includes two white positioning posts for PCB mounting
Posts can be removed and soldered for permanent installation
Ideal for adding compact prototyping space to perf-boards or Perma-Proto boards
Accepts jumper wires, chips, and standard breadboard-compatible components
Revision History
As of Sep 7, 2022 - This micro breadboard has been updated to Premium metal springs, making plugging and un-plugging boards and headers a buttery-smooth operation thanks to the upgraded spring clips. It's not as noticeable because there are not a lot of pins.
