Mini Laser Distance Range Sensor (4m)

DFRobotSKU: SEN0590
Price:
Sale price £10.42
incl. VAT
excl. VAT
Stock:
Only 15 units left
Quantity:

Awesome Extras

DFRobotGravity: IO Expansion Shield for Arduino V7.1
Sale price £7.08 incl. VAT excl. VAT
DFRobotDFRduino Uno R3
Sale price £13.92 incl. VAT excl. VAT
DFRobotGravity: Multifunctional Environmental Sensor
Sale price £24.08 incl. VAT excl. VAT

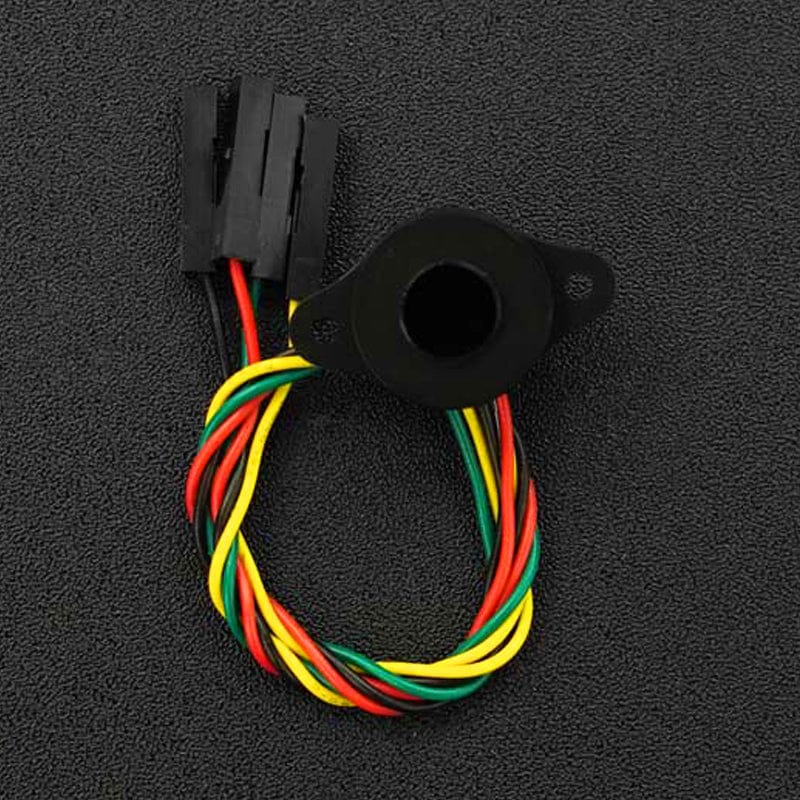

This laser distance ranging sensor has a compact size, comparable to the size of a fingernail, and a measurement range of up to 4m. It is specifically designed to address the issues commonly found in distance sensors on the market, such as large size, slow response time, and poor installation adaptability.

It boasts a range of advantages including small size, minimal blind zone (Measurement accuracy: ≤25cm@±1cm, >25cm@±S*4%cm), fast response time (19-38ms), high installation adaptability, dust and water resistance (IP67), long lifespan, and high reliability.

The sensor outputs data through an I2C interface, which allows you to easily integrate it with Arduino IO expansion boards.

It finds widespread applications in various fields, including smart furniture with motion sensing capabilities, home security systems, intelligent detection systems, smart control systems, robot obstacle avoidance, and object proximity and presence detection.

Features

  • Compact size and small blind zone
  • Lightweight and fast response time
  • Simple to use with I2C output
  • IP67 waterproof rating

Connection Example - I/O Expansion Shield V7

Specifications

  • Measurement range: 2-400cm.
  • Measurement accuracy: ≤25cm@±1cm, >25cm@±S*4%cm (with an actual error of around 5mm).
  • Operating voltage: 3.3-5V.
  • Idle current: 2mA.
  • Operating current: <19mA.
  • Communication method: I2C.
  • Output response time: 19-38ms.
  • Power-on delay time: ≤800ms.
  • Detection angle: 19°.
  • Operating temperature: -15°C ~ 60°C.
  • Operating humidity: 65% ~ 80%RH.
  • Storage temperature: -30°C ~ 80°C.
  • Storage humidity: 65% ~ 90%RH.

Resources

Package Contents

  • 1x 4m Laser Ranging Sensor
