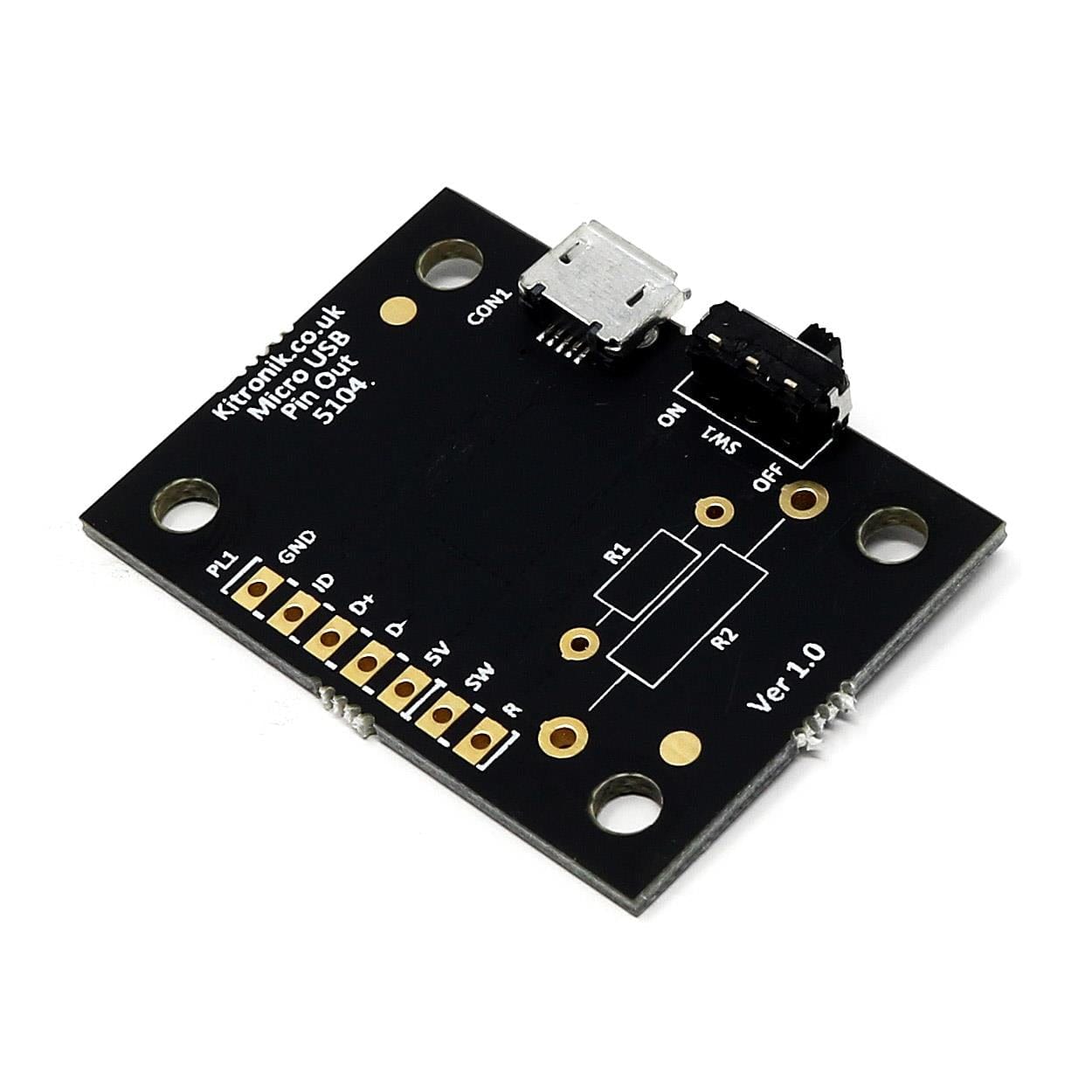

This Micro USB Breakout Board offers easy access to all the USB power and data pins as they are connected to large solder-able pads on the PCB, with 0.1" spacing.
The board has two further outputs where the 5V power pin is connected through a switch or the switch and a resistor. This makes the board ideal for a variety of applications.
Fully compatible with Micro USB chargers supplied with most mobile phones and tablets. Or just use the board with a micro-USB cable and connect power as you wish!
- 0.1" spaced pads suitable for use with standard pin strip
- Micro USB
- Resistor mounting holes
- Onboard power switch
- 1 x Micro USB Breakout, with Power Switch
- User Guide (PDF)
- PCB Length: 38mm
- PCB Width: 28mm
