One of our popular micro metal gearmotors, equipped with a pre-soldered Motor Connector Shim.

We've fitted this motor with a Motor Connector Shim so that you can connect it up to a controller board (like Motor SHIM for Pico) using a convenient 2-pin JST-ZH cable (sold separately) with no soldering required. Using cables to connect up your motors means they're easy to incorporate into your robotic designs, and straightforward to connect/disconnect if you need to swap out your motors for different ones.

If you need a motor with a different gear ratio, we also sell Motor Connector Shims on their own so you can solder them on yourself.

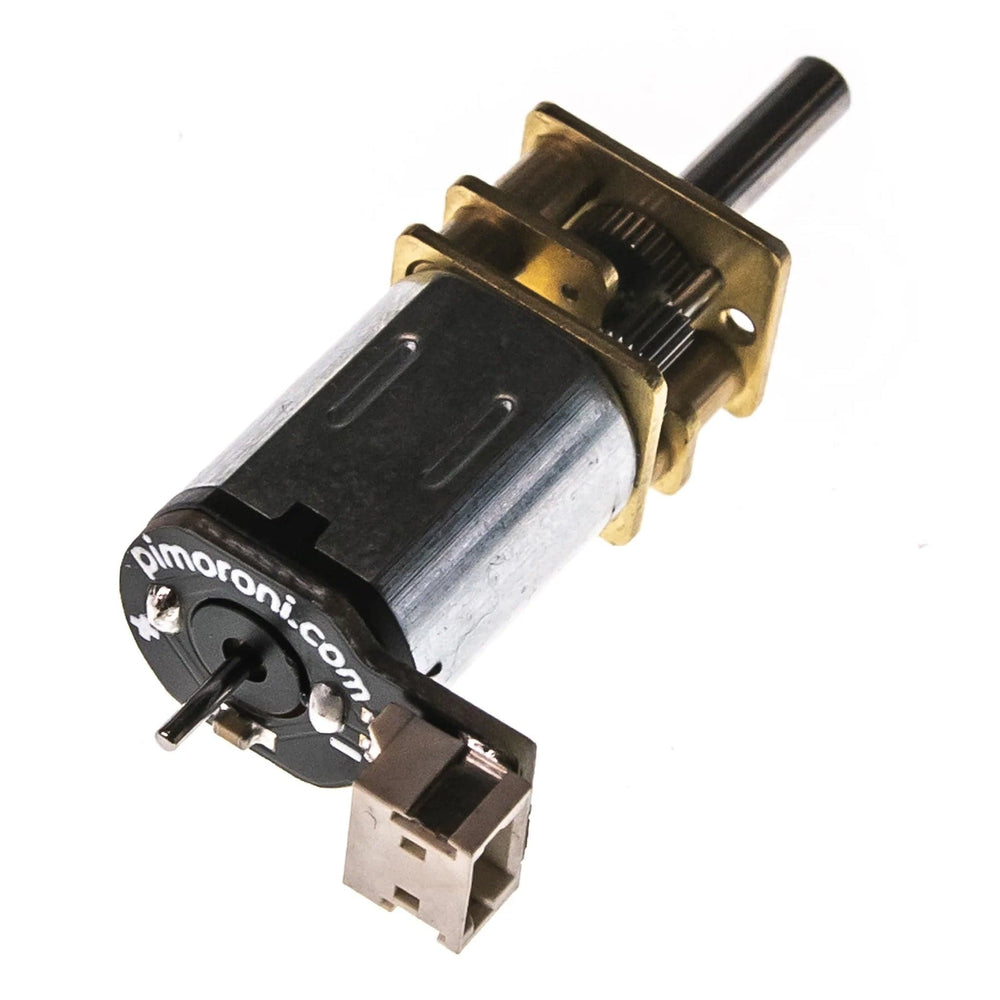

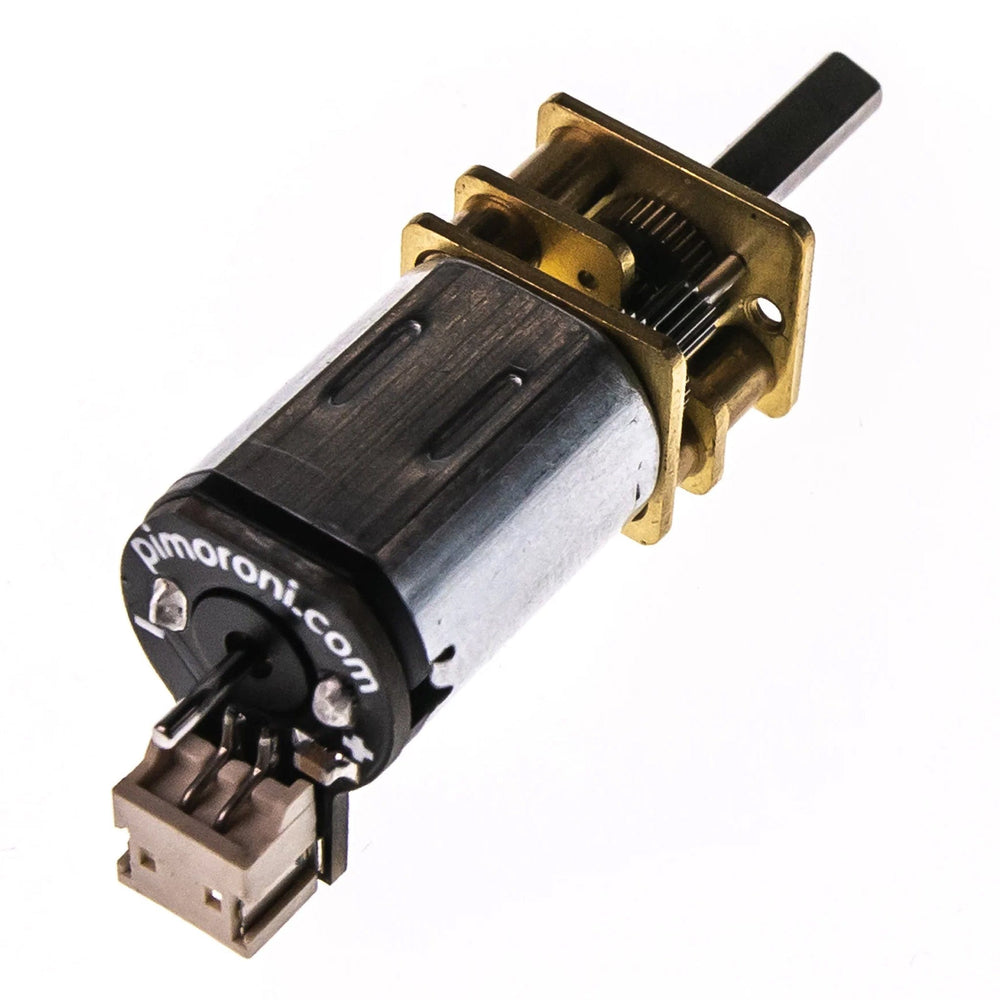

Two versions are available (select before adding to your cart). The regular variant of MCS has the connector coming out of the bottom of the motor (or top, if you mount the motor upside down!). Use the sideways variant if you want a connector on the short side of your motor.

Specifications

This gearmotor is a miniature brushed DC motor with a metal gearbox and long (9mm), 3 mm-diameter D-shaped metal output shaft.

Ratio 50:1
Speed @ 6V 420±10% rpm
Free-run current @ 6V 90mA max
Stall torque @ 6V (minimum) 0.4kg. cm
Stall current @ 6V 920mA
Docs Datasheet
