Micro DC Geared Motor with Exclusive Upside Down Structure

The Pi HutSKU: FIT0490
£11
incl. VAT
excl. VAT
Only 4 units left

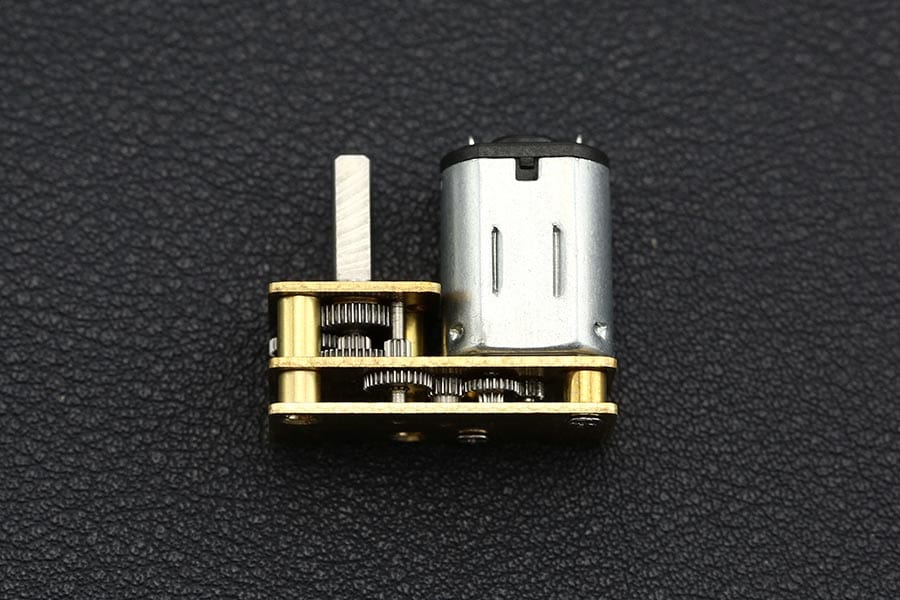

This DC gearmotor has an exclusive upside down structure, 6V rated voltage, the no-load speed could arrive 150RPM. It is durable and easy to be drived by our Romeo BLE microcontroller.

Specification

  • Reduction Ratio: 100:1
  • Rated voltage: 6.0 V
  • No-load speed: 150 RPM
  • No-load Current: 30 mA
  • Rated load speed: 120 RPM
  • Rated Torque: 0.35 kg.cm
  • Rated Current: 5 mA
  • Stall Torque: 2.4 kg.cm
  • Stall Current: 250 mA
  • Weight: 12 g

Shipping List

  • Micro DC Geared Motor with Exclusive Upside Down Structure (6V 150RPM 2.4Kg.cm) x1
