Magnetic Contact Switch Sensor

Price:
Sale price £3.80
incl. VAT
excl. VAT
Stock:
Only 9 units left
Quantity:

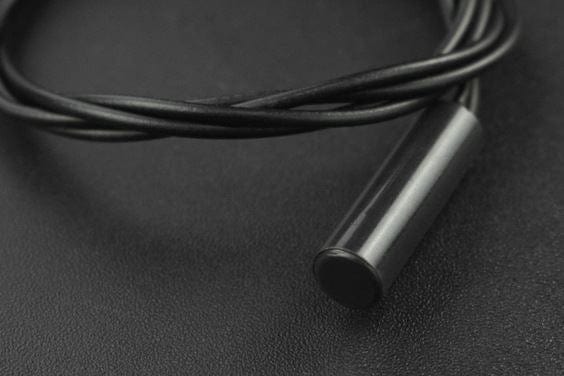

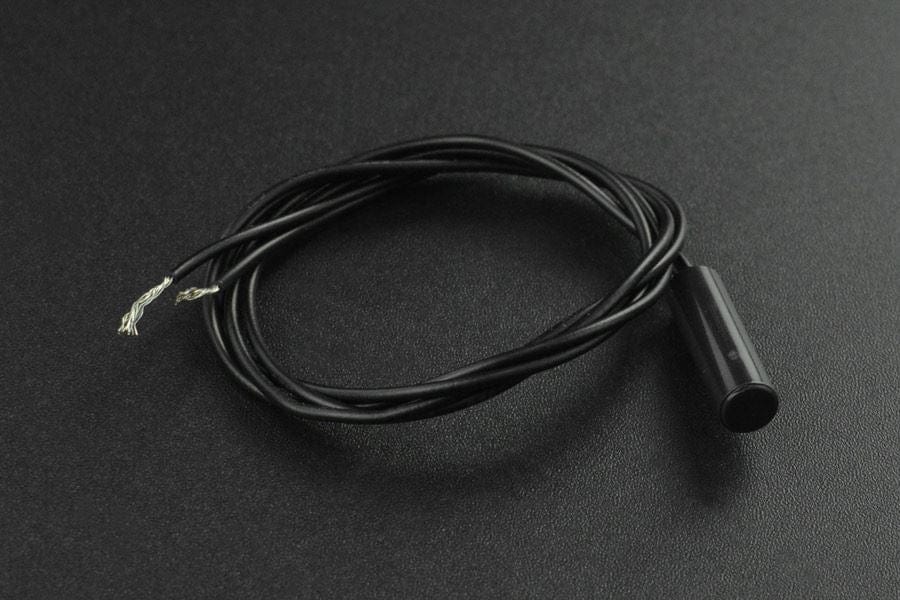

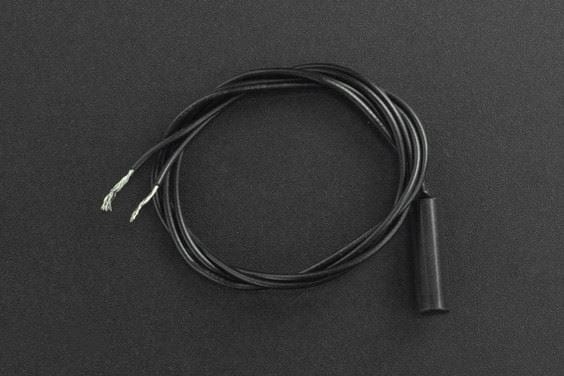

This magnetic switch (reed switch) consists of two magnetic reeds (usually composed of iron and nickel) sealed in a plastic case. The two magnetic reeds are overlapped but there is a small gap between them. When a suitable external magnetic field comes within 2cm, the two magnetic reeds will contact and conduct, thereby sensing the change in the position of the object.

This magnetic control switch has a compact structure and a small weight, which can be installed in a limited space, and is extremely suitable for using in miniaturized equipment. The switching elements of the reed switch are hermetically sealed in an inert gas atmosphere so that they are never exposed to the external environment and feature a long service life. The switch can be widely used in door/window position limiting device, proximity switches, measuring instruments, automation/security/transportation equipment, smart homes, etc.

Features

  • Compact structure and small weight
  • Long service life
  • Wide voltage operating range

Specification

  • Operating Voltage: 0~100V
  • Operating Principle: magnetic sensor
  • Output Signal: switching value signal
  • Size: 6x20x350mm/0.24*0.79*13.78”
  • Color: black

Documents

Shipping List

  • Magnetic Switch x1
  • Sensor Adapter x1

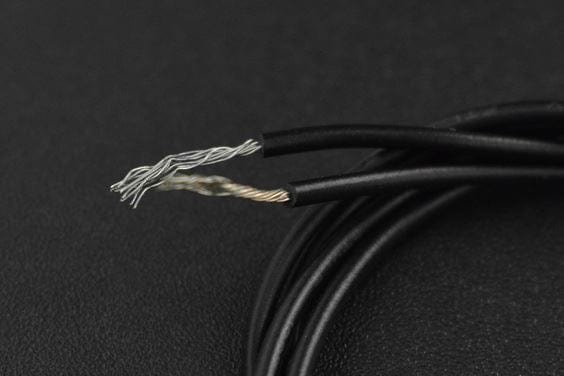

  • Sensor Data Cable x1
