M5Stack M5StickC SERVO HAT

M5StackSKU: U075
£9.50
incl. VAT
excl. VAT
Only 7 units left

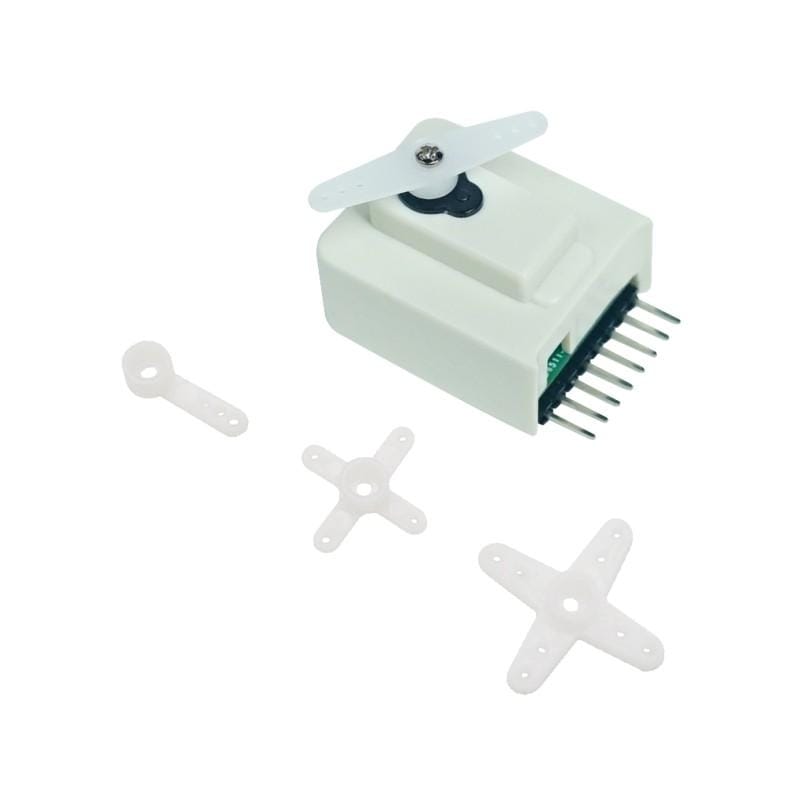

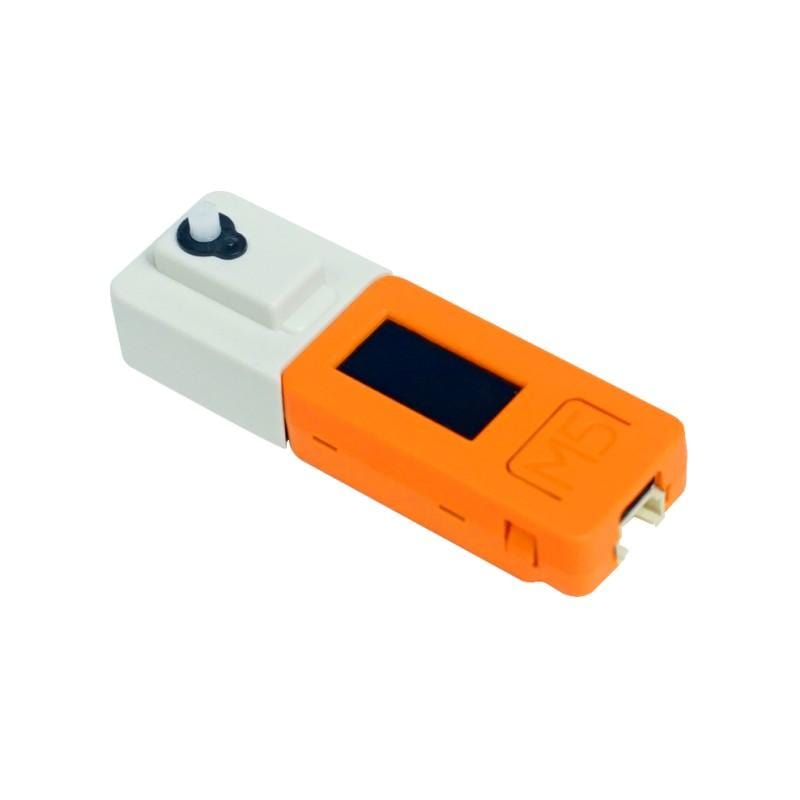

SERVO HAT as the name suggests, is a servo motor module with the new and upgraded "ES9251II" digital servo,This comes with 145°±10° range of motion and can be controlled by PWM signals. The signal pin of the hat is connected to G26 on M5StickC.

Product Features

  • Servo Type:   Digital
  • Spinning speed:  0.09sec/60°
  • Gear material:  Plastic
  • Weight:   2.5g
  • Torque:   0.25Kgf.cm(at 4.8v)
  • Voltage:   5.0V±0.2V

Include

  • 1x Servo HAT

Applications

  • Analog indication
  • Angle and direction control
  • Door lock controller

Specification

Resources Parameter
Net weight 9g
Gross weight 19g
Product Size 35*24*22mm
Package Size 42*40*30mm

LEARN AND DOCUMENTS

  • DOCUMENTS
    •
