The M5Stack Stamp LoRa-1262 is an ultra-compact LoRa communication module with an SX1262 transceiver, supporting 868–923MHz frequencies and up to +22dBm transmit power, with multiple connector options for integration into wireless projects.

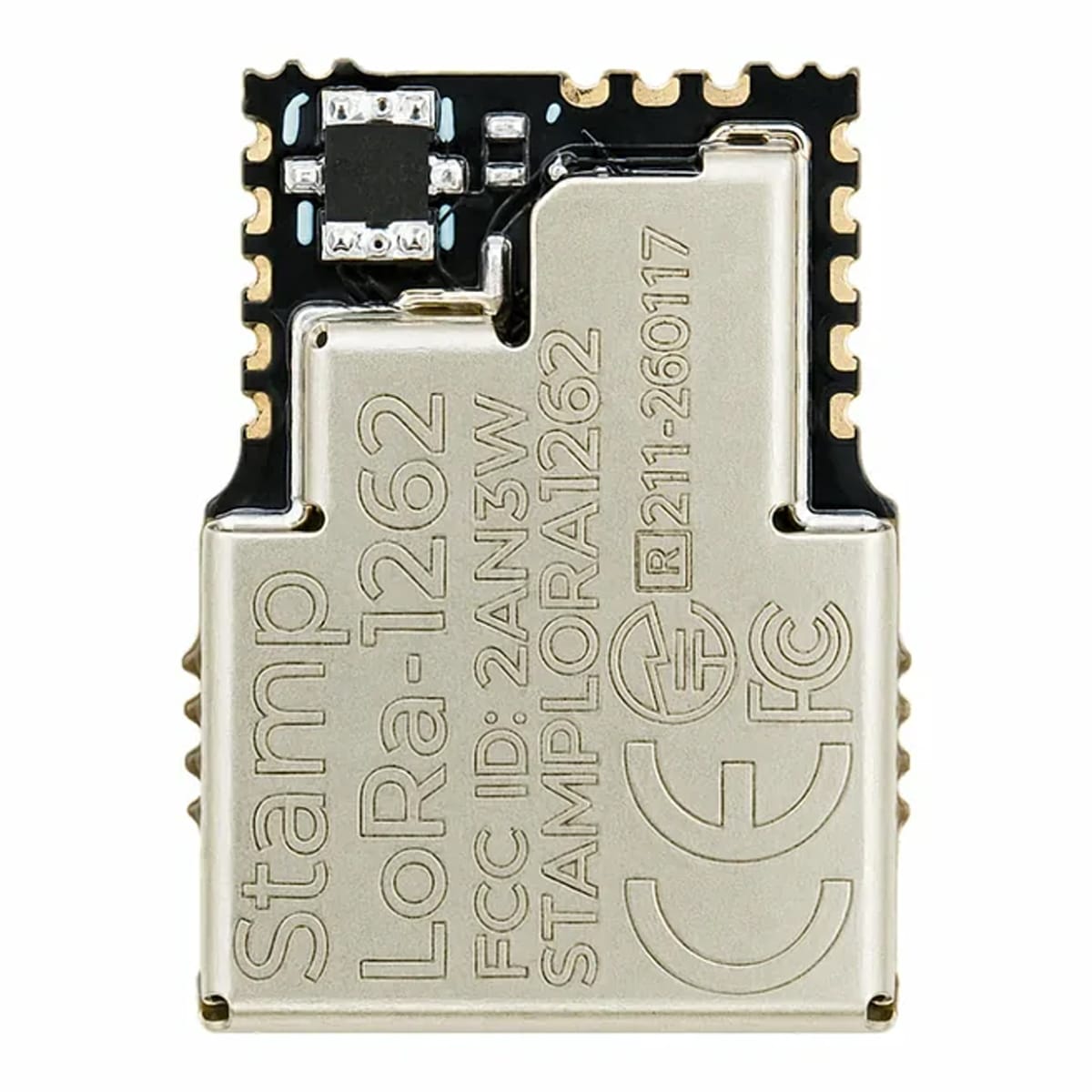

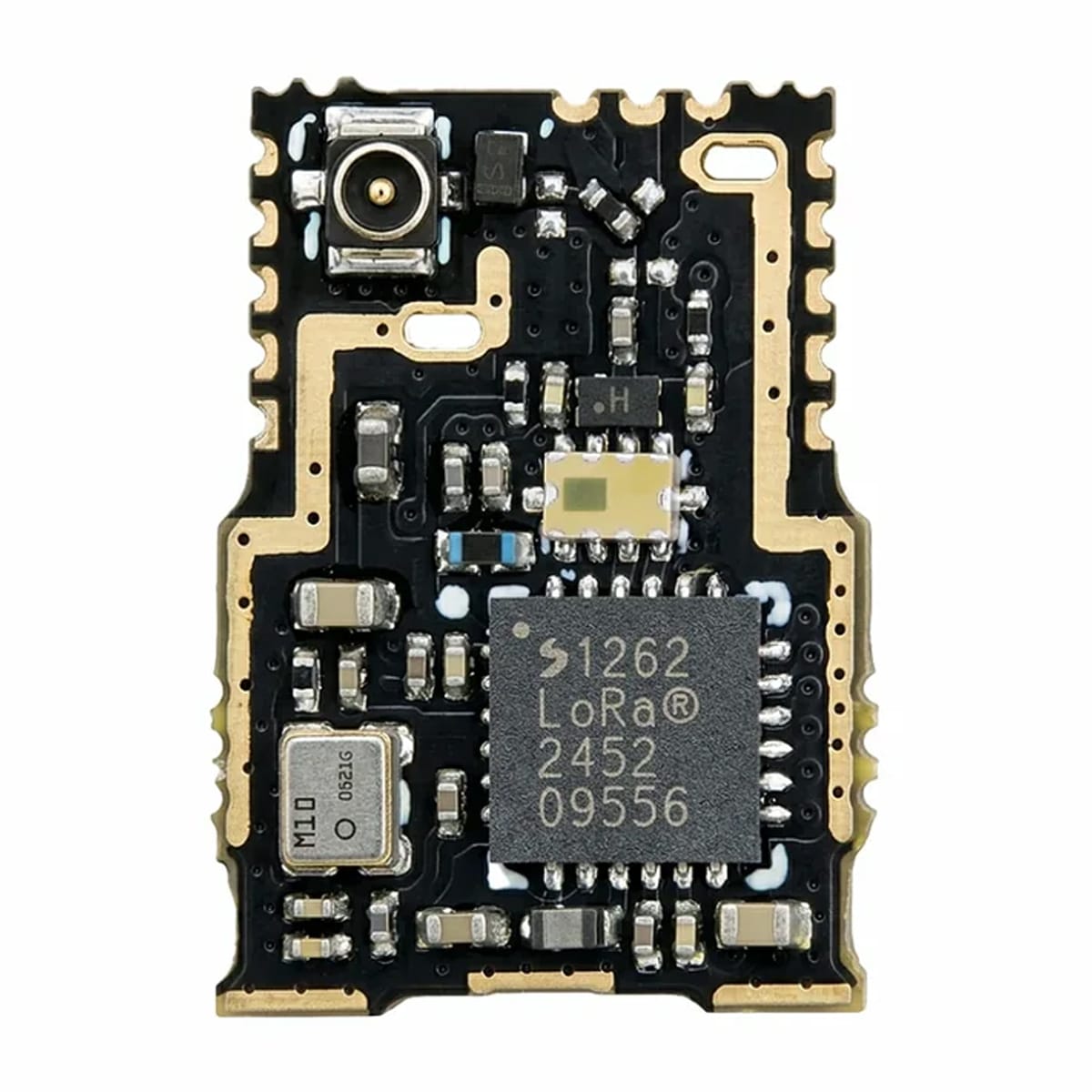

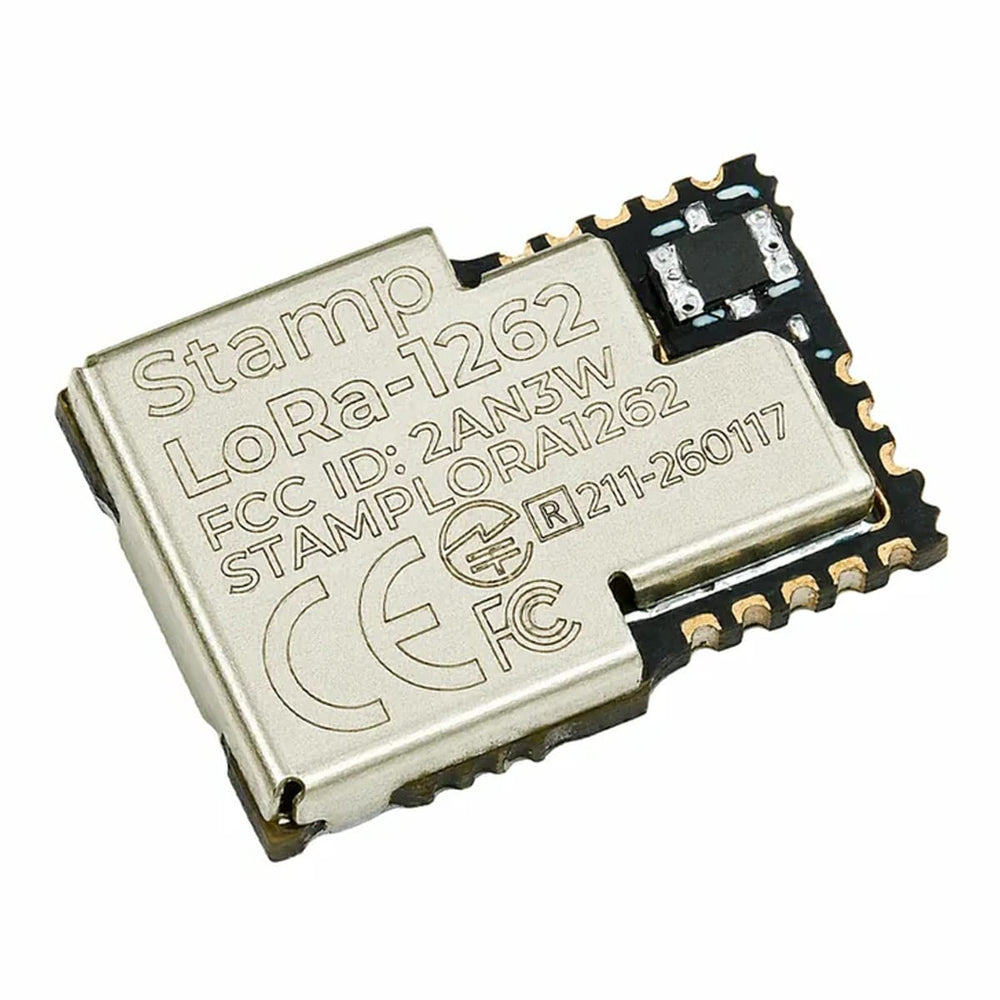

The M5StackStamp LoRa-1262 is an ultra-compact embedded LoRa communication module with a built-in SX1262 high-performance LoRa transceiver, operating over the 868 ~ 923 MHz frequency band.
The module is mini in size yet powerful in performance, with stable and reliable RF characteristics. Its maximum transmit power reaches +22 dBm, and its receive sensitivity is as low as -147 dBm, balancing long-distance communication with system reliability.

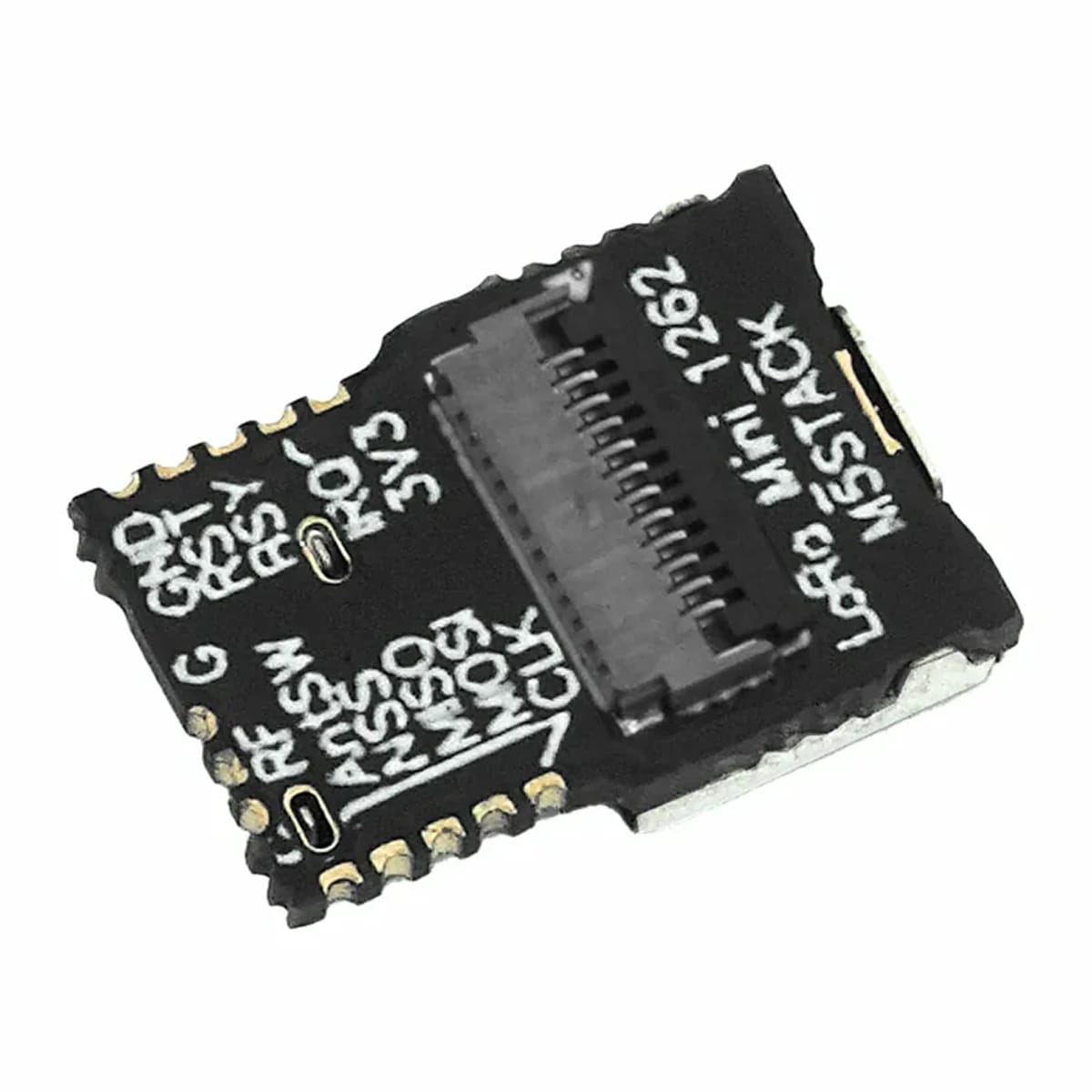

The product is available in multiple variants, allowing users to choose different combinations of a pre-mounted IPEX-4 antenna connector and a 0.5mm@12P FPC connector (for breaking out the module's communication IO) according to application requirements, making it easy to integrate into hardware designs of different sizes and structures. It is suitable for applications such as smart city construction, agriculture and environmental monitoring, and outdoor communication.

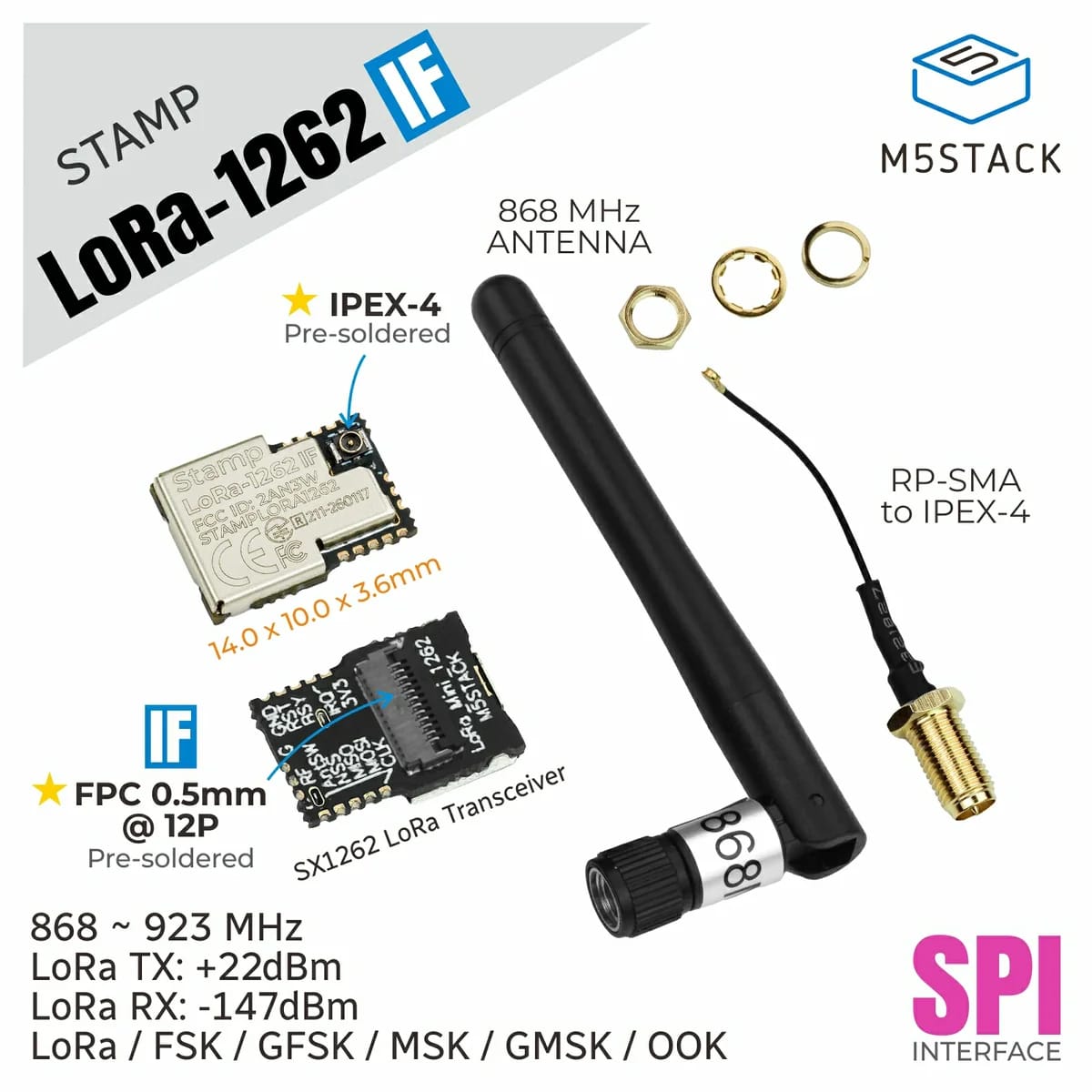

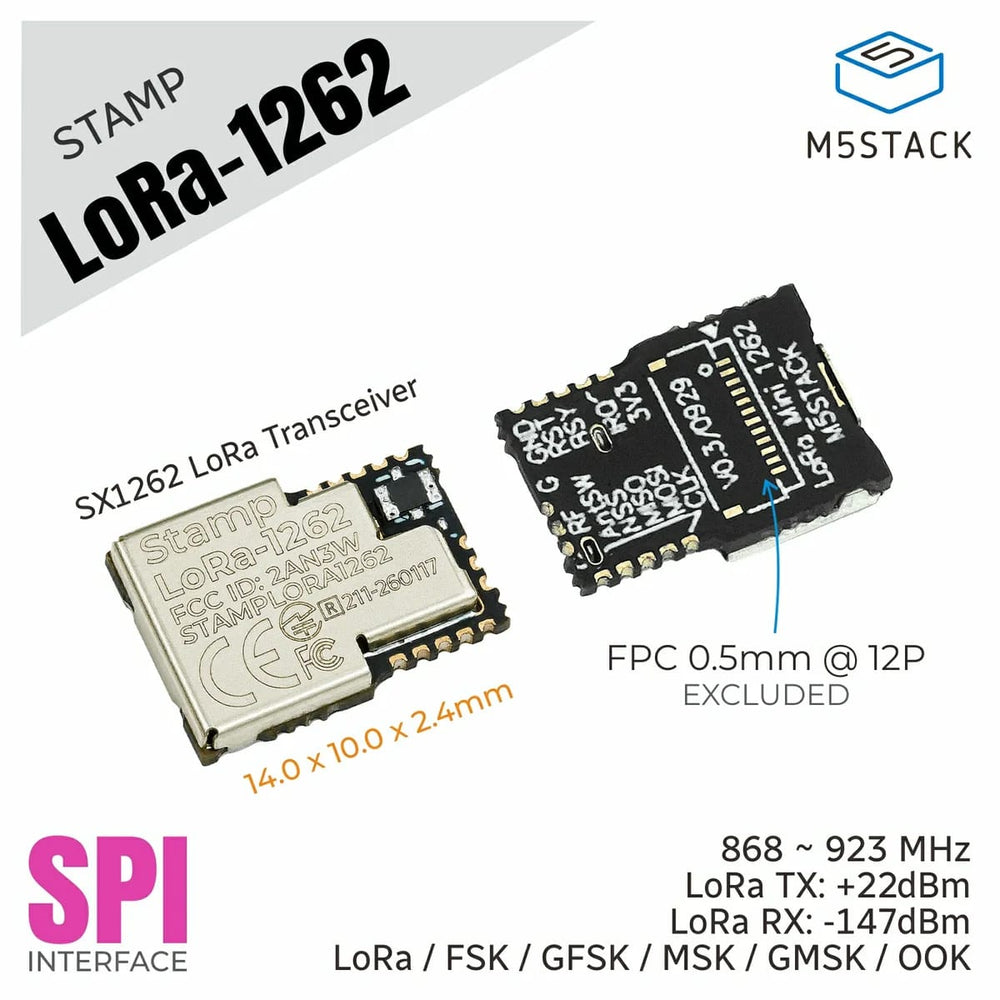

We stock the S014-IFwhich includes anIPEX-4 antenna connectorand a12-pin FPC connector, making it easier to connect an external antenna and interface with other boards and we stock the S014which is thebasic module intended for direct PCB integration.
