M5Stack USB TypeC2Grove Unit - The Pi Hut

M5Stack USB TypeC2Grove Unit

Name: M5Stack USB TypeC2Grove Unit
Brand: M5Stack
SKU: U151
Price: 3.10 GBP
Availability: InStock

M5StackSKU: U151

£3.10

incl. VAT

excl. VAT

In stock

Awesome Extras

M5Stack Core2 v1.1 ESP32 IoT Development Kit - The Pi Hut

M5Stack M5Stack Core2 v1.1 ESP32 IoT Development Kit

£44.50 incl. VAT excl. VAT

M5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi Hut

M5StickC PLUS ESP32-PICO Mini IoT Development Kit - The Pi Hut

M5Stack M5Stack M5StickC PLUS ESP32-PICO Mini IoT Development Kit

£24 incl. VAT excl. VAT

Notify me

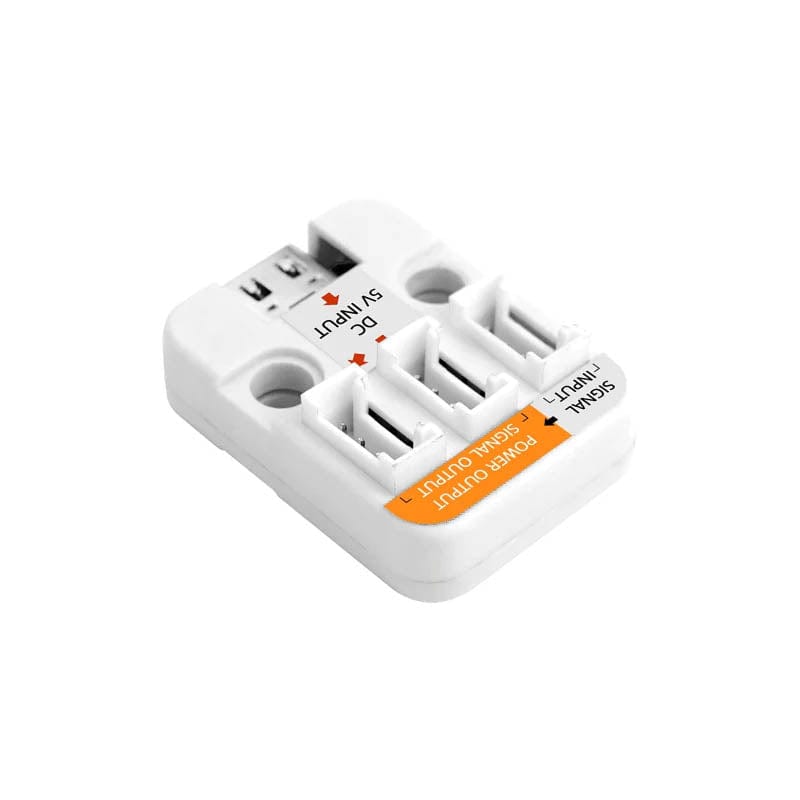

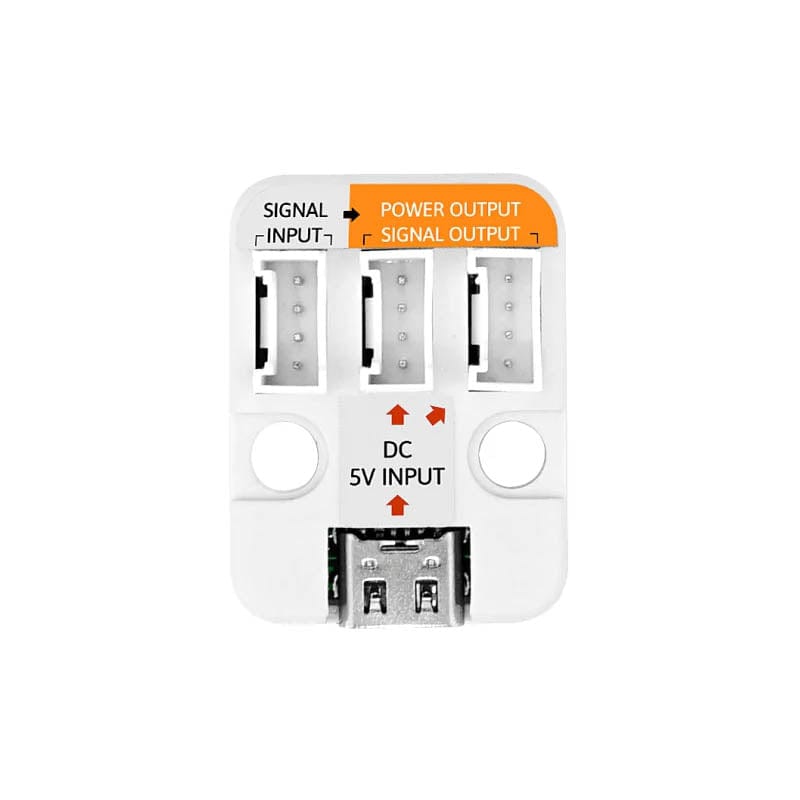

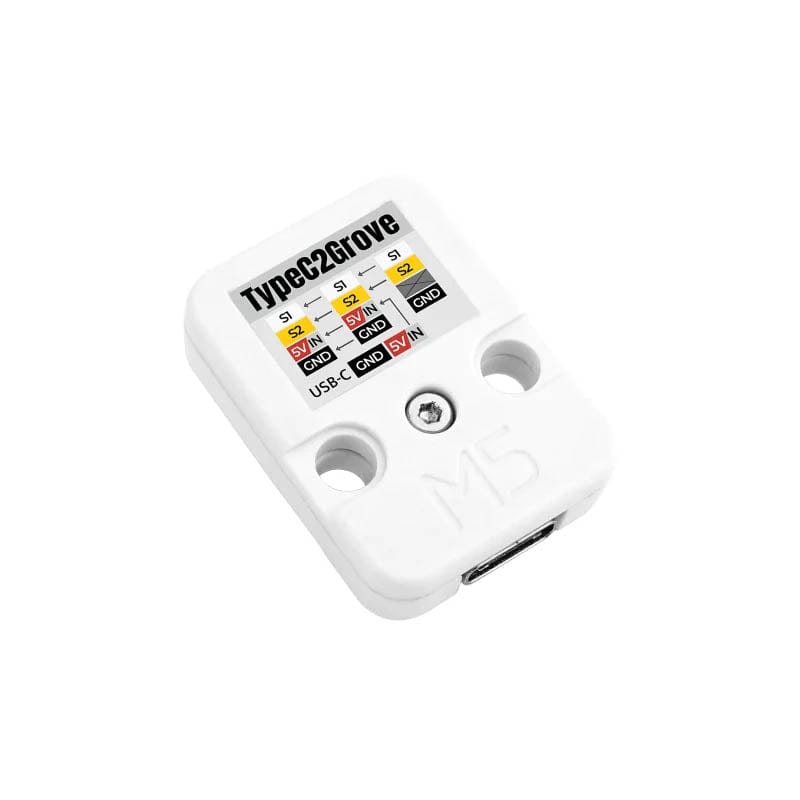

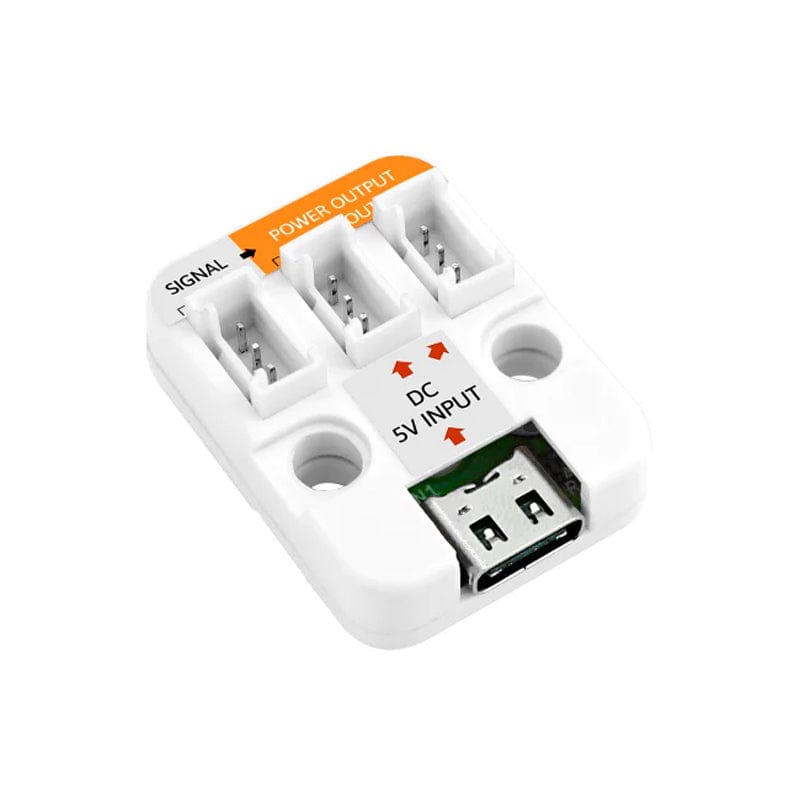

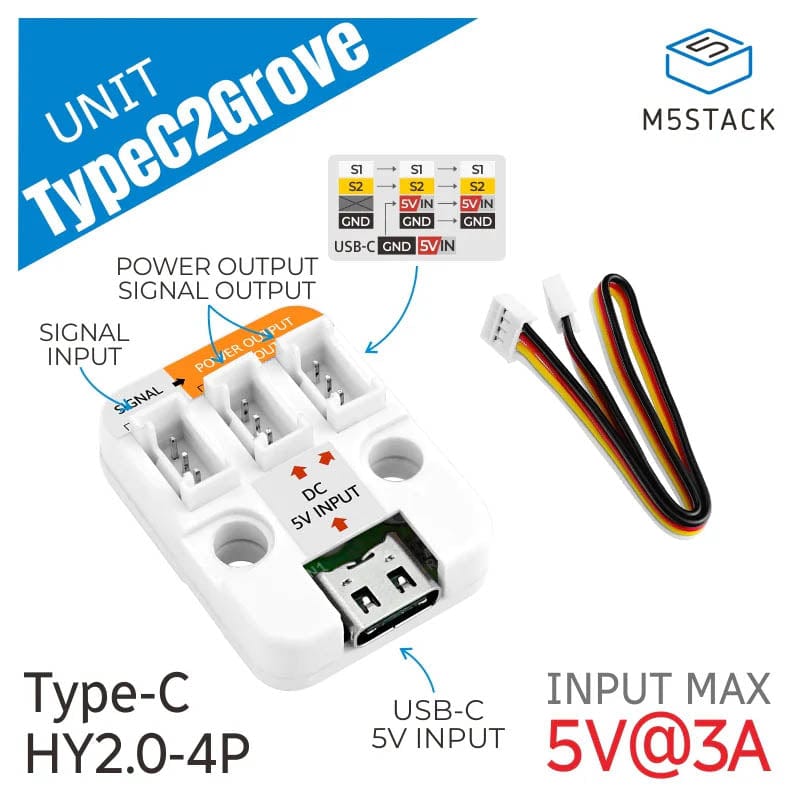

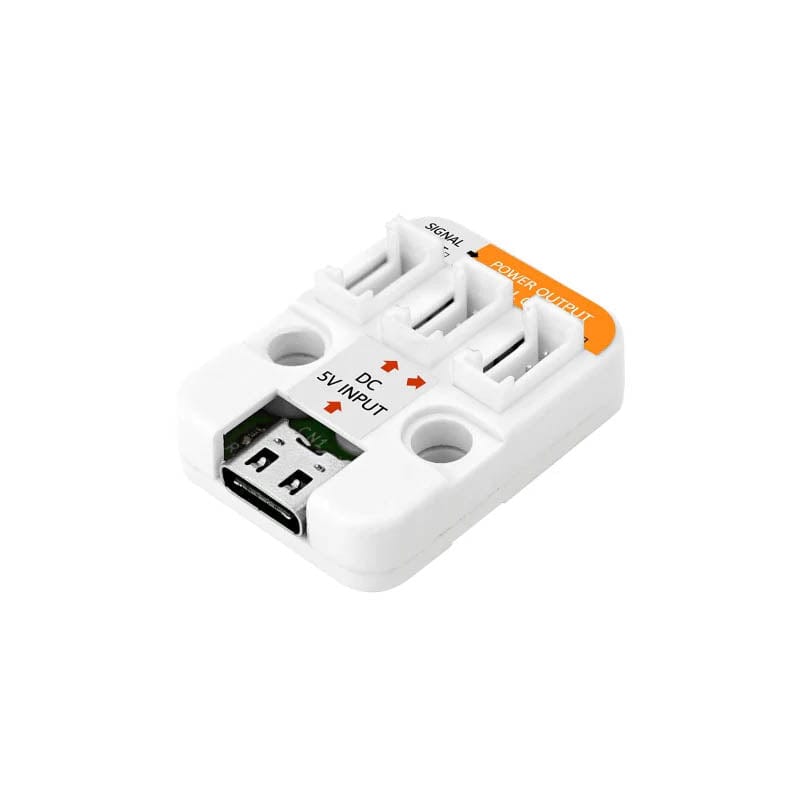

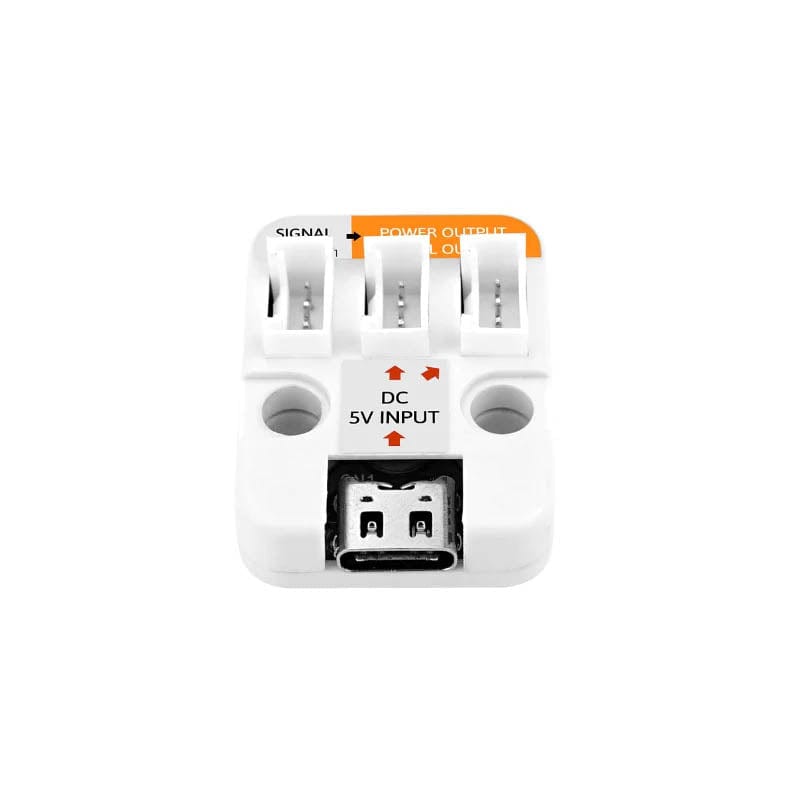

The USB TypeC2Grove Unit from M5Stack is a Grove hub Unit with a USB-C 5V DC input.

Powered through a USB-C port, the first channel is Singal Input, and the second and third channels are Power and Singal Output. Applied for the Units which need external 5V DC power.

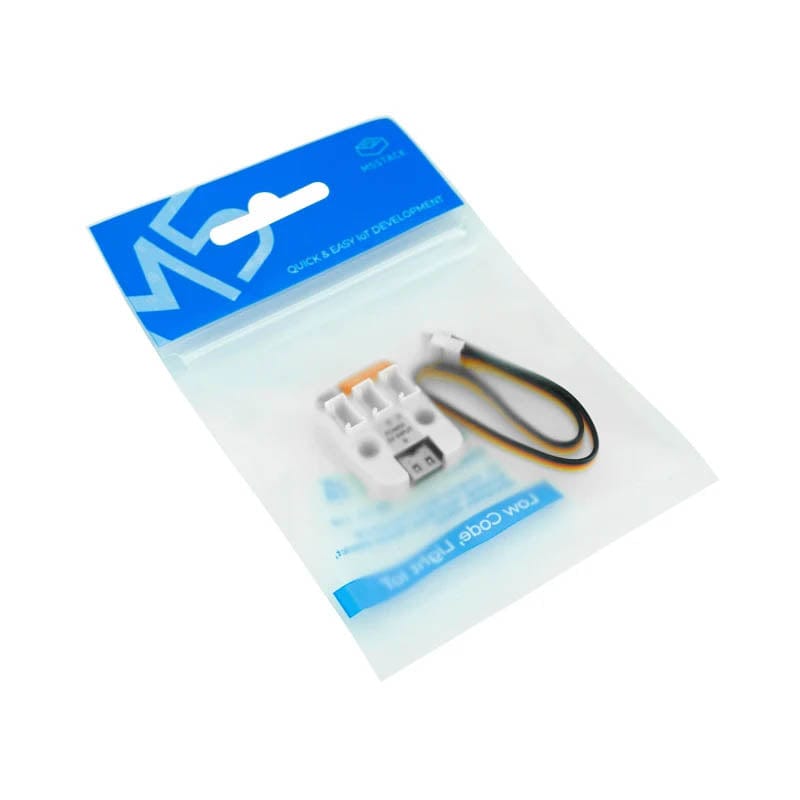

Package Contents

1x TypeC2Grove Unit
1x HY2.0 4-pin Cable (20cm)

Specifications

Power Supply	MAX 5V@3A
Net Weight	4.9g
Gross Weight	10.7g

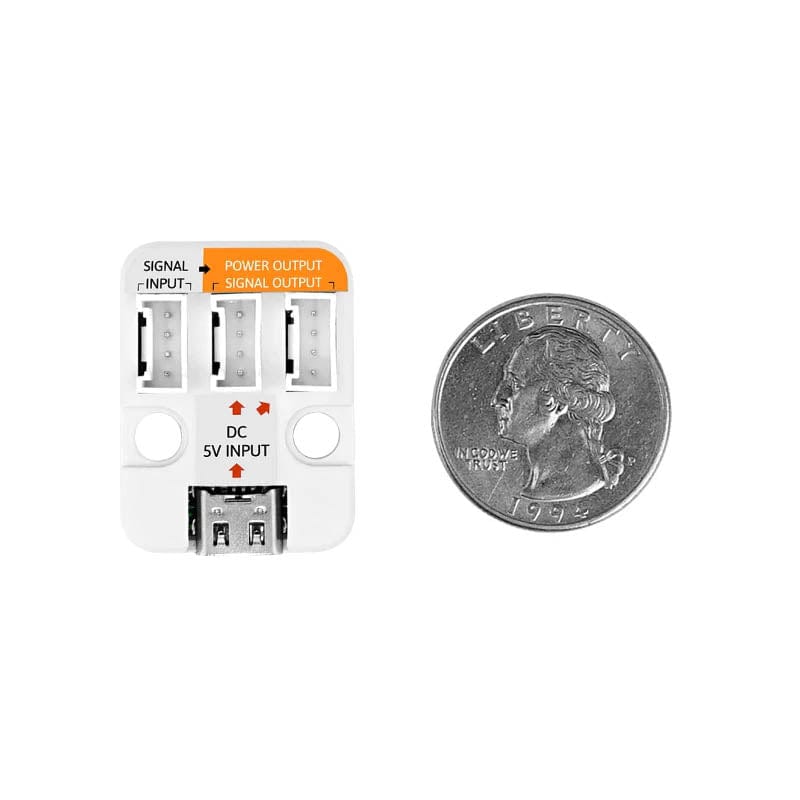

Product Size	322412mm
Package Size	1369213mm

Resources

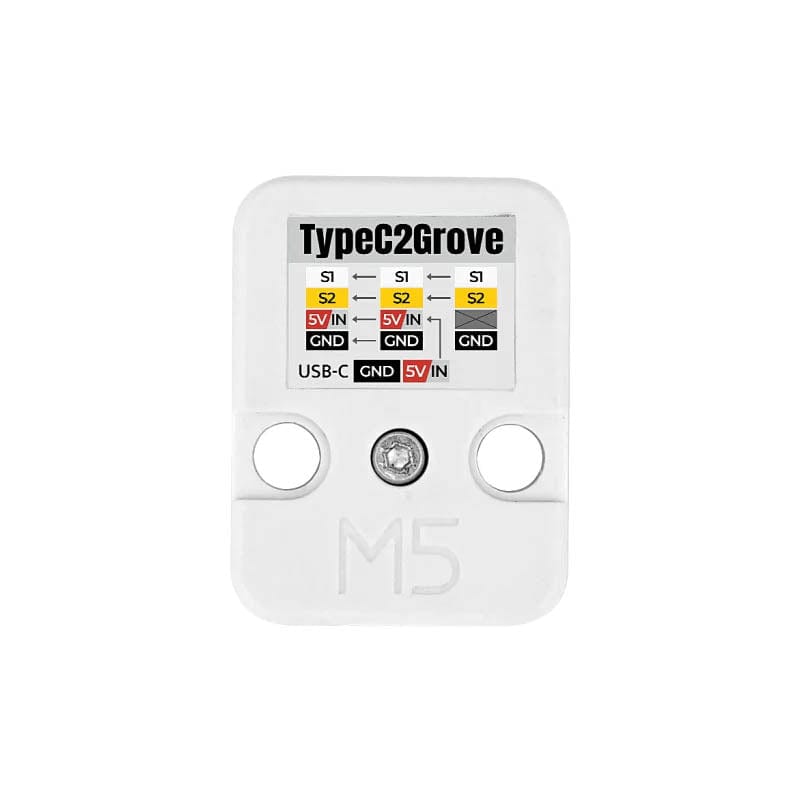

Pinout

PORT	WHITE	YELLOW	RED	BLACK
CN2	SCL/RX	SDA/TX	NULL	GND
CN3	SCL/RX	SDA/TX	+5V	GND
CN4	SCL/RX	SDA/TX	+5V	GND
