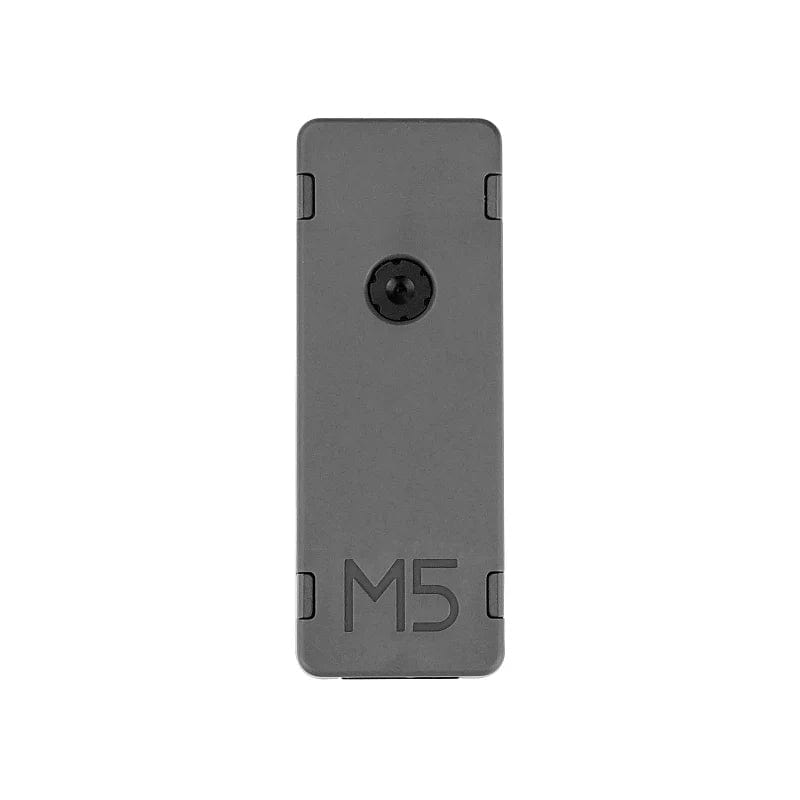

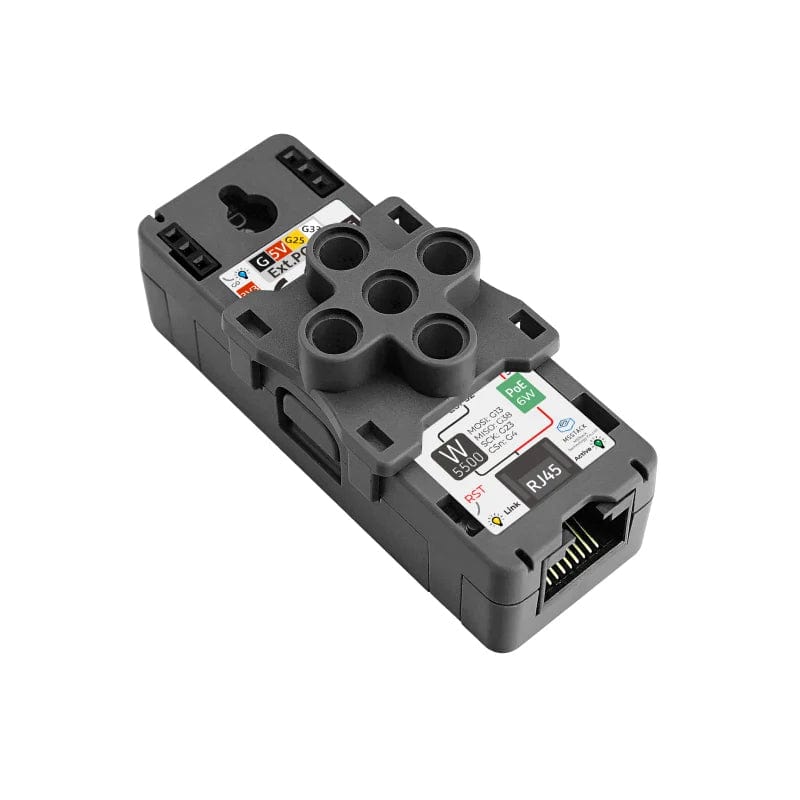

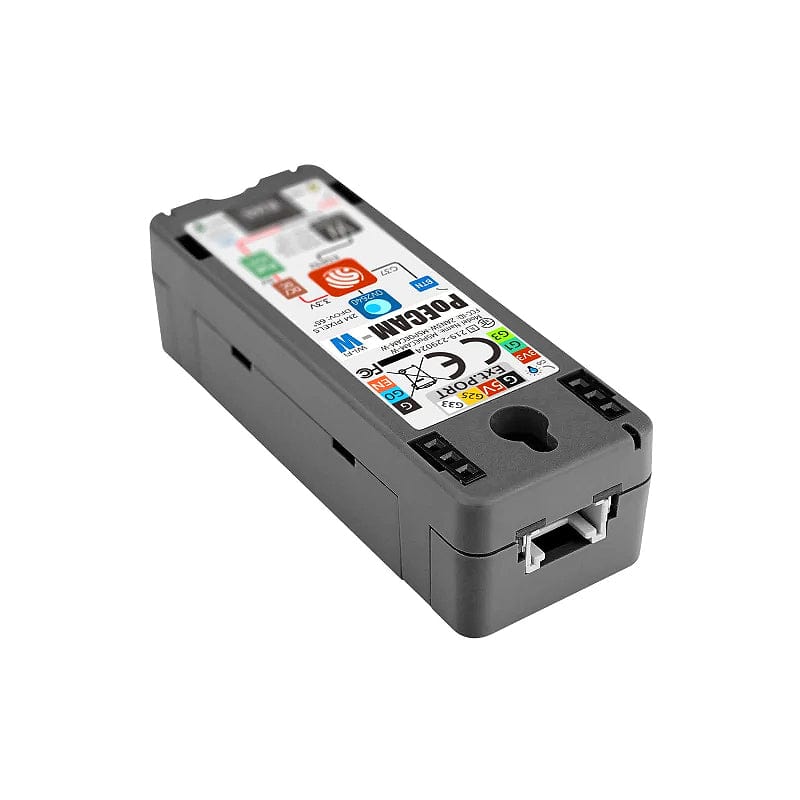

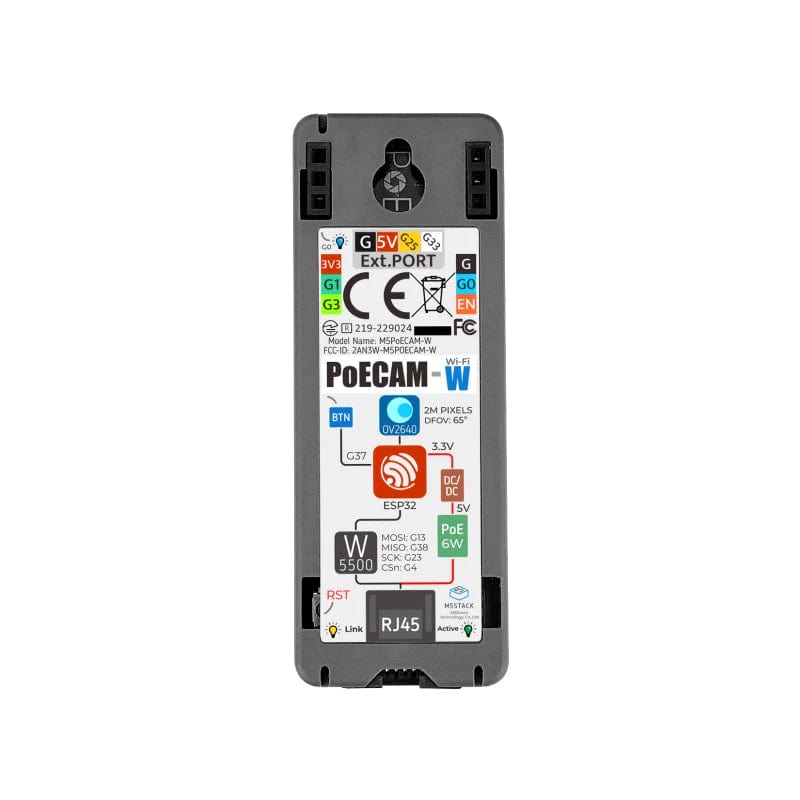

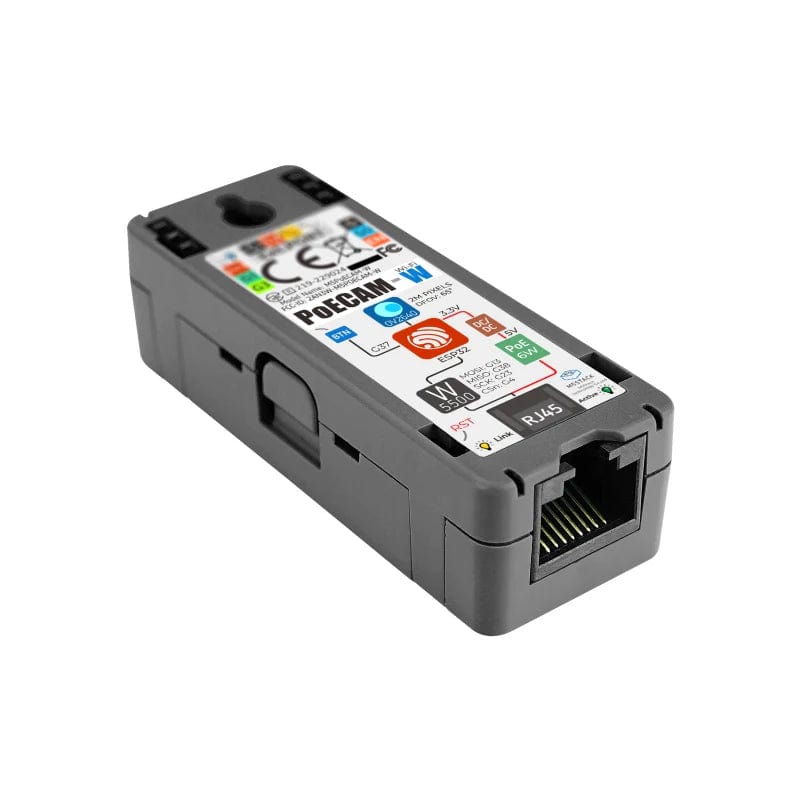

The PoE Camera is an open source, fully programmable camera, that integrates PoE (Power Over Ethernet) and Wi-Fi. This item is an ESP32 based webcam with a W5500 embedded Ethernet controller, plus a 2M pixel image sensor (OV2640). It is equipped with a combination of an 8MB PSRAM + 16MB flash memory. With this flexible power supply, you can get a stable image by connecting the network cable in just 2 steps.

Features

  • Built-in ESP32 MCU
  • 2 million pixel camera
  • Ethernet chip W5500
  • LAN speeds up to 10M or 100M (depending on the line provided)
  • PoE IEEE802.3 AF specification (Maximum power 6W)
  • Built-in prompt LED light
  • Development platform: Arduino, ESP-IDF
  • Ethernet standard interface RJ45
  • Standard LEGO interface and camera mount

Package Contents

  • 1x PoECAM-W

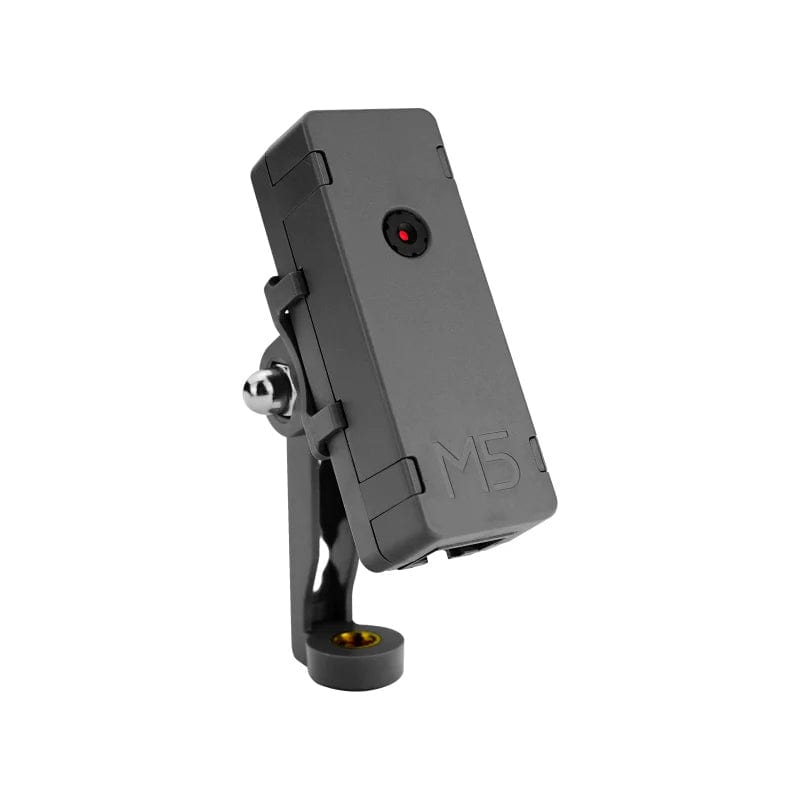

  • 1x Camera mount clip
  • 1x Brick compatible clip

Specifications

Resources Parameters
MCU ESP32-D0WDQ6-V3
Camera Module OV2640
Ethernet Chip W5500
FLASH 16MB
PSRAM 8MB
Pixel Size 2.2 µm x 2.2 µm
Automatic image control functions Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)
Supports Hardwired TCP/IP Protocols TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
DFOV 65°
Output Formats(8-bit) • YUV(422/420)/YCbCr422 • RGB565/555 • 8-bit compressed data • 8-/10-bit Raw RGB data
Ethernet interface specifications RJ45
MAXIMUM POWER 6W
Product Size 64mm × 24mm × 18mm
Package Size 80mm × 37mm × 32mm
Product Weight 38g
Package Weight 45g
