M5Stack Mechanical Key Button Unit

Price:
Sale price £4.20
incl. VAT
excl. VAT
Stock:
Only 13 units left
Quantity:

Awesome Extras

M5Stack Core2 v1.1 ESP32 IoT Development Kit - The Pi HutM5Stack Core2 v1.1 ESP32 IoT Development Kit - The Pi Hut
M5StackM5Stack Core2 v1.1 ESP32 IoT Development Kit
Sale price £44.50 incl. VAT excl. VAT
M5Stack Grove2Dupont Conversion Cable 20cm (10 cables/5 pairs) - The Pi HutM5Stack Grove2Dupont Conversion Cable 20cm (10 cables/5 pairs) - The Pi Hut
M5Stack Encoder Unit - The Pi HutM5Stack Encoder Unit - The Pi Hut
M5StackM5Stack Encoder Unit
Sale price £7.40 incl. VAT excl. VAT

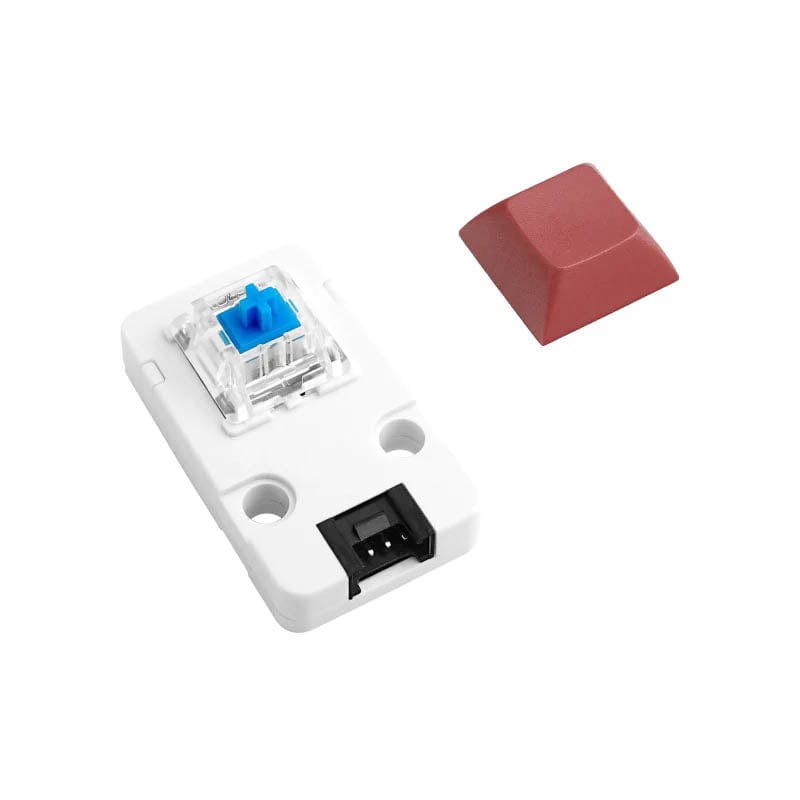

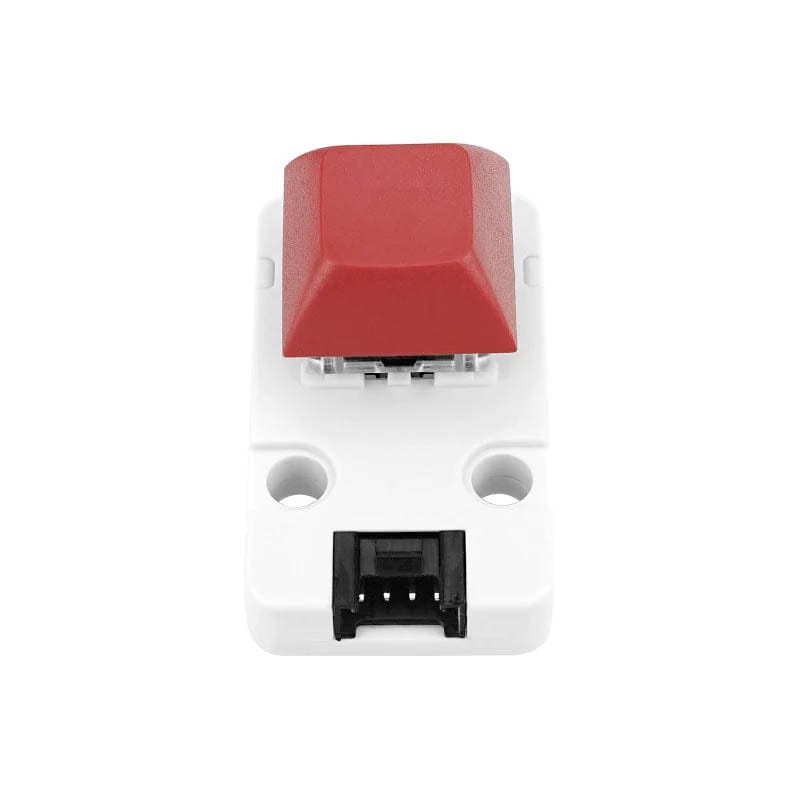

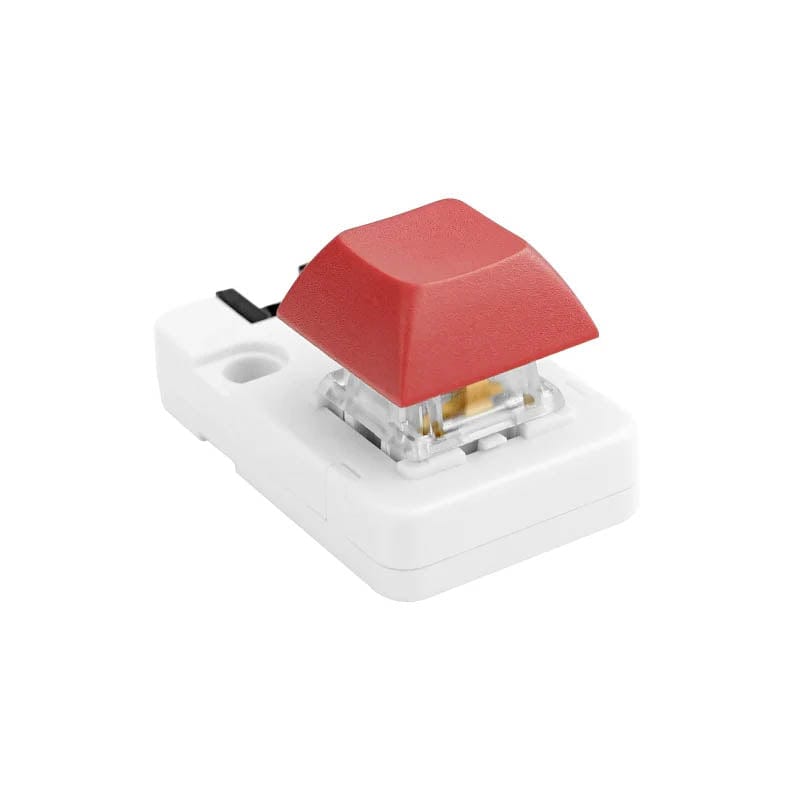

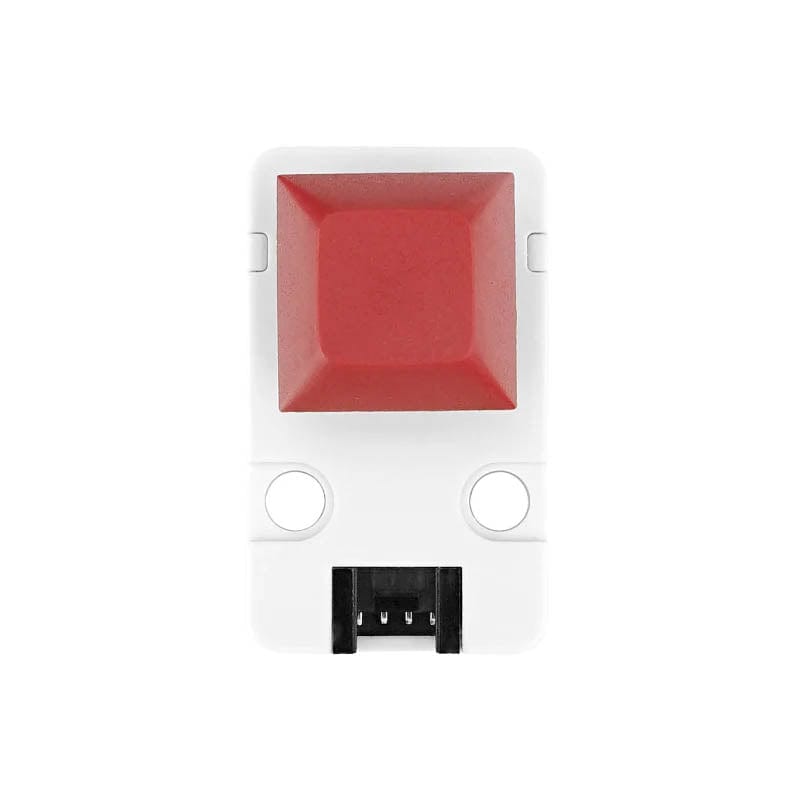

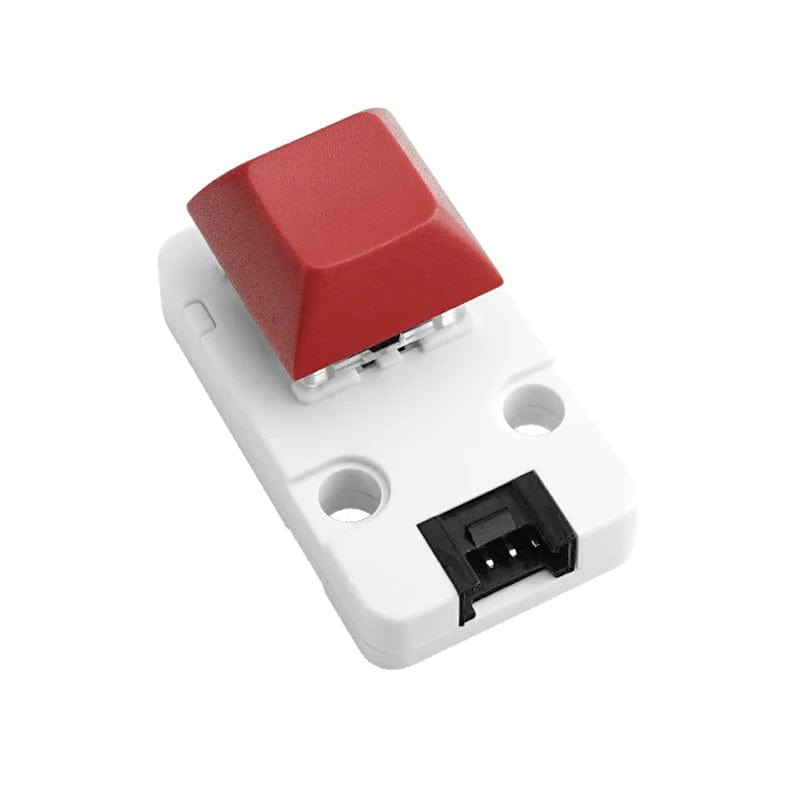

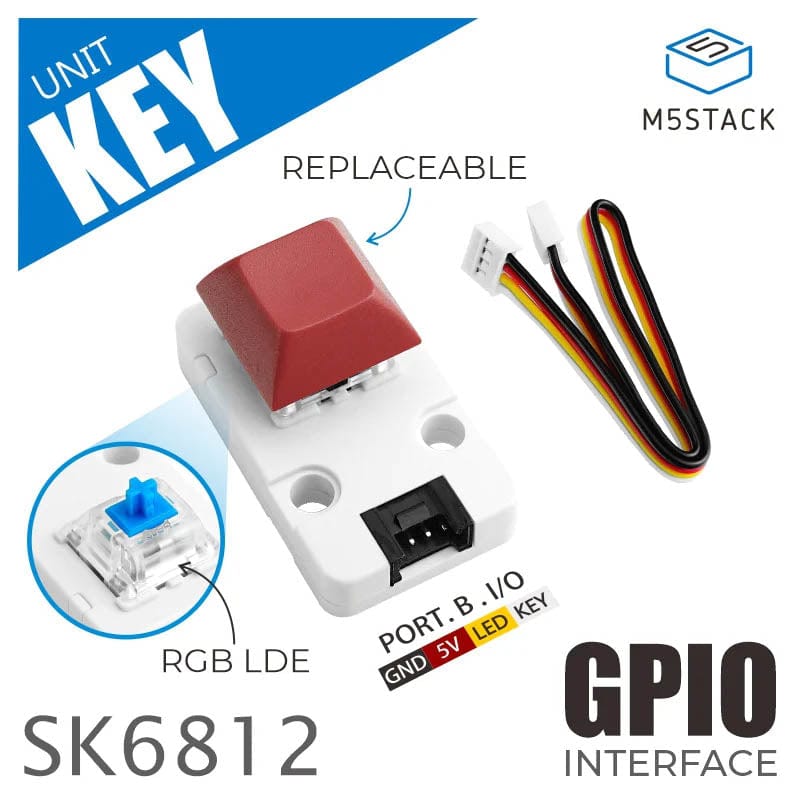

The Mechanical Key Button Unit from M5Stack is a single mechanical key input unit with a built-in RGB LED.

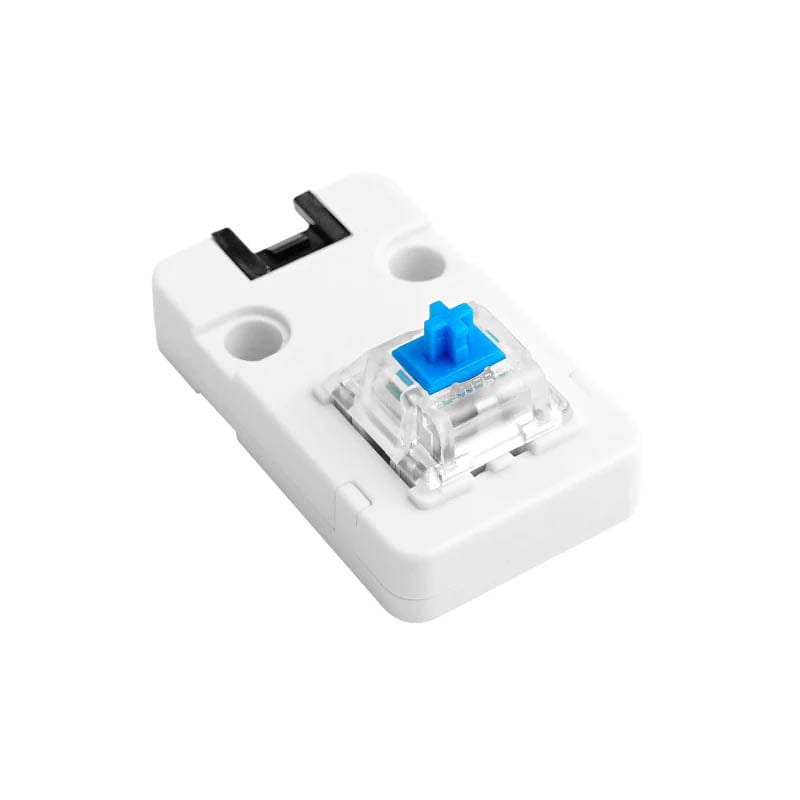

The key shaft adopts a Blue switch with a tactile bump and audible click feature. The unit has an embedded programable SK6812 RGB LED and supports 256 level brightness. Two digital IOs are available for key status and LED control key status and lighting control. Suitable for multiple HMI applications.

Features

  • Blue switch with tactile bump and audible click
  • Programable RGB LED - SK6812

Package Contents

  • 1x Unit Key
  • 1x HY2.0 4-pin Cable (20cm)

Specifications

Power Supply DC 5V
Output Logical Signal DC 3.3V
Standby Current DC5V@2mA
Operating current DC5V@13mA
Net weight 7.6g
Gross weight 13.1g
Product Dimensions 40 * 24 * 22.6mm
Package Size 90 * 135mm

Resources

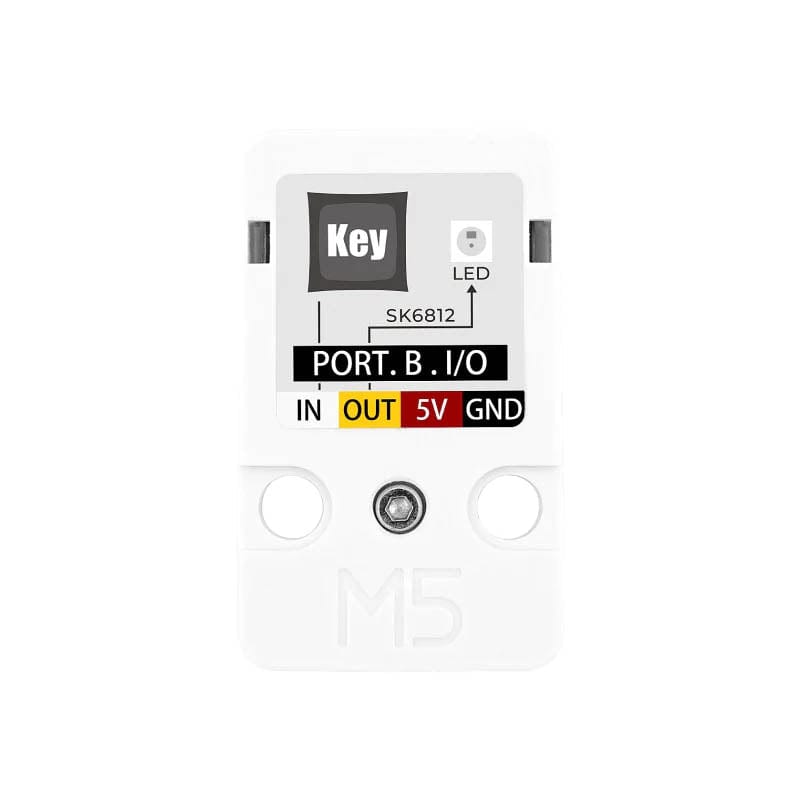

Pinout

M5CORE - PORT B G36 G26
UNIT Key Button Input RGB LED Control

Arduino Example Code

#include
#include

uint8_t ledColor = 0;

#define KEY_PIN  36
#define LED_PIN 26

CRGB LED[1];

void setup() {
    M5.begin();
    M5.Lcd.setTextSize(3);
    M5.Lcd.print("\n UNIT-KEY Example\n\n    Key State:");
    /* Init key pin */
    pinMode(KEY_PIN, INPUT_PULLUP);
    /* Init RGB led */
    FastLED.addLeds(LED, 1);
    LED[0] = CRGB::Blue;
    FastLED.setBrightness(0);
}

void loop() {
    /* If Key was pressed */
    if (!digitalRead(KEY_PIN)) {
        M5.Lcd.setCursor(75, 130);
        M5.Lcd.print((" Pressed "));
        FastLED.setBrightness(255);
        FastLED.show();
        /* Hold until the key released */
        while (!digitalRead(KEY_PIN))
            ;
    } else {
        M5.Lcd.setCursor(75, 130);
        M5.Lcd.println(("Released"));
        FastLED.setBrightness(0);
        FastLED.show();
    }
    delay(100);
}
