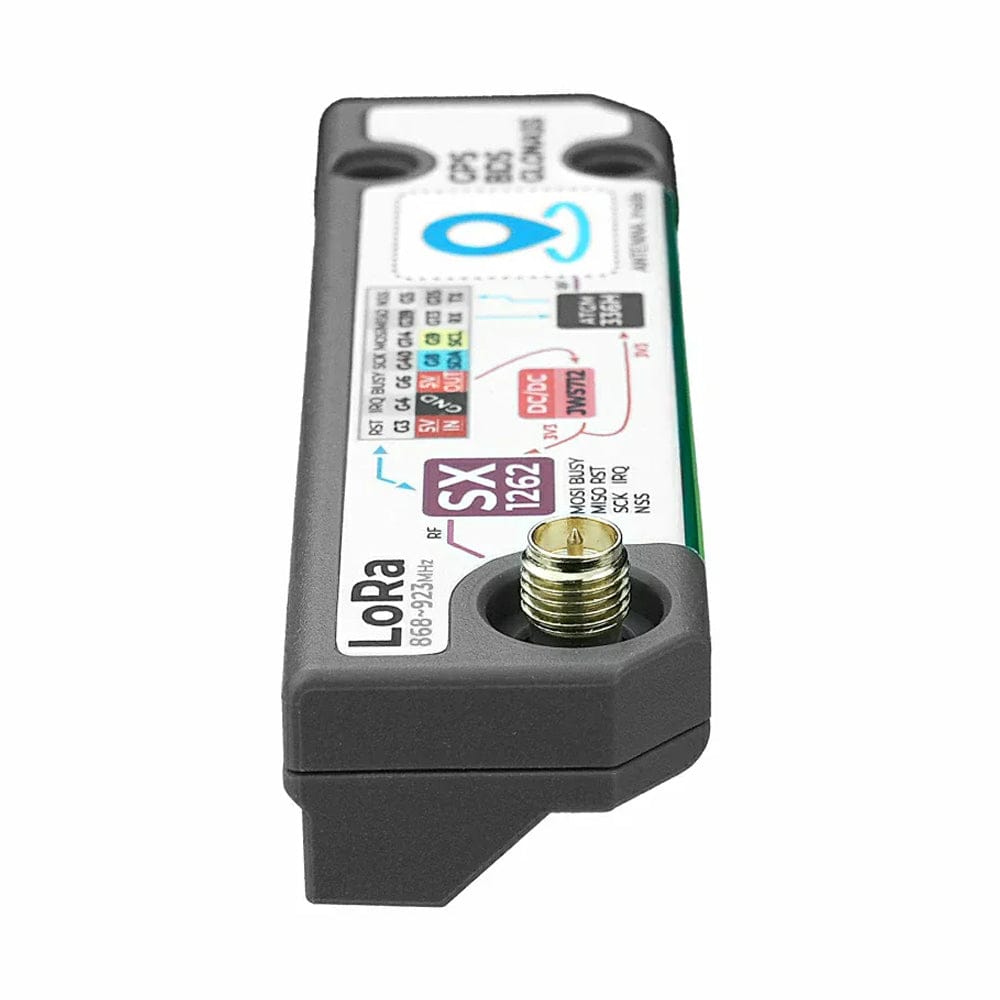

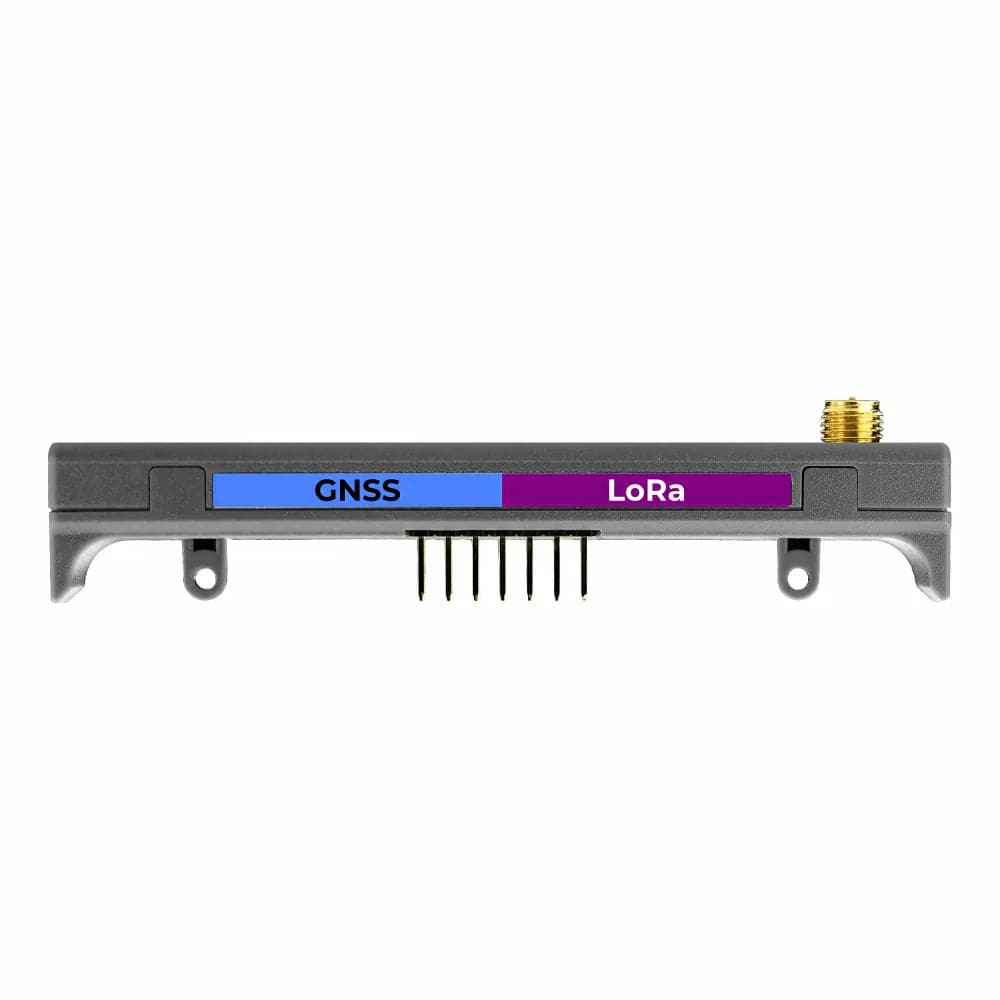

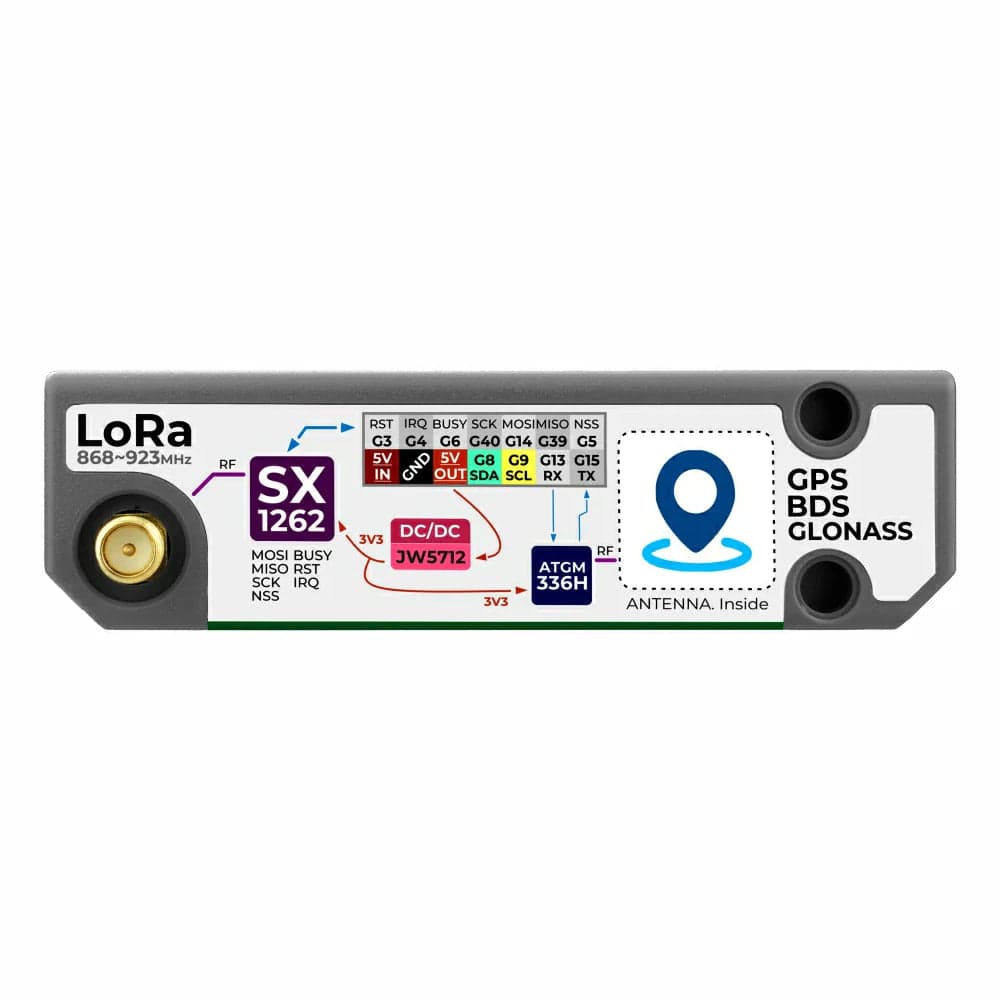

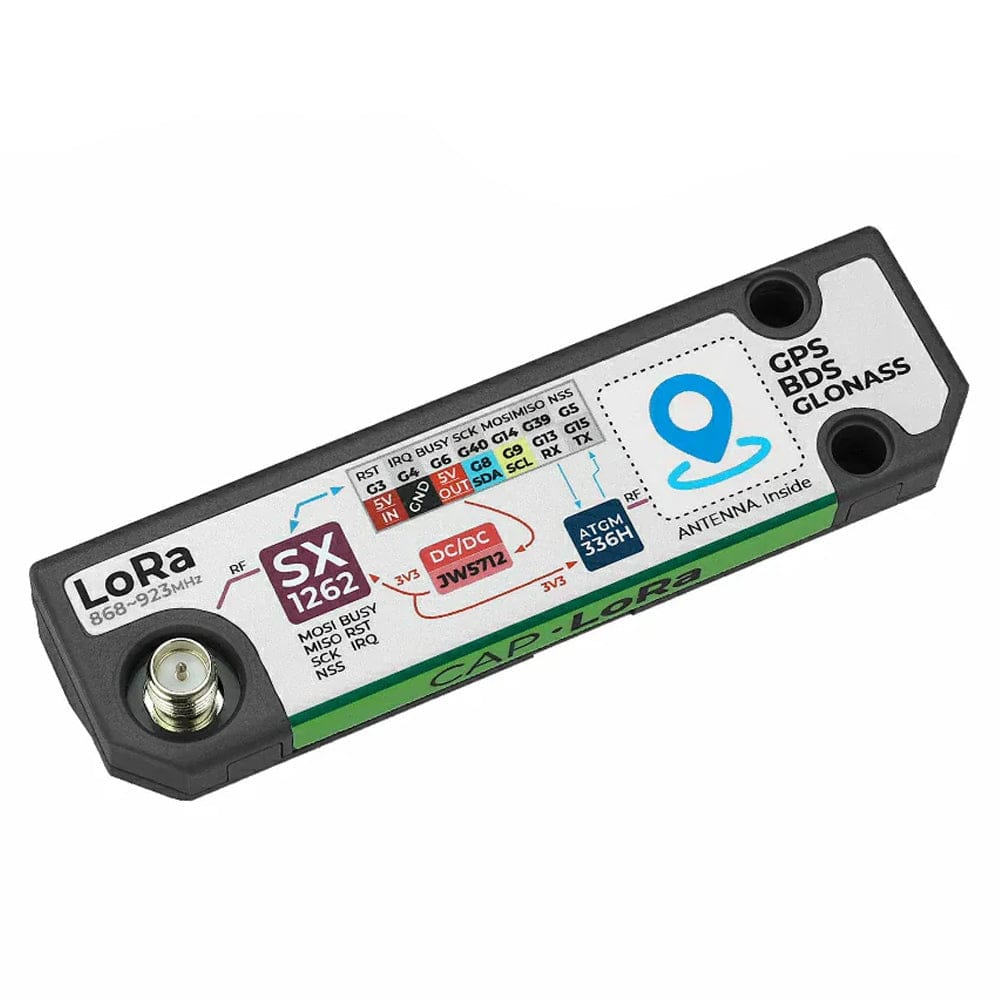

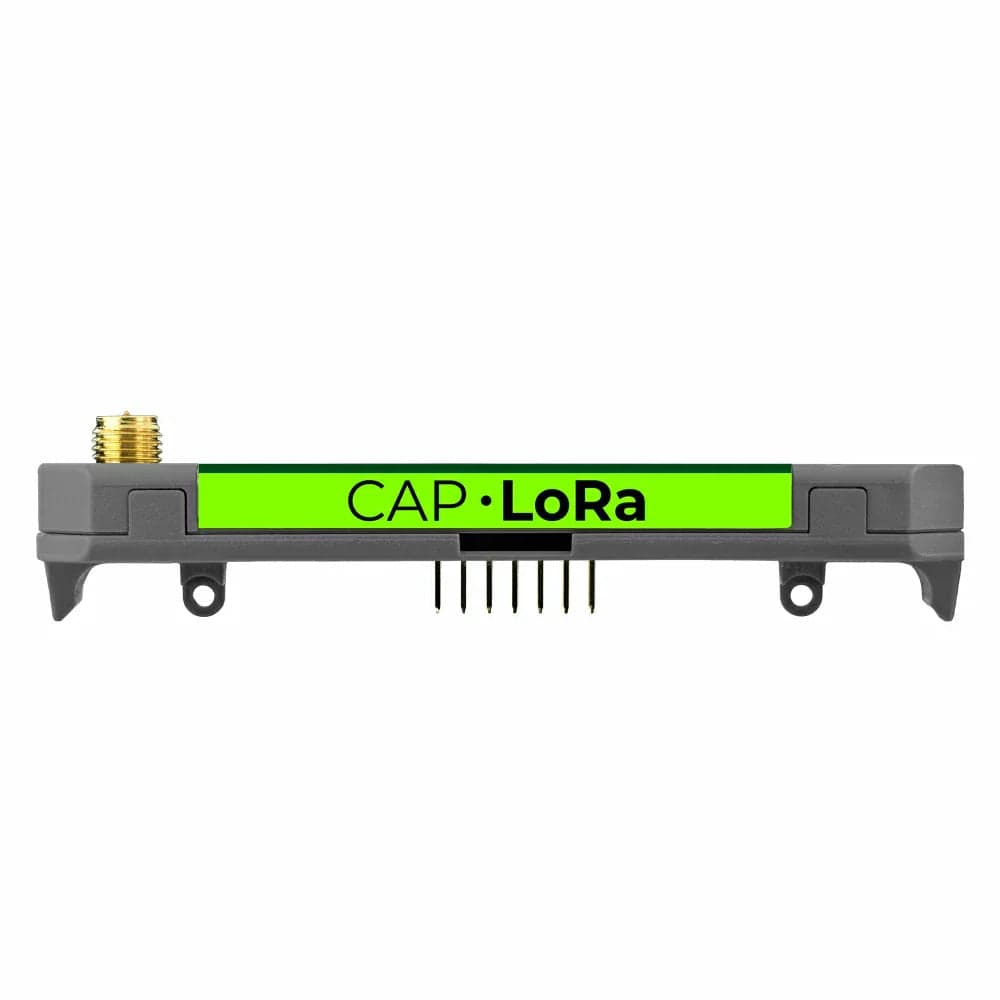

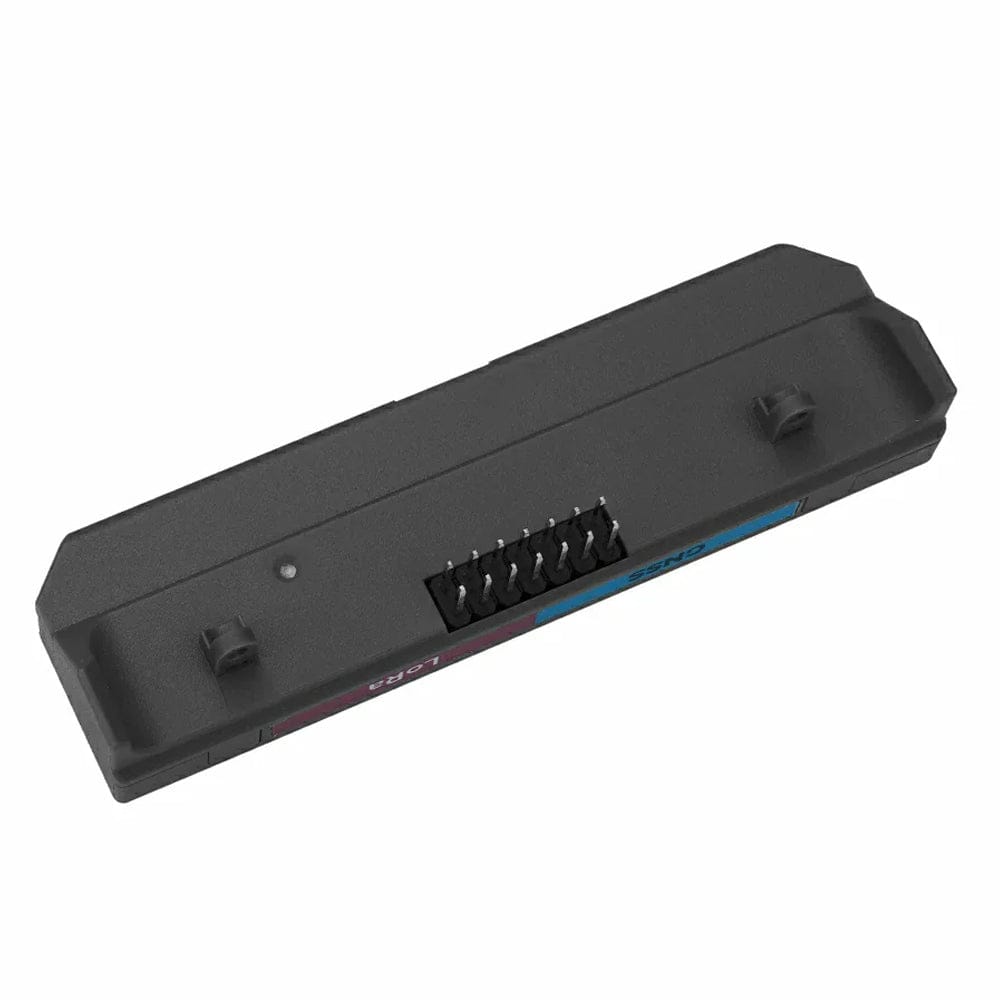

This is a high-performance LoRa communication and GNSS global navigation expansion module designed for the M5Stack Cardputer Adv.

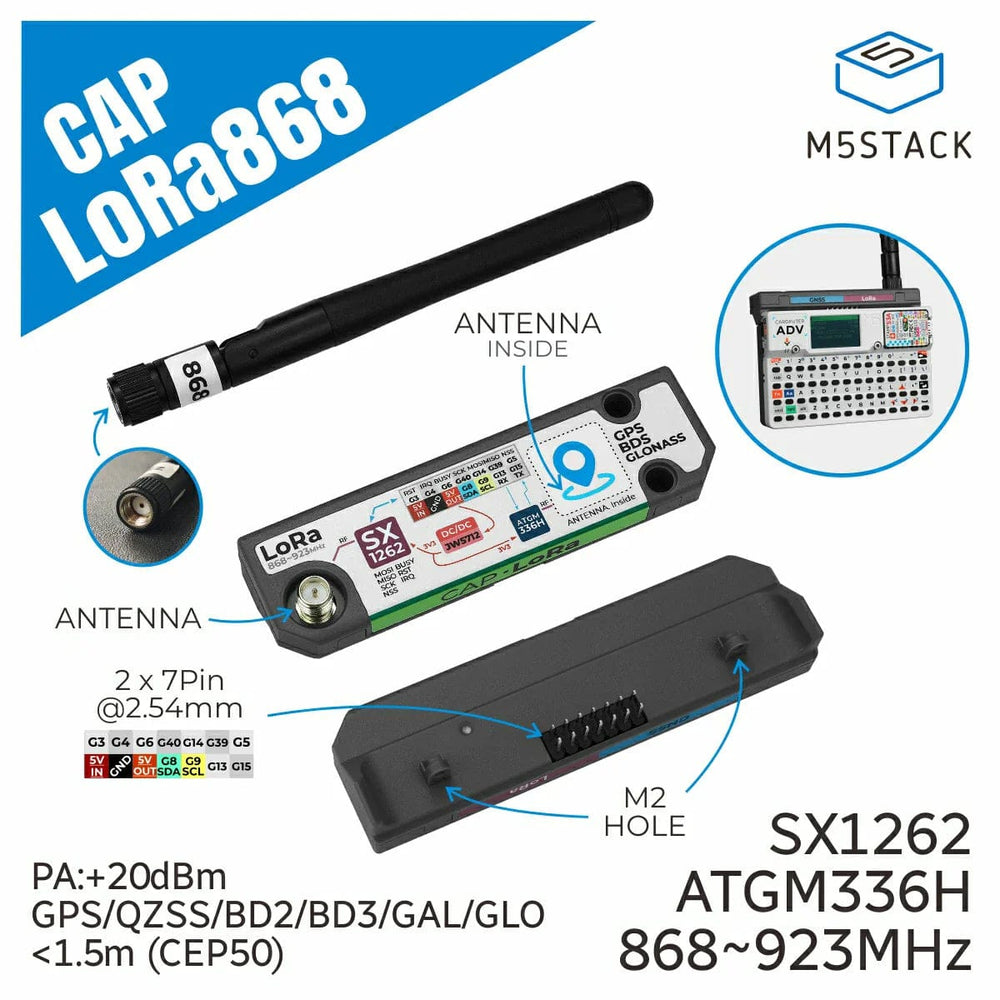

The LoRa module is based on the SX1262 chip, equipped by default with an external SMA antenna, providing stronger anti-interference capability and long-distance communication performance. It supports the 868MHz ~ 923MHz frequency band and offers long-range, low-power wireless links for IoT applications.
The GPS module adopts the AT6668-based solution, with a built-in ceramic antenna for precise and reliable satellite positioning services. It supports multi-frequency, multi-mode GNSS signal reception, enabling the reception of signals from multiple satellite navigation systems (including GPS, BD2, BD3, GLONASS, GALILEO, and QZSS) and supports both multi-system joint positioning and standalone positioning with strong anti-interference capability and high positioning accuracy.
Cardputer Adv not included
Features
Integrated LoRa modulation technology and GNSS Global Positioning System
Operating frequency 868 ~ 923 MHz
Supports FSK, GFSK, MSK, GMSK, LoRa, OOK modulation modes
LoRa receive sensitivity: as low as -147 dBm (in LoRa low data rate mode)
LoRa maximum output power: +20 dBm

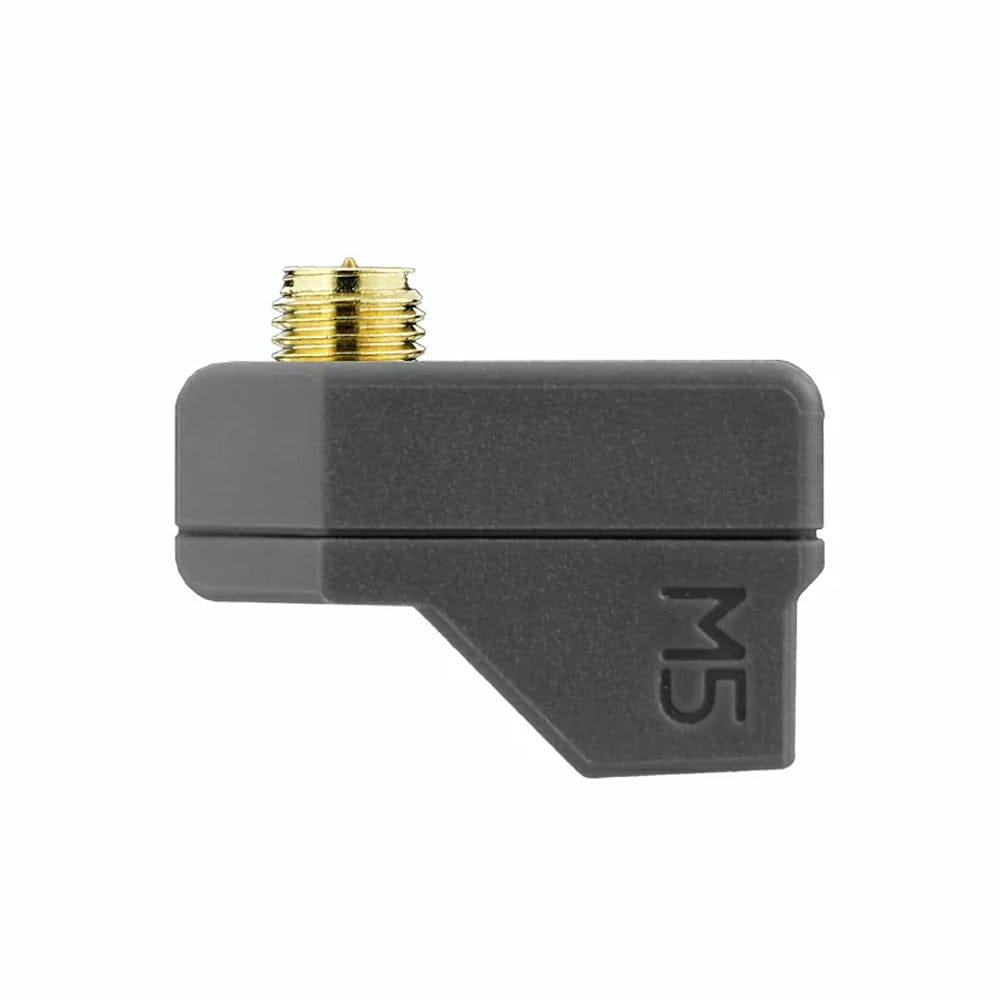

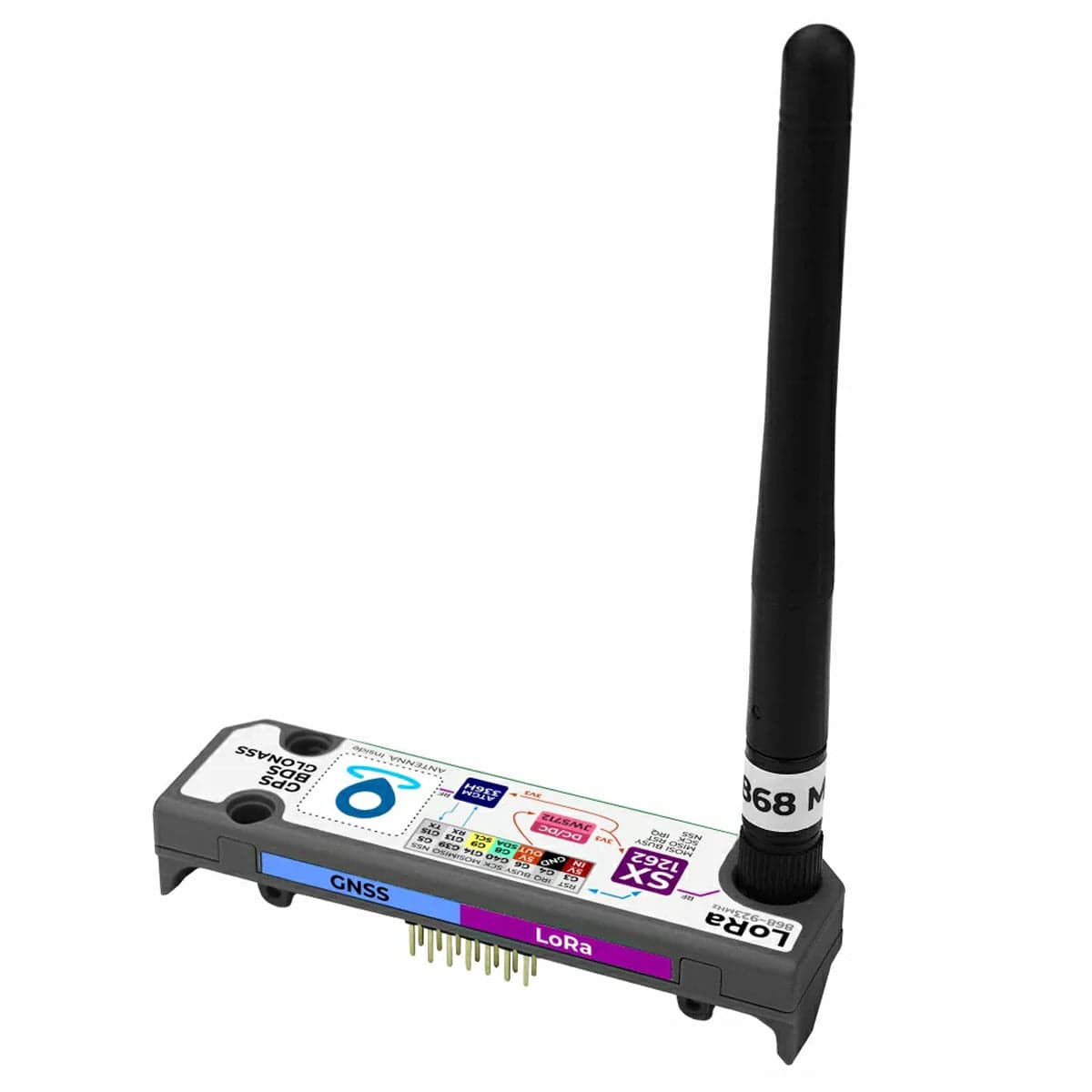

LoRa external SMA antenna interface, GPS built-in ceramic antenna
Positioning supports multiple satellite navigation systems (GPS/QZSS/BD2/BD3/GAL/GLO)
GPS on, LoRa standby: DC 5 V @ 29.24 mA GPS sleep, LoRa standby: DC 5 V @ 3.16 mA GPS sleep, LoRa TX max power: DC 5 V @ 129.72 mA GPS on, LoRa TX max power: DC 5 V @ 155.03 mA
