M5Stack Female M5-Bus Sockets (10 pack)

M5StackSKU: A001-D

£4.80

incl. VAT

excl. VAT

Only 10 units left

Awesome Extras

Flux Pen - Future 315 Low-Residue No-Clean by Warton Metals - The Pi Hut

Warton Metals Flux Pen - Future 315 Low-Residue No-Clean

£7.80 incl. VAT excl. VAT

Notify me

Rework Flux Jelly - Future HF 10g Syringe by Warton Metals - The Pi Hut

Warton Metals Rework Flux Jelly - Future HF 10g Syringe

£19.90 incl. VAT excl. VAT

Notify me

Solder Paste - Microprint P4000 T4 SAC305 40g Syringe by Warton Metals - The Pi Hut

Warton Metals Solder Paste - Microprint P4000 T4 SAC305 40g Syringe

£29.50 incl. VAT excl. VAT

Notify me

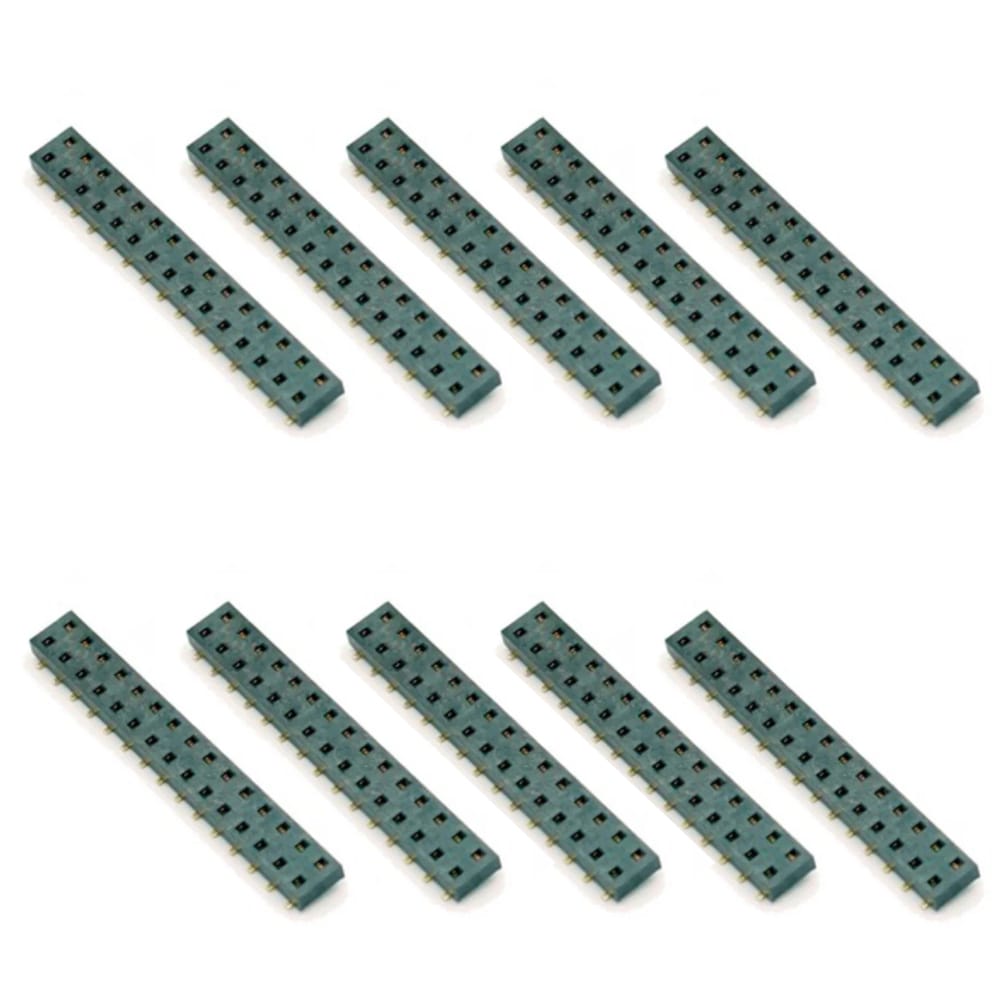

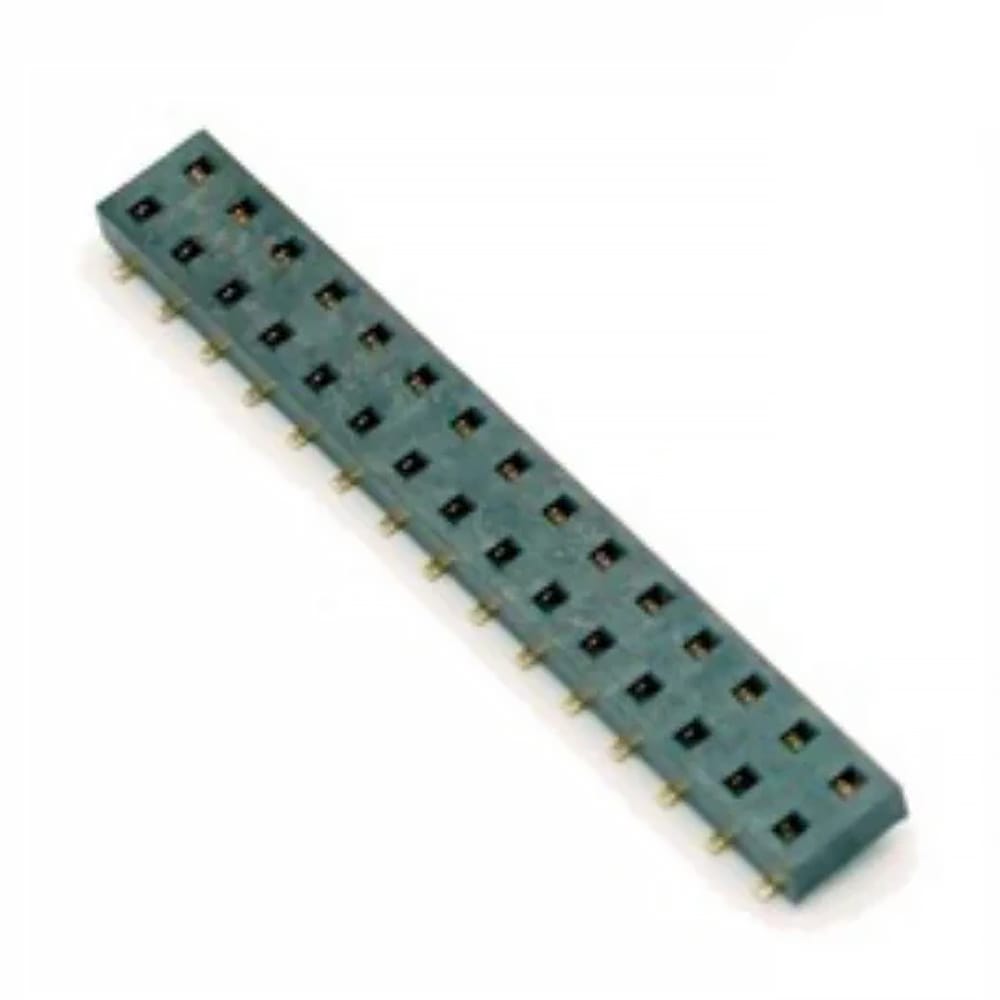

This is a pack of 10 M5Stack Female M5-Bus Socket headers, designed for surface mount soldering to a custom PCB.

Each header features a 2×15 pin 2.54mm specification. They are compatible with the M5-Bus interface of M5Stack Core and Module series, supports DIY module expansion, and provides a flexible function expansion solution for main control devices.

Features

Female M5-Bus socket headers
2x15 @ 2.54mm
Surface mount
Compatible with M5Stack Module and Core series M5-Bus
Enables DIY module expansion
Extends functionality of M5Stack main control devices

Specifications

Locating post:
- Diameter 0.9mm
- Height 1.0mm
- Pitch: 2.54mm
Product size: 38.0 x 8.0 x 5.0mm

Resources

Product documentation

Package Contents

1x M5Stack Female M5-Bus Socket (10 pack)
