M5Stack DMX Base

Price:
Sale price £19.30
incl. VAT
excl. VAT
Stock:
Only 7 units left
Quantity:

Awesome Extras

M5StackM5Stack I2C Hub 1 to 6 Expansion Unit (PCA9548APW)
Sale price £7.30 incl. VAT excl. VAT
M5StackM5Stack Core2 v1.1 ESP32 IoT Development Kit
Sale price £44.50 incl. VAT excl. VAT
SparkfunSparkFun ESP32 Thing Plus DMX to LED Shield
Sale price £16.60 incl. VAT excl. VAT

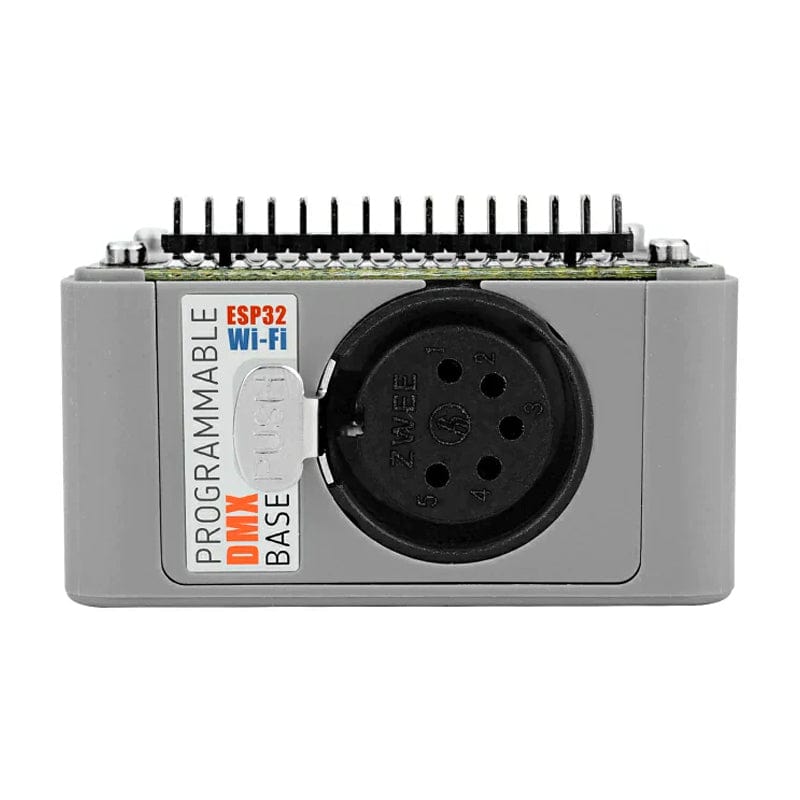

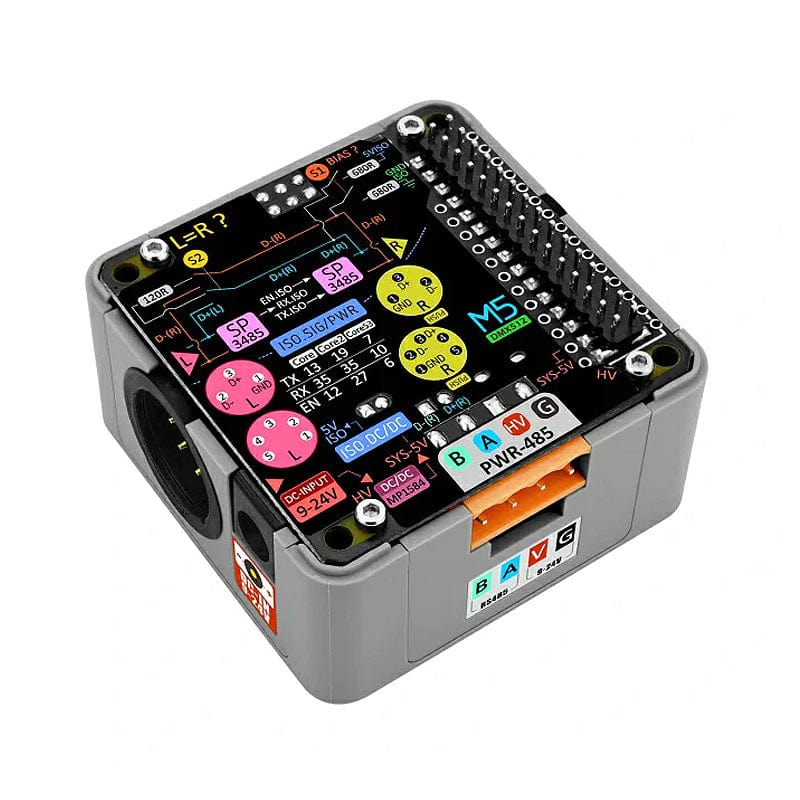

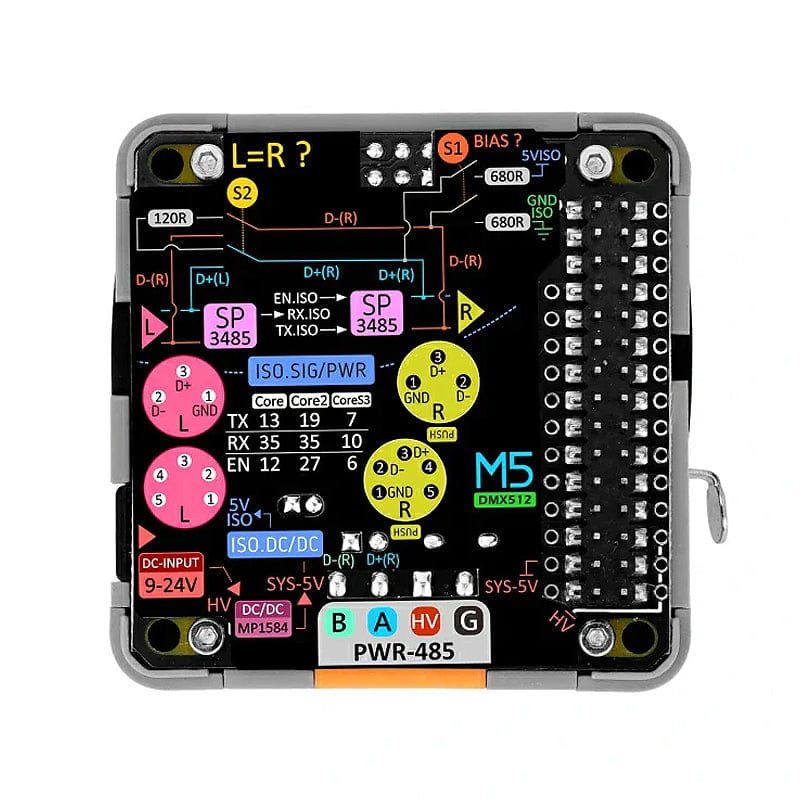

The DMX-Base is a functional base specially designed for DMX-512 data transmission scenarios, communicating and enabling control with the M5 host through a serial port. It has XLR-5 and XLR-3 male and female interfaces, and users can connect DMX devices with different interfaces. Also, the module has HT3.96 pitch 485 interfaces to connect to expansion 485 devices. The communication signal has high-speed optocoupler isolation, and the power supply uses a special isolated power module. Two independent RS-485 circuits can be used to transmit and receive DMX data, two independent or parallel operations can be selected through the internal double-throw switch, and the DC-JACK interface and the corresponding DC-DC circuit can provide power to the entire equipment. This is great for stage lighting control, sound equipment control, and many more projects!

Features

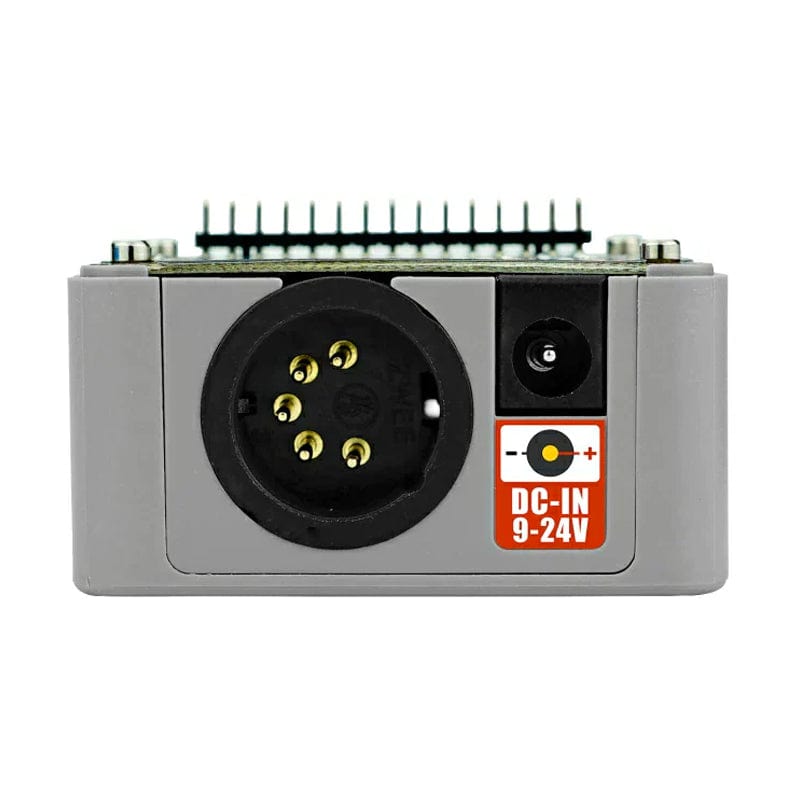

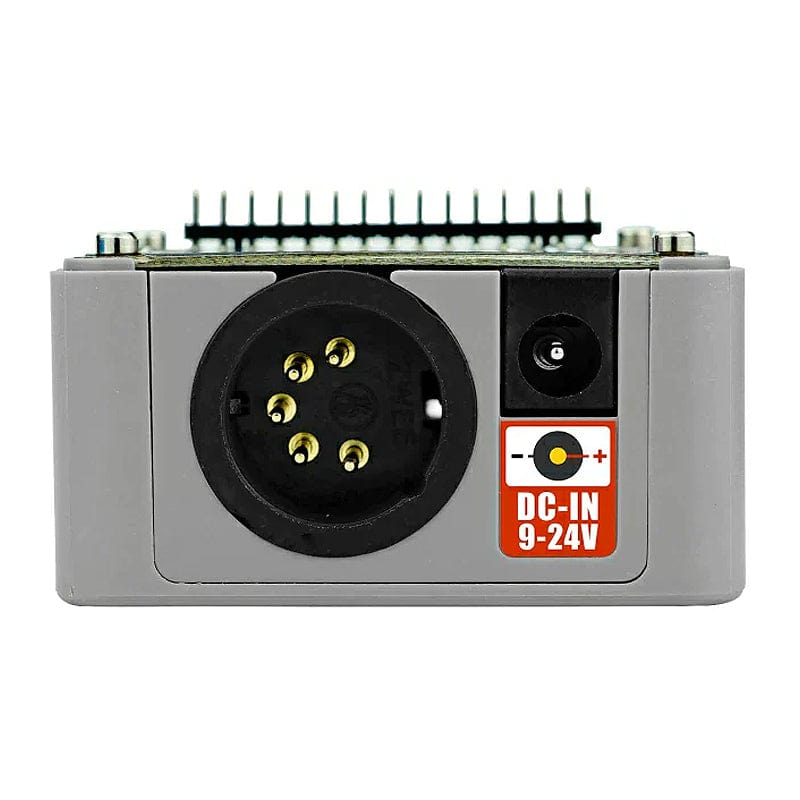

  • XLR-5 and XLR-3 male and female connectors for easy connection of DMX devices
  • Support communication and enable control with the M5 host through the serial port
  • Built-in two double-throw switches allow users to control the connection mode and transmission path
  • The power supply DCDC isolation method is adopted to improve stability and consistency
  • Programming platform: Arduino, UIFlow

Specifications

Resources Parameters
Voltage input DC9-12V
DMX interface XLR-5, XLR-3 male and female connectors

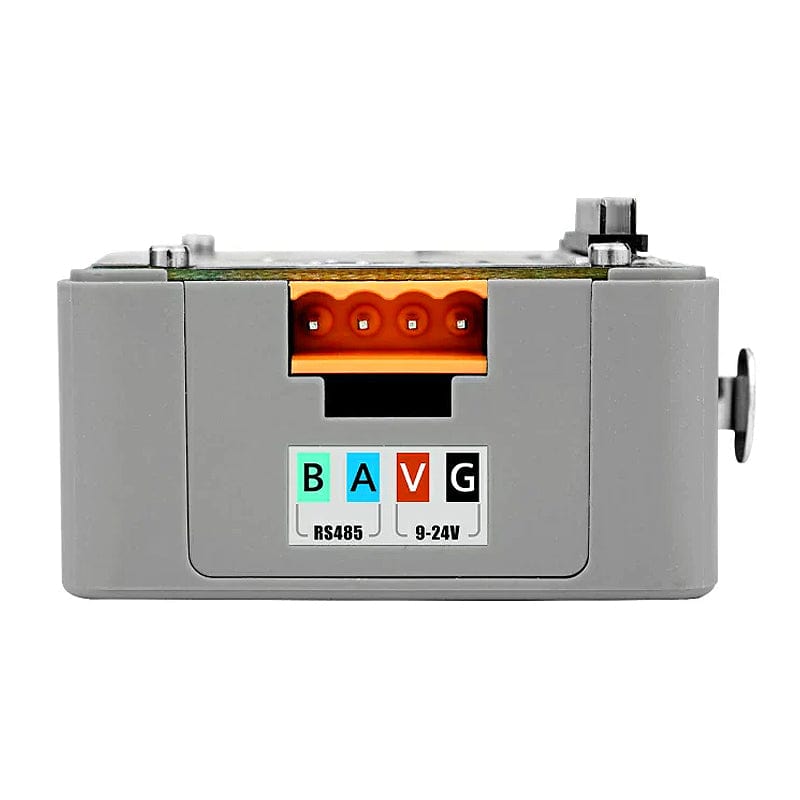

485 interface HT3.96 interface
Power output DC 5V/3.3V
Operating temperature range 0-40°C
DMX signals are supported DMX512
Product Size 54*54*27mm
Package Size 147 * 90 * 40mm
Product Weight 48g
Package Weight 88.2g

Resources

Package Contents

  • 1x DMX Base
  • 1x M2 Hex Key
  • 1x 3.96-4P terminal
