M5Stack Display Module 13.2

M5StackSKU: M126
£26.80
incl. VAT
excl. VAT
Only 3 units left

Awesome Extras

Premium Male/Male Jumper Wires - 20 x 6" (150mm) - The Pi HutPremium Male/Male Jumper Wires - 20 x 6" (150mm) - The Pi Hut
The Pi HutPremium Male/Male Jumper Wires - 20 x 6" (150mm)
£1.70 incl. VAT excl. VAT
Notify me
Full-Size Breadboard - White - The Pi HutFull-Size Breadboard - White - The Pi Hut
The Pi HutFull-Size Breadboard - White
£5 incl. VAT excl. VAT
Micro HDMI to HDMI Cable for Raspberry Pi 4 - The Pi HutHDMI to Micro-HDMI Cable 2m (Gold Plated) for the Raspberry Pi 4 - The Pi Hut
The Pi HutMicro HDMI to HDMI Cable for Raspberry Pi 5/4
From £3.80 incl. VAT excl. VAT

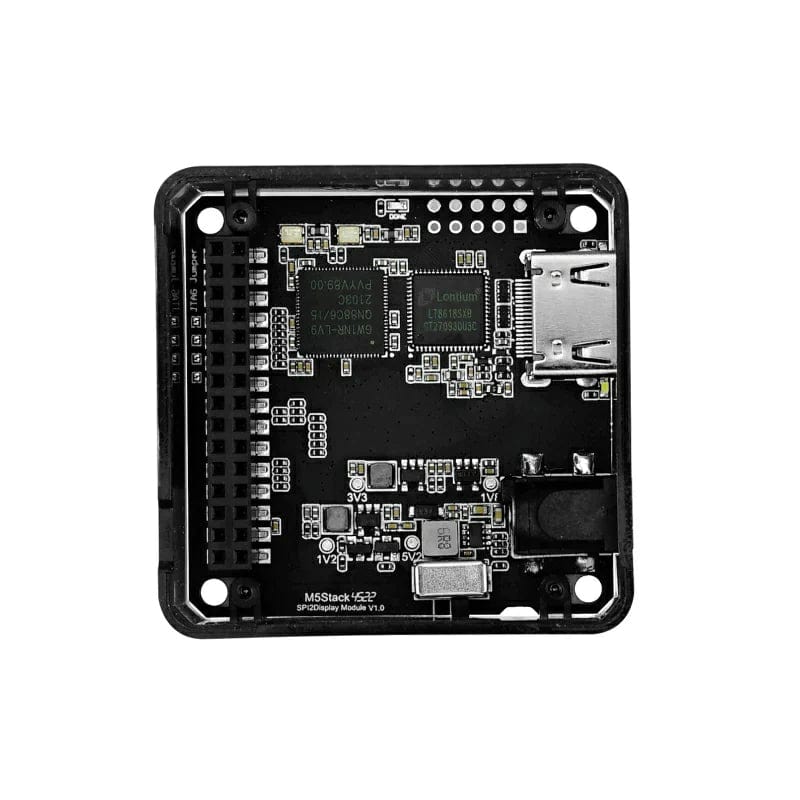

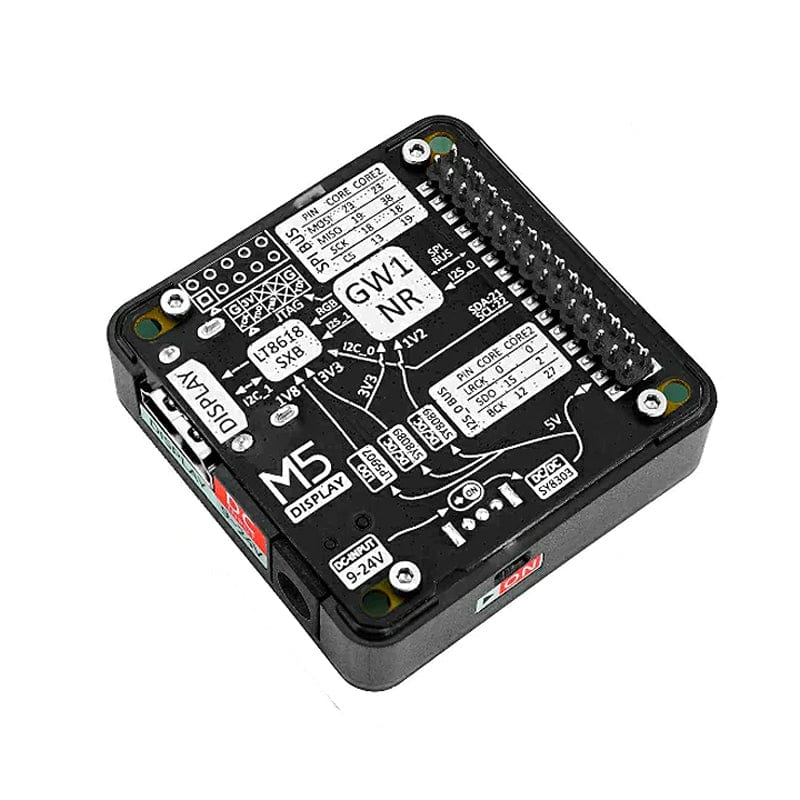

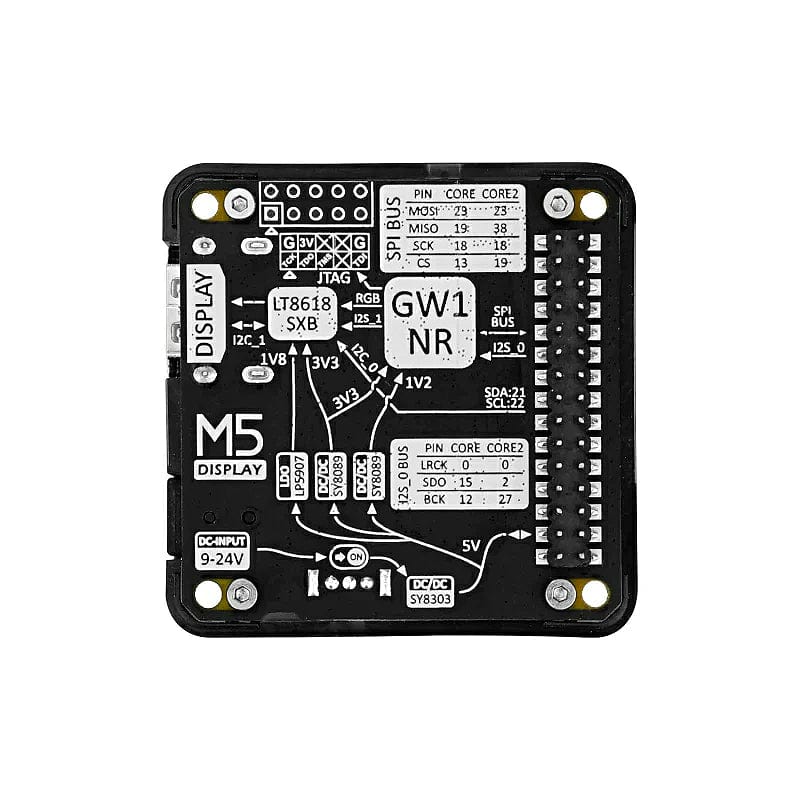

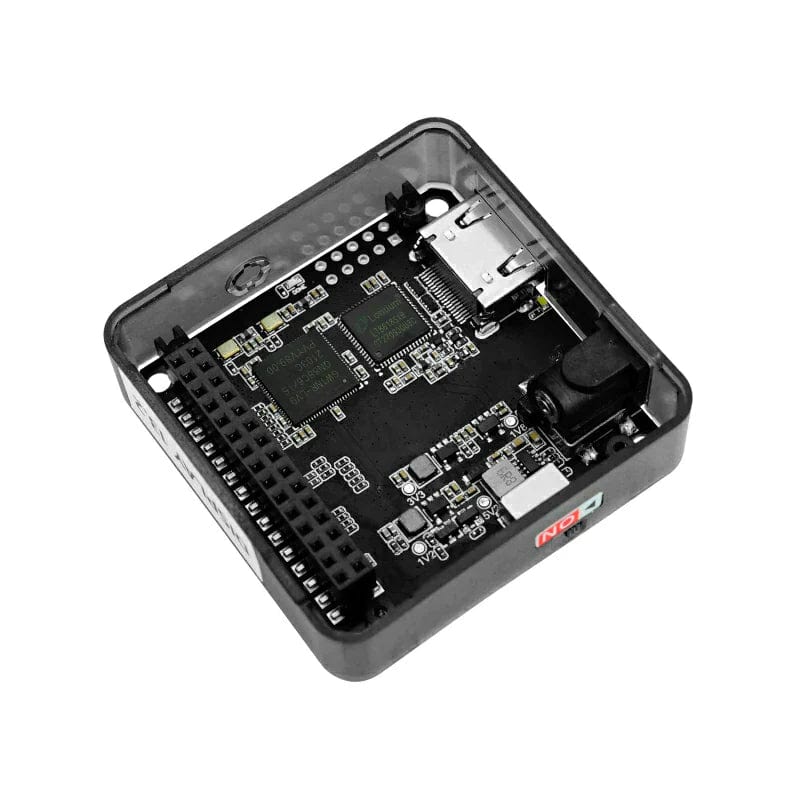

The Display Module 13.2 is an expansion module for HD audio and video, using the GAOYUN GW1NR series FPGA chip to output the display signal, and using the LT8618S chip as signal output conditioning, which has a 24-bit colour depth display signal, an 8-channel audio signal output, and a resolution of up to 1080P.

Features

  • Supports 24-bit RGB input
  • Resolution of up to 1080P
  • Supports up to 8 channels of audio input

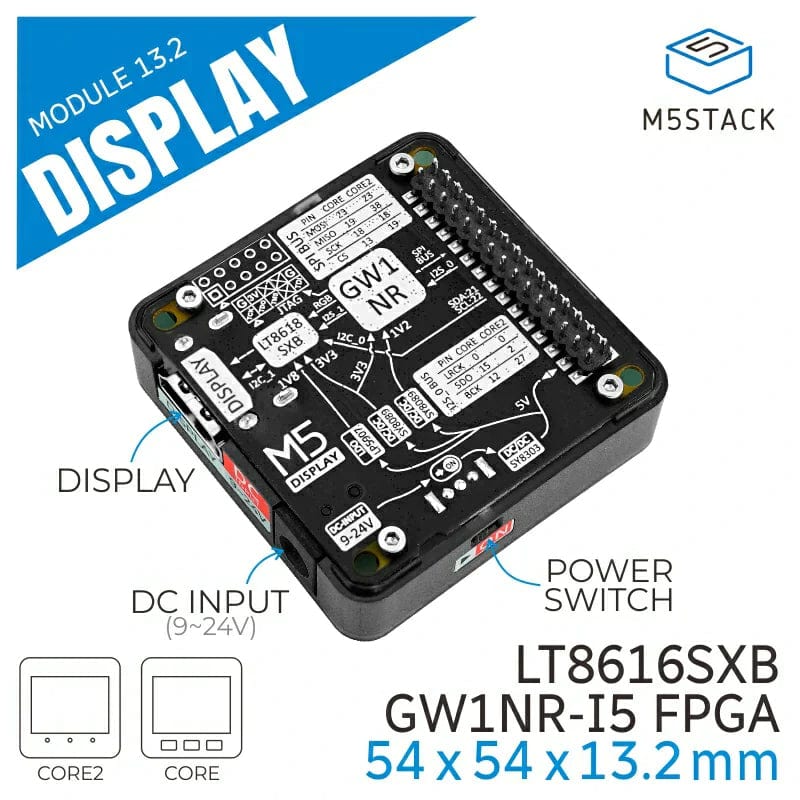

  • Includes 9-24V to 5V, 3.3V and 1.2V DC-DC circuits, and 5V to 1.8V LDO circuits
  • HD audio and video interface, JTAG download interface
  • 9-24V DC power interface
  • Power switch

Specifications

Resources Parameters
Audio and video signal acquisition chip GW1NR-LV9QN88C6-I5 FPGA
Audio and video signal processing chip LT8616SXB
9-24V to 5V DCDC buck chip SY8303
5V to 3.3V and 1.2V DCDC buck chips SY8089
5V to 1.8V LDO buck chip LP5907
Resolution MAXIMUM 1080P (1920x1080)
The power supply 9-24V
Product Size 54mm × 54mm × 14.2mm
Package Size 93mm × 63mm × 25mm
Product Weight 21.6g
Package Weight 41.2g

Resources

Package Contents

  • 1x Display Module 13.2
