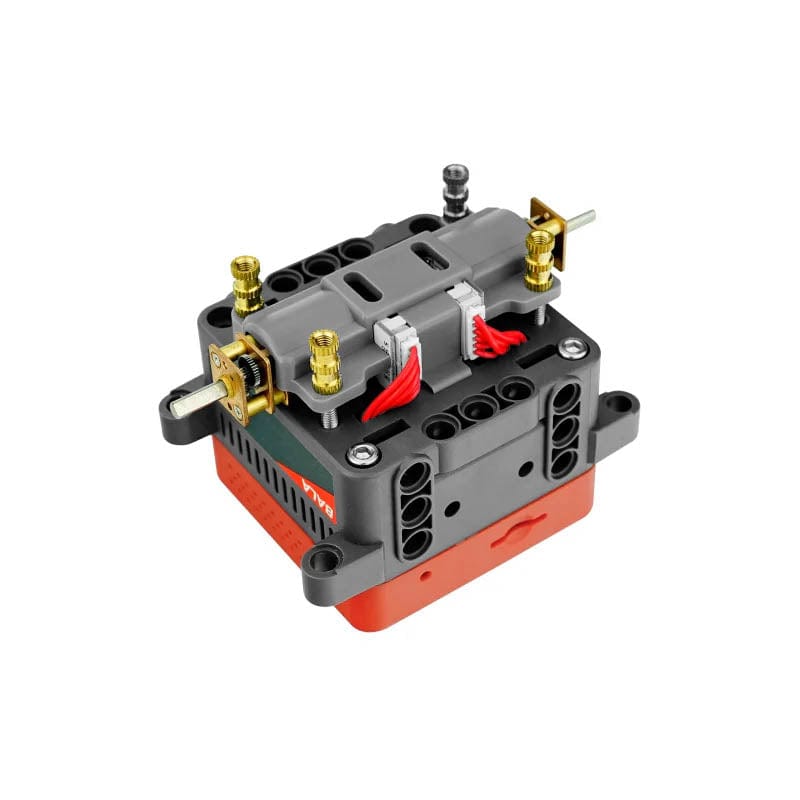

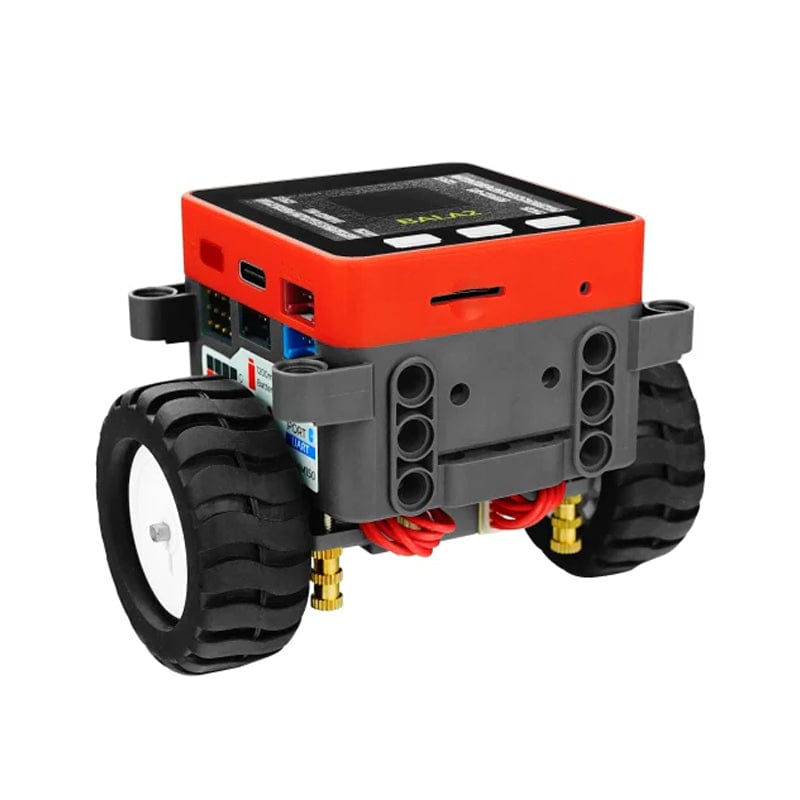

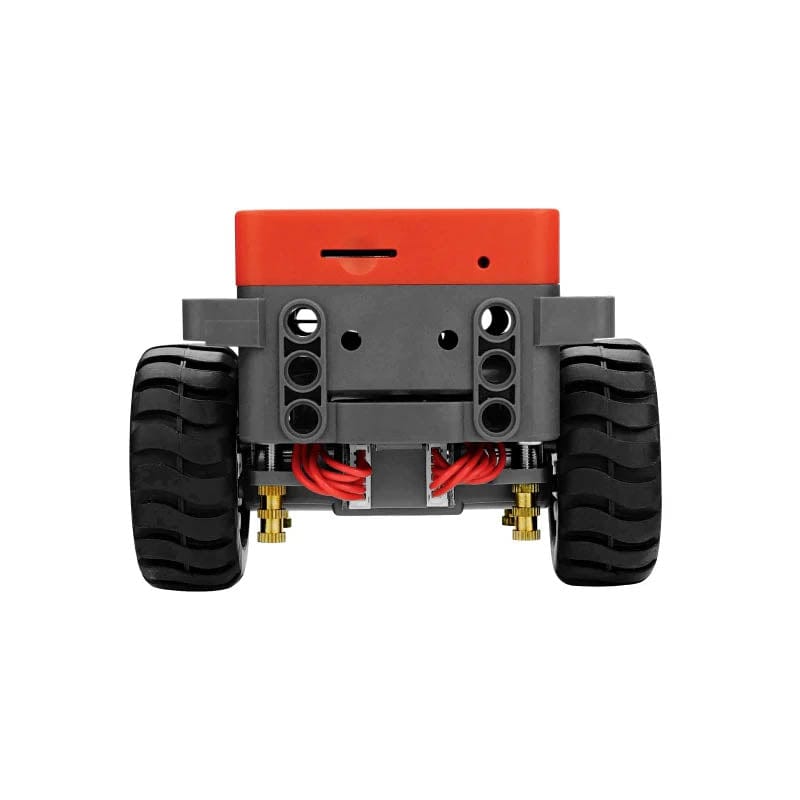

The BALA2 Fire (Bala is short for 'Balance') is the second generation of the M5Stack balancing robot series. The BALA2 Fire is a Self Balancing Robot consisting of an M5Stack Fire and two wheels with DC motors. The base uses an STM32F030C8T6 as the main control and has a two-way encoding motor driver and a built-in 1200mAh battery.

This robotics product comes with preloaded software including a self-balancing robot application which balances the robot vertically using a closed-loop algorithm. You can program it to automatically move around through programming, or you can combine Wi-Fi to develop remote control functions.

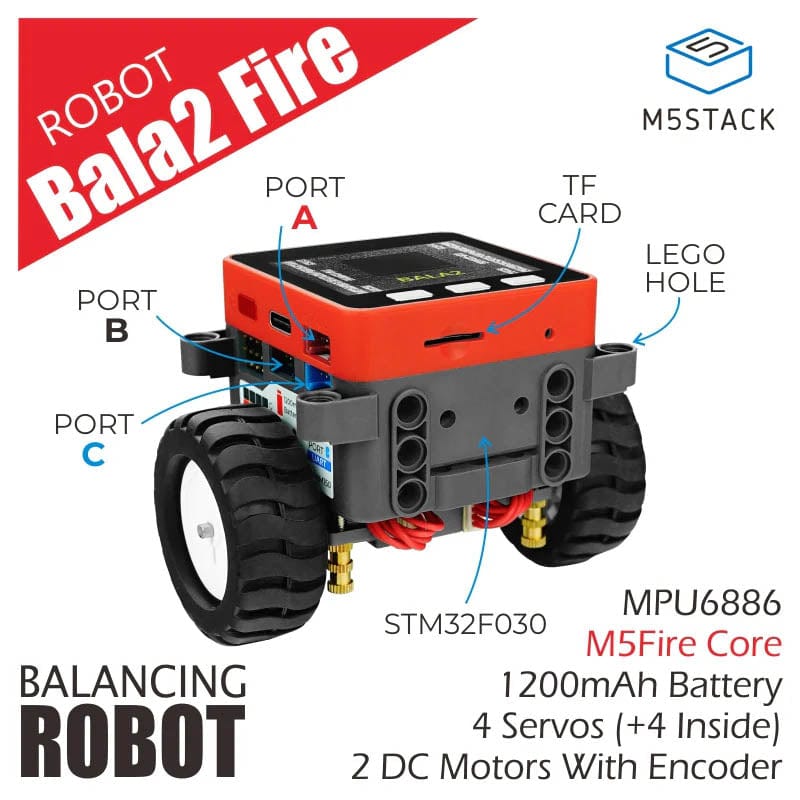

This Robot is controllable by a Smartphone device or a Transmitter. The BALA2 base contains a wealth of interfaces. In addition to the conventional PortB and PortC, it also supports 8-channel servos, of which 4 channels can be directly connected, and the remaining 4 channels need to be connected from the inside of the base.

Even if you have never attempted a balancing robot program, you can quickly get the hang of it and control it through UIFlow. The self-balancing robot uses data from the Accelerometer and Gyroscope to correct its orientation and position. The 2 DC driver module communicates with the M5Stack Fire through I2C(0x3A).

Be sure to check out the Tutorial & Quick Start and visit the product documentation site for more info.

Caution: While using PSRAM, you cannot use PortC.


Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited to DHL. Why?


Features

  • 6-DOF IMU
  • Two-wheel drive, PID control balance
  • Grove extension ports
  • 8-channel servo drive, 4-channel external connection, 4-channel built-in
  • Support Wi-Fi programmable
  • Built-in speaker
  • MicroSD Card Support
  • Building brick Compatible
  • Programming Support
    • Python
    • UIFlow (Blockly)
    • Arduino

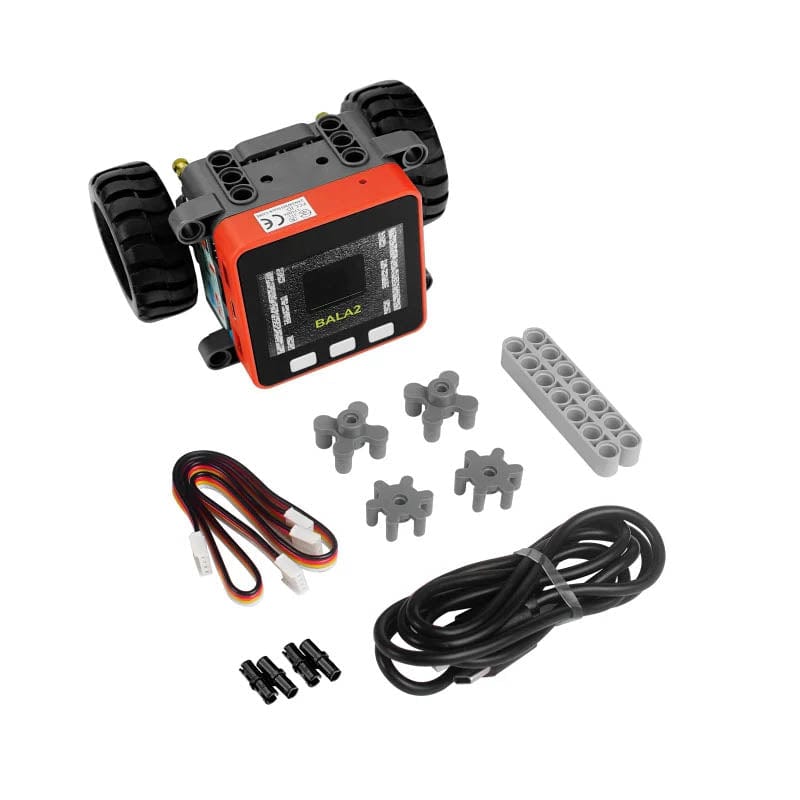

Package Contents

  • 1x M5Stack Fire + BALA2
  • 4x Wheel connector
  • 2x HY2.0 4-pin Cables (20cm)
  • 2x Bricks
  • 1x HEX KEY
  • 1x Type-C USB Cable (120cm)

Specifications

ESP32 240MHz Dual Core
600 DMIPS
520KB SRAM
Wi-Fi
Flash 16MB Flash
PSRAM 8MB PSRAM
LCD 2.0 inch, 320x240 Color TFT LCD, ILI9342C
Speaker 1W-0928
MEMS MPU6886
Motor Driver HR8833
Base Controller STM32F030C8T6
Ports GROVE I2C*1
UART*1
GPIO*1
SERVO*4 (+4 Extendable Channel)
Battery Capacity 1200mAh
Net Weight 153.9g
Gross Weight 260.0g
Product Size 54*54*65*mm
Package dimensions 170*110*66mm
Case Material Plastic

Resources

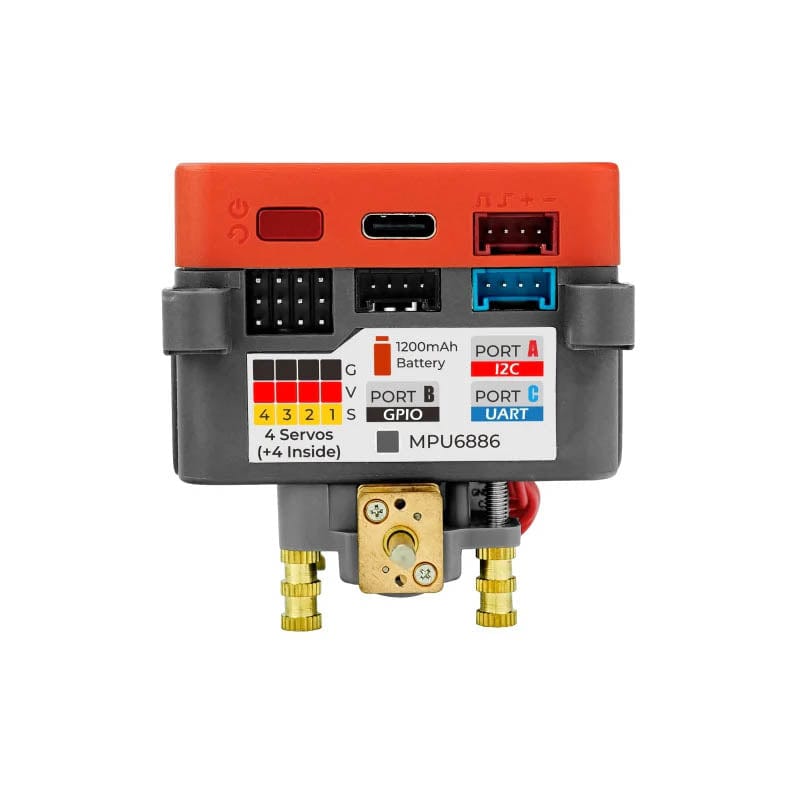

Pinout

ESP32 Chip GPIO22 GPIO21 GPIO26 GPIO36 GPIO16 GPIO17
PORT A SCL SDA
PORT B DAC ADC
PORT C RX TX
