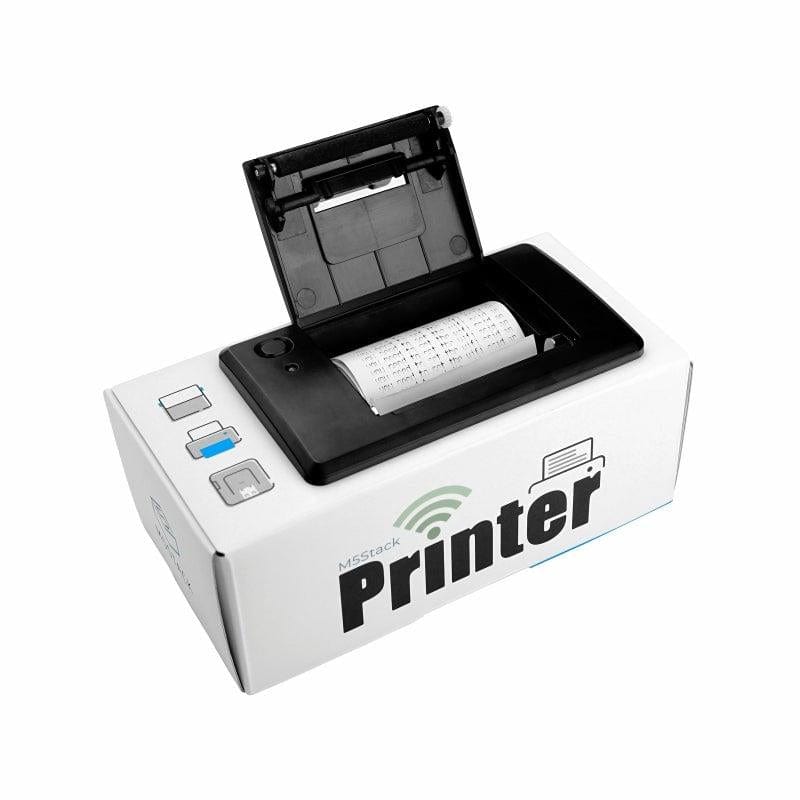

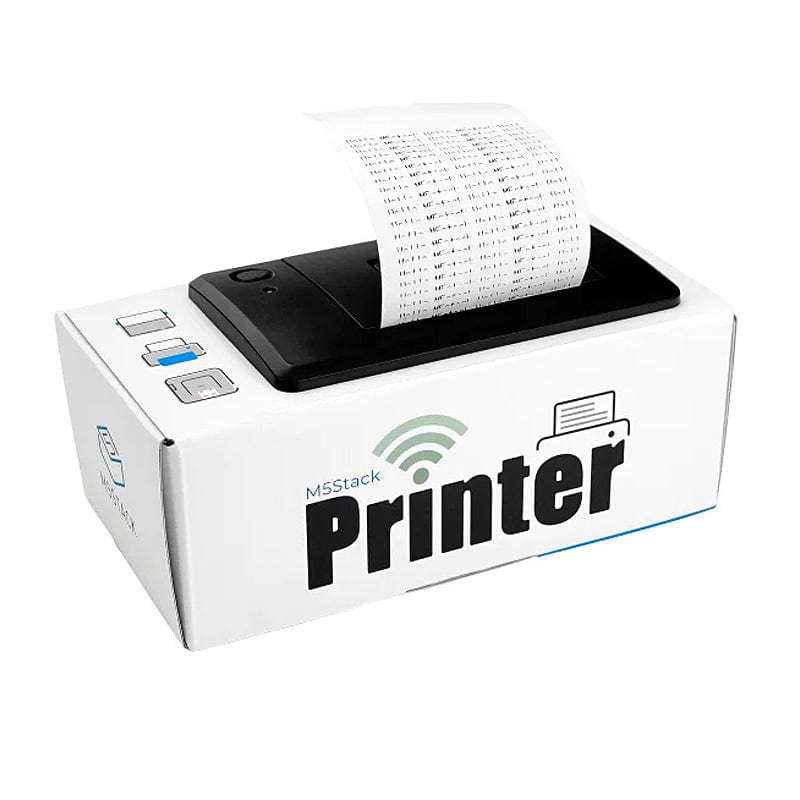

The M5Stack ATOM Printer offers great value in a desktop DIY thermal printer. The kit includes an ESP32-Pico based IoT ATOM Lite controller and a 58mm thermal printer to meet your multiple printing requirements.

The unit supports text, graphics, barcode and QR code printing with built-in firmware that boasts two modes of AP Connect Print + MQTT Notifications Print. The ATOM Printer has geekery kraft packaging design, You can enrich your project ideas with the ATOM Lite IoT controller.

Note: This kit does not include a power adapter. A DC 12V / 2.5A power adapter (5.5mm jack) is recommended. We have a quality Meanwell option here, or supply your own.

Features

ATOM Lite: ESP32-Pico-D4 4MB Flash IoT controller

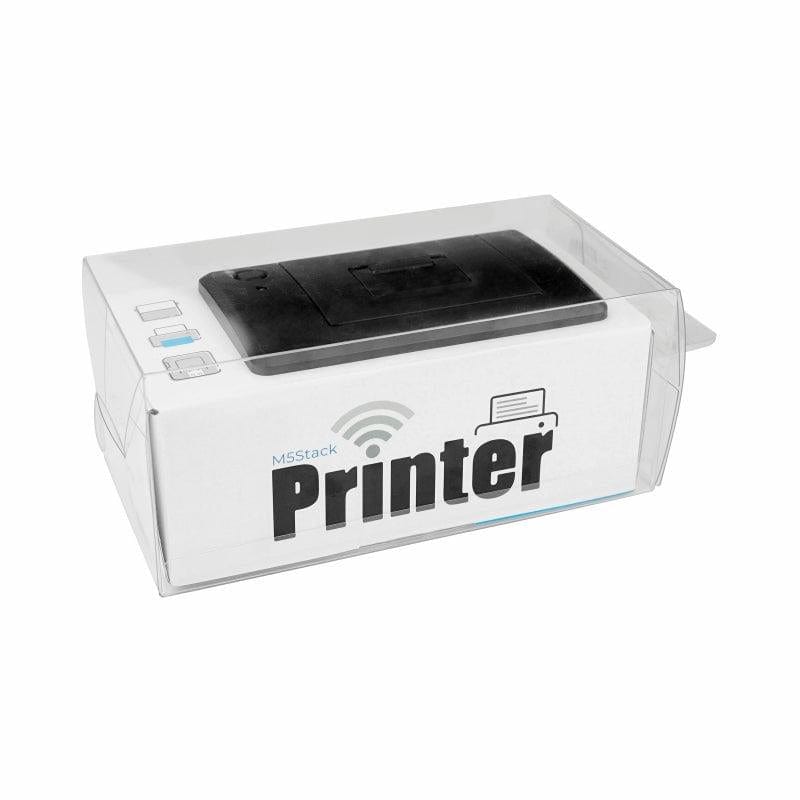

Sleek, Geekery kraft packaging design
Supports for text/graphics/BarCode/QRCode
Communication interface: UART
Fast printing, high resolution
How to use:
- AP hotspot connection, web-controlled printing
- Printing content sent via MQTT (Topic is device Mac address)

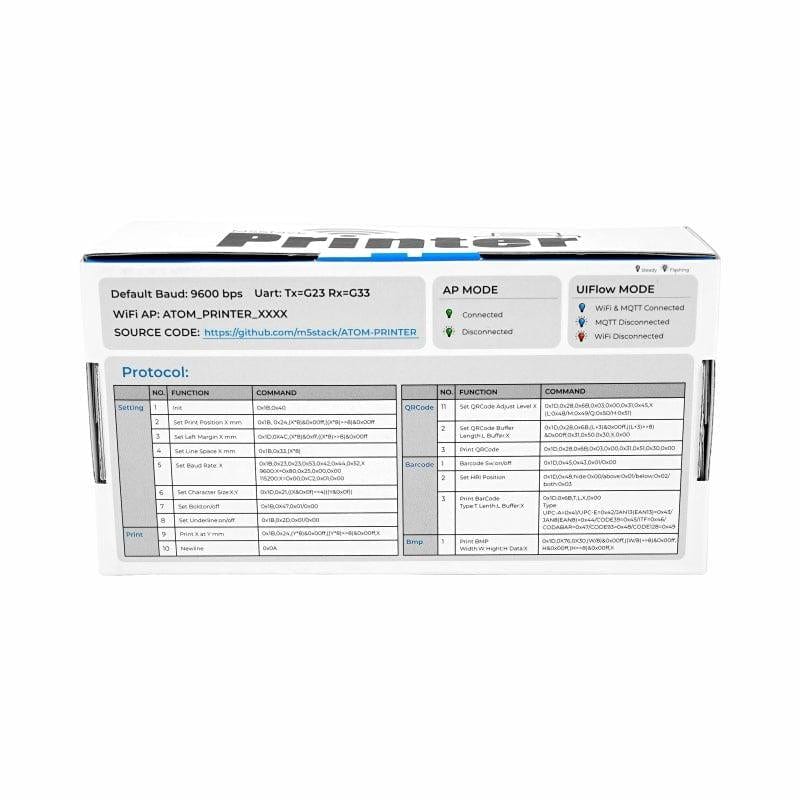

- Serial command control (UART 9600bps 8N1)
- Development platform: Arduino, UIFlow

Package Contents

1x ATOM LITE
1x ATOM Printer
1x thermal paper roll
1x sticky thermal paper roll

No power supply included

Specifications

Specifications	Parameters
Printing method	Thermal printing
Supported text and graphics	Text, graphics, characters, BarCode(Codebar, code93, code39, code128, ENA13, ITF25, UPC-A, UPC-E), QRCode
Supply voltage	DC 12V
Working current	2.5A
Print colour	Monochrome
Print speed/resolution	60mm/s 203dpi 8 dots/mm up to 384 dots per line
Printing width	58mm
Service life	Printing distance 50km
Paper Cut	By Hands
Max. Diameter of Paper Roll	58mm±0.05mm (width) 0.05~0.1mm (thickness), maximum diameter ≤40mm
Printing speed	60mm/s

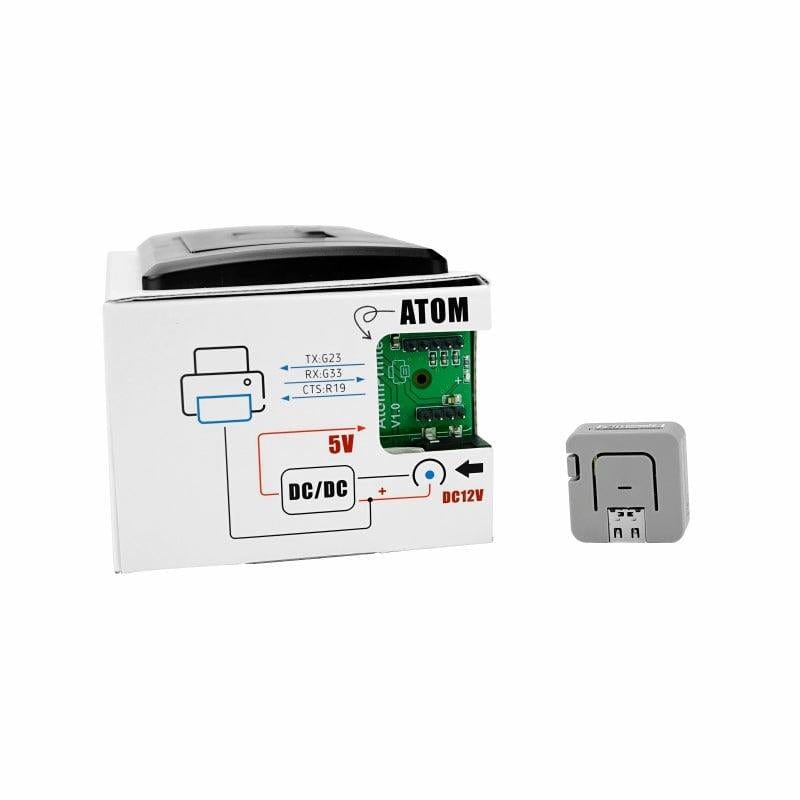

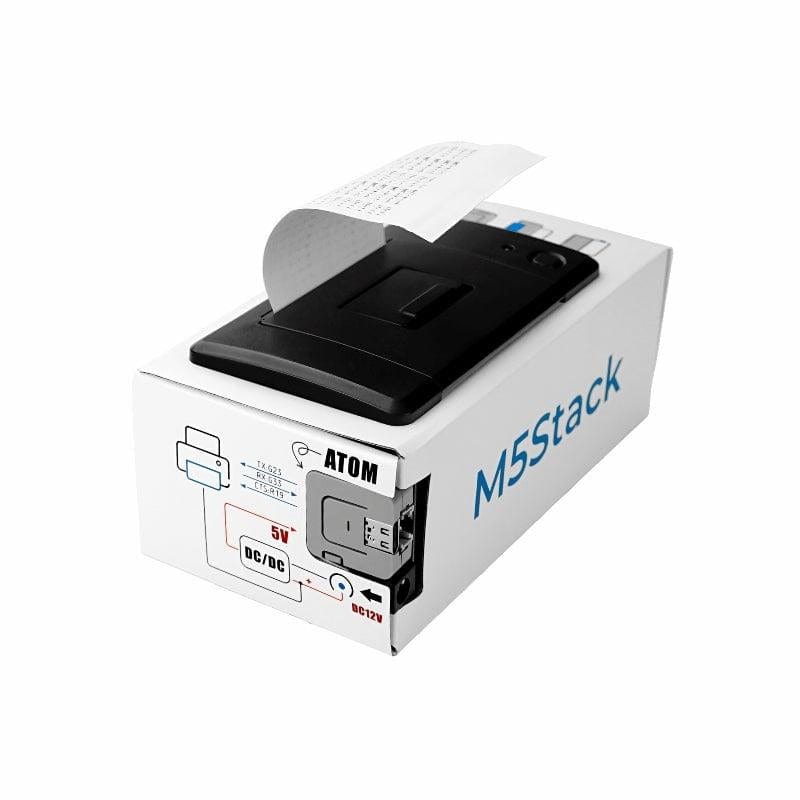

Connectivity Technology	USB/RS232/TTL (ATOM is connected to TTL interface by default UART 9600bps 8N1)
Net weight	285g
Gross weight	321g
Product size	151 * 79 * 66mm
Package size	158 * 82 * 70mm
