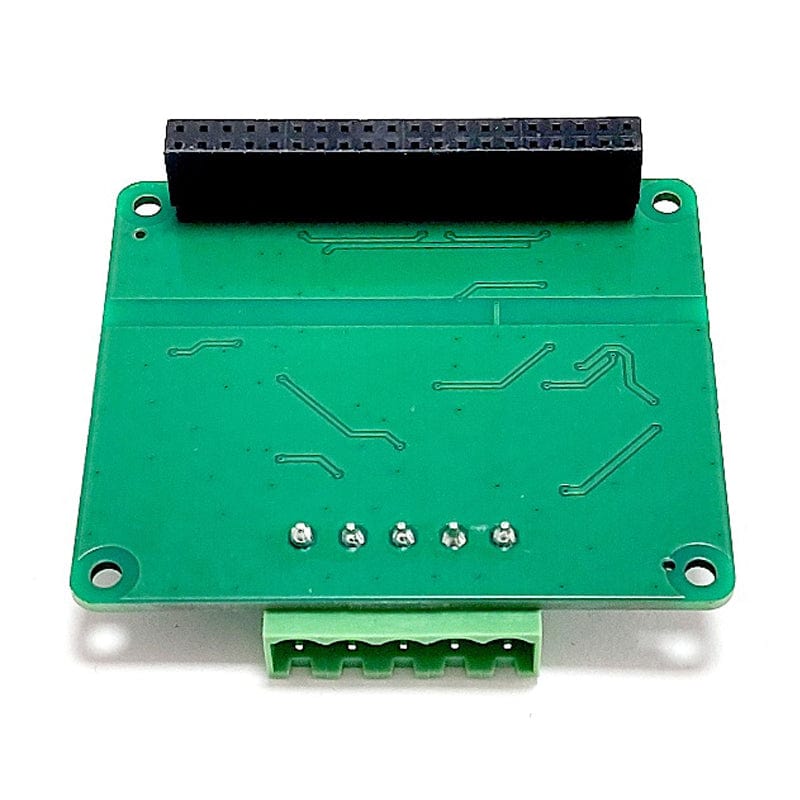

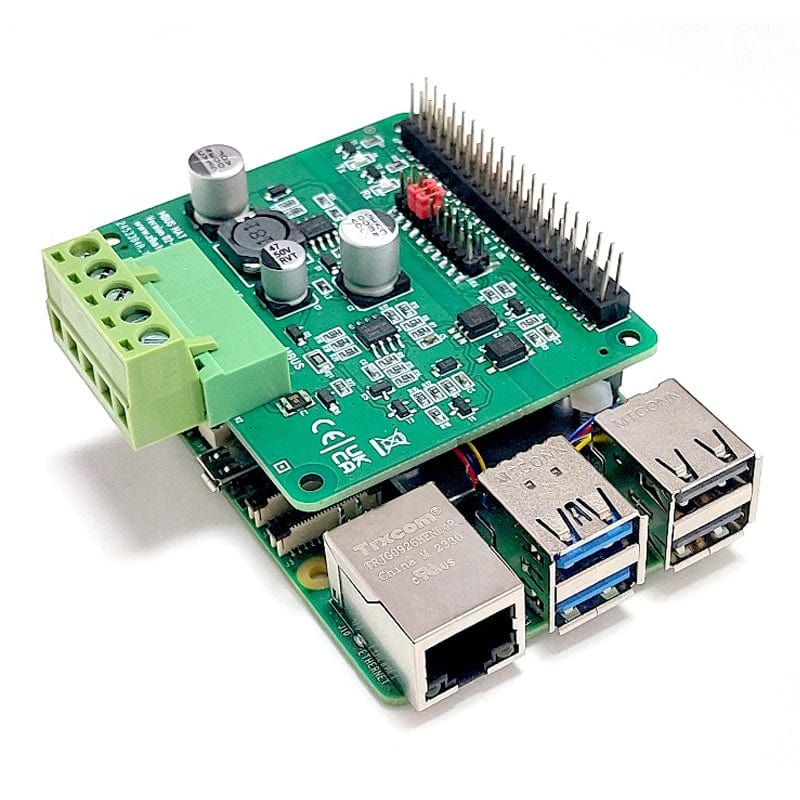

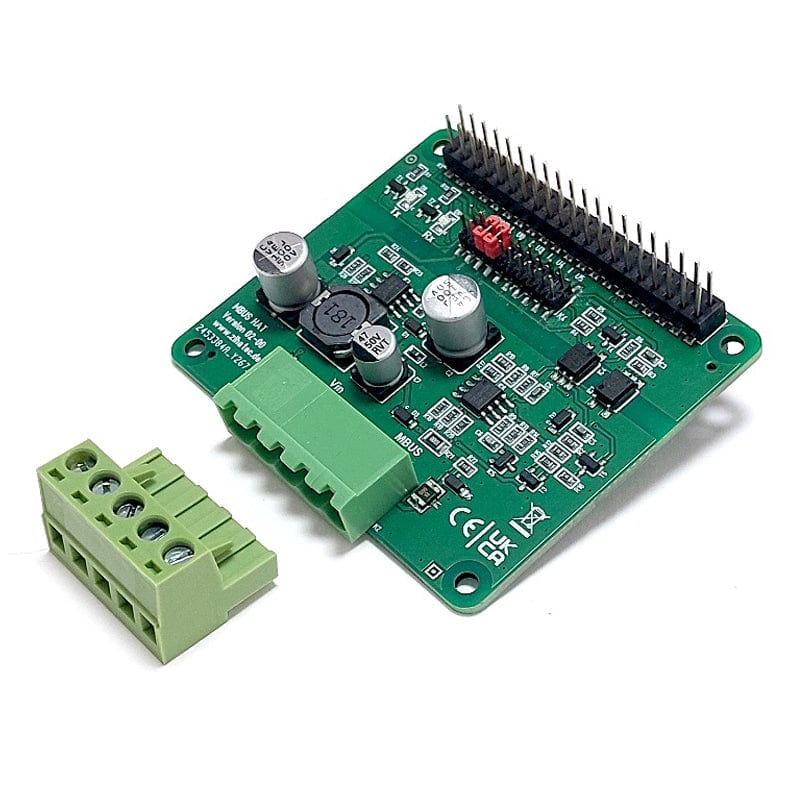

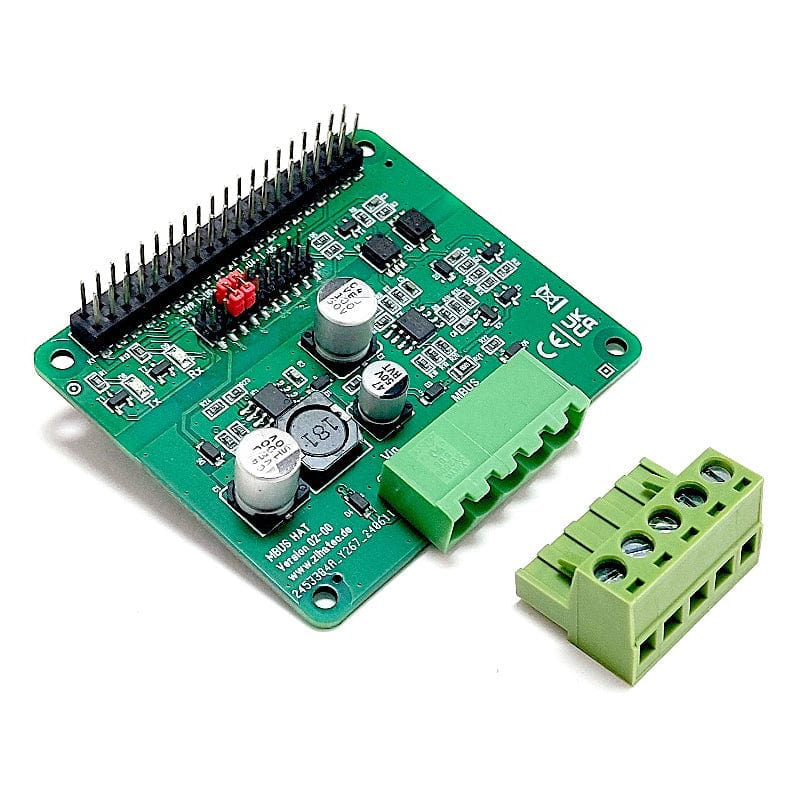

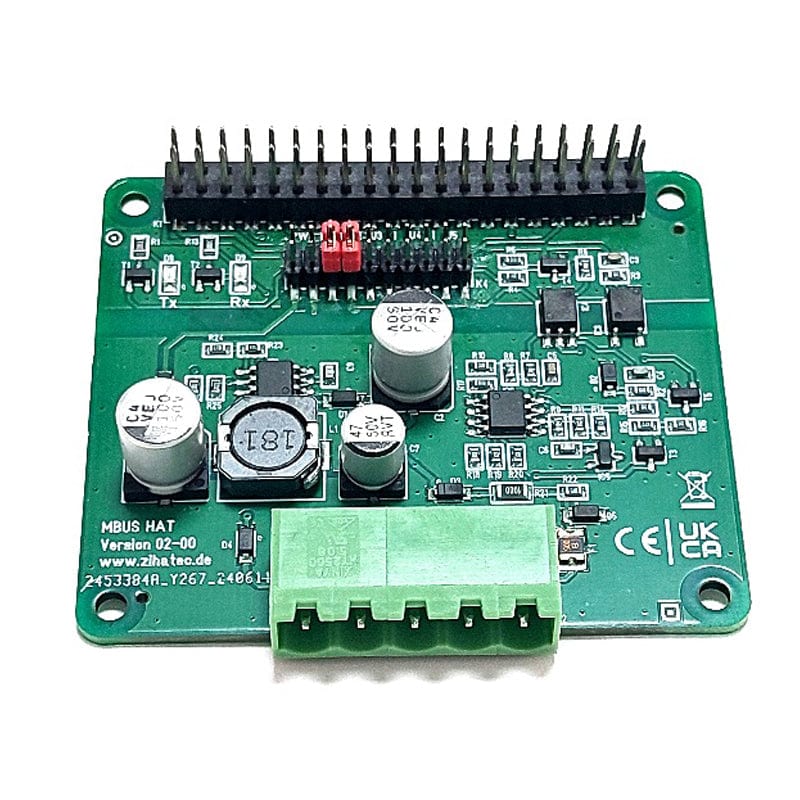

M-Bus HAT for Raspberry Pi

ZihatecSKU: 105166
Price:
Sale price £41.90
incl. VAT
excl. VAT
Stock:
Only 6 units left
Quantity:

Compatible with:

Awesome Extras

Raspberry Pi 4 Model B - The Pi HutRaspberry Pi 4 Model B - The Pi Hut
Raspberry PiRaspberry Pi 4 Model B
Sale priceFrom £33.30 incl. VAT excl. VAT
Raspberry Pi 4 Model B Starter KitRaspberry Pi 4 Model B Starter Kit
The Pi HutRaspberry Pi 4 Model B Starter Kit
Sale priceFrom £60 incl. VAT excl. VAT
GPIO Riser Header for Raspberry Pi - The Pi HutGPIO Riser Header for Raspberry Pi - The Pi Hut
The Pi HutGPIO Riser Header for Raspberry Pi
Sale price £1 incl. VAT excl. VAT

With this M-Bus HAT, you can extend your Raspberry Pi with functions for smart metering! The HAT provides an M-Bus master to which other M-Bus devices such as electricity, water or gas meters (with the appropriate interface) can be connected directly.

A datasheet/user guide is available to help you get started. With libmbus, powerful C++ software is available for the Raspberry Pi, which can be used with the M-Bus HAT. If you prefer Python take a look at the pyMeterBus project.

Features

  • M-Bus (Meter-Bus) Master
  • Compatible with European standard EN 13757-2
  • For the remote reading of consumption meters
  • For up to 6 unit-loads (9mA)
  • External DC power supply (9...30V) needed (36V for the MBUS will be generated internally from this voltage)
  • Galvanically isolated interface
  • Removable screw terminals for bus and power supply connection
  • Indicator LEDs for RX and TX signals
  • Selectable UART via jumper (with Raspberry Pi 4 only)
  • For Raspberry Pi 2 / 3 / 4 Model B, Raspberry Pi Zero and compatible SBC

Package Contents

  • 1x M-Bus HAT (standard version)
  • 1x Terminal block connector

Raspberry Pi not included

Resources

Pin Usage

Function UART0 UART3 UART4 UART5
GND Pin 6, 9, 14, 25, 39
3.3V Pin 1
5V Pin 2, 4
TX GPIO14 (8) GPIO4 (7) GPIO8 (24) GPIO12 (32)
RX GPIO15 (10) GPIO5 (29) GPIO9 (21) GPIO13 (33)
