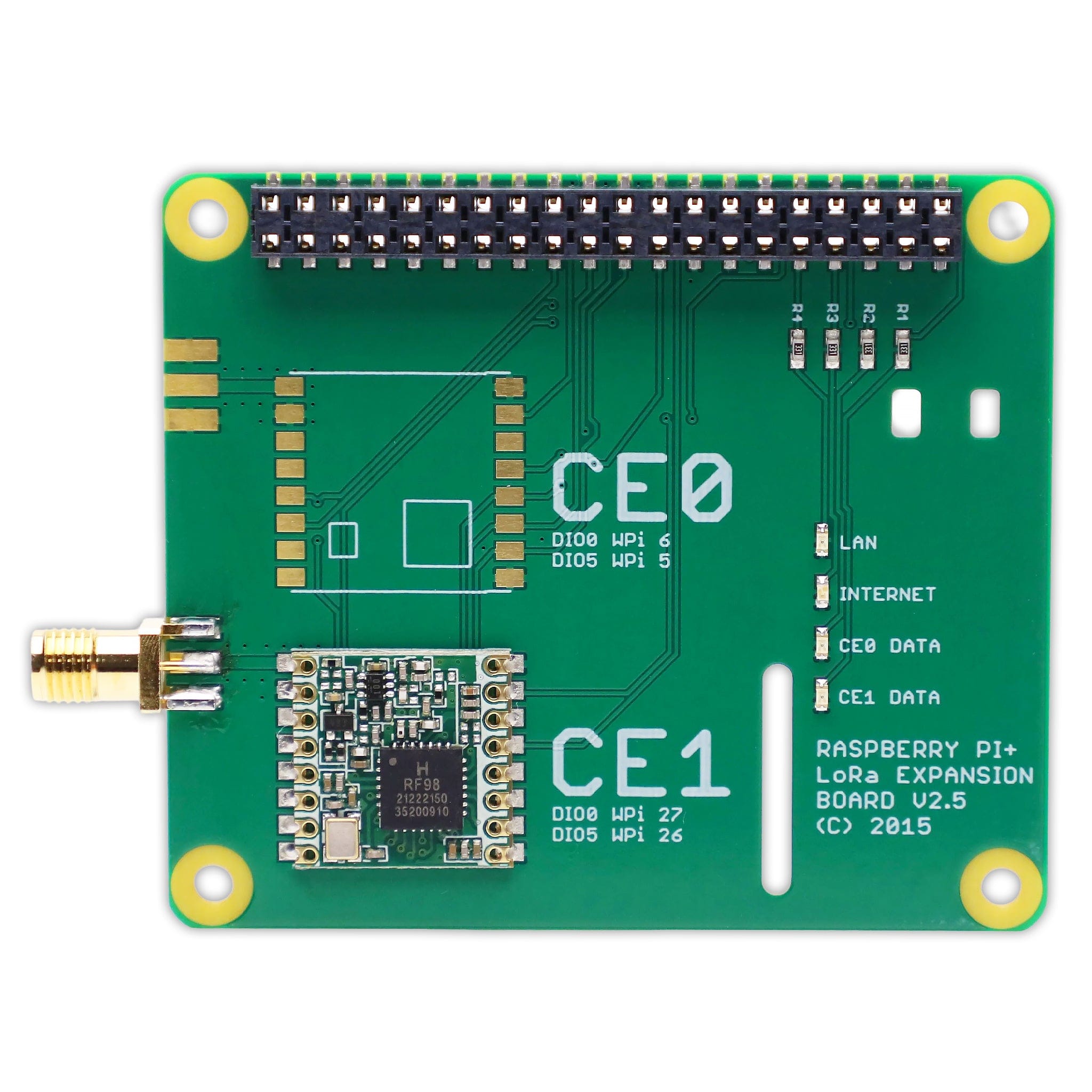

This is a LoRa Expansion Board for Raspberry Pi, with HopeRF LoRa radio module(s) installed. The RFM95/98W transceivers feature the LoRa long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.
Supplied with suitable header and standoffs, with the SMA connector and radio modules pre-soldered to the board. The board also has LED's for internet, network and CE0/1 data.
We offer this board in two configurations:
868MHz installed in CE1 (nothing in CE0)
434MHz installed in CE1 + 868MHz installed in CE0
If you plan to use this board in conjunction with the Pi In The Sky system, only modules in CE1 are supported.
Note: These modules are sold as components and are not CE Compliant as they don’t have a specific application. The end user of these modules will need to submit their final product to get CE certification. They are intended for engineering, research or lab use only, not for use in production or commercial systems. These products should be used only in testing environments and at your own risk and discretion.
Package Contents
1x LoRa Expansion Board for Raspberry Pi
Select module configuration before adding to cart

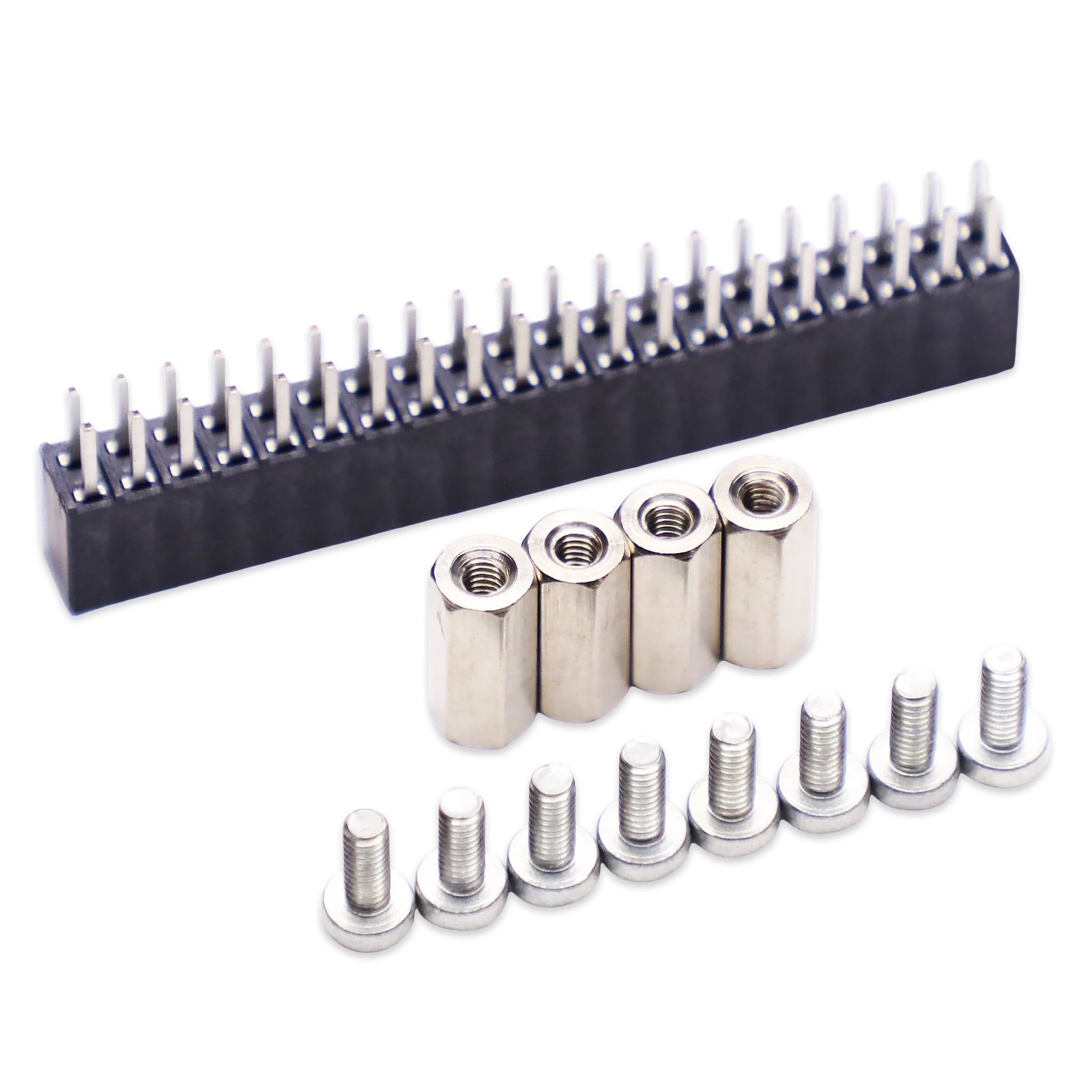

1x GPIO header
1x Standoff pack
Antenna not included.
