Long-Wave IR Thermal Imaging Camera HAT for Raspberry Pi (Image Processing Algorithm)

WaveshareSKU: WAV-28566
Field of View:45°
Price:
Sale price £83.20
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Compatible with:

Awesome Extras

Raspberry Pi 5 - The Pi HutRaspberry Pi 5 - The Pi Hut
Raspberry PiRaspberry Pi 5
Sale priceFrom £46.50 incl. VAT excl. VAT
Long-wave IR Thermal Imaging Camera USB-C Module for Raspberry Pi - The Pi HutLong-wave IR Thermal Imaging Camera USB-C Module for Raspberry Pi - The Pi Hut
Raspberry Pi Zero 2 - The Pi HutRaspberry Pi Zero 2 - The Pi Hut
Raspberry PiRaspberry Pi Zero 2 W
Sale priceFrom £14.40 incl. VAT excl. VAT

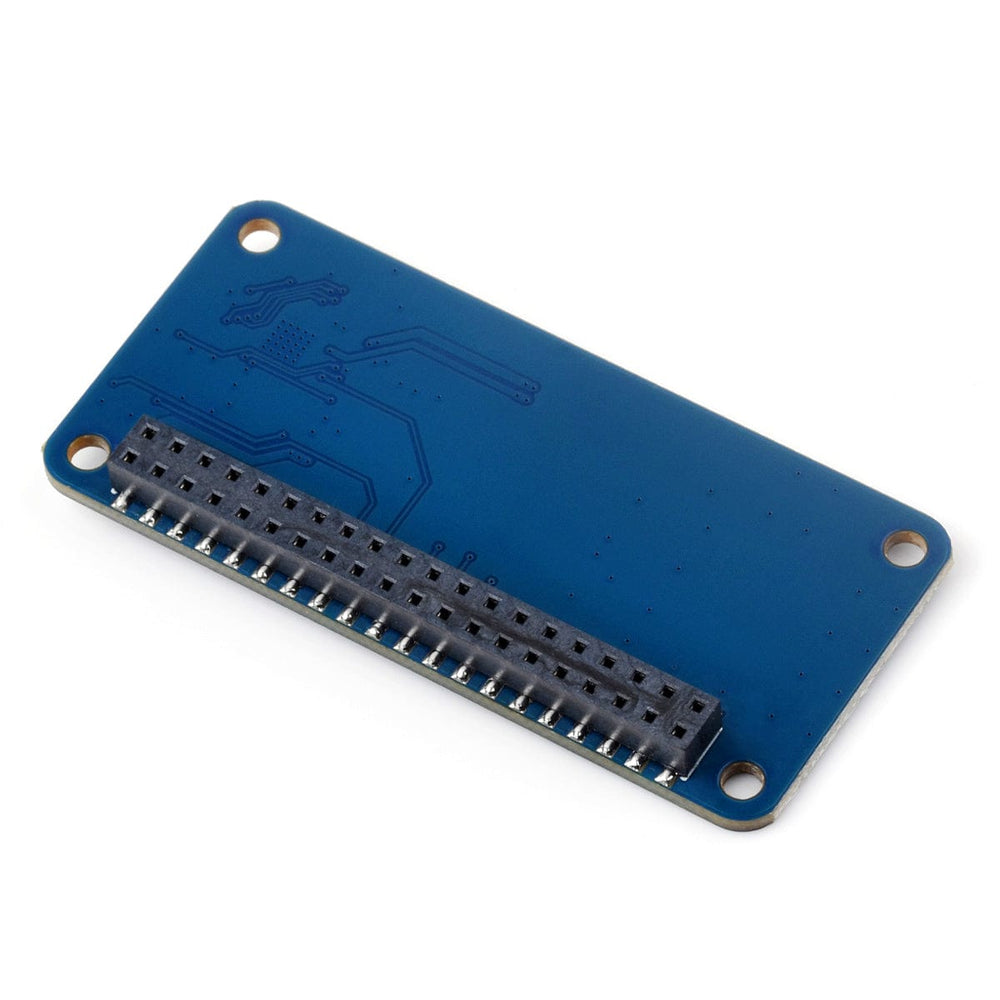

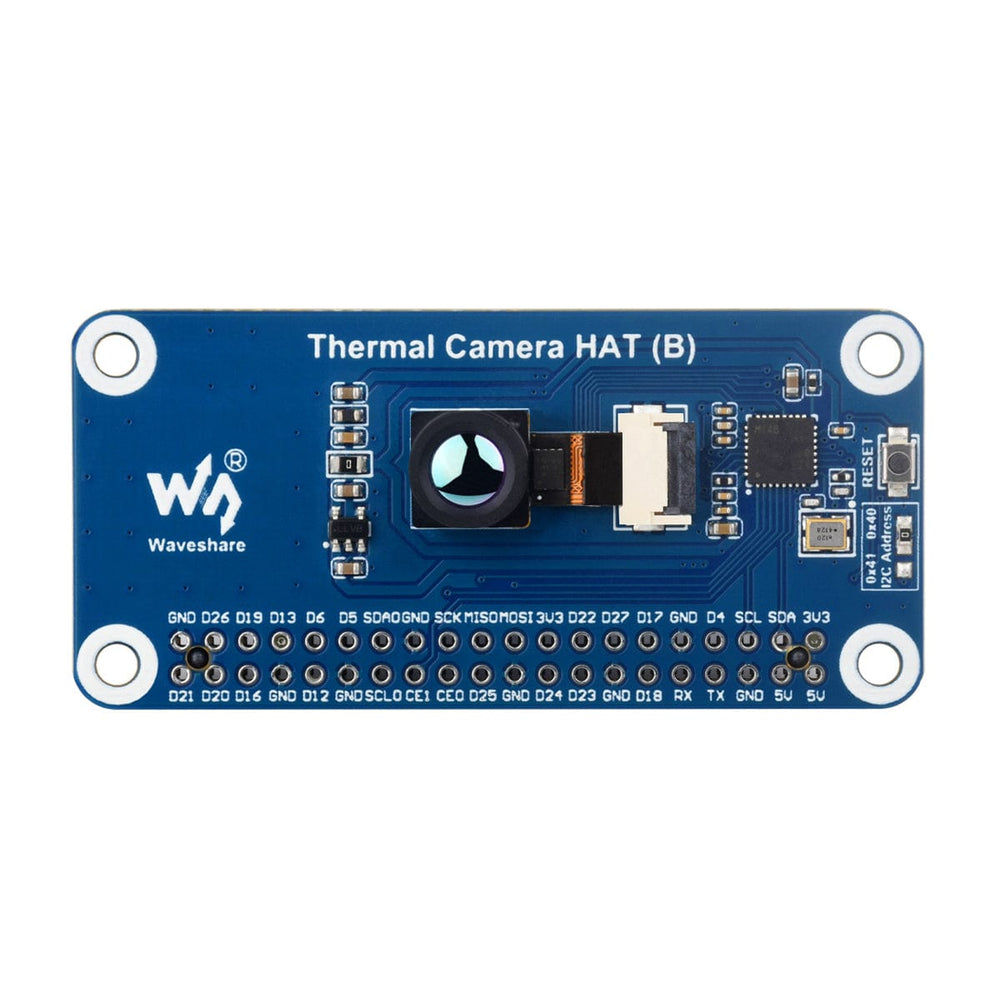

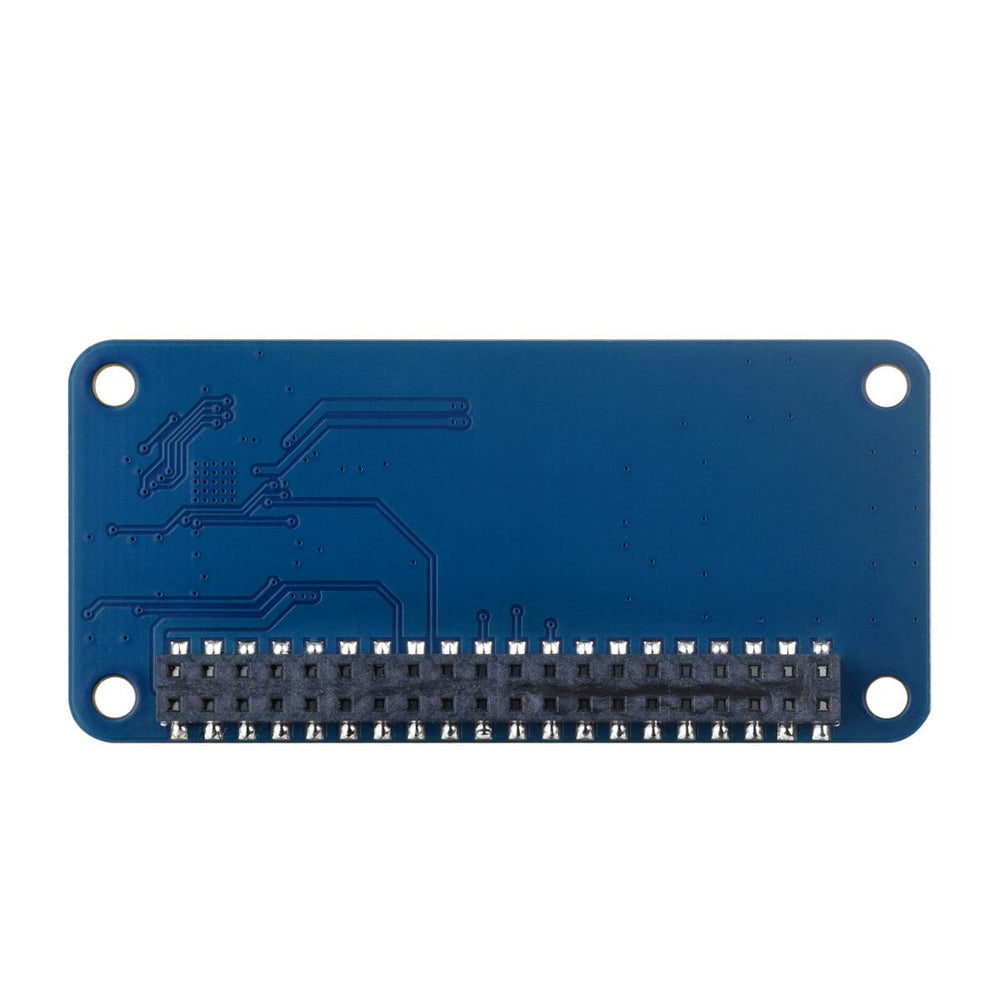

This camera HAT for Raspberry Pi uses hybrid microbolometer and thermopile pixel technology with an 80 x 62 pixel array, capturing the infrared distribution of objects in its field of view and translating this data into accurate surface temperature readings to generate thermal images. With a shutterless design, it operates continuously, streaming thermal video smoothly, making it an excellent fit for various industrial and intelligent control setups.

Compared to the standard Thermal Camera HAT, this model has an optimised internal filter and advanced image processing, resulting in a smaller 9 x 9mm lens and connecting via an FPC cable. It’s available in two versions: a basic version with a 45° field of view and a wide-angle version with a 90° field of view, catering to different imaging requirements (Please choose which version you want before adding it to the cart)

Each pixel is calibrated for uniformity, precise temperature readings, and with a Noise Equivalent Temperature Difference (NETD) of 150mK RMS at a 1Hz refresh rate, it provides clear, sensitive thermal imaging. The HAT outputs thermal video at up to 25 frames per second, providing real-time visuals and precise thermal mapping in either standard or wide-angle view options.

Features

  • Adopts the hybrid technology of microbolometer and thermopile, 80 x 62 array pixels
  • Continuous operation and thermal imaging video stream due to shutterless design
  • Calibrated each pixel to ensure uniformity and accuracy of temperature reading
  • Noise Equivalent Temperature Difference (NETD) 150mK RMS@1Hz refresh rate
  • Up to 25FPS (Max) thermal imaging video stream output
  • Provides lens options of 45° / 90° FOV (Optional)
  • Comes with online resources and manuals (Python demo for Raspberry Pi, Android/Windows host computer and user manual, etc.)

Specifications

Power Supply 5V
Operating Current 20mA@5V
Wavelength Range 8-14μm
Operating Temperature -40-85°C
Target Temperature -40-400°C
Refresh Rate 25 FPS (Max)
FOV Basic Version: 56° (D) x 45° (H) x 34° (V)
Wide Angle Version: 122° (D) x  90° (H) x  67° (V)
Noise Equivalent Temperature Difference 125mK
Measuring Accuracy ±2℃

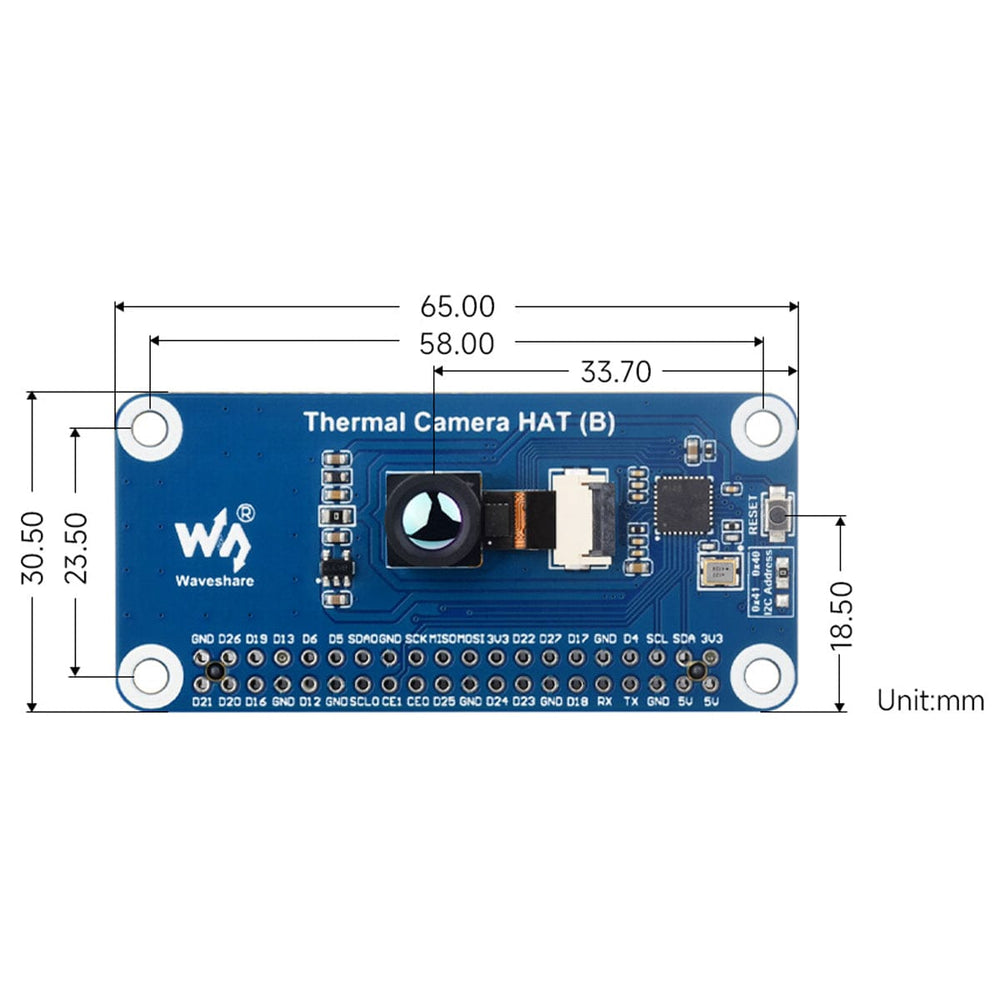

Dimensions 65mm x 30.5mm

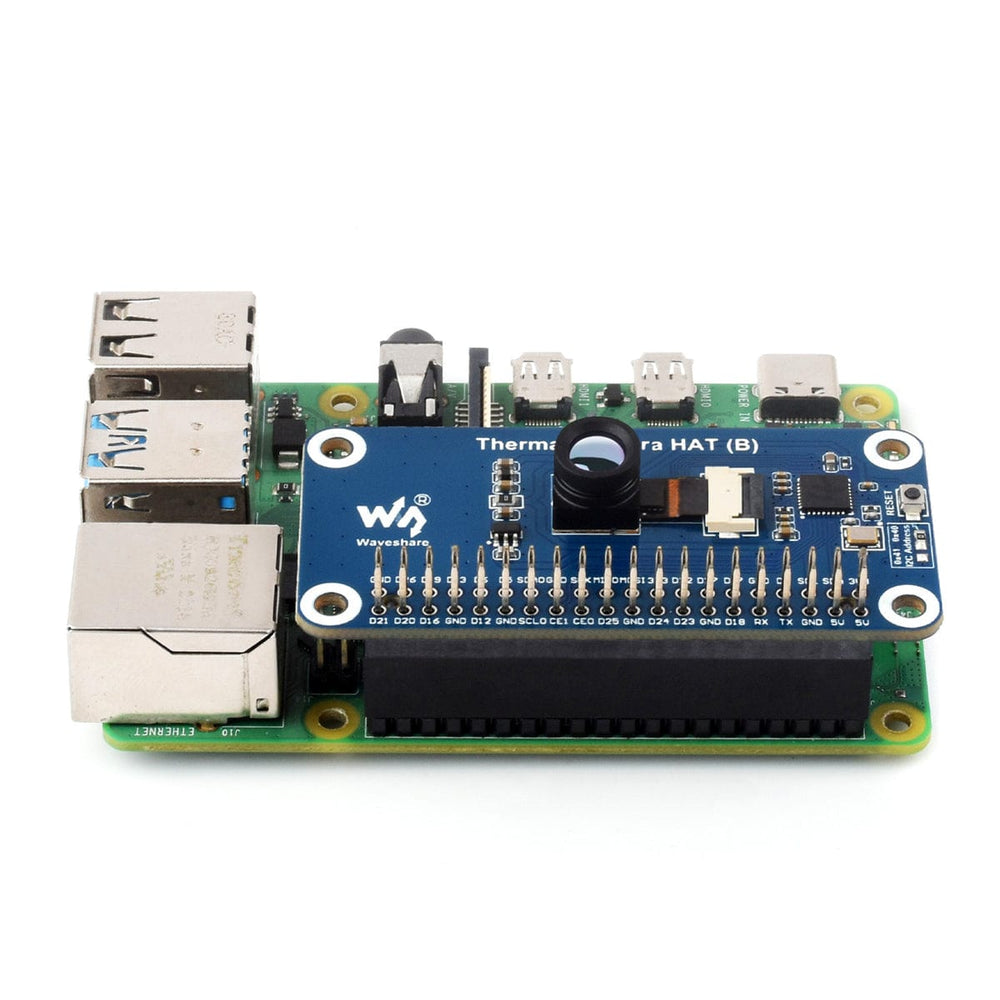

Connection Example - Raspberry Pi 5

Resources

Package Contents

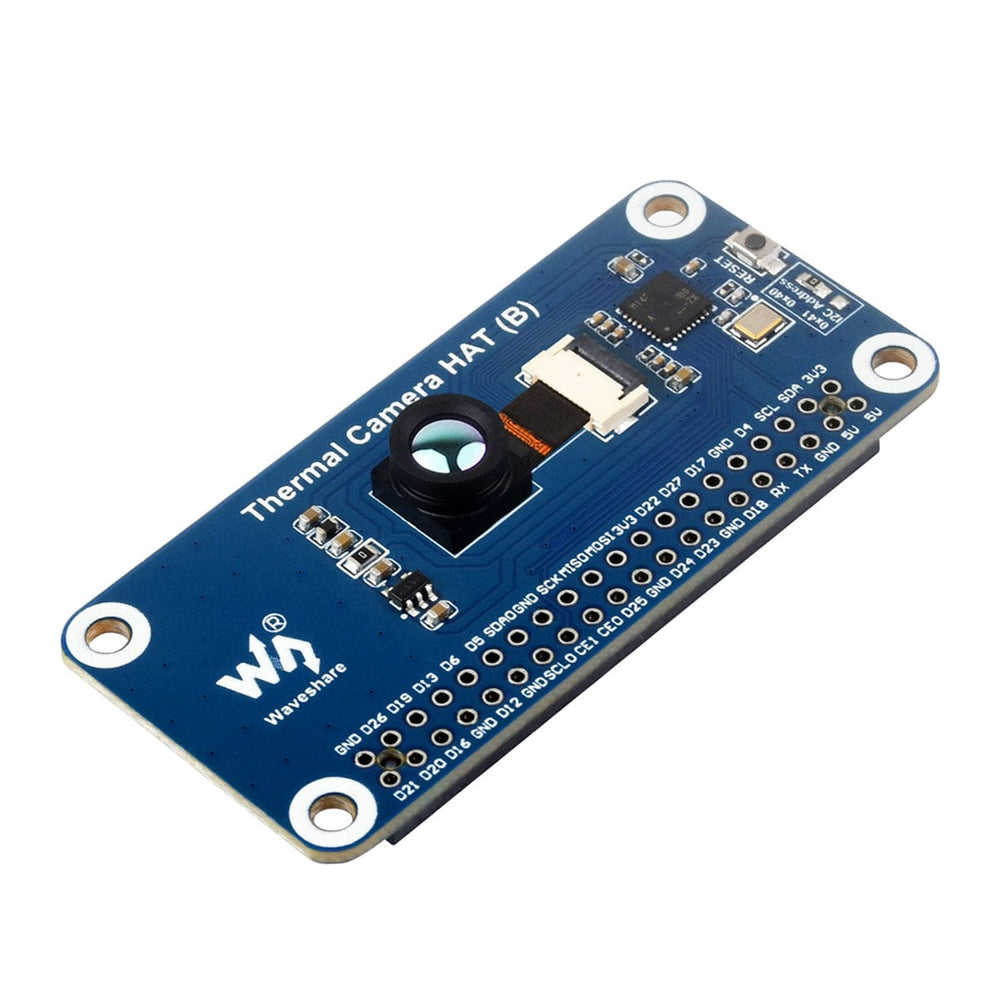

Thermal-45 Camera HAT (B)

  • 1x Thermal-45 Camera HAT (B)
  • 1x 2 x 20-pin Female Header
  • 1x Screws Pack

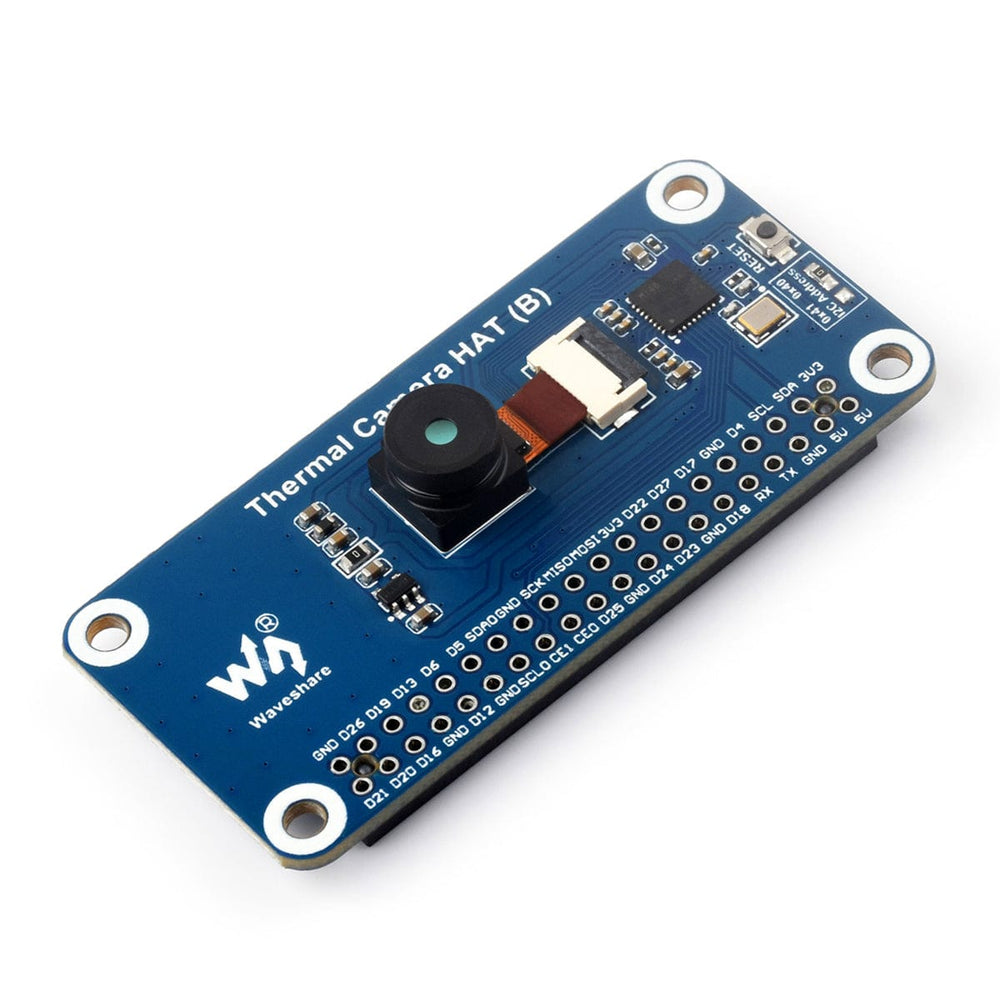

Thermal-90 Camera HAT (B)

  • 1x Thermal-90 Camera HAT (B)
  • 1x 2 x 20-pin Female Header
  • 1x Screws Pack
