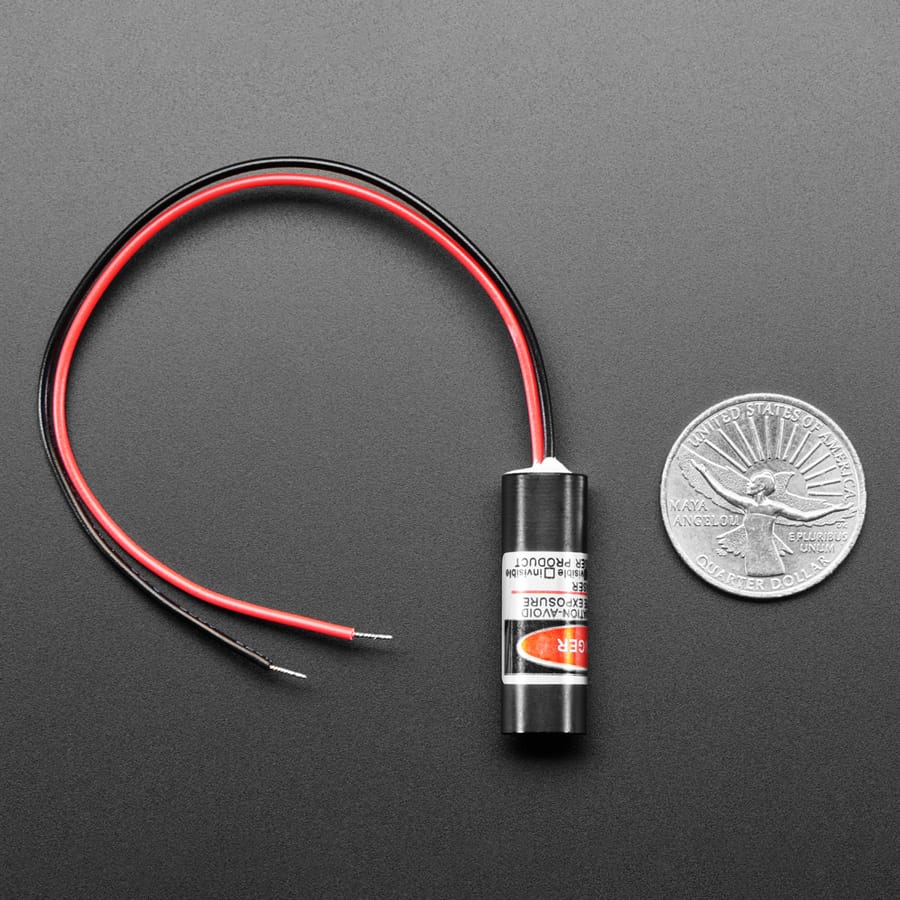

The Red Laser Line Diode Module projects a wide 120° laser line, making it ideal for 3D scanning, alignment, positioning, and sensing applications in embedded electronics and robotics projects.
You have some frickin' sharks at your lair, and you're thinking "it would be really great if I could attach some lasers to them" and then you see these little laser diode modules: what great timing!
These encapsulated laser diodes are Class IIIa 5mW, with a 650nm red wavelength. They can be driven from 2.8V to 5.2V so they're great for your embedded electronics project.

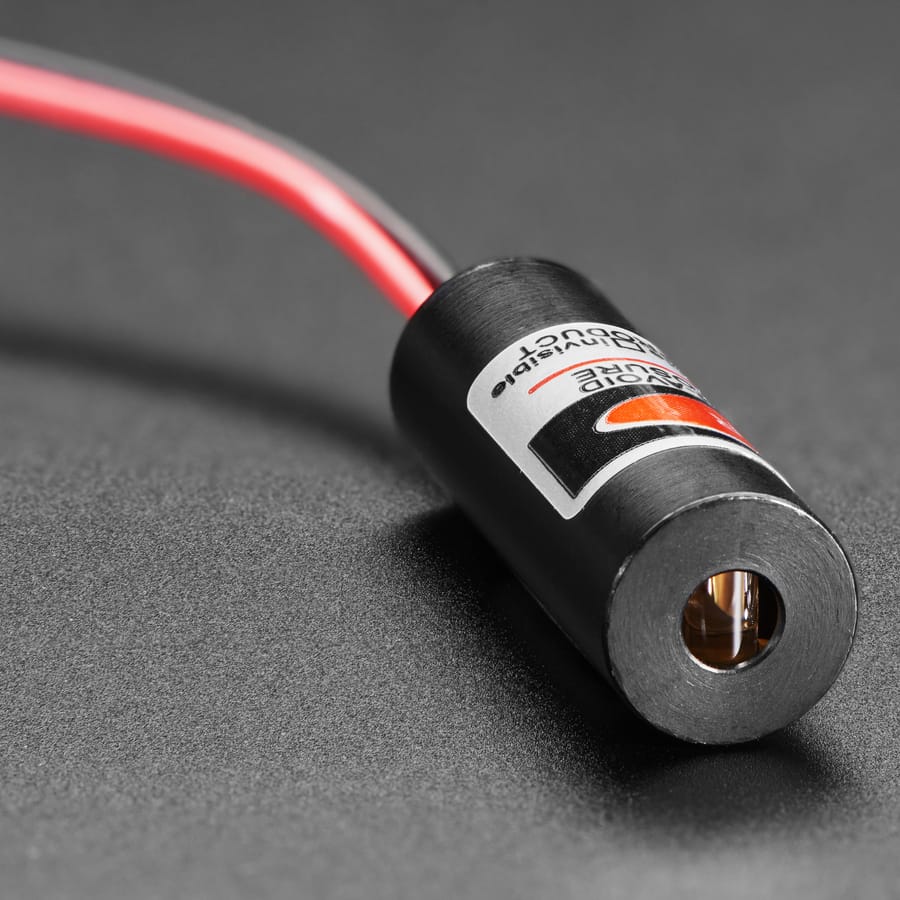

This particular laser diode has a lens attached to turn the dot into a line. We think this would be particularly good for making a 3D scanner, but there are probably many other cool uses! Simply connect power to the red and black wires and you will be lasing in no time.

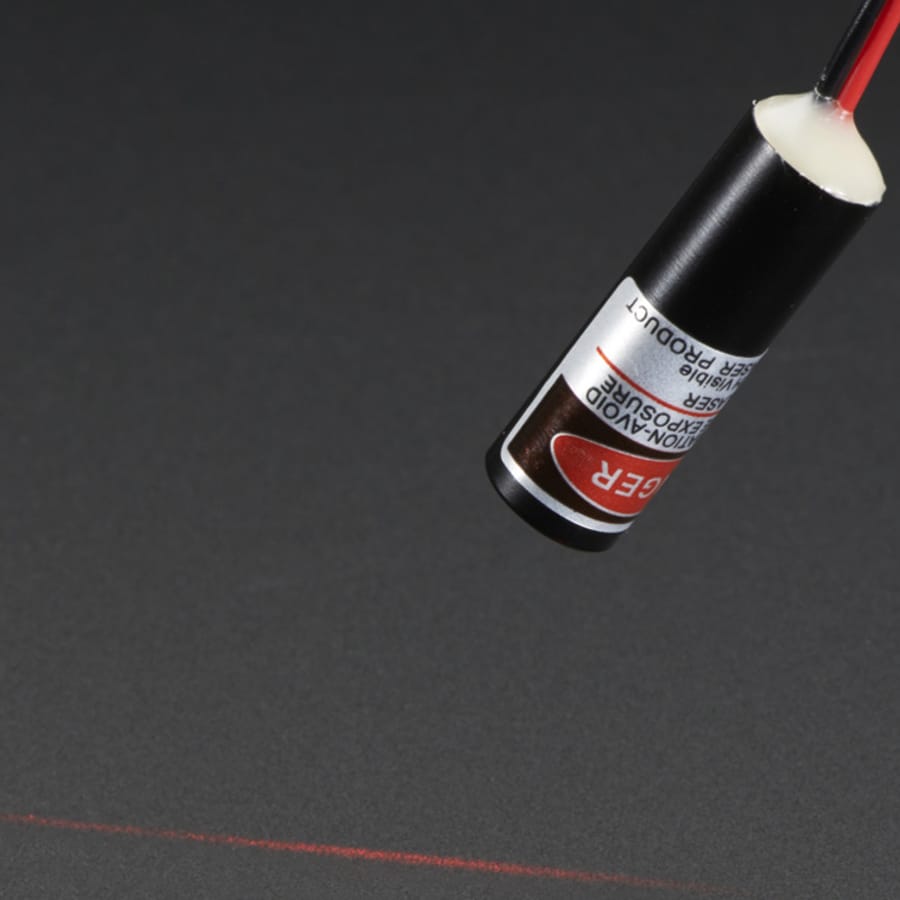

The line beam spread is 120° - so from a distance of 5cm the line is 15cm long. The line fades out and doesn't have a sharp cut-off.
Please note: this is not a laser pointer. It's a diode with integrated driver. You still need a 3 to 5VDC power supply. These diodes are 5mW output, and have a safety label marked on them.
For more information on laser safety and ratings check out the Wikipedia page.
Features
Class IIIa 5mW laser diode module
650nm red wavelength
Operating voltage: 2.8V to 5.2V DC
Integrated line-generating lens
120° line beam spread

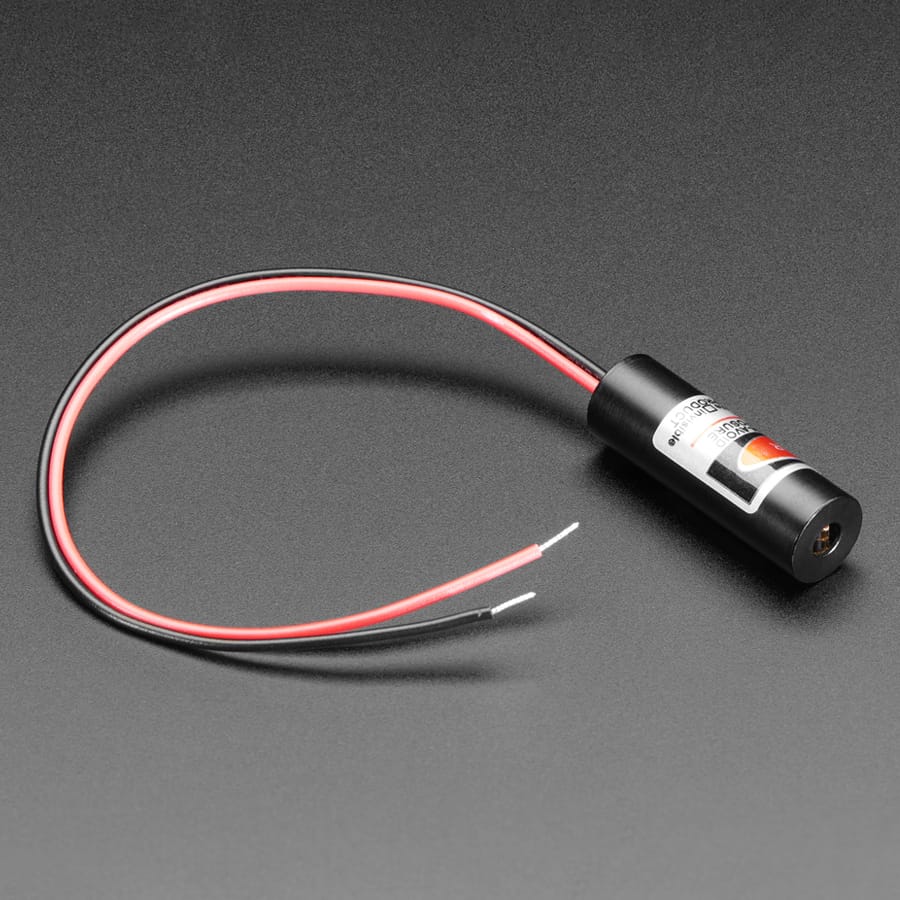

Pre-wired with red and black leads for easy connection
Suitable for 3D scanning and embedded electronics projects
Integrated driver circuitry
Safety label included
Line output fades gradually without sharp cut-off
Specifications
Weight: 11.85g
Diameter: 10.11mm
Length: 32.82mm
Wire length: 100mm
650nm wavelength
2.8 - 5.2V DC voltage input
25mA max current draw
Operating temperature -10°C to 40°C
Revision History
As of Oct 29, 2023 The mechanical configuration has changed: there used to be a separate lens part screwed on, now the lens is integrated.
Package Contents
1x Line Laser Diode - 5mW 650nm Red
