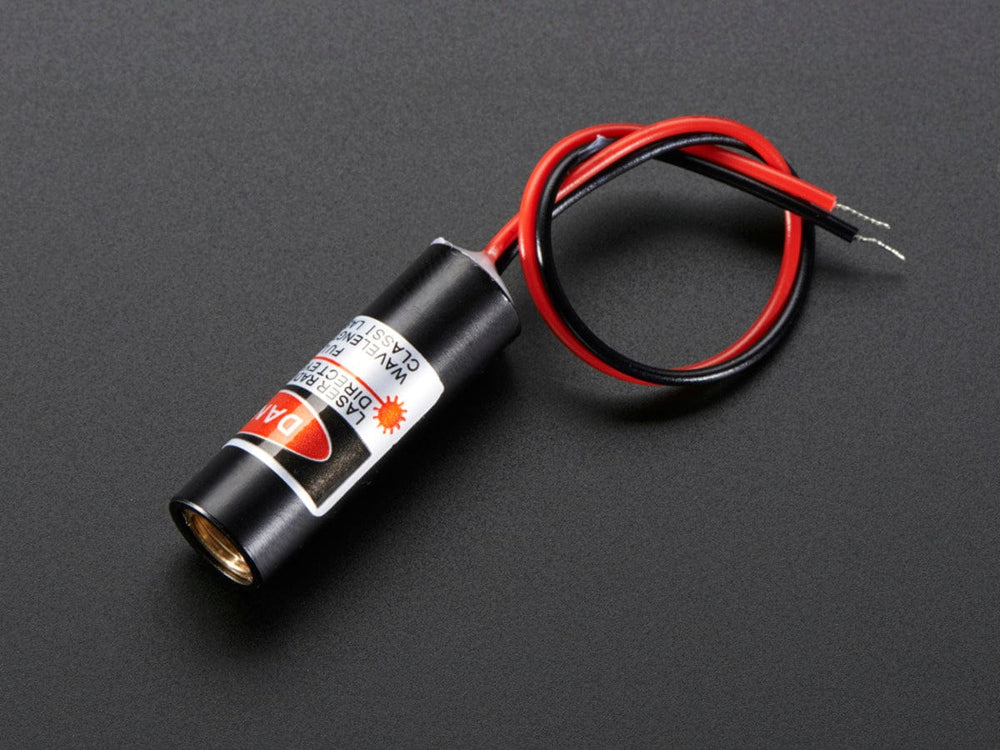

The Red Laser Cross Diode Module projects a clearly defined cross-shaped laser pattern, making it ideal for alignment, targeting, machine vision, and positioning applications in robotics and embedded projects.
You have some frickin' sharks at your lair, and you're thinking "it would be really great if I could attach some lasers to them" and then you see these little laser diode modules: what great timing!
These encapsulated laser diodes are Class IIIa 5mW, with a 650nm red wavelength. They can be driven from 2.8V to 5.2V so they're great for your embedded electronics project.

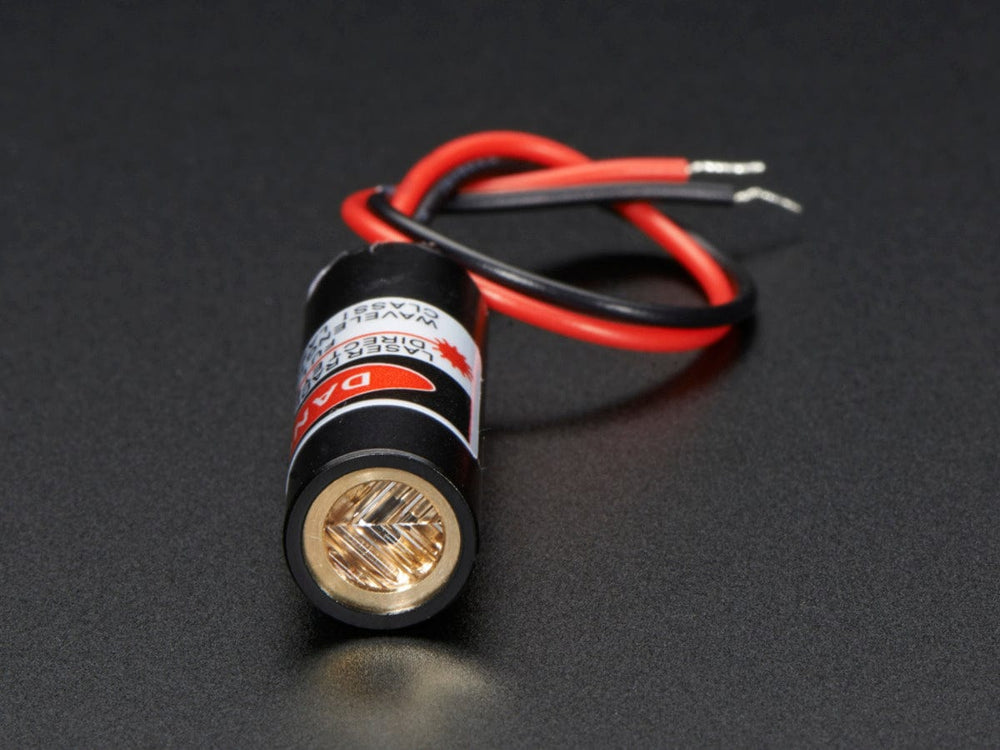

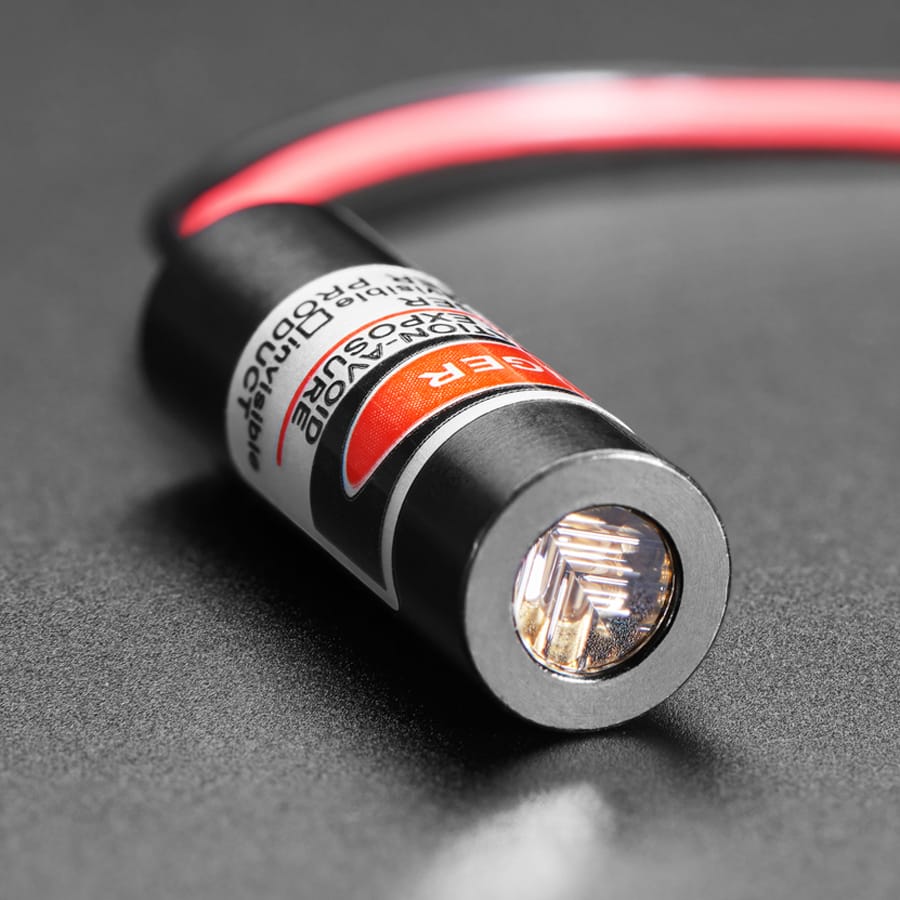

This particular module has a lens attached that will turn the dot into a cross. This makes it particularly good for laser-vision guidance, targeting, and more! Simply connect power to the red and black wires and you will be lasing in no time.

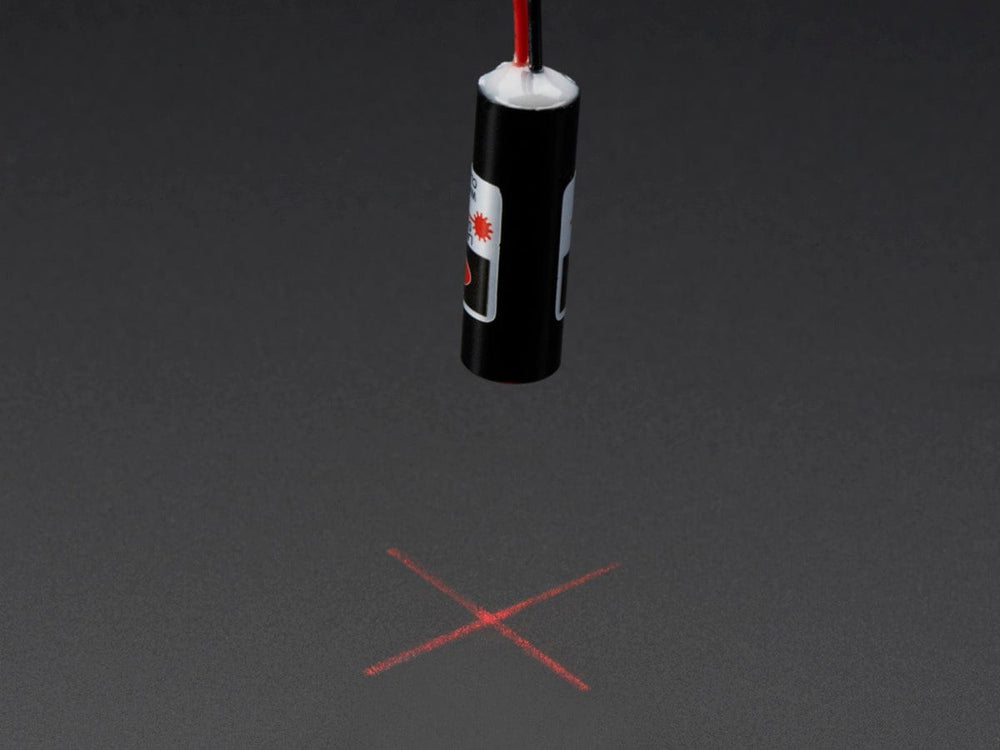

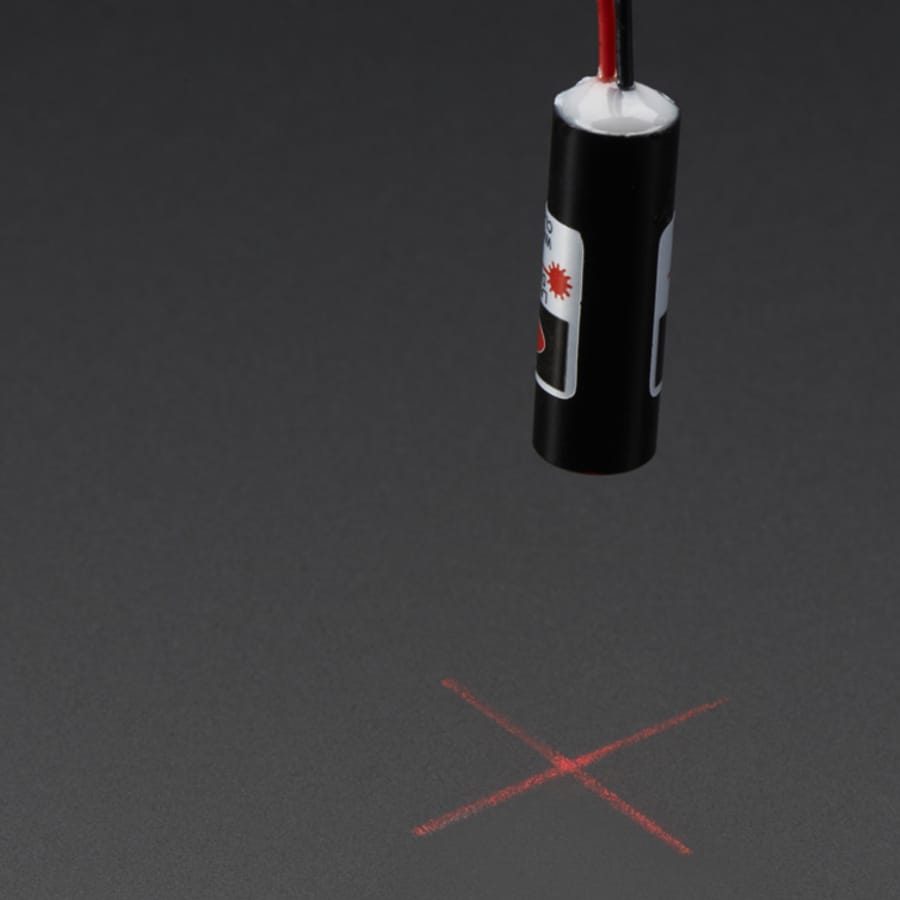

The cross has a beam spread of approximately 60° in both directions. So from a distance of 5cm, the cross is 5cm tall and 5cm wide. The cross ends have a sharp cut-off so the shape is very clearly defined.
Please note: this is not a laser pointer. It's a diode with integrated driver. You still need a 3 to 5VDC power supply. These diodes are 5mW output, and have a safety label marked on them. For more information on laser safety and ratings check out the Wikipedia page.
Features
Class IIIa 5mW red laser diode module
650nm red wavelength
Operating voltage: 2.8V to 5.2V DC
Cross-pattern lens attachment for targeting and alignment
60° beam spread in both directions
Sharp, clearly defined cross pattern
Integrated driver circuit

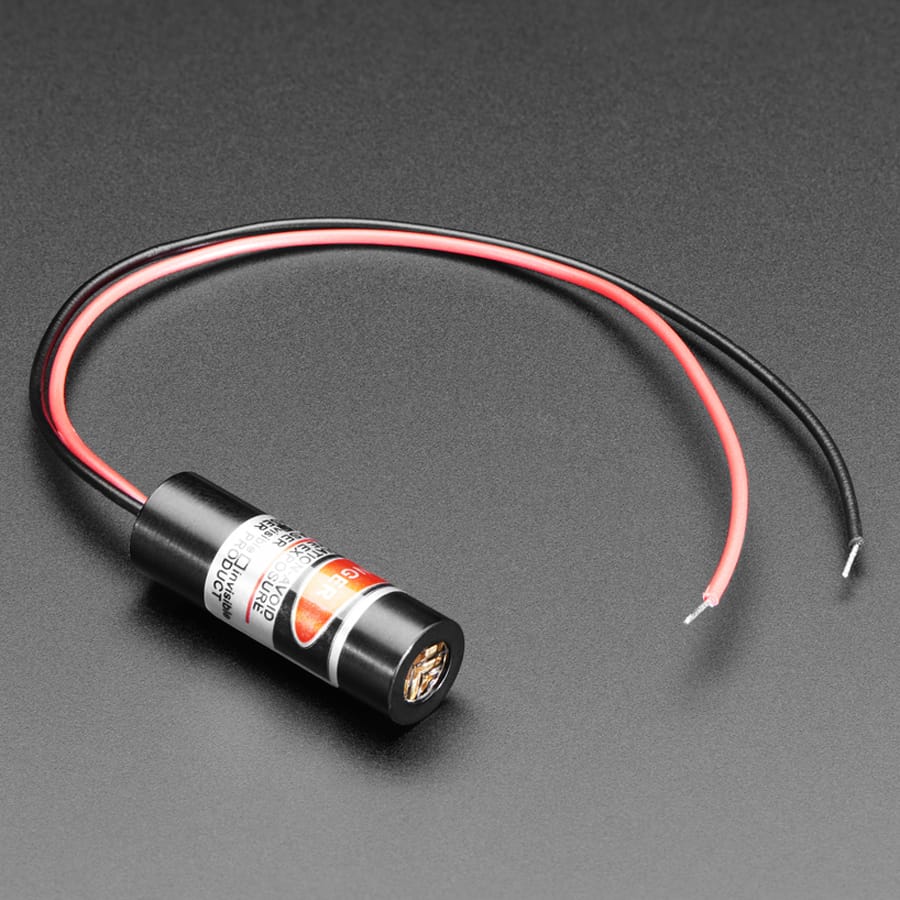

Simple two-wire connection (red and black)
Suitable for embedded electronics projects
Includes laser safety label
Requires external 3-5VDC power supply
Specifications

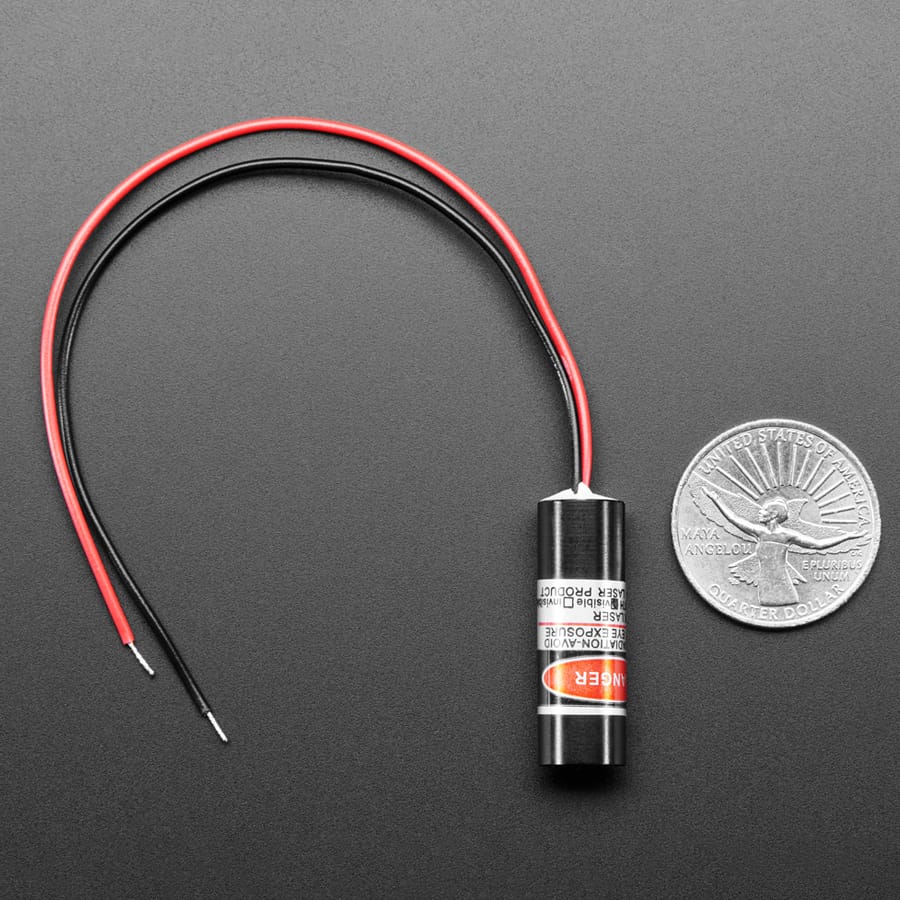

Weight: 11.85g
Diameter: 10.11mm
Length: 32.82mm
Wire length: 100mm
650nm wavelength
2.8 - 5.2V DC voltage input
25mA max current draw
Operating temperature -10°C to 40°C
Package Contents
1x Cross Laser Diode - 5mW 650nm Red
