LED Current Meter 10A (Green)

DFRobotSKU: DFR0244-G
£6.50
incl. VAT
excl. VAT
Only 6 units left

Awesome Extras

LED Current Meter 10A (Red) - The Pi HutLED Current Meter 10A (Red) - The Pi Hut
DFRobotLED Current Meter 10A (Red)
£6.50 incl. VAT excl. VAT
Small -1 Amp to +1 Amp DC Current Analog Panel Meter - The Pi HutSmall -1 Amp to +1 Amp DC Current Analog Panel Meter - The Pi Hut
The Pi HutSmall -1 Amp to +1 Amp DC Current Analog Panel Meter
£6.90 incl. VAT excl. VAT

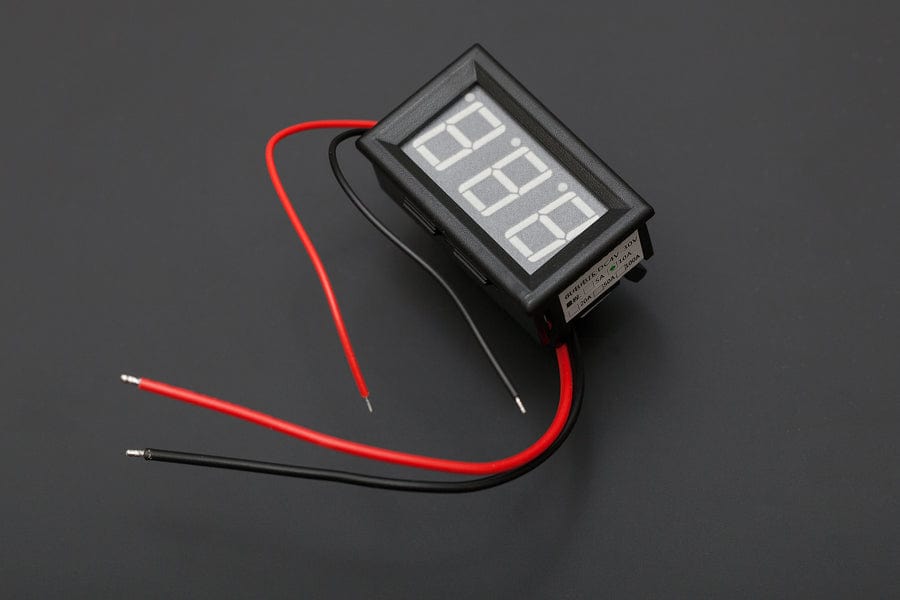

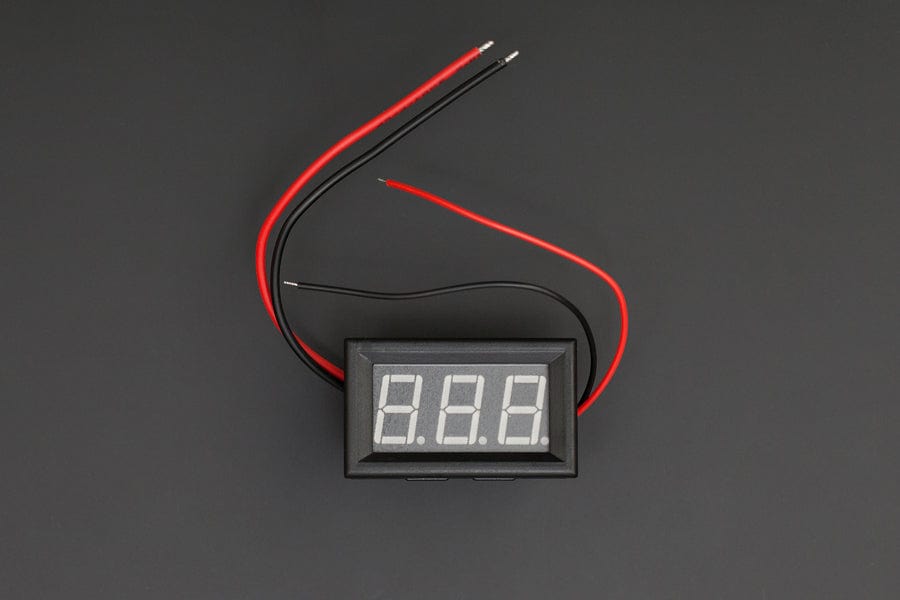

This is a Green LED Current Meter capable of measuring and displaying current in a circuit up to 10A.

It measures 0-9.99A with 2% accuracy. Just apply four wires to your circuit and it will give you a current reading straight away. Easy to use and a good companion to any robot project.

Please carefully follow the instructions for wiring. The power supply terminal and measurement terminal of this LED Current Meter use a common-ground connection. So, the measurement must be cascaded after loads. It's better to isolate the power supply.

Specification

  • Measure Current: 0-9.99A DC
  • Power supply voltage: 4-30V DC
  • Display mode: 3-bit 0.56 Led digital tube
  • Accuracy:2%
  • Opening dimension: 45.5mm*26.5mm
  • Dimension: 48mm*29mm*21mm

Shipping List

  • 1x LED Current Meter 10A (Green)
