Klip Halo V2.0 with JST

KitronikSKU: KIT5648-JST
Price:
Sale price £8.50
incl. VAT
excl. VAT
Stock:
Only 5 units left
Quantity:

Compatible with:

Awesome Extras

Klip Halo V2.0 with 2xAA Battery Holder - The Pi HutKlip Halo V2.0 with 2xAA Battery Holder - The Pi Hut
KitronikKlip Halo V2.0 with 2xAA Battery Holder
Sale price £8.80 incl. VAT excl. VAT

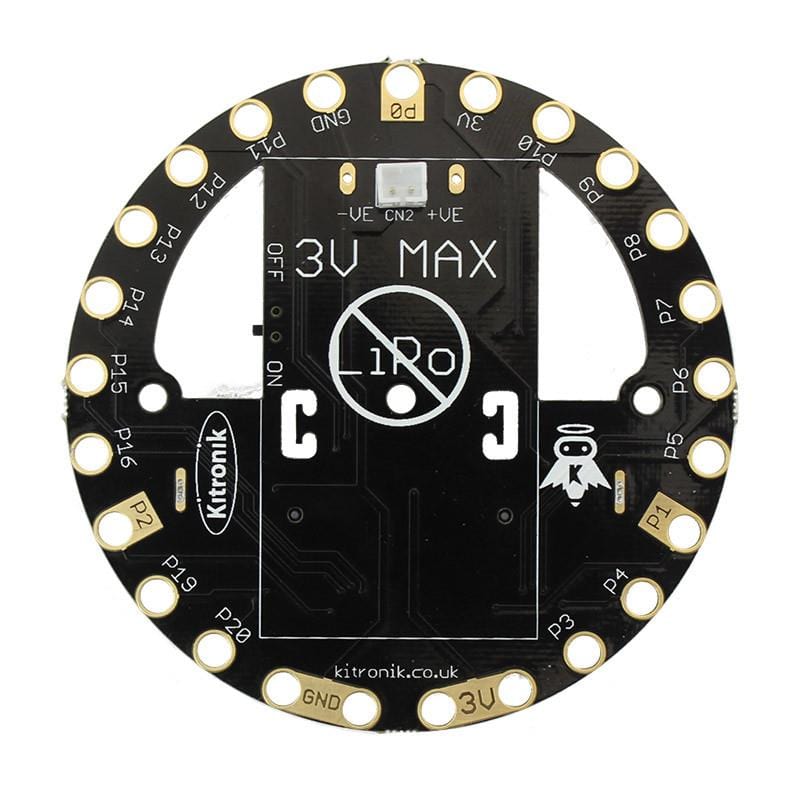

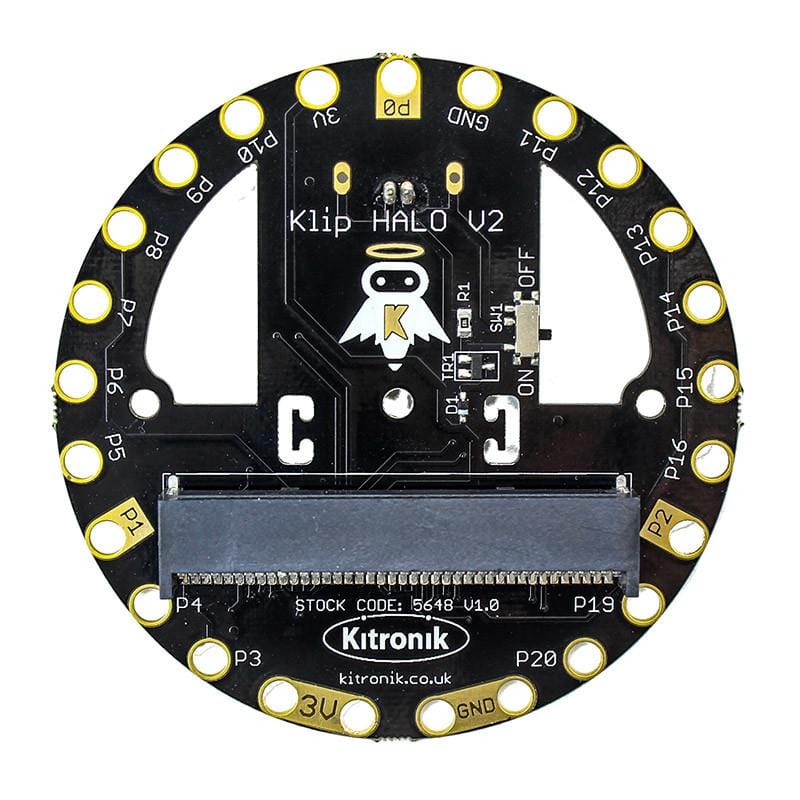

The JST version of the Klip Halo V2.0 board for the BBC micro:bit breaks out each of the 19 GPIO pins from the BBC micro:bit, with easily accessible, clearly marked connection points compatible with both crocodile clips and 4mm banana plugs.

This is the V2 model with an edge connector. Prefer to screw mount? Check out the V1 model. A AA battery holder version is also available.

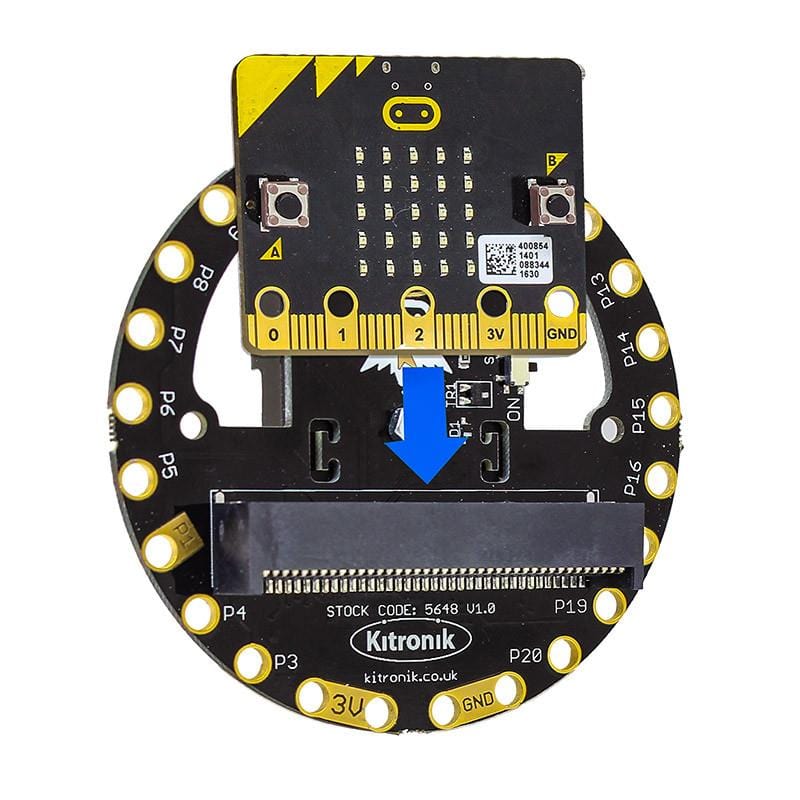

The edge connector allows simple assembly by inserting the BBC micro:bit into the Klip Halo V2.0.

The Klip Halo V2.0 with JST has an integrated connector for 3V power, and an on/off switch. The connector is the same as on the BBC micro:bit, so BBC micro:bit battery packs will plug in. DO NOT use with LiPo batteries. The switch also turns on /off the power to the 3V connections.

The board has been designed so that the BBC micro:bit can be slotted into the edge connector. No tools are required for installation.

Uses for the Klip Halo V2.0 could include attaching external components using crocodile clips, or connecting to wearable electro-fashion products.

Note:

Not suitable for use with LiPo batteries.

Features:

  • Breaks out the microbits 19 GPIO pins to clearly marked connection points compatible with both crocodile clips and 4mm banana plugs.
  • Features an edge connector that the microbit inserts into so no assembly required.
  • The board has an on/off switch that also turns off power to the 3V connections.
  • Designed for use with either crocodile clips or conductive thread.
  • It also features a JST style power input connection.

Contents:

  • 1 x Klip Halo V2.0 Board (with JST) for the BBC micro:bit.

Dimensions:

  • Length: 80mm.
  • Width: 80mm.
  • Thickness: 18mm.

Requires:

Resources:
