Inventor's Kit for the Arduino

The Kitronik Inventor's Kit for Arduino is a great way to get started with programming and hardware interaction with the Arduino. This Inventor's Kit contains everything you need to complete 10 experiments including using LEDs, motors, Phototransistors and capacitors.

Note: Arduino not included (Grab a Maker Uno Plus!)

Arduino is an open-source code-able electronics platform, which has been designed for anyone making interactive projects. Arduino board can process inputs from many sensors, and also control outputs such as LEDs and motors.

The Arduino is controlled by the code with which it is programmed. This code is written in the Arduino programming language, using the Arduino development environment. Once complete the code is easily transfered to the Arduino board using a simple USB lead.

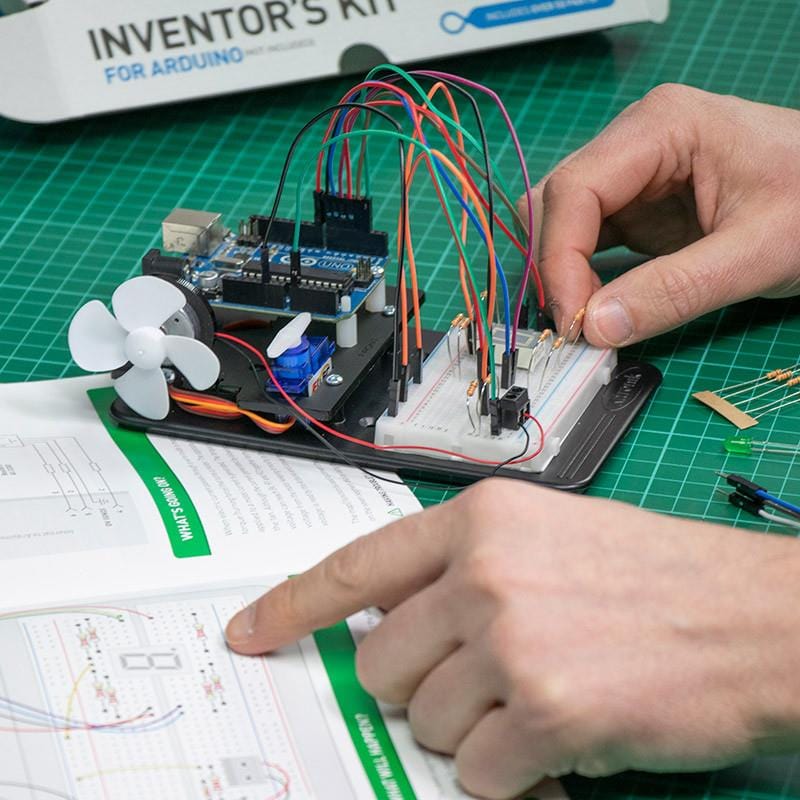

To get you off to a flying start, we have included an easy to follow tutorial book which guides you through creating the 10 experiments. You don't need any experience with programming as the tutorial book will guide you every step of the way. You'll be programming and creating circuits in no time!

Note:

• This kit does not include an Arduino UNO (Grab a Maker Uno Plus!)
• This kit requires assembly
• No soldering is required and you can build your first circuit in minutes!

Features

• No soldering required - build your first circuit in minutes!
• Make 10 experiments included in the provided step-by-step tutorial book
• All parts are included to conduct the 10 experiments
• Small Prototyping Breadboard included for fast prototyping

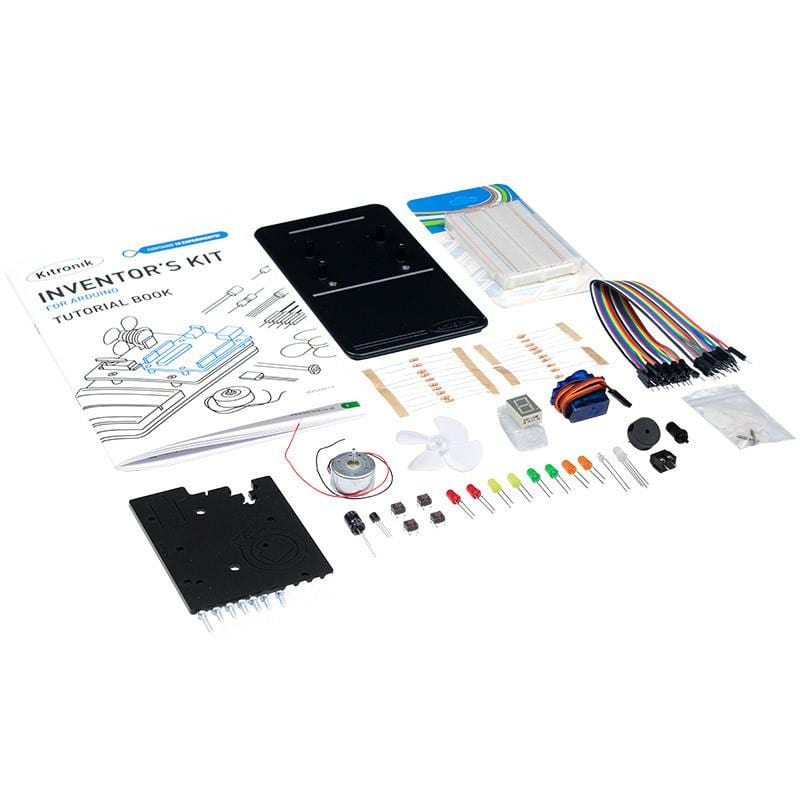

Contents

• 1 x Mounting Plate
• 1 x 7 Segment Display
• 1 x Servo
• 1 x Potentiometer - Vertical Type (finger adjust) 100K
• 1 x Finger Adjust Spindle
• 4 x Plastic Spacer 10mm
• 1 x Small Prototype Breadboard
• 1 x Terminal Connector
• 4 x Push Switch
• 1 x Motor
• 1 x Transistor
• 2 x Red 5mm LED
• 2 x Orange 5mm LED
• 2 x Yellow 5mm LED
• 2 x Green 5mm LED
• 1 x RGB 5mm LED
• 1 x Fan Blade
• 5 x 2.2KΩ Resistor
• 5 x 10KΩ Resistor
• 10 x 220Ω Resistor
• 20 x Male to Male Jumper Wires
• 1 x 470uF Electrolytic Capacitor
• 1 x Piezo Element Buzzer
• 4 x Pan Head M3 Machine Screw
• 1 x Phototransistor

Requires

• An Arduino board (such as the Maker Uno Plus)
• Phillips Screwdriver
• Terminal Block Screwdriver
• Micro USB Cable (included in the Maker UNO Plus kit)
