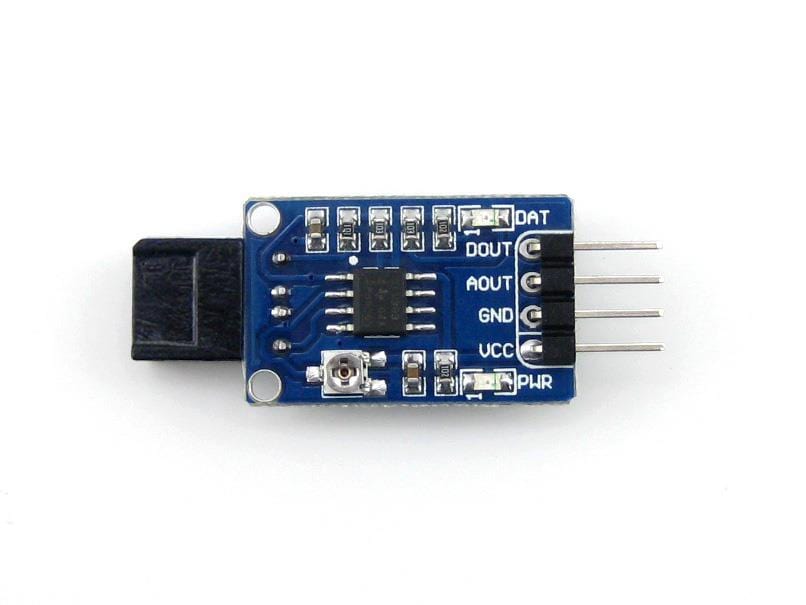

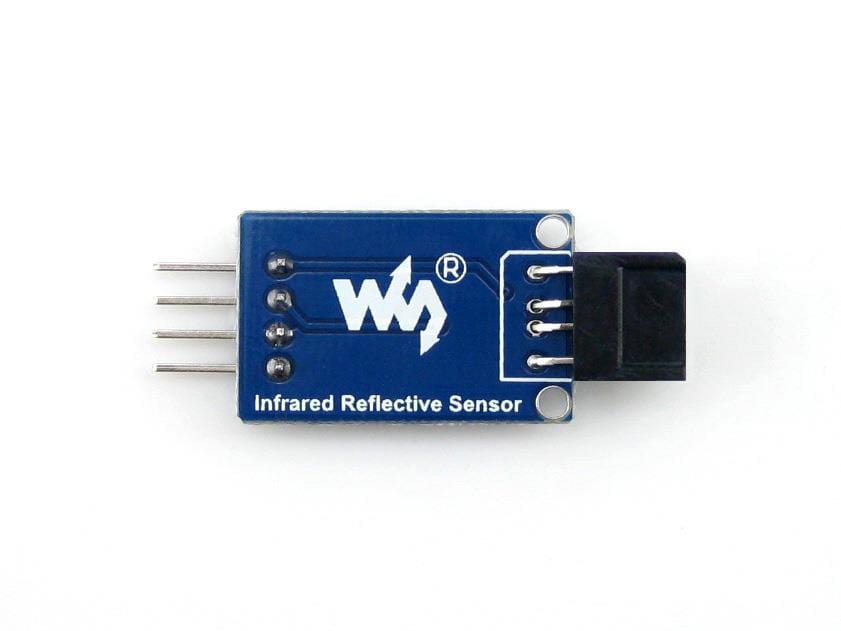

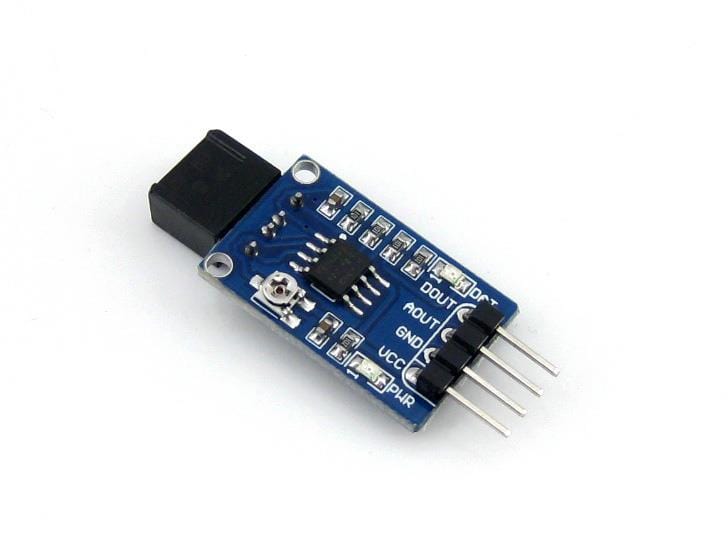

Infrared Reflective Sensor

WaveshareSKU: WAV-9523
£4.20
incl. VAT
excl. VAT
Sold out
Notify me

Awesome Extras

4-pin Sensor Cable - The Pi Hut4-pin Sensor Cable - The Pi Hut
The Pi Hut4-pin Sensor Cable
£1 incl. VAT excl. VAT
Ultrasonic Distance Sensor (HC-SR04) - The Pi Hut
The Pi HutUltrasonic Distance Sensor (HC-SR04)
£2 incl. VAT excl. VAT
3mm IR Break Beam Sensor - The Pi Hut3mm IR Break Beam Sensor - The Pi Hut
The Pi HutIR Break Beam Sensor - 3mm LEDs
£2.60 incl. VAT excl. VAT
Notify me

Detect lines and other objects with this infrared reflective sensor from Waveshare!

Features

  • Reflective infrared Transceiver
  • Features wide-range voltage comparator LM393
  • Adjustable sensitivity
  • Signal output indicator
  • Sensor only - no cable

Specifications

  • Power: 3.0V ~ 5.3V
  • Dimension: 25mm * 15.9mm
  • Mounting holes size: 2.0mm

Applications

  • Robot path tracking
  • Obstacle-avoiding car
  • Pipeline counter

How to Use

Product Wiki: https://www.waveshare.com/wiki/Infrared_Reflective_Sensor

In the case of working with an MCU:

  • VCC ↔ 3.0V ~ 5.3V
  • GND ↔ power supply ground
  • AOUT ↔ MCU.IO (analog output)
  • DOUT ↔ MCU.IO (digital output)
