Industrial Isolated Multi-Bus Converter

WaveshareSKU: WAV-21411
Price:
Sale price £27
incl. VAT
excl. VAT
Stock:
Only 8 units left
Quantity:

Awesome Extras

WaveshareIndustrial Grade Dual-Host USB Hub (4x USB 2.0)
Sale price £18.50 incl. VAT excl. VAT
WaveshareIndustrial 4-Channel USB to UART Converter
Sale price £16.20 incl. VAT excl. VAT
WaveshareIndustrial USB to TTL Converter (FT232RL)
Sale price £8.60 incl. VAT excl. VAT

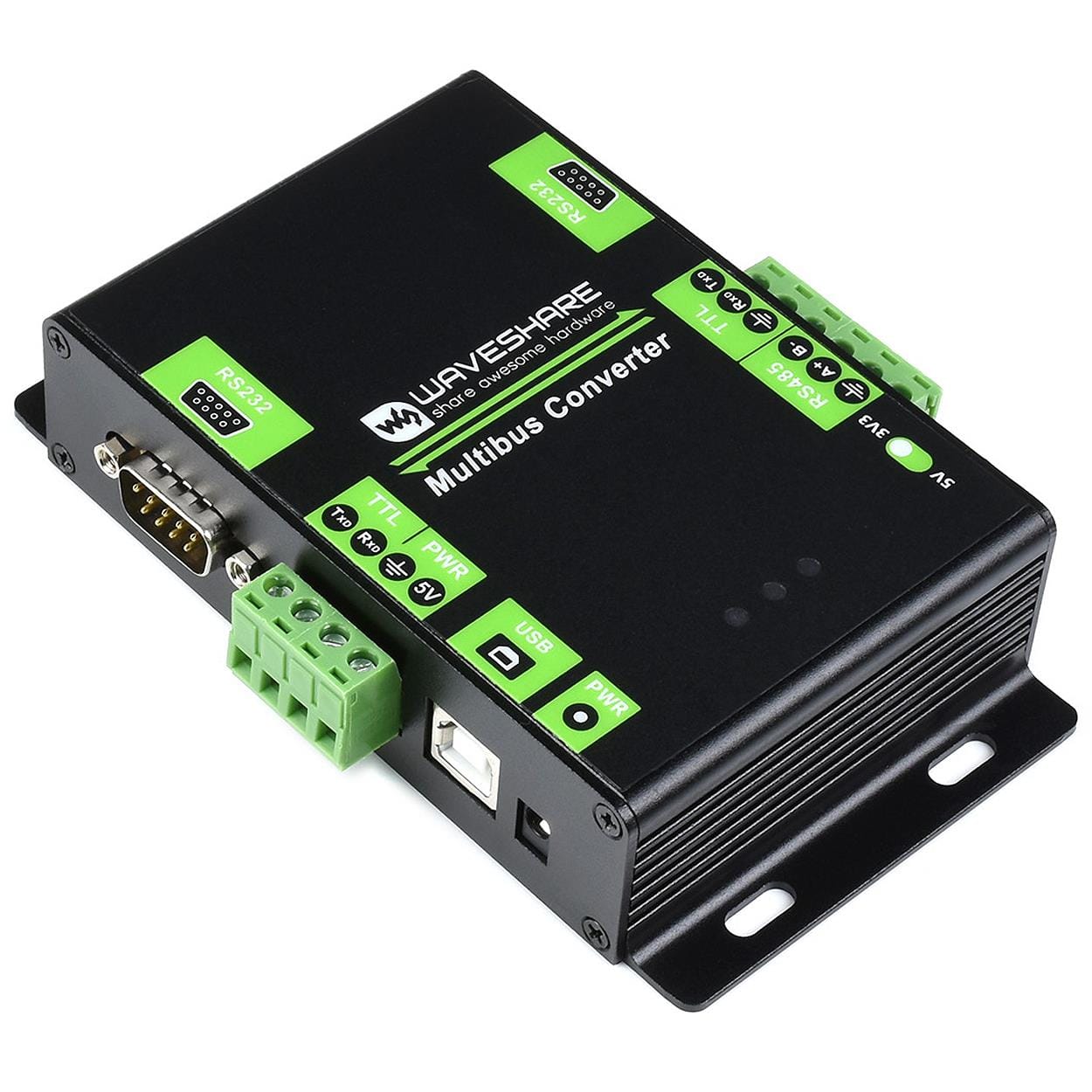

The Multi-Bus Converter is an industrial-grade isolated converter that supports USB/RS232/ TTL to RS232/RS485/TTL, with built-in power supply isolation, digital isolation and protection circuits (TVS diode, resettable fuse and protection diodes).

It is easy to use and suitable for industrial control equipment and/or applications with high communication requirements.

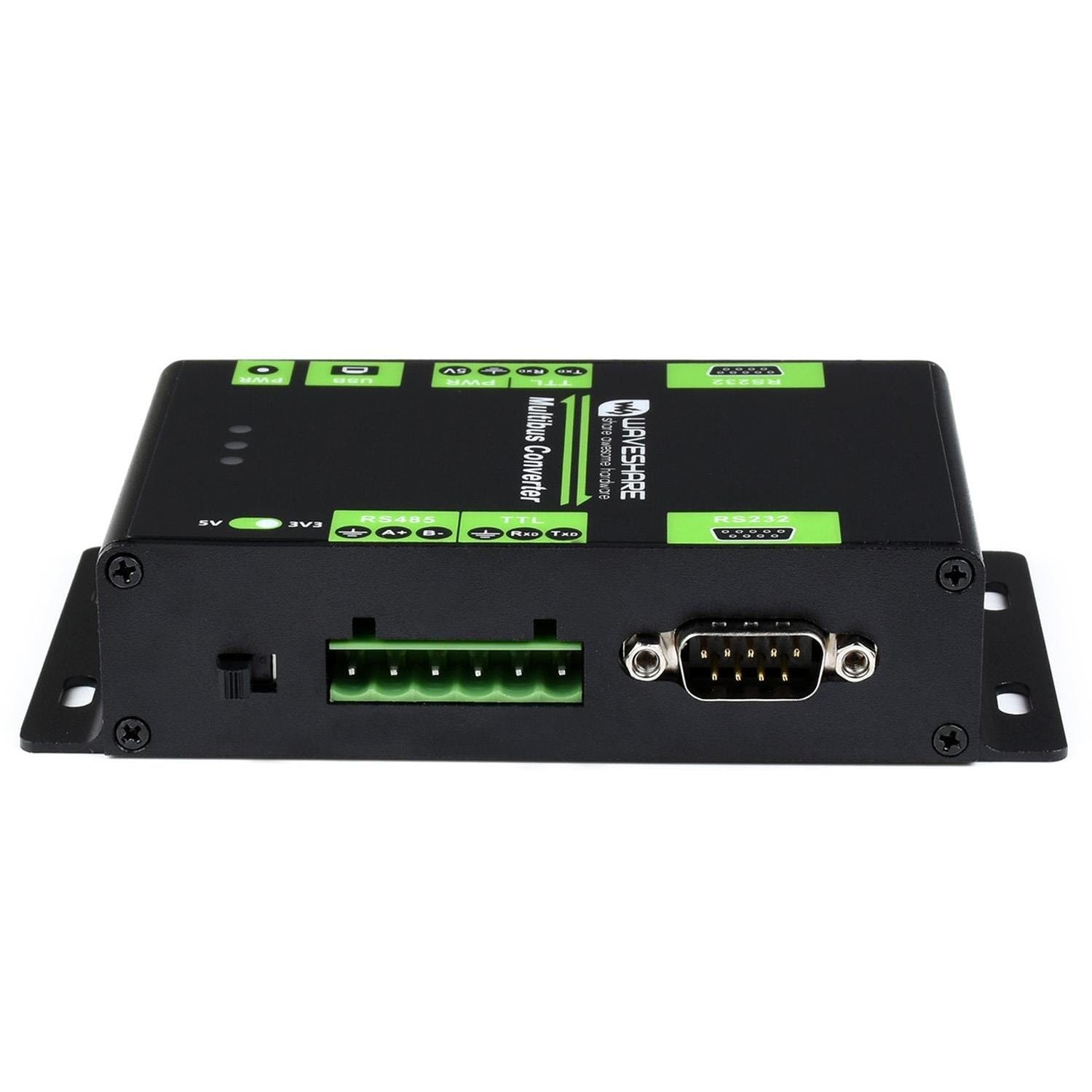

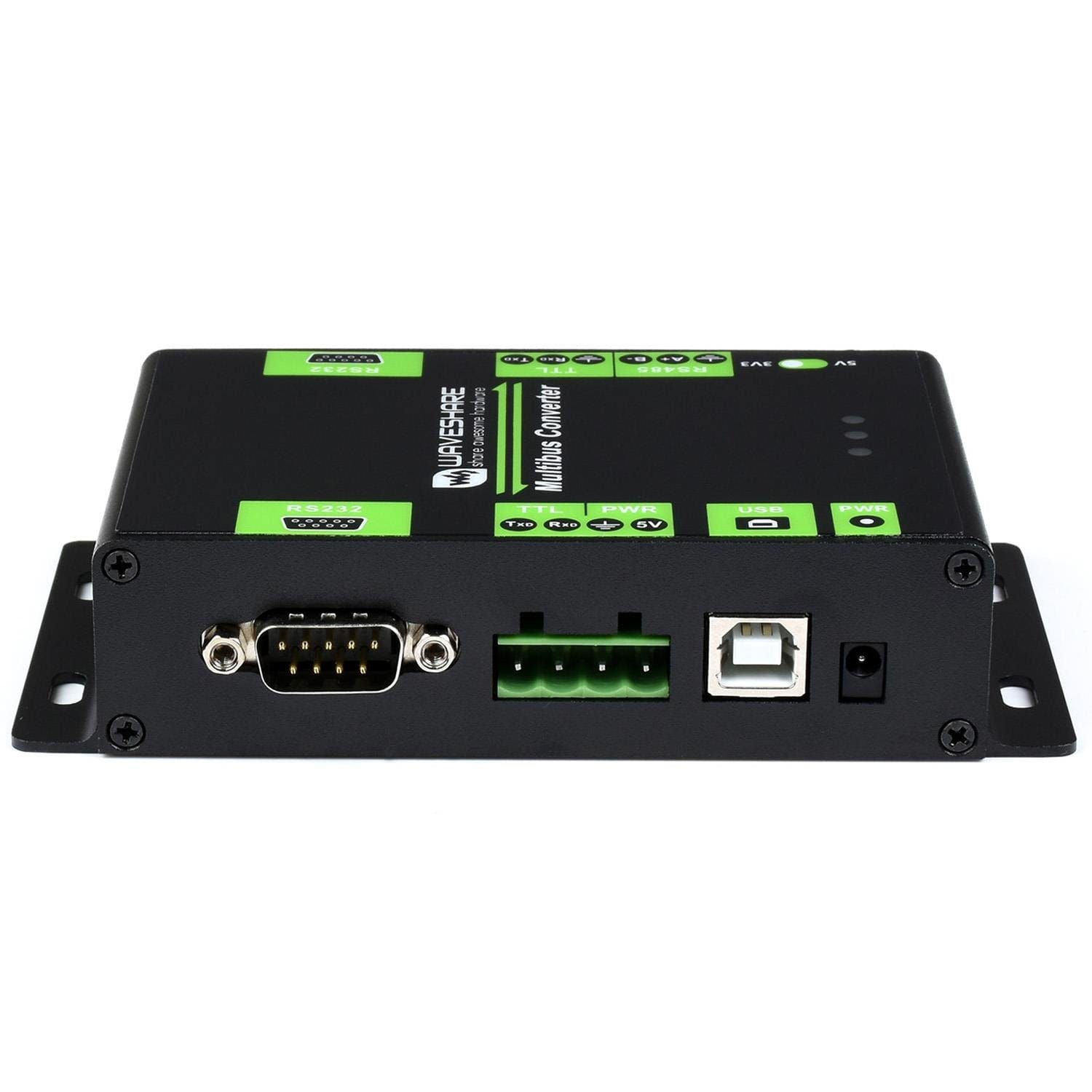

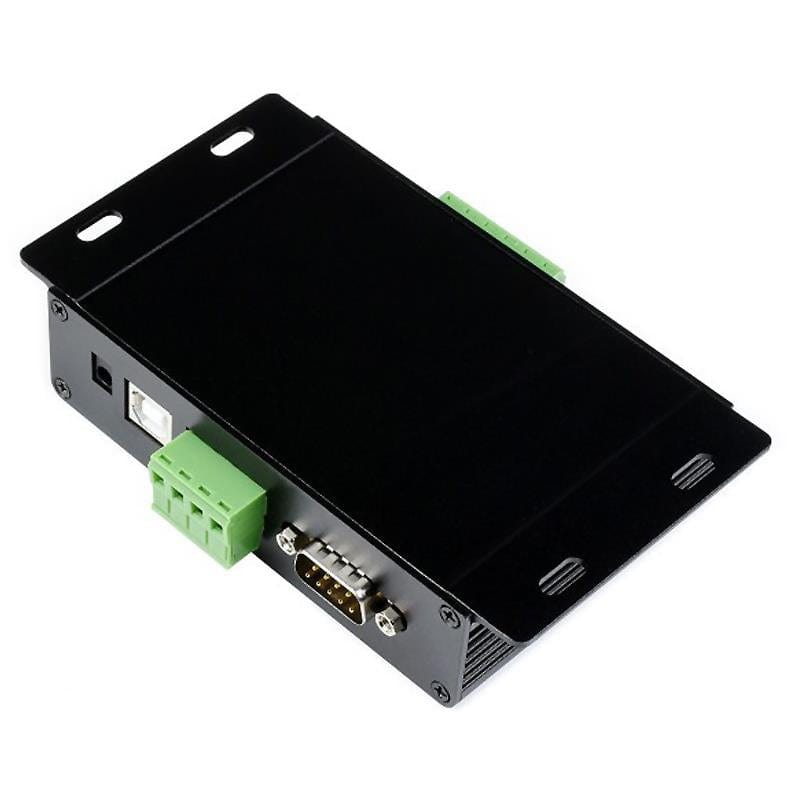

The converter has LED indicators for checking power connections and RX/TX signal status. The robust aluminium alloy body makes this suitable for industrial and high-traffic areas and includes flanges for wall or surface mounting.

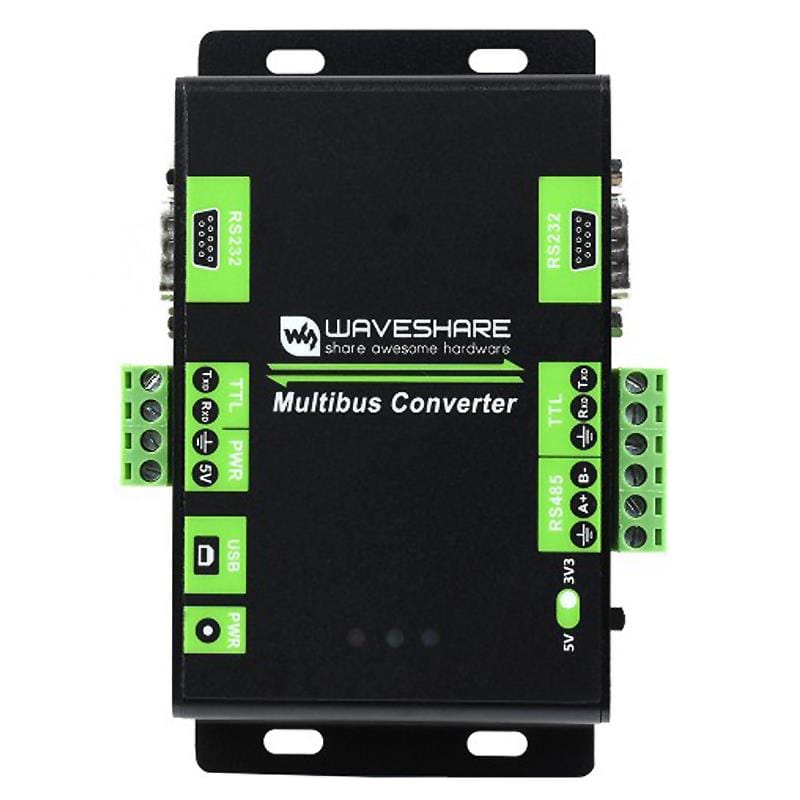

Data can be transmitted/converted between each 'group' of connections (A and B) as per the diagrams below. Terminals in the same group cannot communicate with each other and cannot send data at the same time (however concurrent receiving of data is possible). An onboard switch allows you to quickly switch between 3.3V and 5V TTL levels of the group B terminals.

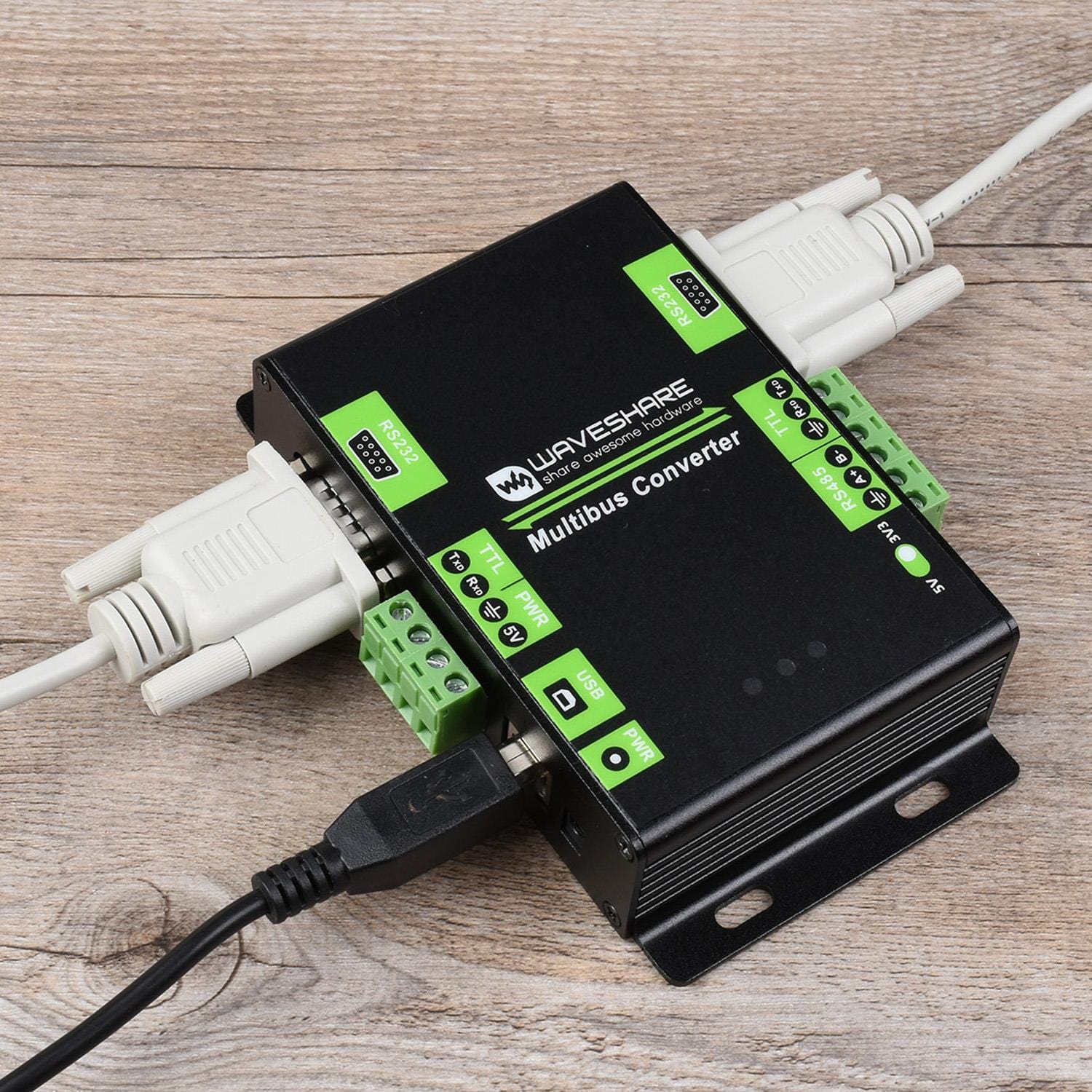

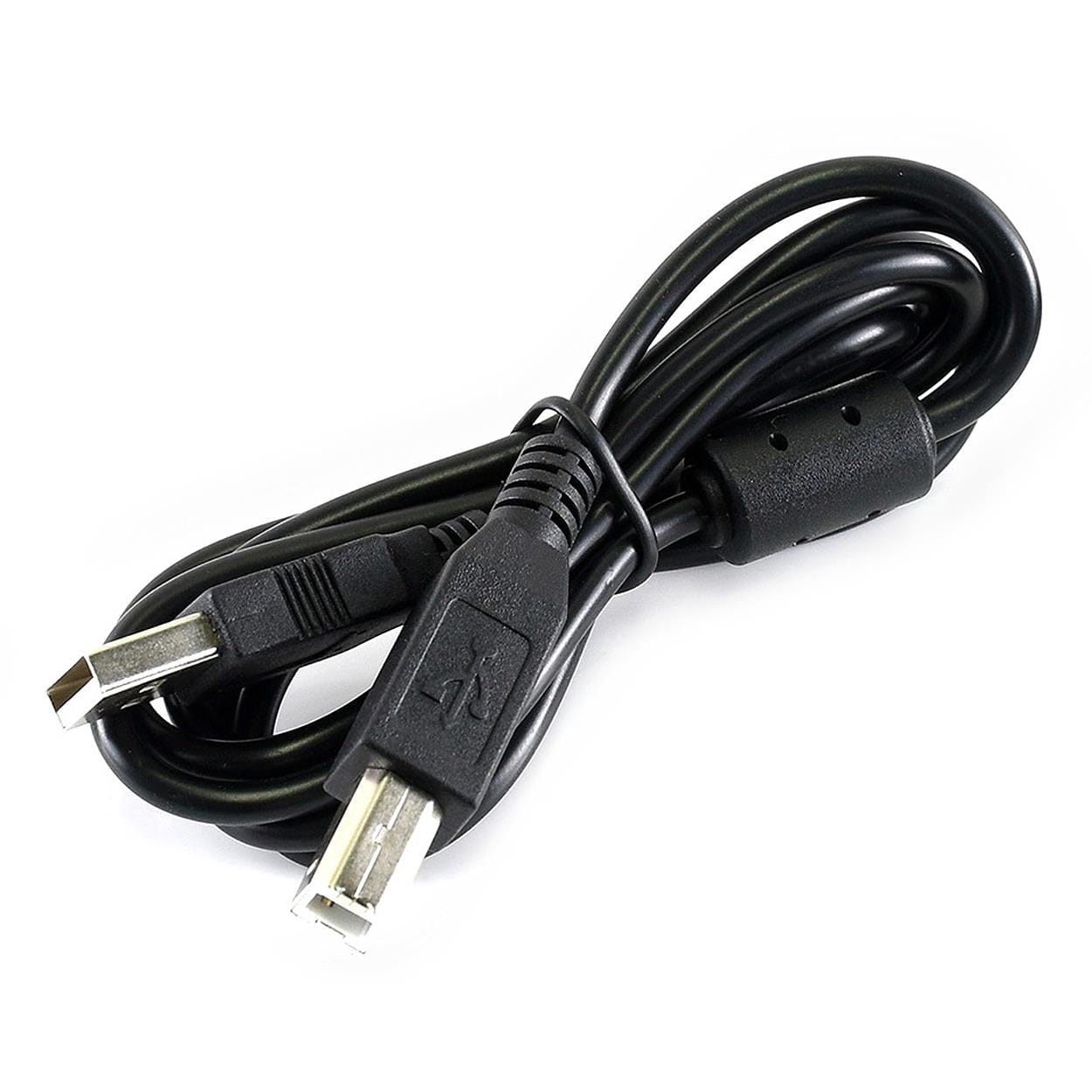

A USB-B cable is included in the package for connecting to your host computer. Windows 11/10/8.1/8/7/XP is officially supported.

Features

  • Adopts original FT232RL for USB communication, fast communicating, stable and reliable, better compatibility
  • Onboard over-voltage, over-current protection circuits (there's no protection between the two power supplies of the host terminal)
  • Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
  • Onboard unibody digital isolation, for isolating the signal, reliable and jam proof, low power consumption
  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning proof & anti-electrostatic
  • Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
  • Onboard TTL serial port 3.3V and 5V voltage level switch, allows the user to select TTL level of the Group B terminal
  • Aluminium alloy enclosure with oxidation dull-polish surface, solid and durable
  • Online product Wiki

Specifications

Data Rate 300 ~ 921600bps
300 ~ 600000bps
(RS232 to RS232)
Group A USB Operating
voltage
5V
Connector USB-B
Protection 200mA resettable fuse, isolated output
RS232 Connector DB9 male
Protection TVS protection, surge-suppress, ESD protection
Transmission
mode
point-to-point
TTL
(UART)
Operating
voltage
5V
Connector Screw terminal
Pinout TXD, RXD, GND, 5V
Protection clamping protection diode, over-voltage protection, reverse-proof, shock-resistance, jam proof
Group B RS485 Connector Screw terminal
Pinout A+, B-, GND
Direction
control
Hardware auto control
Protection lightning proof, surge-suppress, ESD protection
Transmission
mode
point-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
RS232 Connector DB9 male
Protection TVS protection, surge-suppress, ESD protection
Transmission
mode
point-to-point
TTL
(UART)
Operating
voltage
3.3V/5V
Connector Screw terminal
Pinout TXD, RXD, GND
Protection clamping protection diode, over-voltage protection, reverse-proof, shock-resistance, jam proof
Operating
Env.
Temp. -25℃ ~ 85℃
Humidity 5%RH ~ 95%RH
OS
Support
Windows 11/10/8.1/8/7/XP
Note Only one pair of devices will be matched for complete communication between the Group A and Group B terminals at the same time
