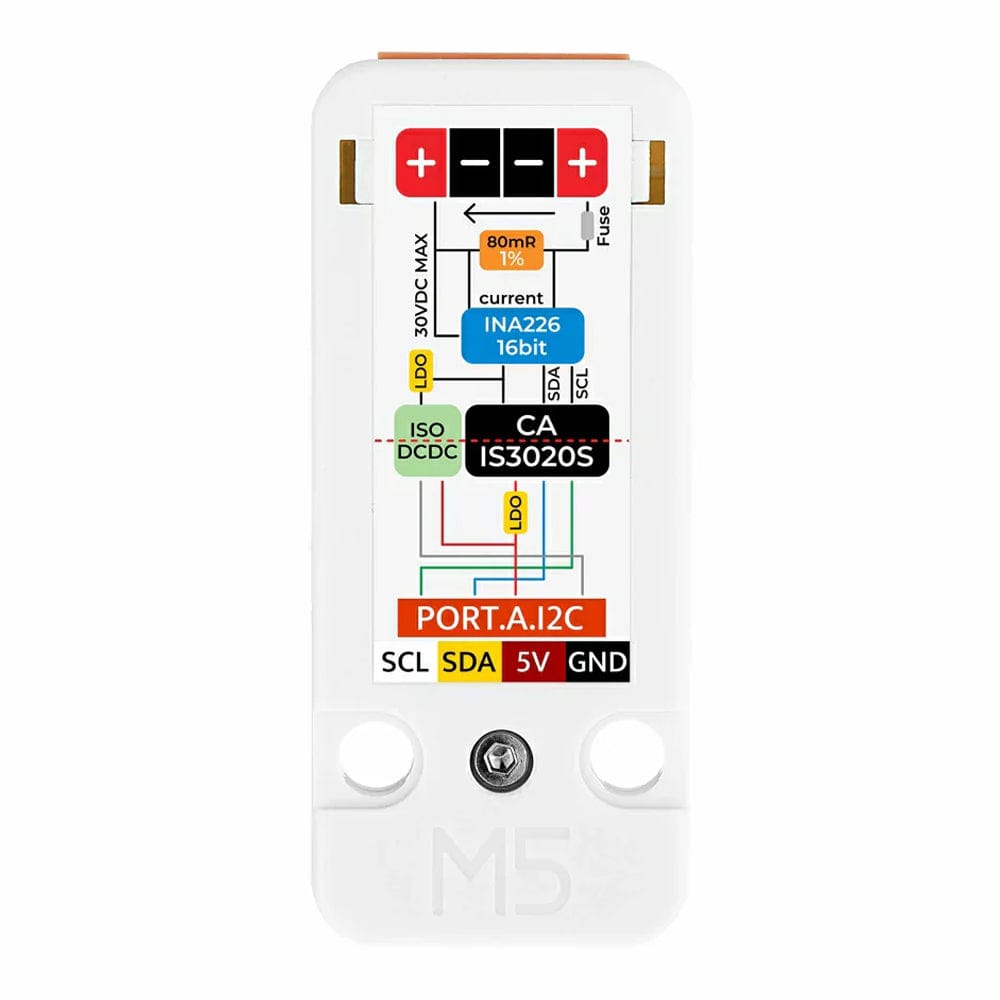

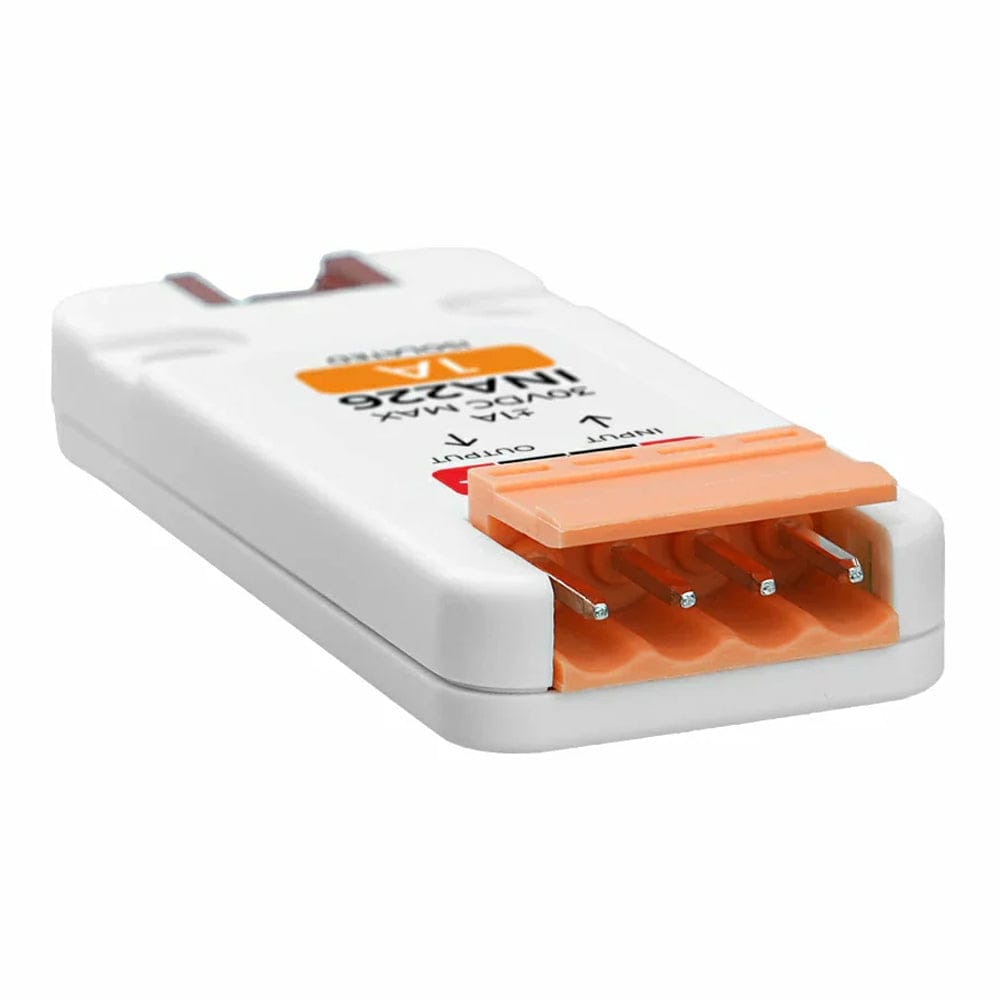

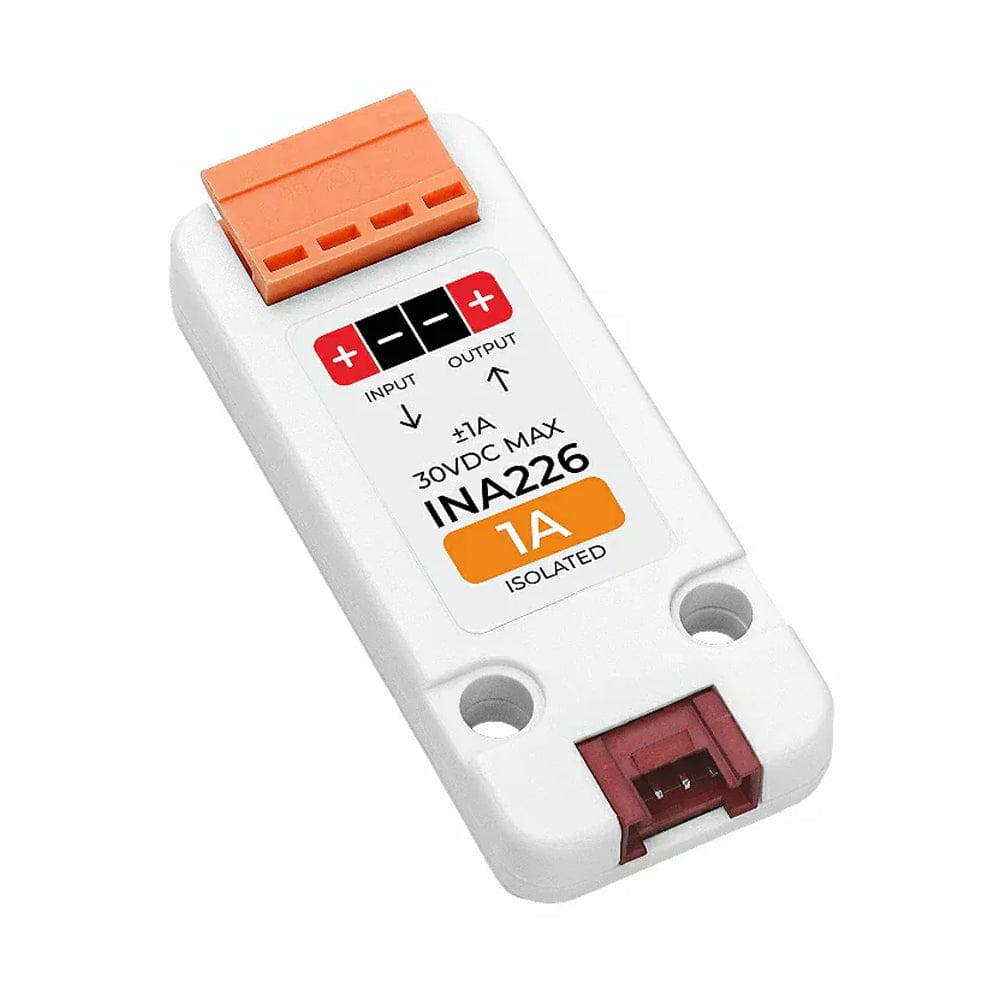

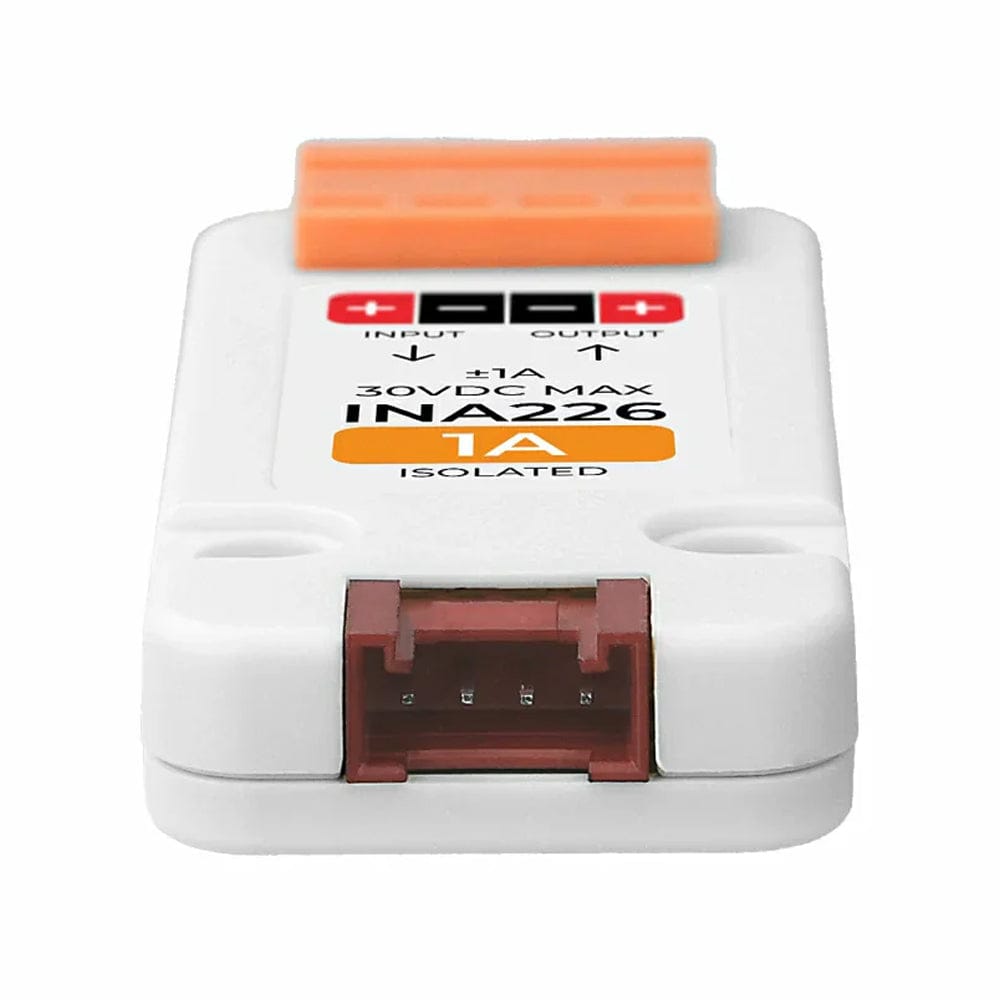

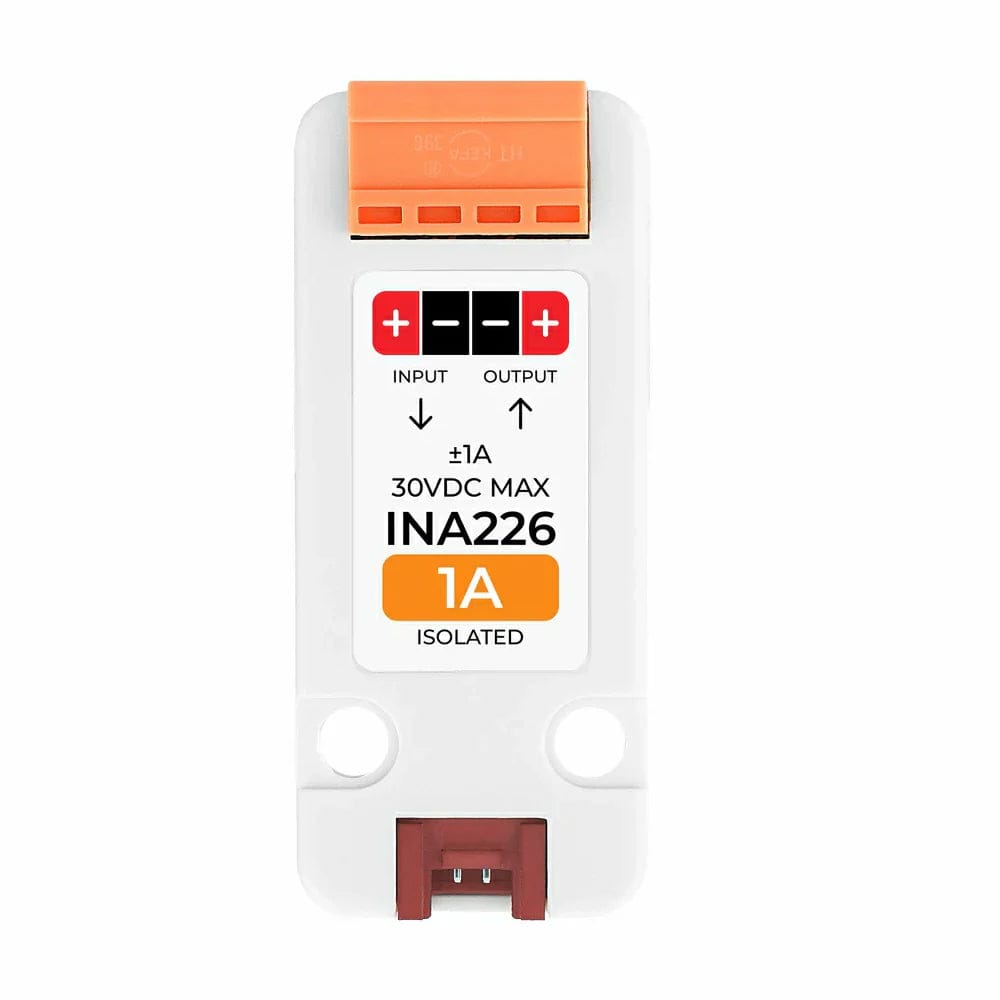

The M5Stack Unit INA226-1A is a compact, isolated module for measuring DC voltages up to 30V and currents up to 1A. It reads voltage, current, and power at the same time over I2C, working with a range of main control boards. Built-in power and signal isolation keeps the measurement and control sides safe, while a self-resetting fuse protects against overcurrent. It’s a solid choice for power management, battery monitoring, or industrial safety projects.

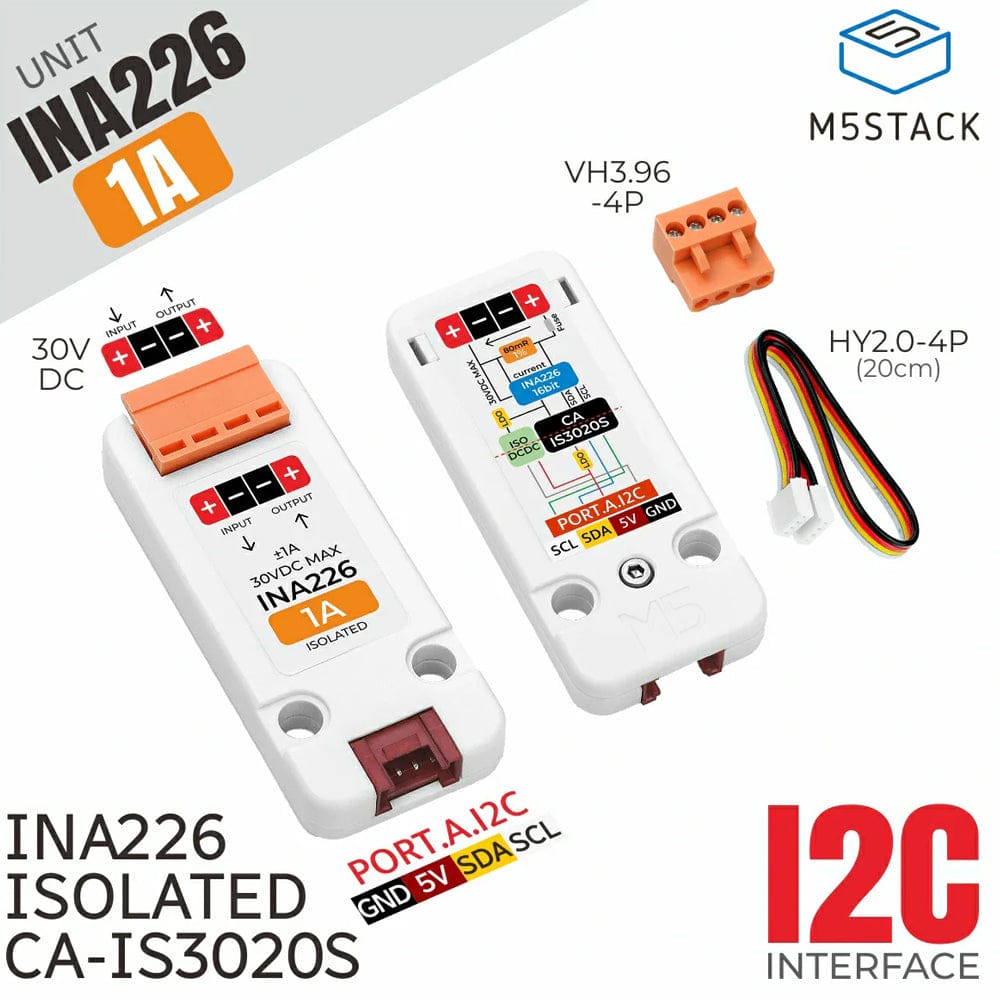

The M5Stack Unit INA226-1A is a fully isolated high-precision current, voltage, and power measurement unit, suitable for scenarios measuring DC 0 ~ 30V voltage and up to 1A current, supporting simultaneous voltage and current measurements.

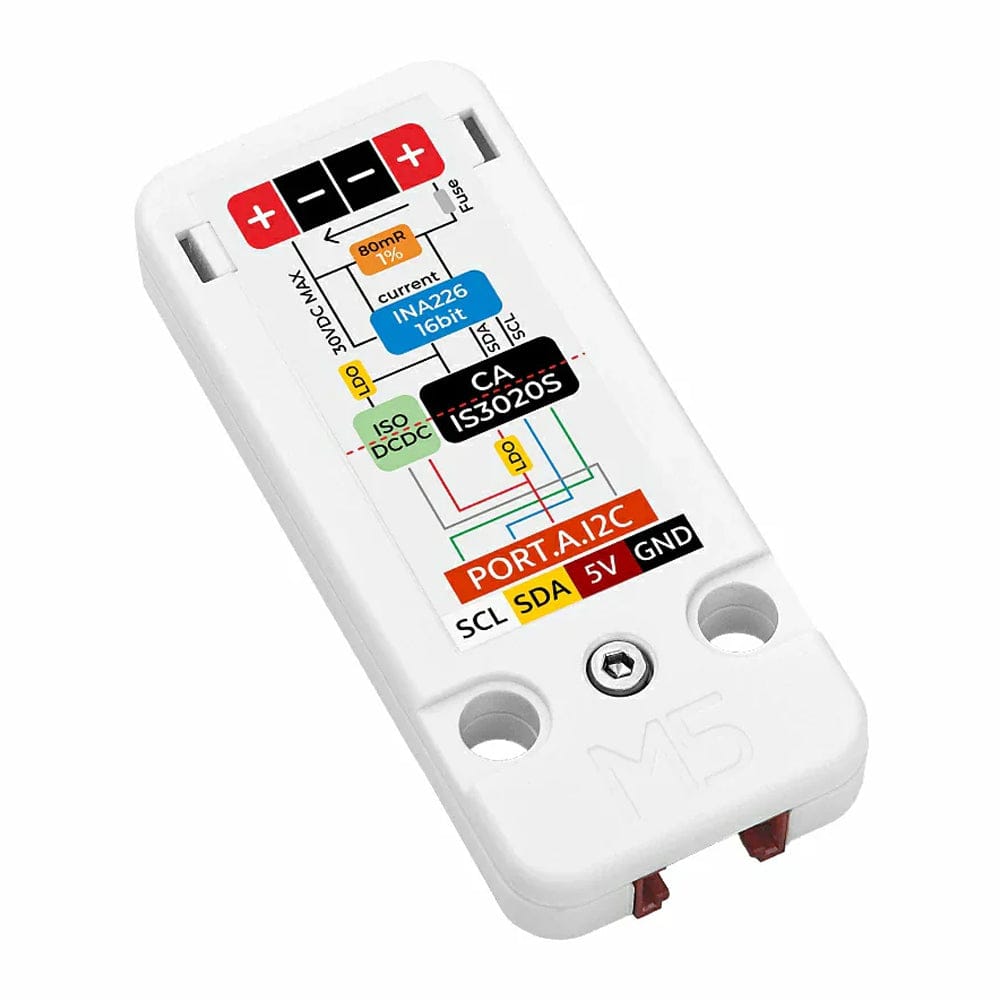

Users can read key parameters such as current, voltage, and power obtained by this unit via the I2C communication interface, supporting multiple main control platforms. It also integrates an isolated power module and I2C signal isolator, achieving complete electrical isolation between the measurement end and the main control end, and features a self-resetting fuse that can automatically blow when the current range is exceeded, effectively ensuring the safety of equipment and personnel, improving system anti-interference ability, and is suitable for a variety of electrical parameter acquisition application scenarios such as power management, battery monitoring, and industrial safety.
Features
Integrated 16-bit high-precision ADC
Current, voltage, and power integrated measurement
±1A range, bidirectional current
Wide voltage input (DC 0 ~ 30V)

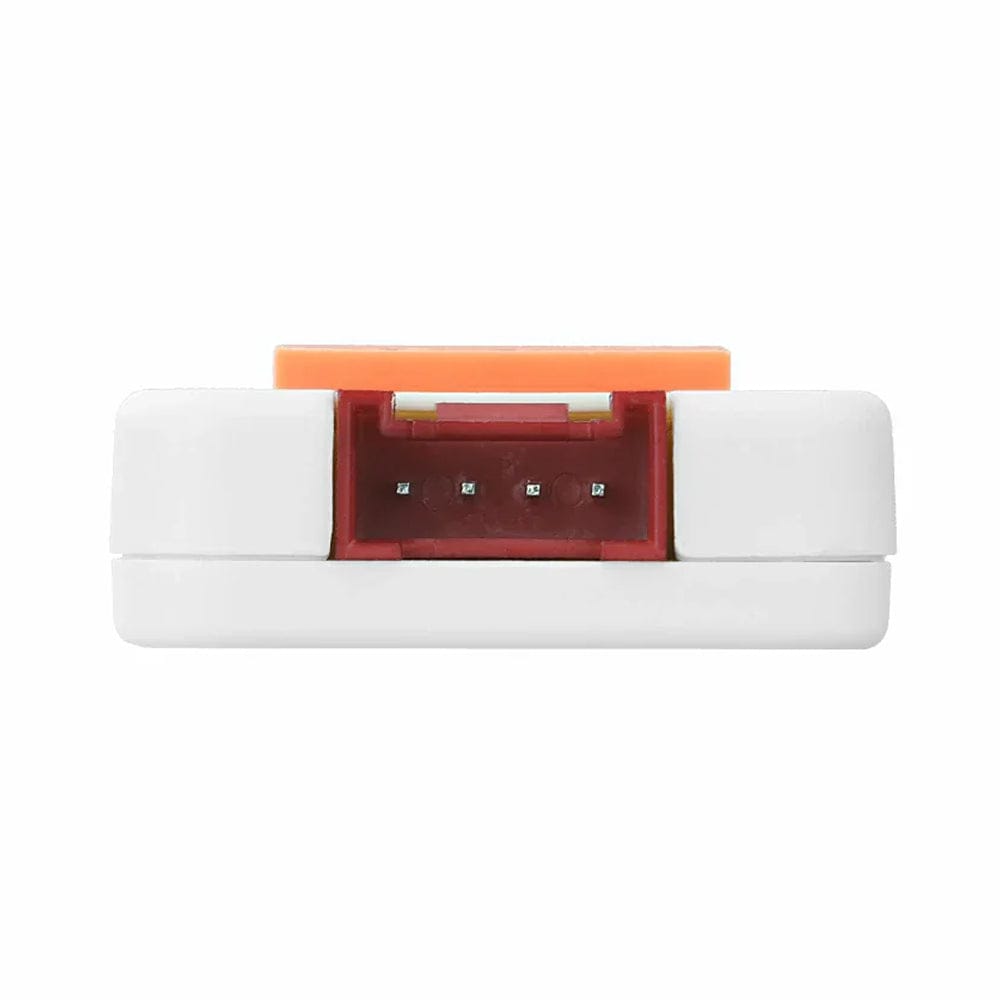

I2C communication interface
Power and signal isolation
Development Platform:
Arduino
UiFlow2
Specification
Specification
Parameter
Power Detection IC
INA226, high-precision, bidirectional current / power monitoring IC
