HiFiBerry Digi+ I/O

HiFiBerrySKU: MMP-0926
Price:
Sale price £55
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Compatible with:

Awesome Extras

HighPiHighPi Raspberry Pi 4 Model B Case
Sale price £9.70 incl. VAT excl. VAT
The Pi HutPremium RCA to RCA cable
Sale priceFrom £4.50 incl. VAT excl. VAT
The Pi HutTOSLINK Digital Audio Cable - 2m
Sale price £4 incl. VAT excl. VAT

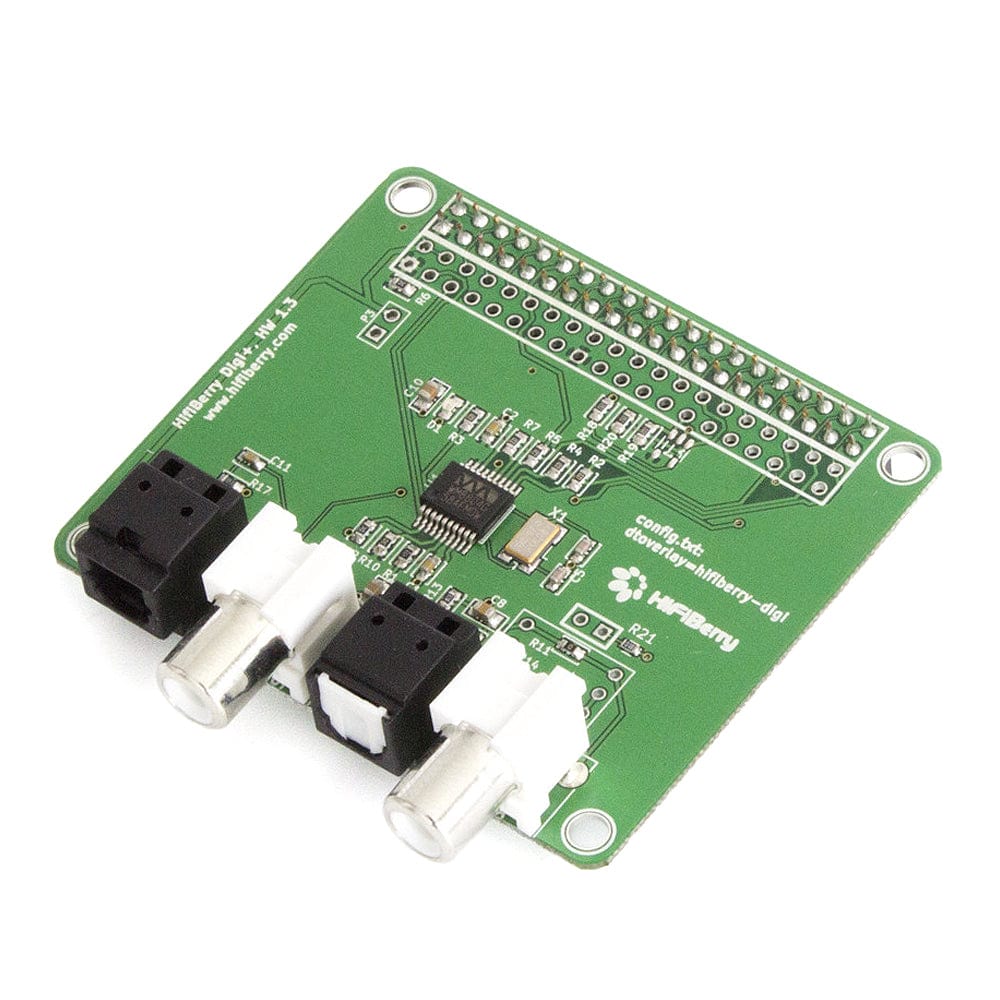

HiFiBerry Digi+ I/O is a high-quality S/PDIF card for any 40-pin model of Raspberry Pi.

It uses the I2S sound port that connects directly to the CPU without the need for an additional USB conversion. It does not only feature an output (optical and electrical) but also inputs (both optical and electrical).

If you need a case for the HiFiBerry Digi+ I/O, check out the steel HiFiberry Digi+ V2 case or the affordable HighPi Case.

Features

  • Dedicated S/PDIF interface chip supports up to 192kHz/24bit resolution
  • Optical (Toslink) and electrical outputs
  • Bit-perfect output, audio data stream will not be modified in any way
  • Connects directly to the Raspberry Pi, no additional cables needed
  • No soldering. The Digi+ comes as a pre-fabricated kit. The board conforms to the Raspberry Pi hardware-attached-on-top (HAT) specification.
  • Directly powered from the Raspberry Pi, no additional power supply
  • Optional: high-bandwidth output transformer provides full galvanic isolation of the electrical output (not in the standard version)
  • Integrated EEPROM for automatic configuration (with write-protection).
  • Comes with all components required to mount it. We include 4 M2.5x12mm spacers to fix the board onto the Raspberry Pi.

Important note: While the hardware is able to output DTS/Dolby Digital, software has to be adapted to support this. HiFiBerry will support the developers to implement this. Unfortunately we can’t guarantee that this feature will work with specific software. Please ask the developers of the software if this is supported.
