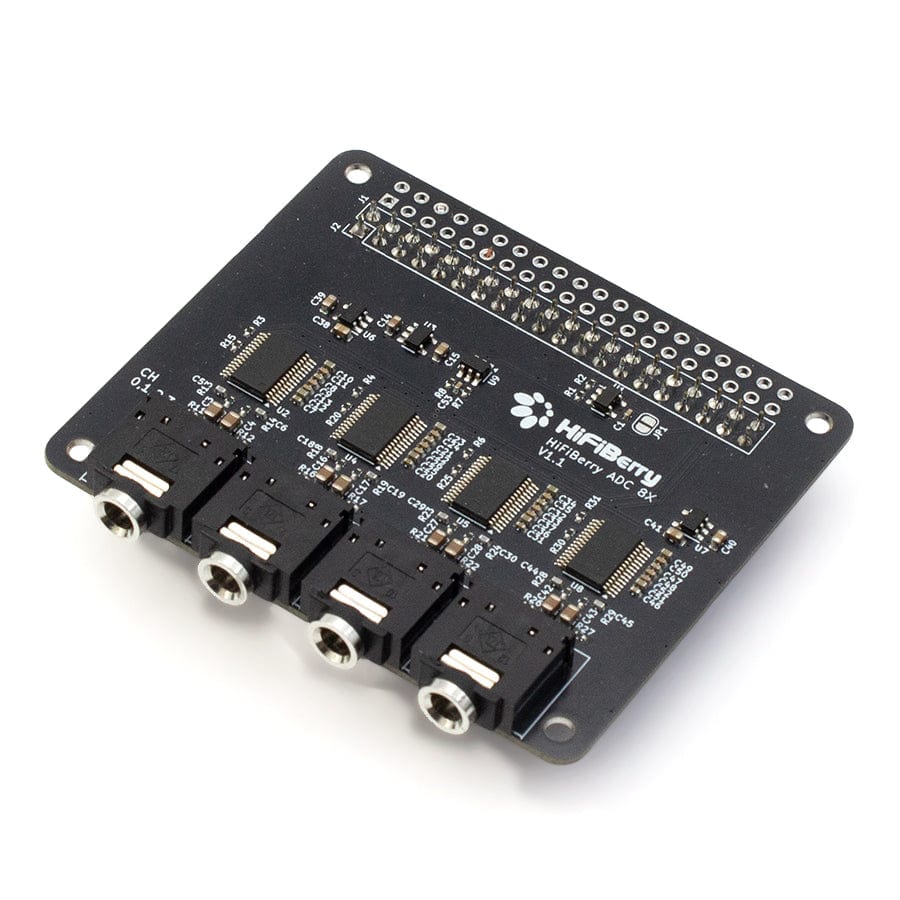

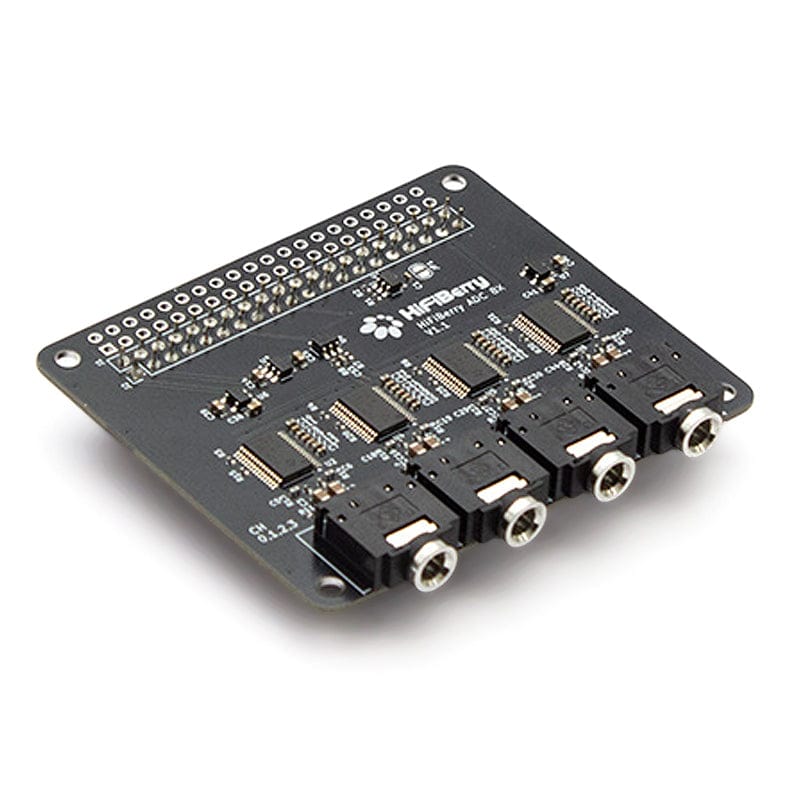

The ADC8x is an add-on for the HiFiBerry DAC8X for Raspberry Pi 5. It adds 8 input channels to the DAC8X, providing it with eight analog input ports!
This product can’t be used standalone! You need a HiFiBerry DAC8X to use this board.
The DAC8X is already a powerful, compact, and cost-effective solution for creating multi-channel audio players. But you’ve asked for more - specifically, analog input functionality. Your requests have been heard!
The new ADC8X add-on adds eight analog input ports to the DAC8X. Designed for simplicity, the ADC8X connects directly to the header on the DAC8X, unlocking an array of possibilities:
Analogue audio crossovers
Multi-channel effects processing
Audio mixers and routing engines
And so much more!

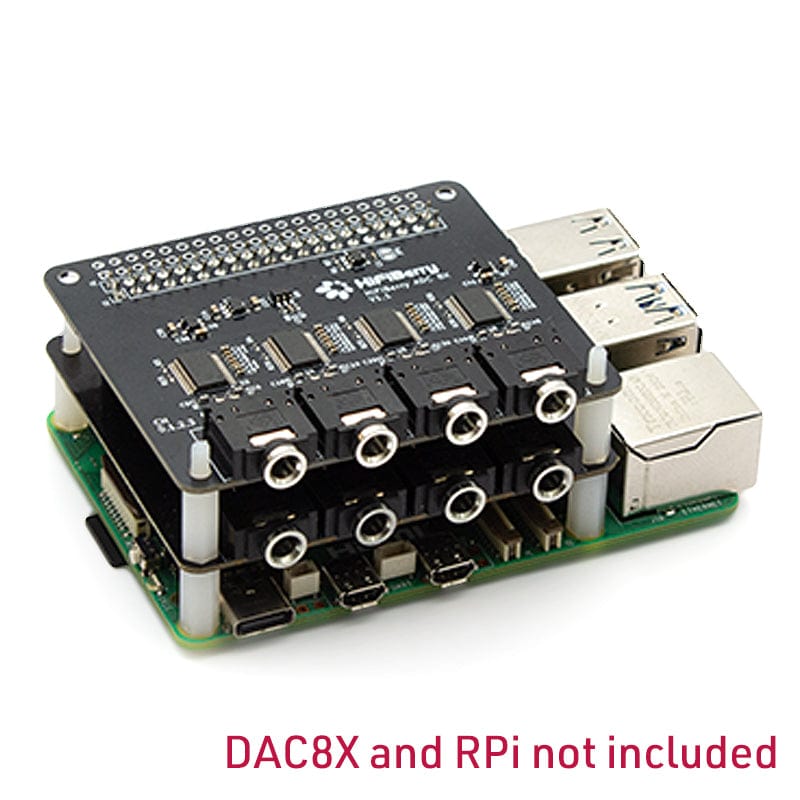

DACX board and Raspberry Pi not included
Features
8-channel input
Four dedicated 192kHz/24bit high-quality Burr-Brown ADCs
Connects directly to the DAC8x, no additional cables needed
No soldering, comes as a pre-fabricated kit. You just plug it into the DAC8x
Compatible with all Raspberry Pi 5 and the DAC8x
Directly powered from the Raspberry Pi, no additional power supply
Two ultra-low-noise linear voltage regulators for optimal audio performance
