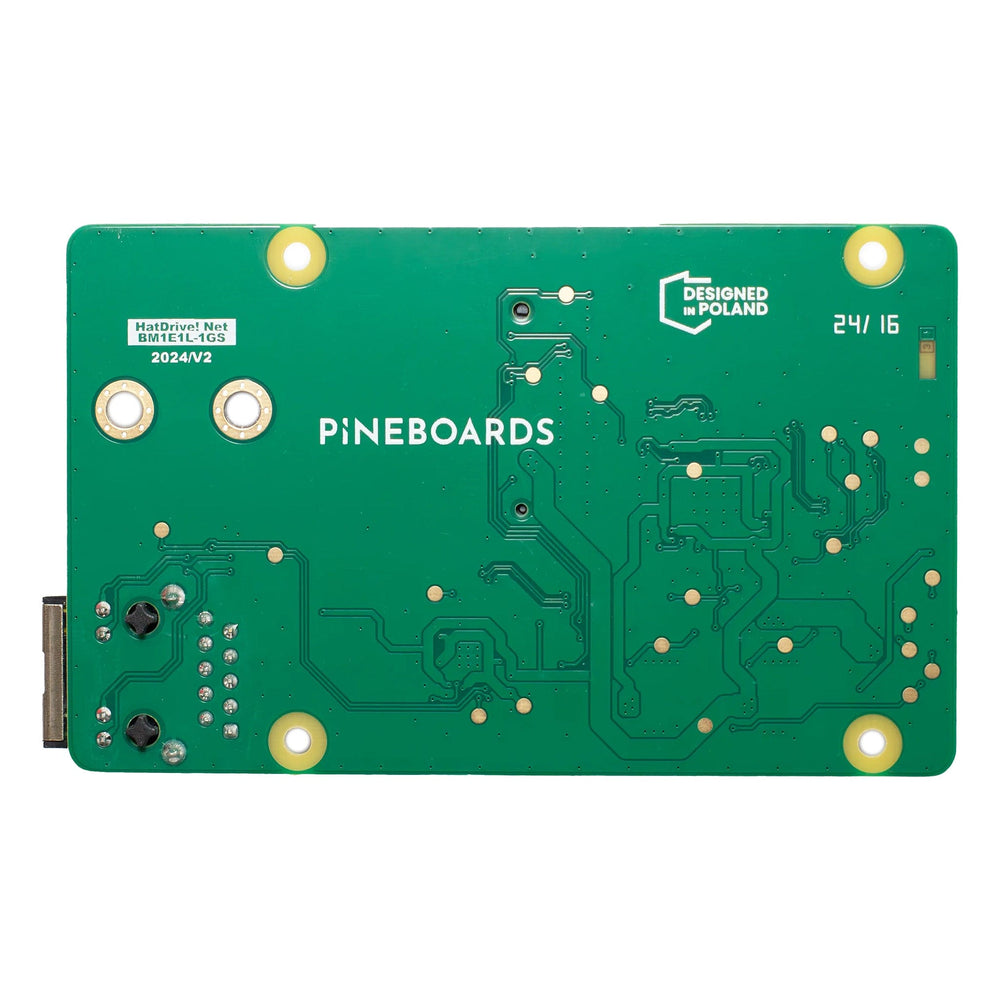

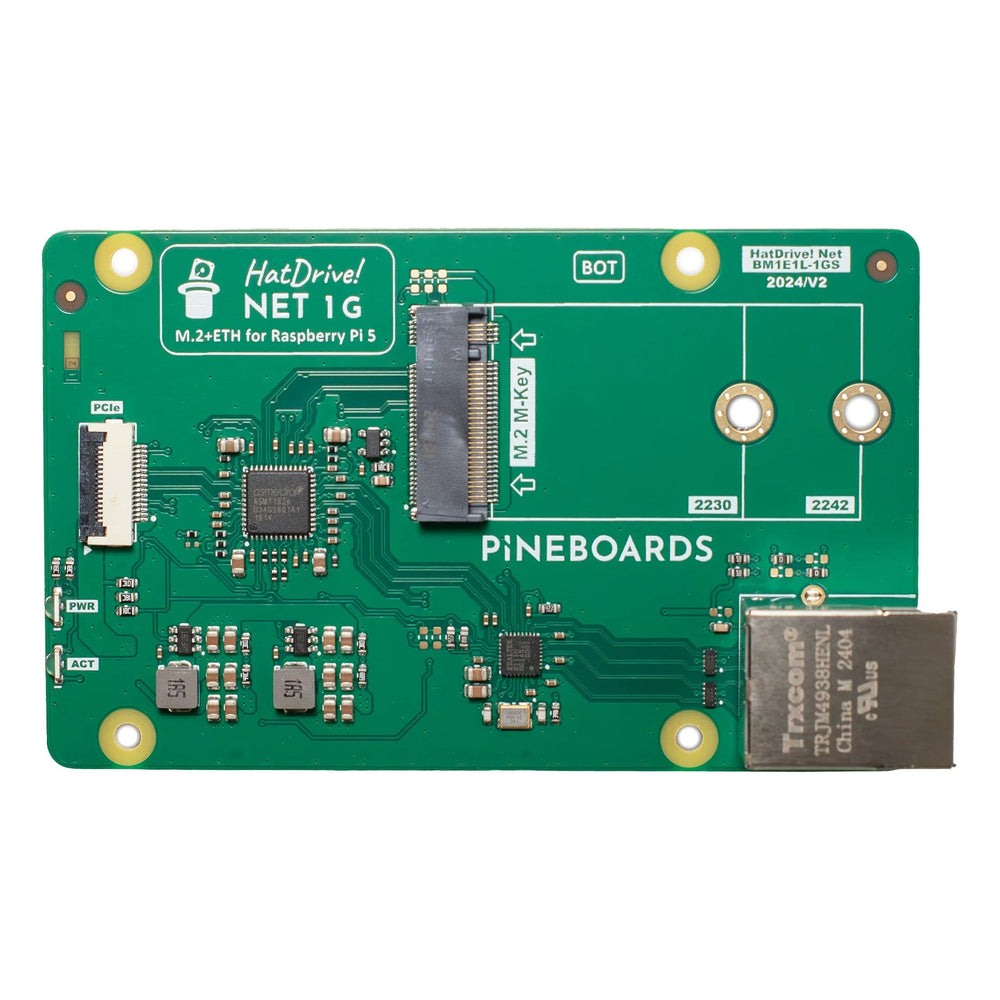

HatDrive! NET 1G for Raspberry Pi 5

Price:
Sale price £43.90
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Compatible with:

Awesome Extras

Pinedrive 256GB NVMe SSD (2242) - The Pi HutPinedrive 256GB NVMe SSD (2242) - The Pi Hut
PineboardsPinedrive 256GB NVMe SSD (2242)
Sale price £47 incl. VAT excl. VAT
Layer Case for Pineboards HATsLayer Case for Pineboards HATs
The Pi HutLayer Case for Pineboards HATs
Sale price £8 incl. VAT excl. VAT
PCIe FPC Bundle - The Pi HutPCIe FPC Bundle - The Pi Hut
PineboardsPCIe FPC Bundle
Sale price £7.10 incl. VAT excl. VAT
XL PCIe FPC BundleXL PCIe FPC Bundle
PineboardsXL PCIe FPC Bundle
Sale price £7.10 incl. VAT excl. VAT
Pure Copper RJ45 Cat5e Ethernet LAN Cable (2m) - The Pi Hut
Raspberry Pi 5 - The Pi HutRaspberry Pi 5 - The Pi Hut
Raspberry PiRaspberry Pi 5
Sale priceFrom £46.60 incl. VAT excl. VAT
Raspberry Pi 5 Starter KitRaspberry Pi 5 Starter Kit
The Pi HutRaspberry Pi 5 Starter Kit
Sale priceFrom £82 incl. VAT excl. VAT
Official Raspberry Pi Keyboard & Mouse - The Pi HutOfficial Raspberry Pi Keyboard & Mouse - The Pi Hut
Raspberry PiOfficial Raspberry Pi Keyboard & Mouse
Sale priceFrom £7.60 incl. VAT excl. VAT
Raspberry Pi 27W USB-C Power Supply - The Pi HutRaspberry Pi 27W USB-C Power Supply - The Pi Hut
Raspberry PiRaspberry Pi 27W USB-C Power Supply
Sale price £11.60 incl. VAT excl. VAT

Introducing the HatDrive NET 1G, a PCIe expansion board from Pineboards specifically designed to enhance the Raspberry Pi 5 with dual functionality: high-speed NVMe storage capability and reliable Gigabit Ethernet connectivity.

This expansion board combines support for a 2242 or 2230 NVMe drive (not included) with Gigabit Ethernet connectivity.

The HatDrive NET 1G represents a significant advancement in expansion capabilities for the Raspberry Pi 5, addressing the growing demand for integrated storage and networking solutions. Whether you're building a home server, a network-attached storage system, or an advanced computing project, the HatDrive NET 1G provides the necessary tools to achieve high performance, reliability, and efficiency.

We also stock a layer case for this HAT!

NVMe drive and Raspberry Pi 5 not included

Will my NVMe SSD work with this board?

Pineboards maintain an NVMe compatibility list showing which drives work with their NVMe boards.

Other NVMe drives may work however the link above shows all fully tested options - including the Pinedrive 2242 NVMe SSD we stock in the store.

PCIe FPC Bundles now available

In case you are thinking about integrating this board into your custom project, don't overlook the optional Pineboards PCIe FPC Bundle. Utilising the 100mm ribbon cable will provide you with added flexibility during the installation process of our boards.

We now stock an XL version of the bundle too!

Features

  • Designed for Raspberry Pi 5: The HatDrive NET 1G is perfectly tailored to fit and function with the Raspberry Pi 5, ensuring compatibility and maximizing performance.
  • NVMe Storage Support: Offers support for NVMe drives in 2230 and 2242 sizes, utilizing a PCIe Gen2 interface for high-speed data access and storage, ideal for applications requiring fast read/write speeds.
  • Gigabit Ethernet Connectivity: Features a Gigabit Ethernet port powered by the Realtek RTL8111H, delivering high-speed, reliable network connections. The Ethernet plug used matches the one used by Raspberry Pi (Trxcom).It is equipped with Activity and Link LEDs, programmed to provide visual feedback on network status, enhancing usability and diagnostics.
  • Hardware MAC Address Allocation: Comes with a hardware MAC address from our own pool assigned by IEEE, ensuring unique and reliable network identification.
  • Quality Construction and Reliability: Built with premium components and adhering to the highest quality standards, the HatDrive NET 1G is designed for durability and long-term performance.
  • Easy Installation and Configuration: Designed with the user in mind, it offers straightforward installation of NVMe drives and simple network setup, ensuring a hassle-free user experience.

Resources

Package Contents

  • 1x HatDrive! NET 1G board
  • 1x 60mm PCIe FPC cable with controlled impedance
  • 1x M.2 drive standoff
  • 9x M2.5 screws

Raspberry Pi 5 and NVMe device not included.
