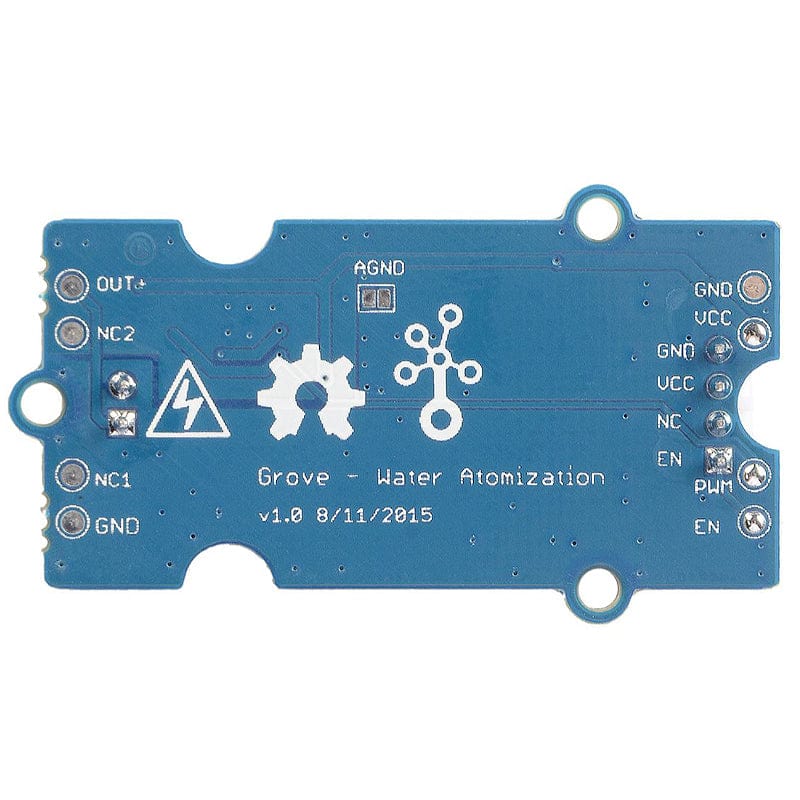

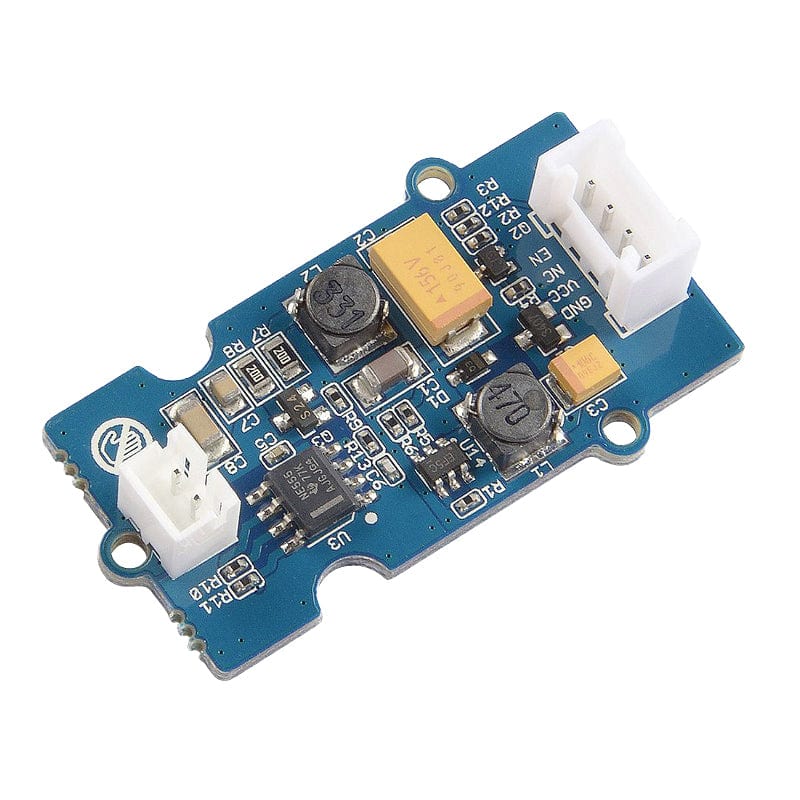

Grove - Water Atomization v1.0

Grove - Water Atomization is a perfect module for you to develop an atomizer or an atomizer module in your applications easily. With just a few simple steps, you can prototype an atomizer. It has Grove interface which makes it easy to be integrated into plenty of applications. A humidifier is a basic device it can be built with, you can develop more advanced and interesting projects with digital scent technology and any other situations in which atomization required.

Features

• Heated with ultrasound
• Easy to prototype
• Well applied to vast projects
• For various interesting, smart and fashionable applications
• Product number: Seeed 101020090

Specifications

• Operating voltage 5.0V(DC)
• ripple(at Max power) ?100 mV
• Max power 2W
• peak output voltage 65±5V
• Operating frequency 105±5kHz
• Chip ETA1617NE555
