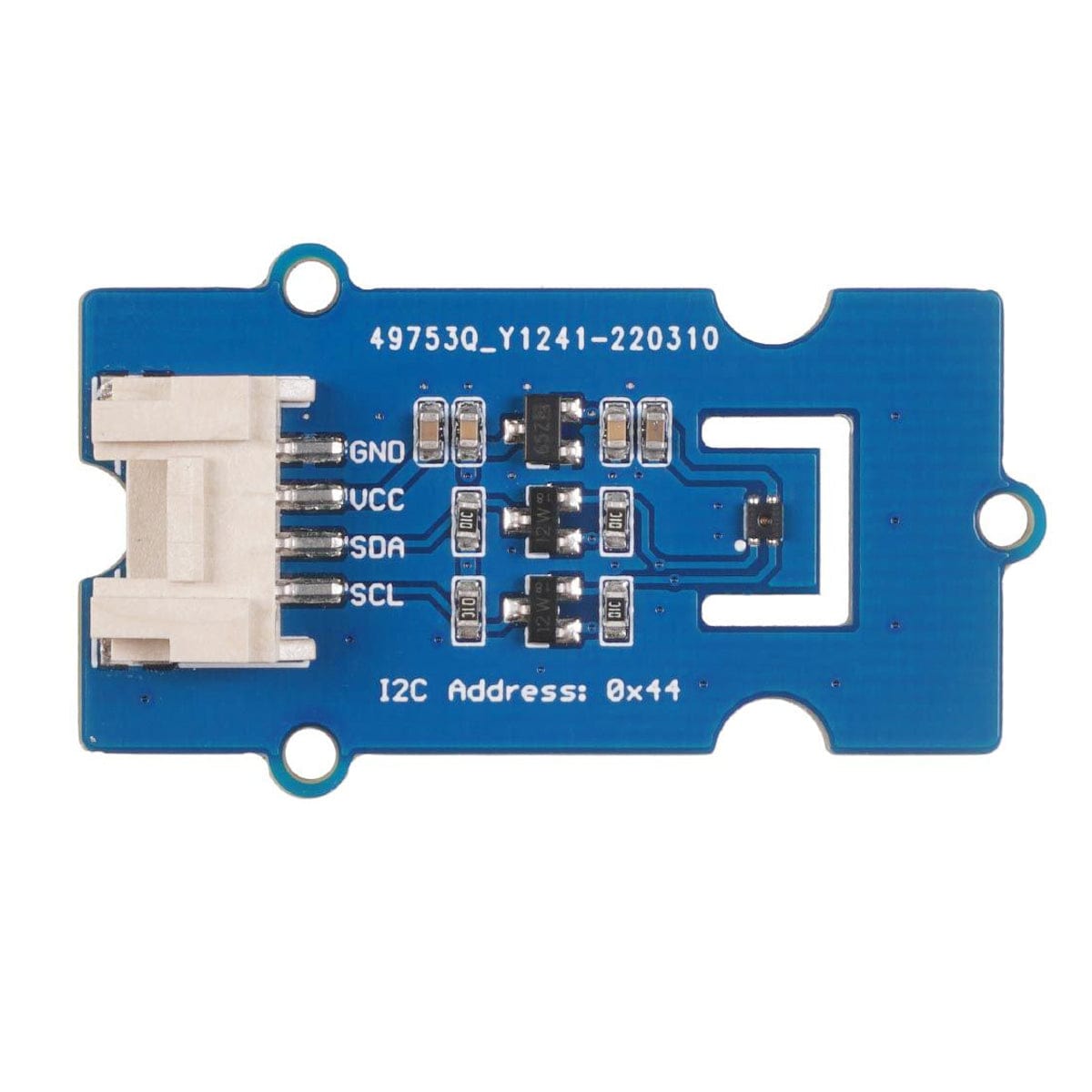

Grove - Temperature & Humidity Sensor (SHT41)

SeeedSKU: 106110
Price:
Sale price £6
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Awesome Extras

Grove - Base HAT for Raspberry Pi - The Pi HutGrove - Base HAT for Raspberry Pi - The Pi Hut
SeeedGrove - Base HAT for Raspberry Pi
Sale price £9.70 incl. VAT excl. VAT
M5Stack Unbuckled Grove Cable 1m/2m/50cm/20cm/10cm - The Pi HutM5Stack Unbuckled Grove Cable 1m/2m/50cm/20cm/10cm - The Pi Hut
M5StackM5Stack Unbuckled Grove Cable 1m/2m/50cm/20cm/10cm
Sale priceFrom £2 incl. VAT excl. VAT
Grove Base Shield V2.0 for Arduino - The Pi HutGrove Base Shield V2.0 for Arduino - The Pi Hut
SeeedGrove - Base Shield V2.0 for Arduino
Sale price £4.50 incl. VAT excl. VAT

This is a compact sensor ideal for precise environmental monitoring. It uses the latest SHT41 sensor from Sensirion, giving high measurement accuracy for both temperature and humidity. The sensor operates over a wide temperature range (-40°C to 125°C) with an accuracy of ±0.3°C and a relative humidity range of 0 to 100% with an accuracy of ±1.8%.

With the Grove interface, you are ready to plug and play the SHT41 sensor on any microcontroller, such as Arduino or Raspberry Pi. This sensor is perfect for use in weather stations, HVAC systems, home automation, or any IoT projects that require accurate environmental data. Its low power consumption also makes it suitable for battery-powered systems.

Features

  • Precision Measurement: Accuracy of ±1.8% ~ ±2.5% RH and ±0.2°C, operating between 0-100% RH and -40-125°C
  • Condensing Environments: Fully functional in condensing or environment close to saturation. (with a variable power heater)
  • Serial Protocol: Grove I2C interface with an ultra-low-power budget, standard, fast mode, and fast mode plus l2C address sensor
  • Stress-Test-Driven Qualification: SHT4x sensor is JEDEC JESD47 qualified
  • Versatile Connectivity: The Grove interface provides "Plug and Play", while its adaptability makes it ideal for environment detection
  • Product Number - Seeed 101021033

Specifications

Temperature Accuracy Rate ±0.2 ℃
Typical Humidity Accuracy Rate  ±1.8% RH
Maximum Relative Humidity Accuracy Rate ±2.5%
Operating Temperature Range   -40°C to 125°C
Operating Humidity Range        0% to 100% RH
Grove Power Supply             5/3.3 volts
Serial Protocol I2C
Grove's Average Current Supply 1.2 µA
Grove Idle Current 32µA
Product Dimensions 20mm x 40mm

Resources

Package Contents

  • 1x Grove - Temperature & Humidity Sensor (SHT41)
