Grove - Slide Potentiometer

SeeedSKU: 103337
Price:
Sale price £5.90
incl. VAT
excl. VAT
Stock:
Only 10 units left
Quantity:

Awesome Extras

SeeedGrove - Base HAT for Raspberry Pi
Sale price £9.90 incl. VAT excl. VAT
(2 Reviews)
SeeedGrove - Base HAT for Raspberry Pi Zero
Sale price £8.50 incl. VAT excl. VAT
SeeedGrove - Base Shield V2.0 for Arduino
Sale price £4.50 incl. VAT excl. VAT

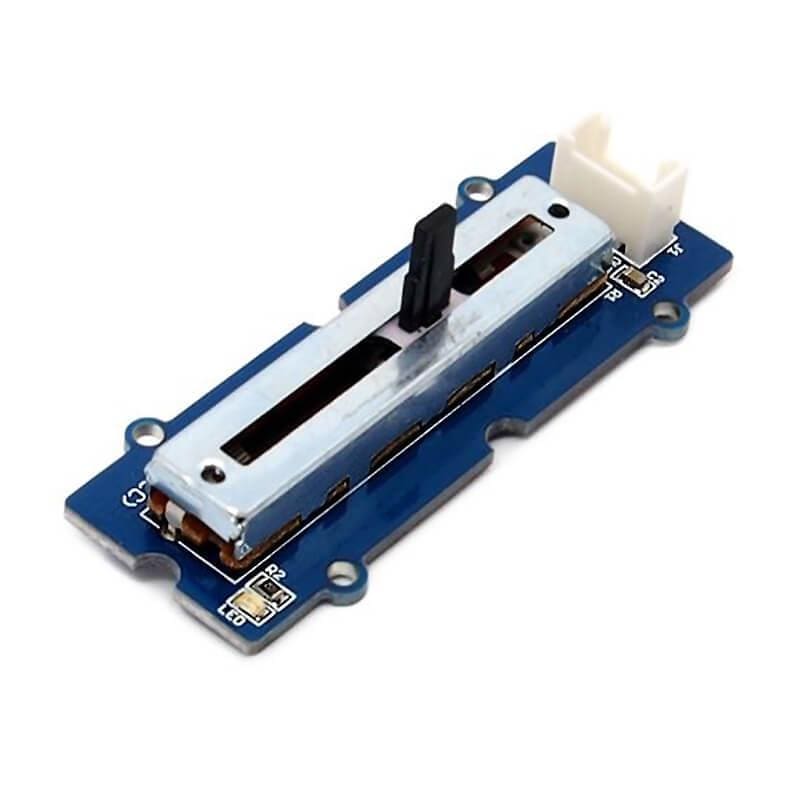

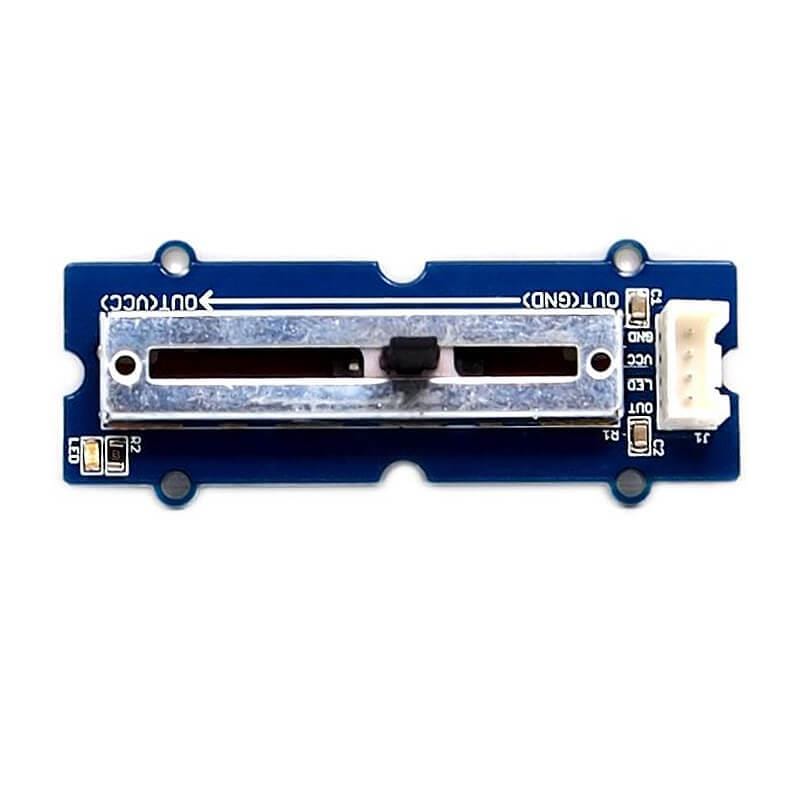

The Grove Slide Potentiometer is a linear variable resistor with a total resistance of 10k. When you move the lever from one side to the other, its output voltage will range between 0 V to the VCC you apply. Three of four Grove pins are connected to VCC, GND and the ADC IN on the slide, while the remaining pin is connected to a green indicator LED. You can use the indicator LED to visually display the change on the potentiometer.

Grove - Slide Potentiometer is compatible with both Arduino and Raspberry Pi. Please use a Base Shield V2 to connect it with your Arduino boards and use a Base HAT for Raspberry Pi to connect with your Raspberry Pi.

We also stock the Grove Rotary Angle Sensor (Rotary Potentiometer).

Features

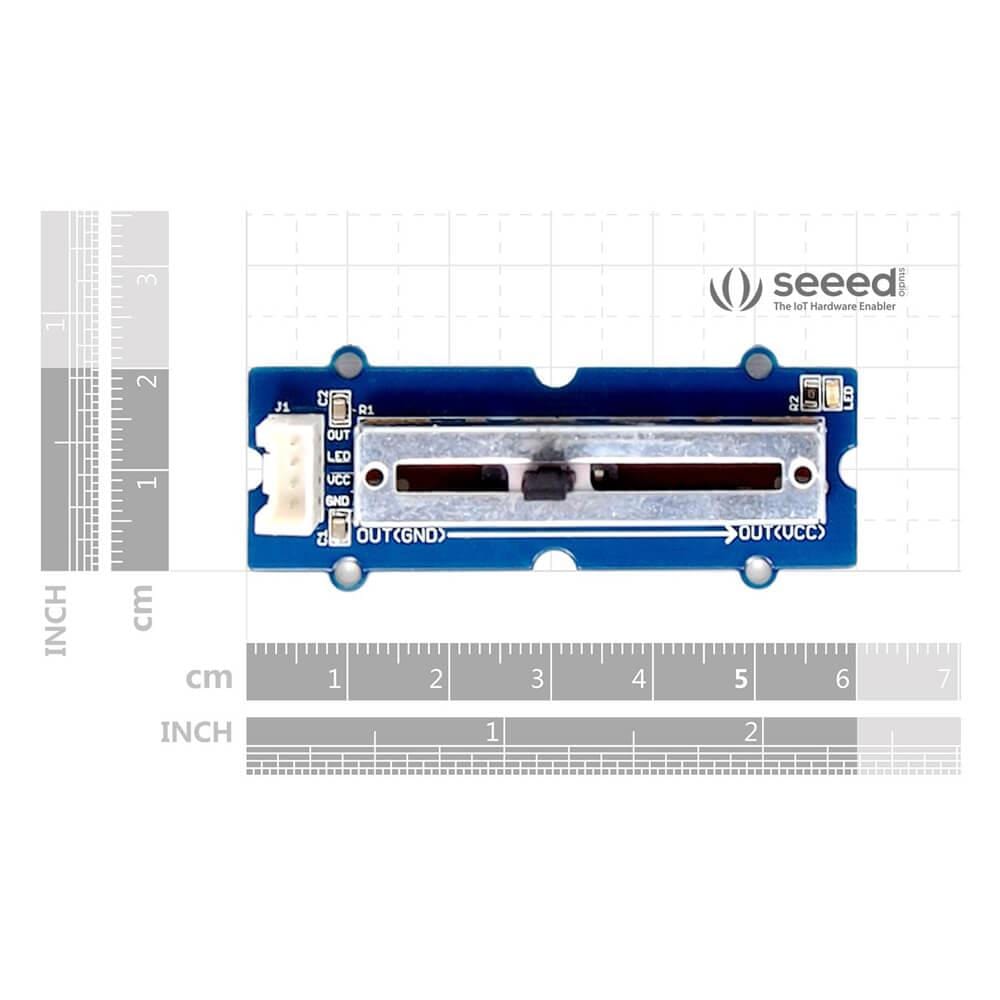

  • 30 mm long slide length
  • Linear resistance taper
  • Grove compatible
  • Weight: 13g

Package Contents

  • 1x Grove - Slide Potentiometer

Resources
