Grove Shield for Arduino Nano v1.2

SeeedSKU: 106122
Price:
Sale price £2.60
incl. VAT
excl. VAT
Stock:
Only 9 units left
Quantity:

Awesome Extras

Arduino Nano (with headers) - The Pi HutArduino Nano (with headers) - The Pi Hut
ArduinoArduino Nano (with headers)
Sale price £22 incl. VAT excl. VAT
Seeeduino Nano - The Pi HutSeeeduino Nano - The Pi Hut
SeeedSeeeduino Nano
Sale price £7.90 incl. VAT excl. VAT
Grove - Universal 4 Pin 20cm Unbuckled Cable (5 PCs Pack) - The Pi HutGrove - Universal 4 Pin 20cm Unbuckled Cable (5 PCs Pack) - The Pi Hut

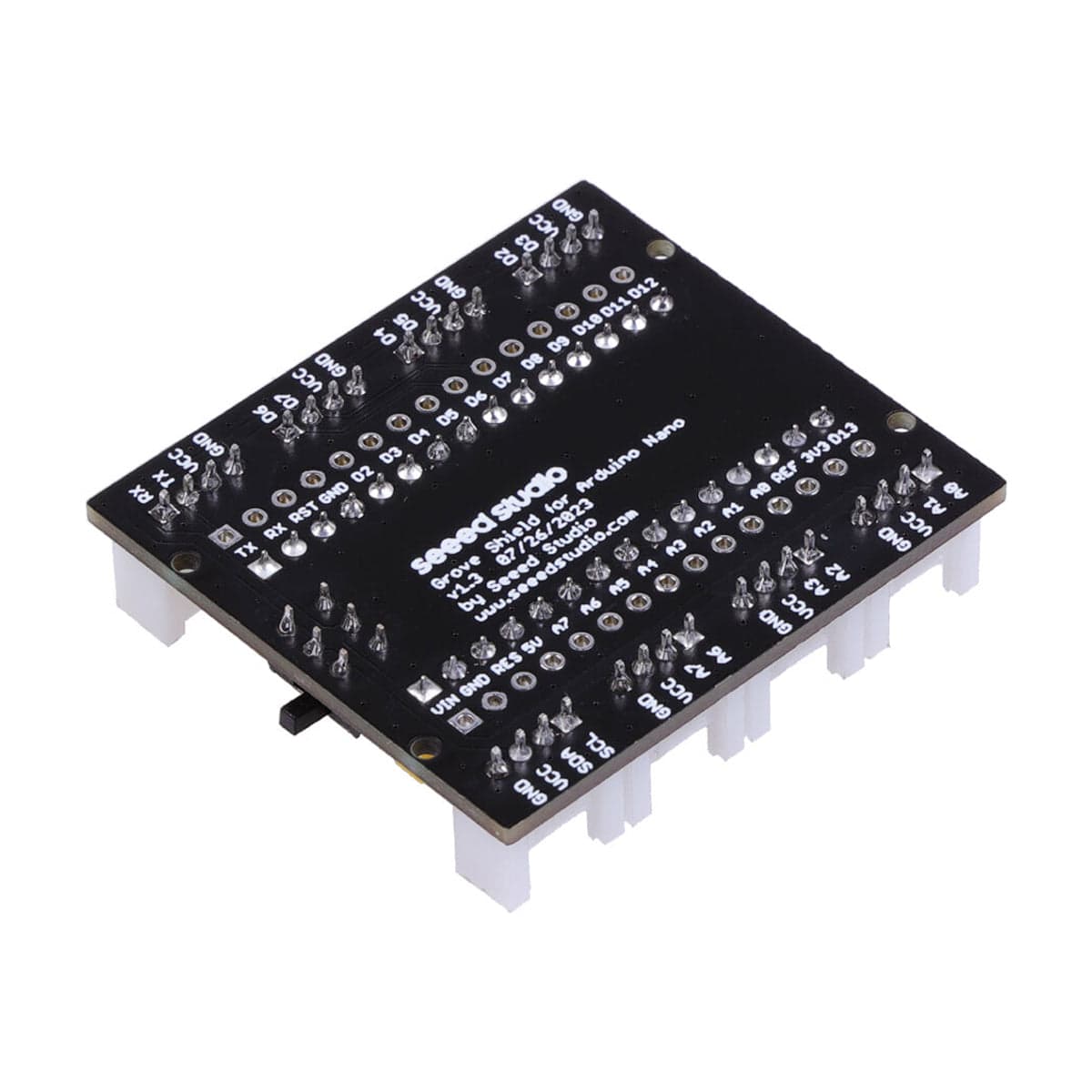

This Grove Shield for the Arduino Nano offers a simple way to connect your Arduino Nano or Seeeduino Nano without the need for breadboards and jumper wires.

It extends the motherboard's pins to 8 Grove connectors, including 3 digital, 3 analogue, 1 I2C, and 1 UART connector. This shield makes prototyping easy by making connections easier and cleaner, allowing you to focus more on your project.

Features

  • Plug the expansion board into the Arduino Nano or Seeeduino Nano and use it directly.
  • It expands to 8 Grove connectors, including 3 Grove digital connectors, 3 Grove analogue connectors, 1 Grove I2C connector, and 1 Grove UART connector.
  • The shield provides "Plug and Play" and is useful for various projects.
  • Product Number: Seeed 103100124

Specifications

Operating Voltage 3.3V/5V
Operation Temperature -25℃ to +85℃
Analogue Ports 3
Digital Ports 3
UART Ports 1
I2C Ports 1

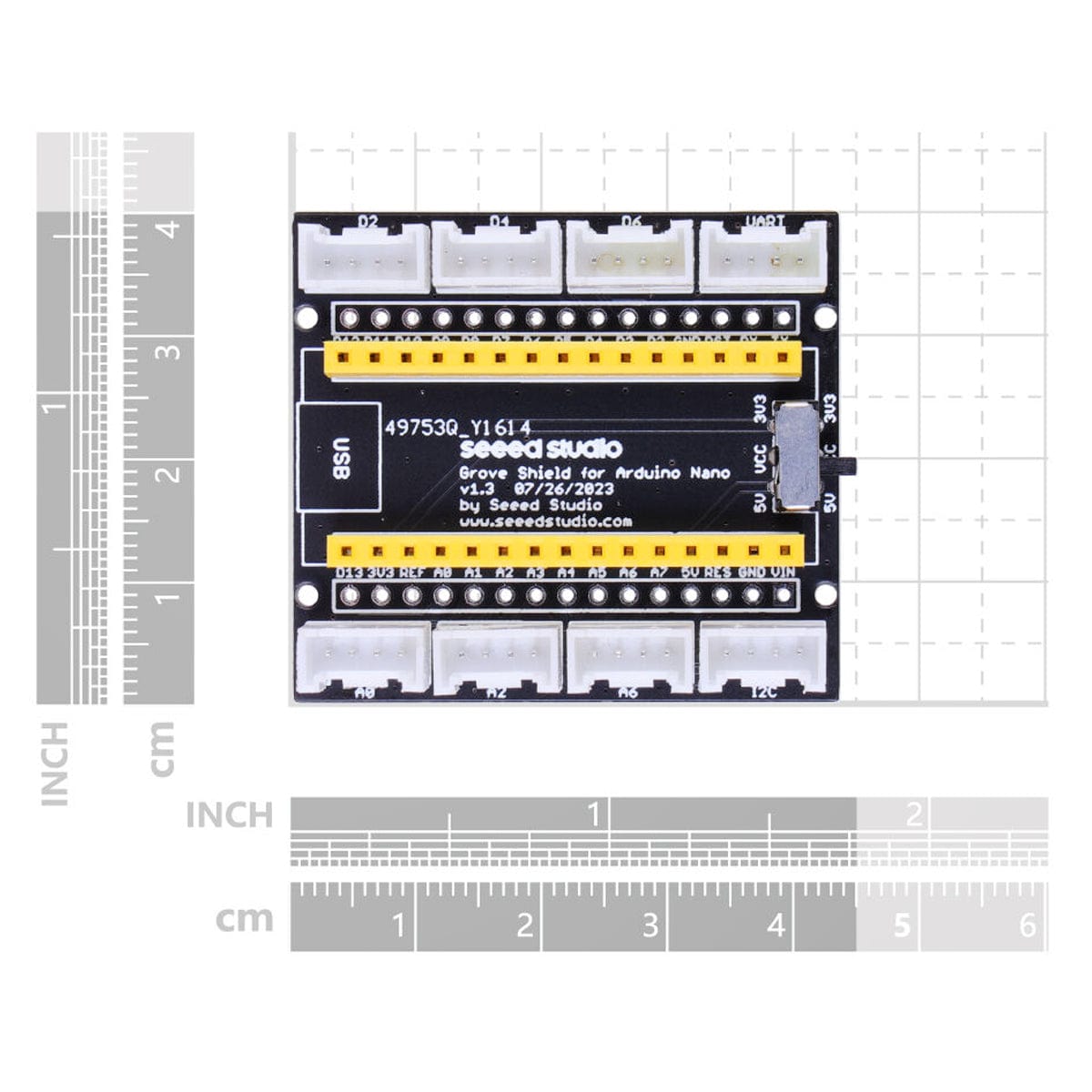

Size 45mm x 40mm

Resources

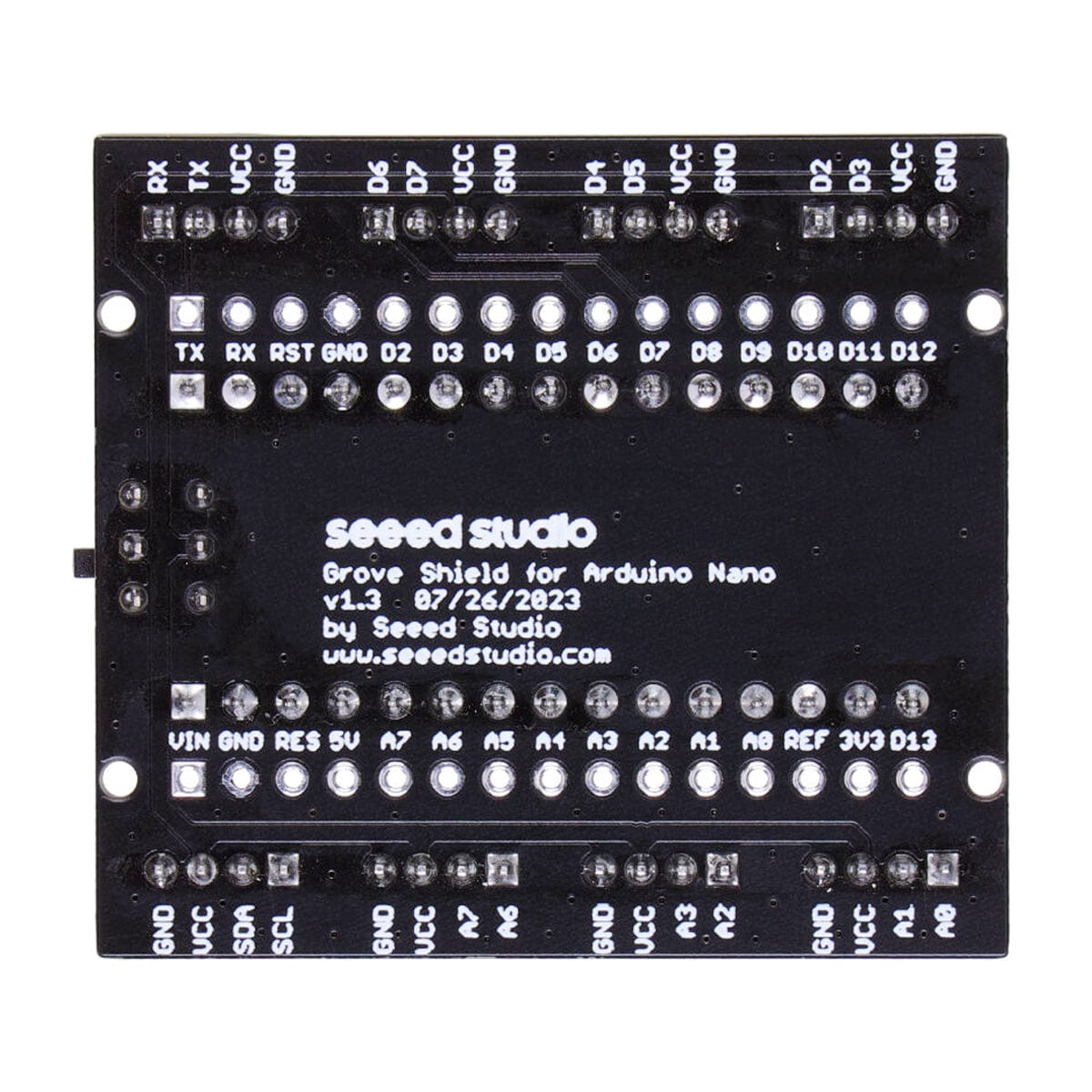

Pinout

  • 1-Analog Ports: include 3 analogue ports, A0, A2, A6.
  • 2-Digital Ports: include 3 digital ports, D2, D4, D6.
  • 3-UART Port: 1 UART port.
  • 4-I2C Ports: 1 I2C ports.

Package Contents

  • 1x Grove Shield for Arduino Nano
