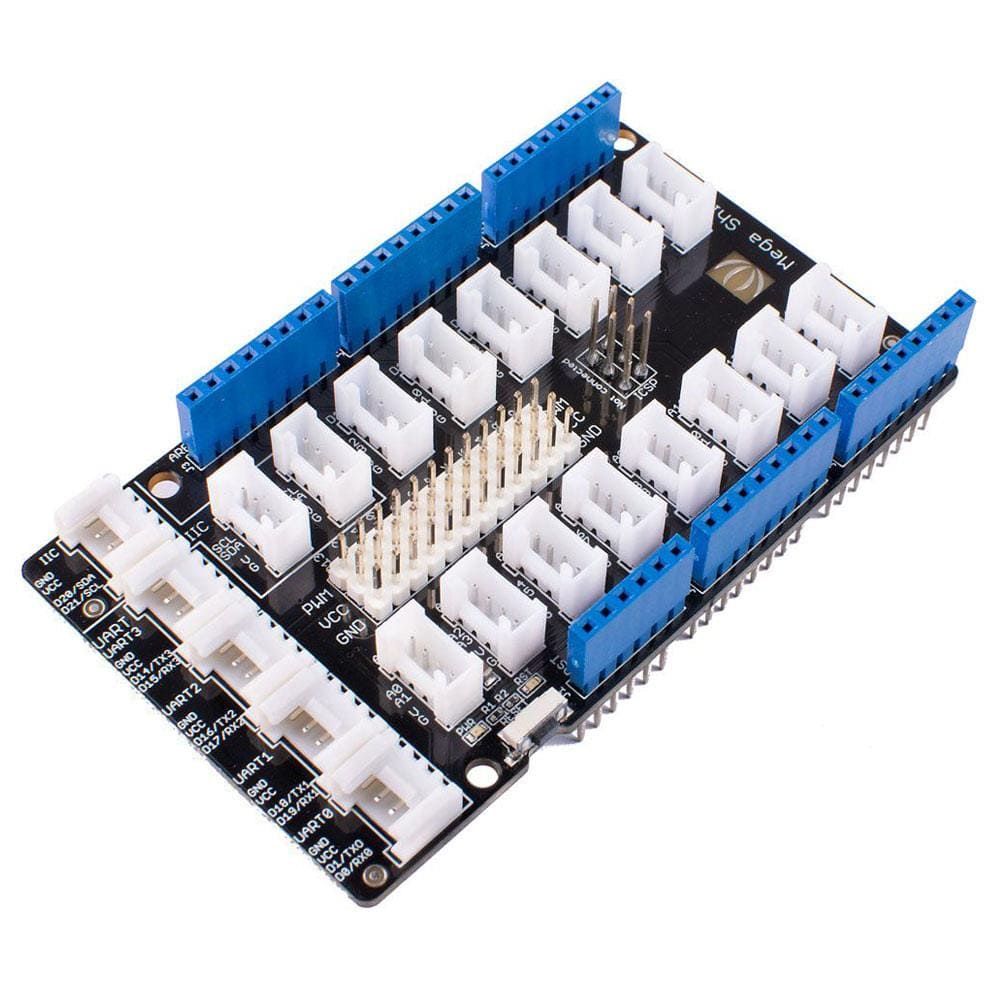

Seeed has standardised all the connectors into 4-pin (Signal 1, Signal 2, VCC and GND) 2mm connectors and kept some of the 3-pin (Signal, VCC and GND) 2.54mm headers for Servos, which simplifies the wiring of electronics projects.

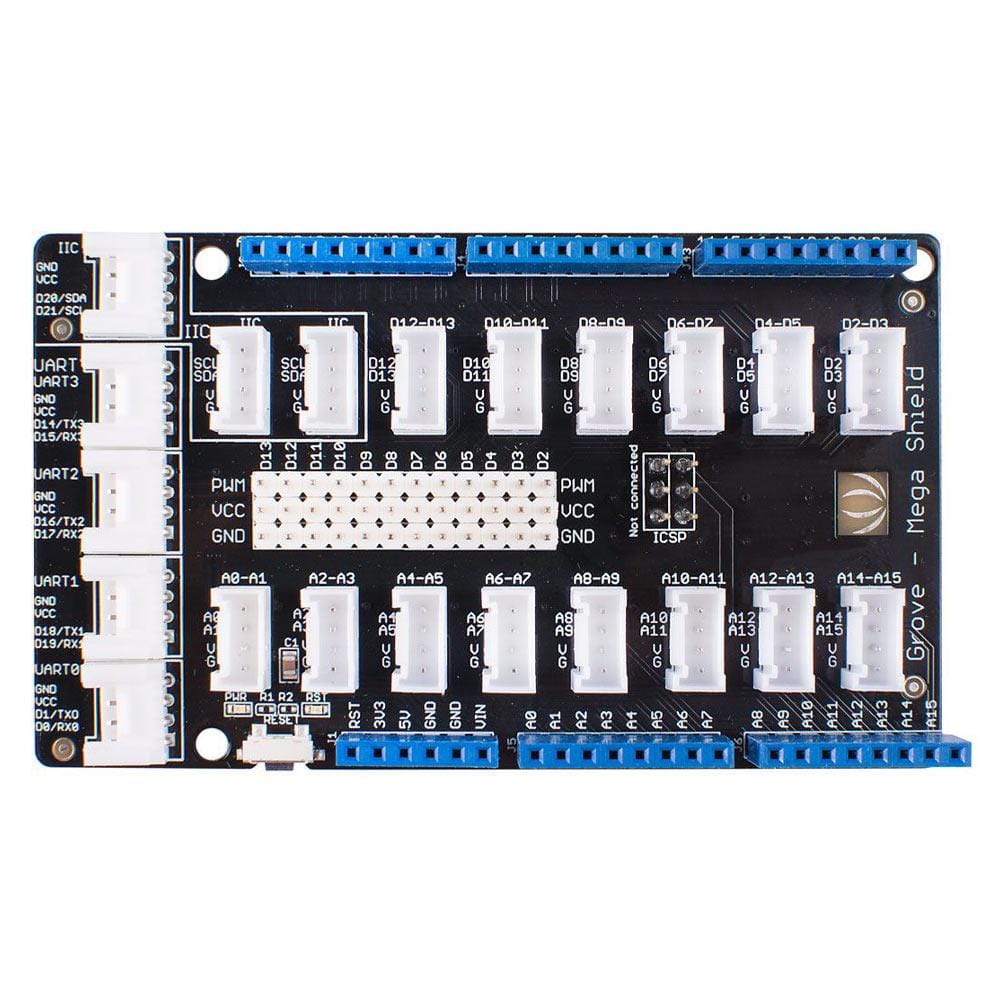

The 4-pin buckled connectors also make wiring more stable. The Mega Shield includes Digital 0-21 and Analogue 0-15. Seeed abandons the Digital 22-53 pins for easily installing the Mega Shield with the Xduino Mega/Google ADK.
- Arduino Mega1280/2560 compatible
- Grove compatible
- Pre-assembled - no soldering
- Pinouts for Servos and similar electronics
- Google ADK compatible

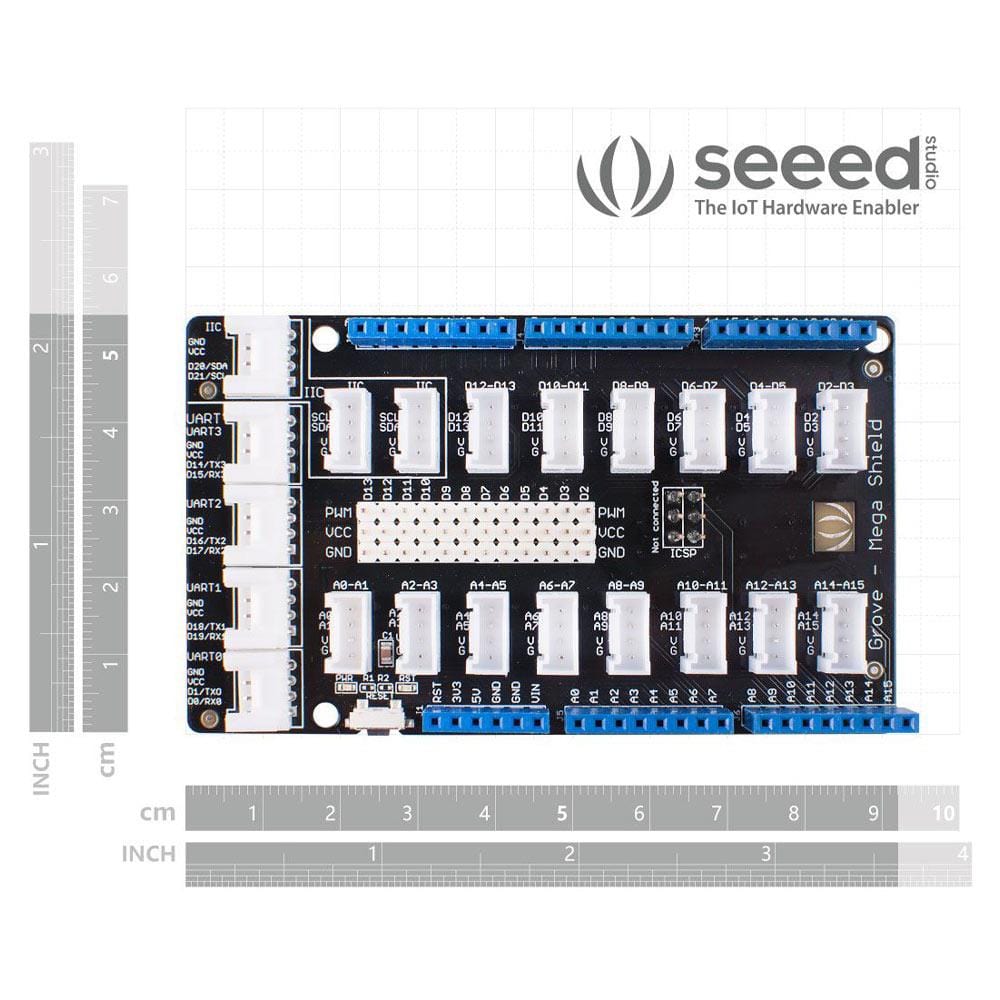

- Dimensions: 92.8mm x 57.2mm x 15mm
- Weight: 58g
- Product number: Seeed 103020027
- 1x Grove - Mega Shield V1.2
