Gravity: Industrial Stainless Steel Submersible Pressure Level Sensor (0-5m)

DFRobotSKU: KIT0139
Price:
Sale price £44.50
incl. VAT
excl. VAT
Stock:
Only 17 units left
Quantity:

Awesome Extras

DFRobotGravity: Serial Data Logger
Sale price £9.50 incl. VAT excl. VAT
DFRobotGravity: Multifunctional Environmental Sensor
Sale price £28.90 incl. VAT excl. VAT
DFRobotGravity: IO Expansion Shield for Arduino V7.1
Sale price £8.50 incl. VAT excl. VAT

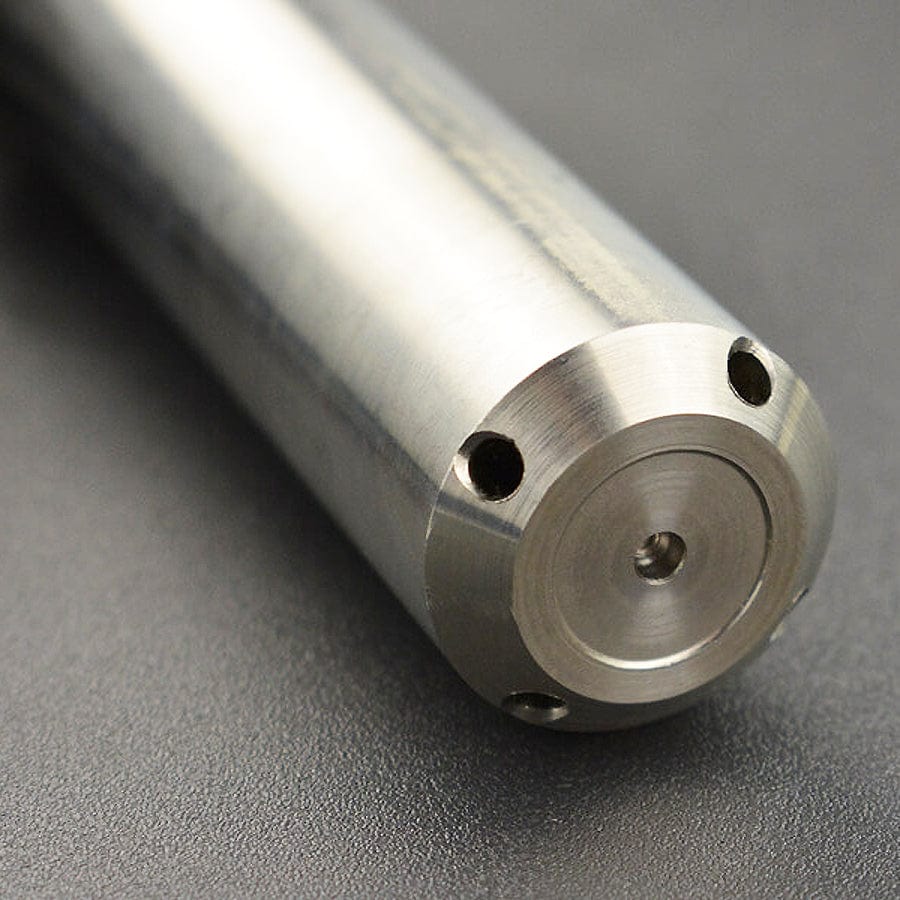

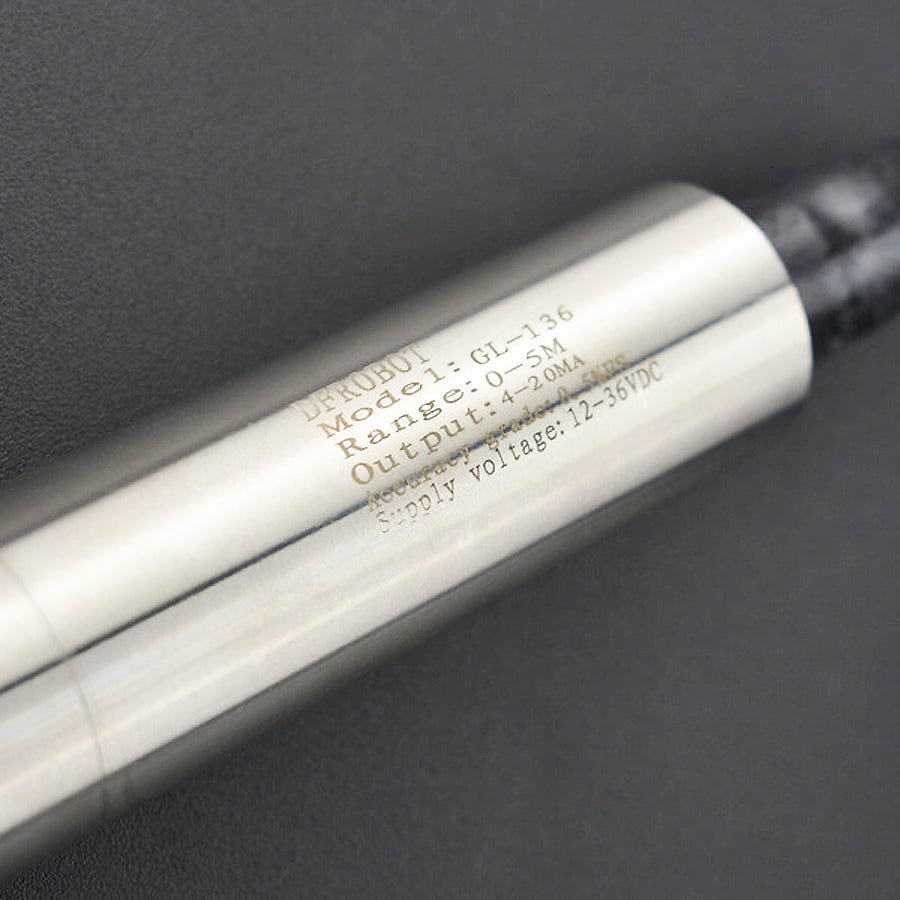

This industrial stainless steel submersible pressure level sensor adopts a high-performance pressure sensing chip, with advanced circuit processing and temperature compensation technology. The submersible pressure level sensor receives different pressures at different depths of liquid, which can be converted into corresponding current signals and output through the sensor. In this way, the depth of liquid can be measured.

The shell of the pressure level sensor is made of stainless steel - anti-corrosion and easy to clean. It can be directly placed in a liquid like water or oil. This product can provide a steady performance in all sorts of measurement conditions such as a river, reservoir or tanks.

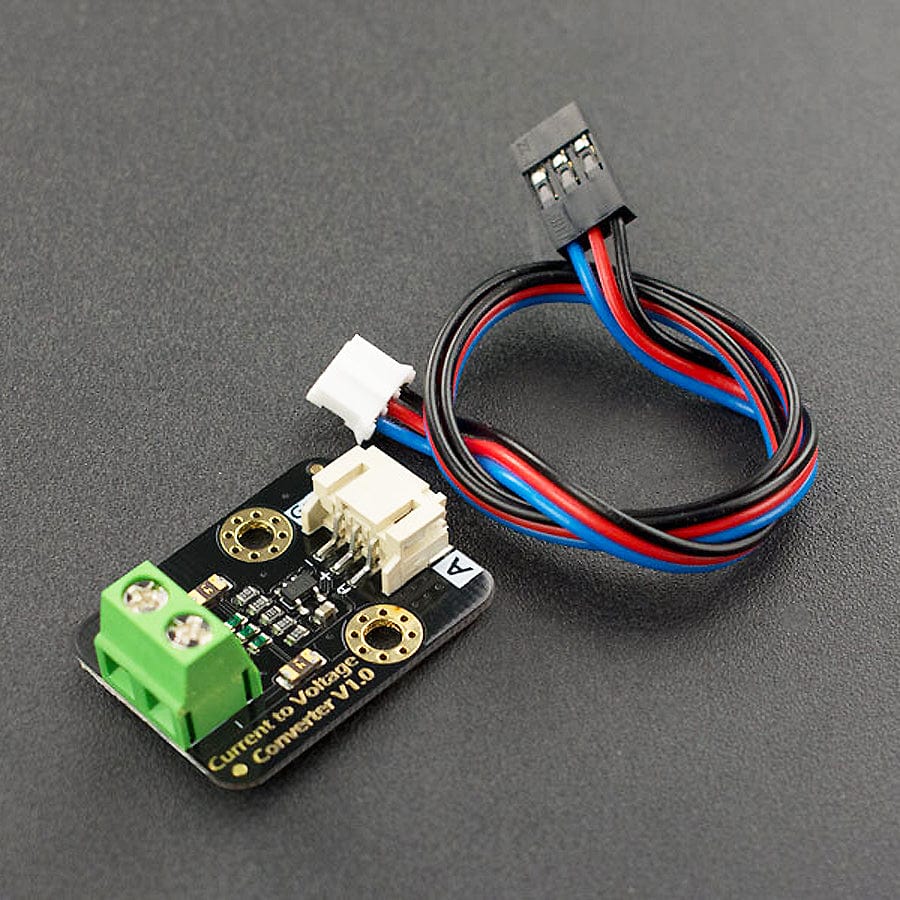

We sell this product together with our Gravity: Analog Current to Voltage Converter. The converter can convert current into a voltage signal which can be read by your Arduino controllers or other development boards.

Notes

  • Please connect the power supply exactly as the connection instruction
  • The product is a precision device, so it is not allowed to disassemble and crash the device or make it fall from a high place, what’s more, don’t touch its diaphragm with any sharp objects in case of causing device damage
  • Power the submersible pressure level sensor up then you can use it. But it can provide more steady output after preheating for 30 minutes. Please turn off the power and stop using if any abnormality is found during use
  • The liquid level lead should be vertically downwards. Please prevent water from entering the terminal, and the joint is required to be waterproof
  • Place the liquid level probe in water, try to fix it and keep it away from the inlet

Connection Example - Arduino

Specifications

  • Cable Length: 5m
  • Measuring Range: 0-5m
  • Accuracy: 0.5%
  • Output Signal: 4-20mA
  • Operating Voltage: 12-36V
  • Operating Temperature: -20℃-70℃
  • Overload Capacity: 300%
  • Service Life: 1*10^8 Pressure Circulation (25℃)
  • Material: 316L stainless steel
  • Protection Class: IP68

Resources

Voltage Convertor Pinout

Num Label Description
1 GND Power Ground
2 VCC Power Positive (3.3~5.5V)
3 Signal Voltage Signal Output
4 I+ Current Input
5 I- Current Output

Sensor Pinout

Num Label Description

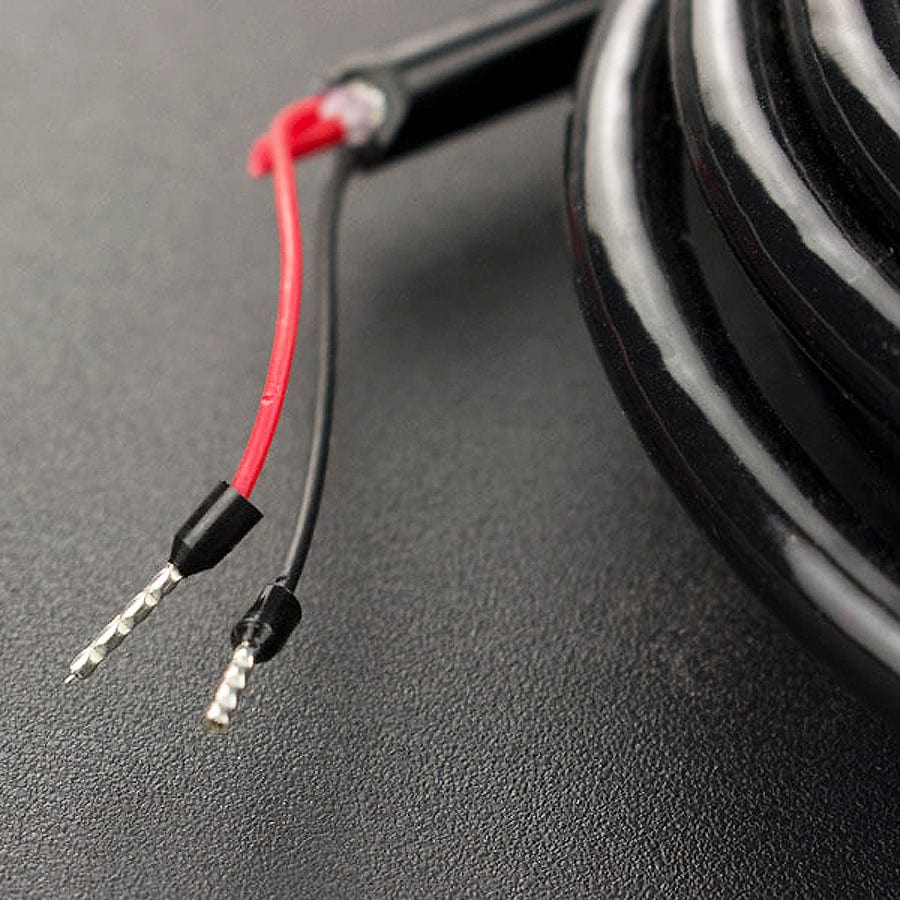

1 (red) VCC Positive pole
2 (red, thick) AIR PIPE Air guiding tube
3 (black) GND Negative pole

Package Contents

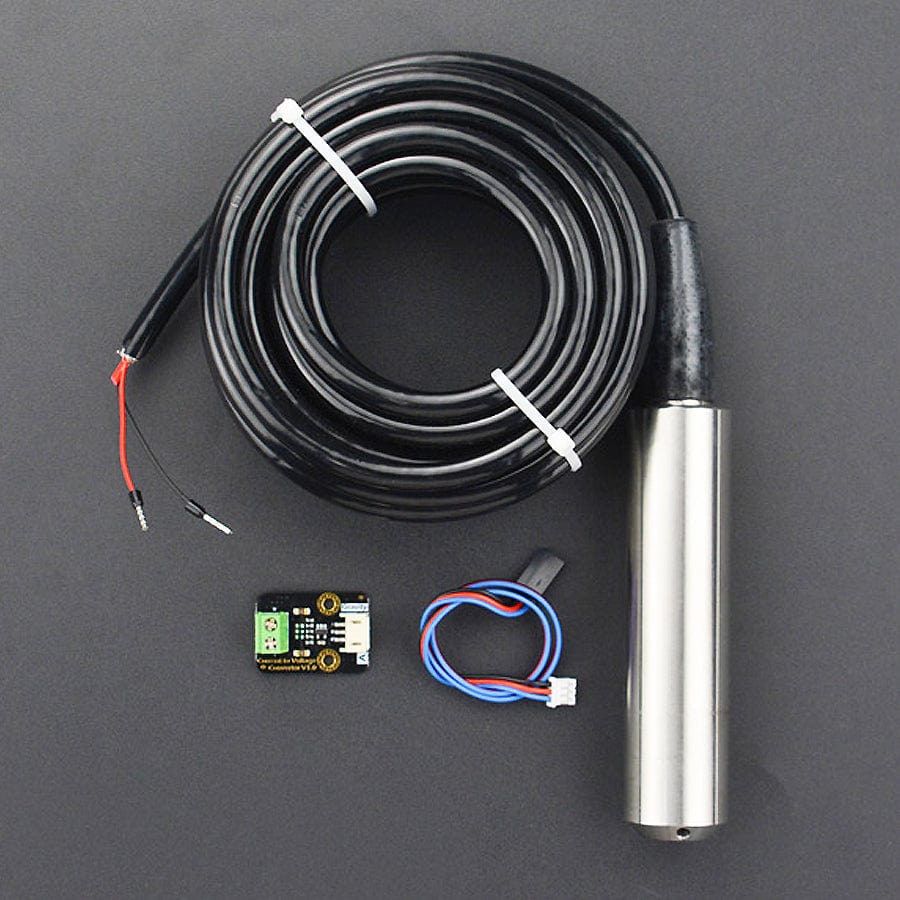

  • 1x Gravity: Industrial Stainless Steel Submersible Pressure Level Sensor (0-5m)
  • 1x Gravity: Analog Current to Voltage Converter
